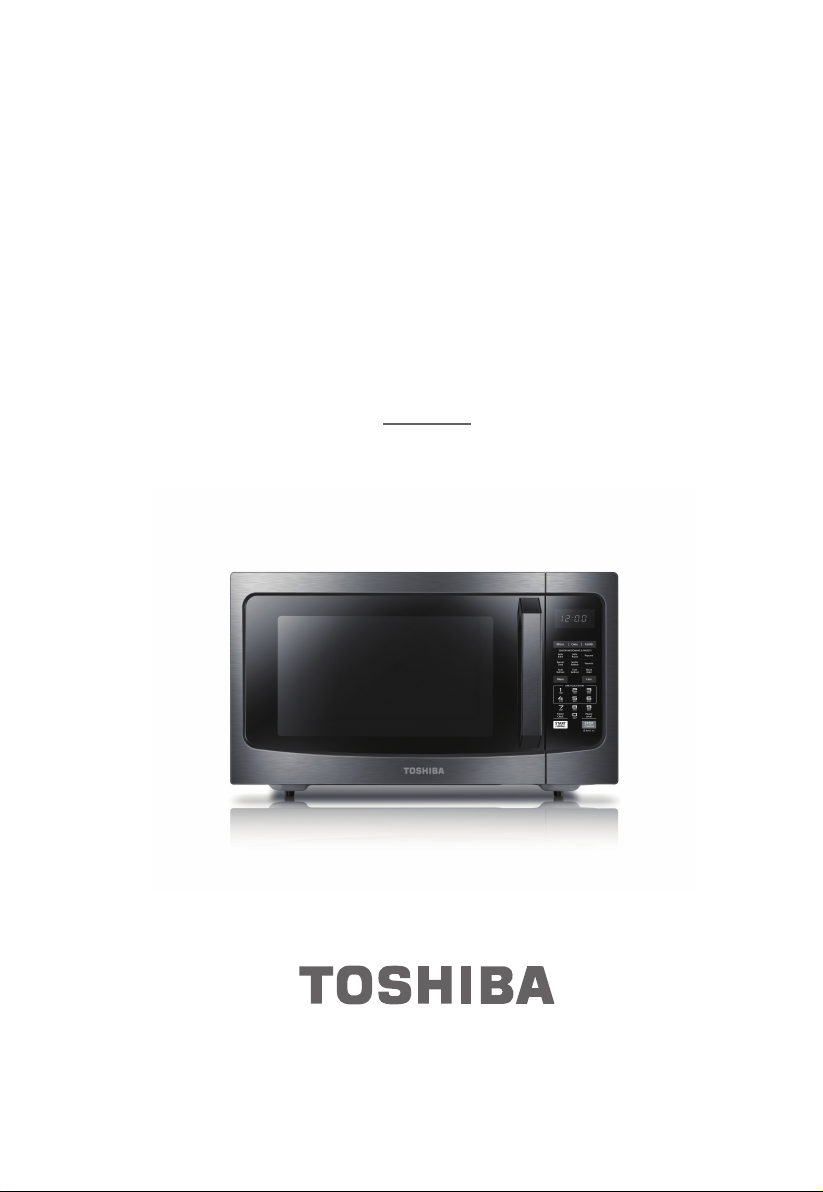

Toshiba EC042A5C-BS User manual
EC042A5C-BS
Microwave
Convection Oven
Instruction
Welcome to the world of
TOSHIBA
BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
CONTENTS
OPERATION
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
UTENSILS
SETTING UP YOUR OVEN
MAINTENANCE
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
Do not attempt to operatethis oven with thedoor open since this can result
in harmful exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
120V~ 60Hz
1000W
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Specifications
a. DOOR(bent)
b. HINGESAND LATCHES(broken orloosened)
c. DOOR SEALS ANDSEALING SURFACE
The oven should not be adjusted or reparied by anyone except properly
qualified service personnel.
Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important
that the oven door closes properly and that there is no damage to the:
Model:
1 inch/ 3 5 mm3.6 4
1. u. t. /42 Lc f5
Rated Input Power(Convection):
1500W
1 0W40
21.73X21.38X12.83 inch (552X543X326 mm)
Approx. 44.75 Lbs(20.3 kg)
1.
2.
3.
4.
EN-2
EC042A5C-BS
Read all instructions before using the appliance.
Read and follow the specific: " PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY" found on page 2.
As with most cooking appliances, close supervision is necessary to reduce the risk of
a fire in the oven cavity.
To reduce the risk of fire in the oven cavity:
This oven must be grounded. Connect only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 6.
Install or locate this oven only in accordance with the installation instructions
provided.
Some products such as whole eggs and sealed containers-for example, closed glass
jars-are able to explode and should not be heated in the oven.
1.
2.
3.
4.
5.
6.
7.
To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic safety precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Do not overcook food. Carefully attend the appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
Remove wire twist-ties and metal handles from paper or plastic containers/ bags
before placing them in the oven.
If materials inside the oven ignite, keep the oven door closed. Turn the oven off,
and unplug the appliance. Disconnect the power cord, shut off power at the fuse
or circuit breaker panel.
Do not leave paper products, cooking utensils, or food in the cavity when not in
use.
a.
b.
c.
d.
EN-3
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Use this appliance only for its intended uses as described in this manual. Do not
use corrosive chemicals or vapors in this appliance. This oven is specifically
designed to heat or cook or dry food. It is not designed for industrial or laboratory
use.
As with any appliance, close supervision is necessary when used by children.
Do not operate this oven if it has a damaged cord or plug, if it is not working properly
or if it has been damaged or dropped.
This microwave should be serviced only by qualified service personnel.
Do not cover or block any openings on the oven.
Do not store or use this appliance outdoors.
Do not use this oven near water, for example, near a kitchen sink, in a wetbasement,
near a swimming pool, or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
When cleaning surfaces of door and oven that comes together on closing the door,
use only mild, nonabrasive soaps or detergents applied with a sponge of soft cloth.
This appliance is for private household use only.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
EN-4
20. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
point without appearing to be boiling. Visible bubbling or boiling when the container
is removed from the microwave oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE
LIQUID.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Do not overheat the liquid.
Stir the liquid both before and halfway through heating it.
Do not use straight-sided containers with narrow necks.
After heating, allow the container to stand in the microwave oven for a short
time before removing the container.
Use extreme care when inserting a spoon or other utensil into the container.
a.
b.
c.
d.
e.
EN-5
CAUTION:
Do not insert your fingers into any gaps or holes; it may cause injuries.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
DANGER
WARNING
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. To
protect against electrical shock, this appliance is equipped with a cord having a 3 prong
grounding-type plug for insertion into a proper grounding-type receptacle. DO NOT alter
the plug for use in a 2-prong receptacle. If the plug will not fit into a receptacle, have the
proper receptacle installed by a qualified electrician.
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance.
An improperly grounded appliance can result in electric
shock. Do not plug into an outlet until appliance is
properly installed and grounded.
Electric Shock Hazard
Electric Shock Hazard (grounding) plug
Three-pronged
EN-6
EN-8
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
If a long cord sets or extension cord is used:
a.
b.
c.
The marked electrical rating of the cord set or extension marked electrial rating of
the cord set or extension cord should be at least as great as the electrical rating of
the appliance.
The extension cord must be a grounding -type 3-wire cord.
The longer cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-pronged grounding plug , and a 3-slot receptacle that will accept the plug on
the appliance.The marked rating of the extension cord shall be equal to or greater than
the electrical rating of the appliance.
1.
2.
3.
EN-7
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
When there is interference, it may be reduced or eliminated by taking the following
measures:
a.
b.
c.
d.
e.
Clean door and sealing surface of the oven.
Reorient the receiving antenna of radio or television.
Relocate the microwave oven with respect to the receiver.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
RADIO INTERFERENCE
EN-8
UTENSILS
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
See the instructions on "Materials you can use in microwave oven or to be avoided in
microwave oven." There may be certain non-metallic utensils that are not safe to use for
microwaving. If in doubt, you can test the utensil in question following the procedure
below.
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil
in question.
Cook on maximum power for 1 minute.
Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
Do not exceed 1 minute cooking time.
1.
2.
3.
4.
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pouches should be pierced before cooking.
UTENSIL TEST:
SAVE THESE INSTRUCTIONS
HOUSEHOLD INDOOR USE ONLY
CAUTION
Electric Shock Hazard
EN-9
