Toshiba SD-R5372 User manual

TOSHIBA AMERICA INFORMATION SYSTEMS

STORAGE DEVICE DIVISION

IRVINE, CALIFORNIA

SD-R5372

DVD REWRITEABLE DRIVE

USER MANUAL

CONTENTS

Introduction..............................................................................1

Setup ........................................................................................3

Using the DVD Rewriteable Drive...........................................7

Troubleshooting.....................................................................10

Specifications ........................................................................11

Drive Connectors...................................................................15

INTRODUCTION – SD-R5372

General Features

Reads and records digital data on DVD-R/-RW, DVD+R/+RW, DVD+R DL, CD-R/-RW, HS CD-RW and

US CD-RW discs.

Read Write

DVD-R 12X 16X* Capable

DVD+R 12X 16X

DVD-RW 6X 6X* Capable

DVD+RW 6X 8X* Capable

DVD+R DL 8X 5X

DVD-ROM 16X n/a

DVD-RAM 2X n/a

CD-ROM 48X n/a

CD-R 48X 48X

CD-RW 24X 4X

CD-DA 40X n/a

HS CD-RW - 10X

US CD-RW - 24X

* Free firmware upgrade available on Toshiba SDD Website that will boost DVD-R write speed from 12X to 16X,

DVD+RW write speed from 4X to 8X and DVD-RW from 4X to 6X..

3-way Disc Eject (eject button, software, emergency eject hole)

Average Random Access Time

CD 100ms

DVD-RAM 200ms

DVD-ROM 120ms

Horizontal or Vertical Mount

2MByte Buffer

Playback interchangeability for CD-ROM and DVD-ROM discs

Regionalization (RPC2 compliance) (DVD)

BUS Interface - ATAPI

Types of Disc Formats Supported - Write

DVD:

DVD-R, DVD-RW, DVD+R, DVD-R DL, DVD+RW

CD:

CD-R, CD-RW, High Speed CD-RW, Ultra Speed CD-RW

Types of Disc Formats Supported - Read

DVD:

DVD-ROM, DVD-R/RW, DVD+R, DVD+R DL, DVD+RW, DVD-RAM

CD:

CD-DA, CD+G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge

(Photo-CD, Video-CD), Multi-session (Photo-CD, CD-EXTRA, CD-R, CD-RW, Portfolio)

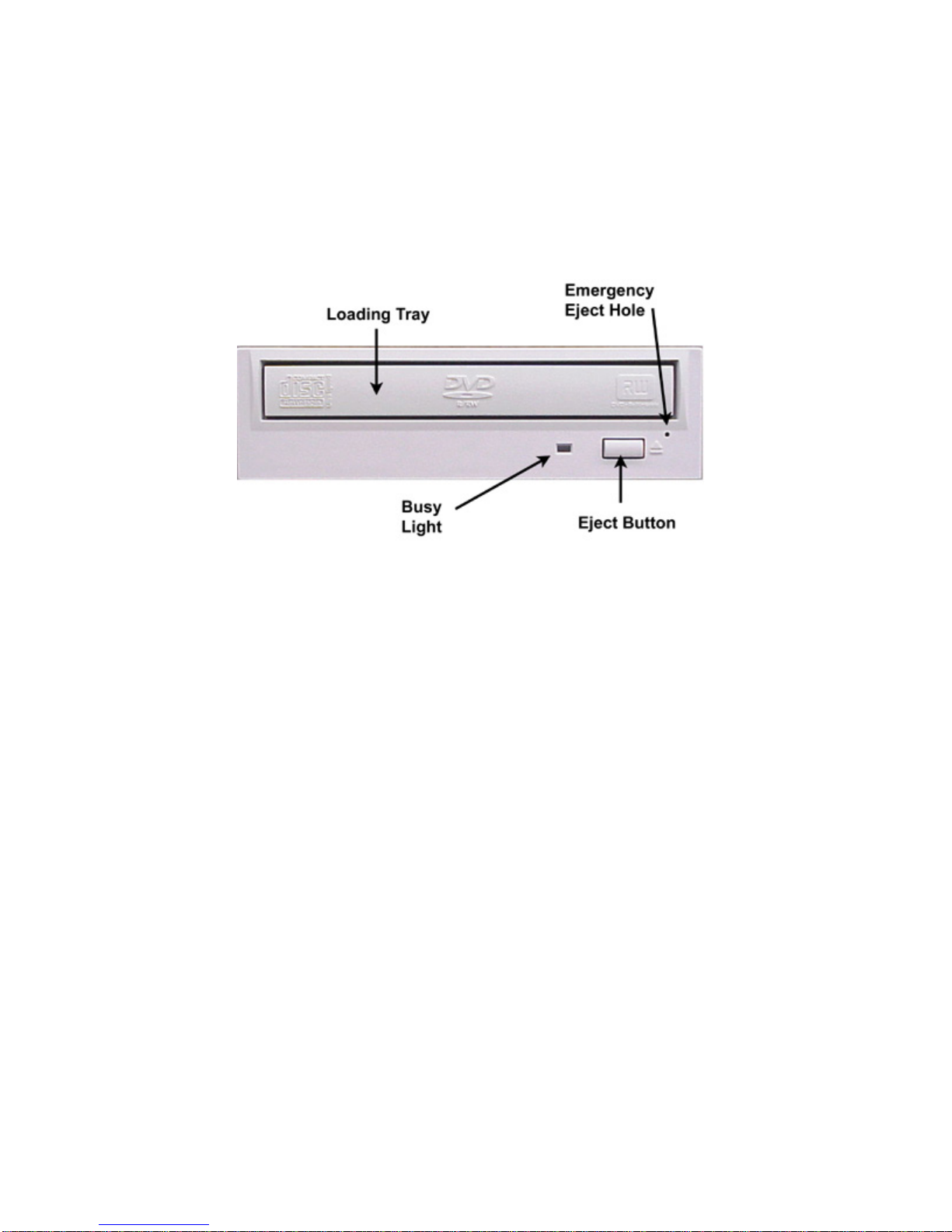

Front Panel

Figure 1.SD-R5372 DVD Writeable Drive Front Panel

Tray

Load disc using tray.

Busy Light

LED

The LED lights green or amber when the drive is operating (LED is amber when drive is

writing.)

Eject

Button

The Eject button is used to open the disc tray so you can install or remove a disc.

Emergency

Eject Hole

The emergency eject hole is to be used only when the Loading Tray will not open when

Eject button is pressed.

System Requirements

The DVD Writeable kit requires the following (If kit uses Nero6 software):

•Microsoft Windows 98SE, XP, 2000 or ME

•CPU Requirements:

300MHz minimum

800MHz for capturing to hard disc

1.6GHz for capturing to DVD video

•64MB RAM, 128MB RAM (for video editing)

•Hard Drive Space:

500MB minimum

4.8GB for DVD Images

•Screen solution 800 x 600 pixel minimum, 16 bit color depth or higher

•Windows Internet Explorer 4.0 or higher

•PCI sound card, USB audio box or motherboard built-in audio device

•TV tuner or video capture board for analog recording

SETUP – SD-R5372

The following steps must be performed to properly install your drive:

•Set Drive Jumper Settings

•Connect Audio Cable

•Attach IDE BUS Cable

•Attach Power Cable

•Mount Drive

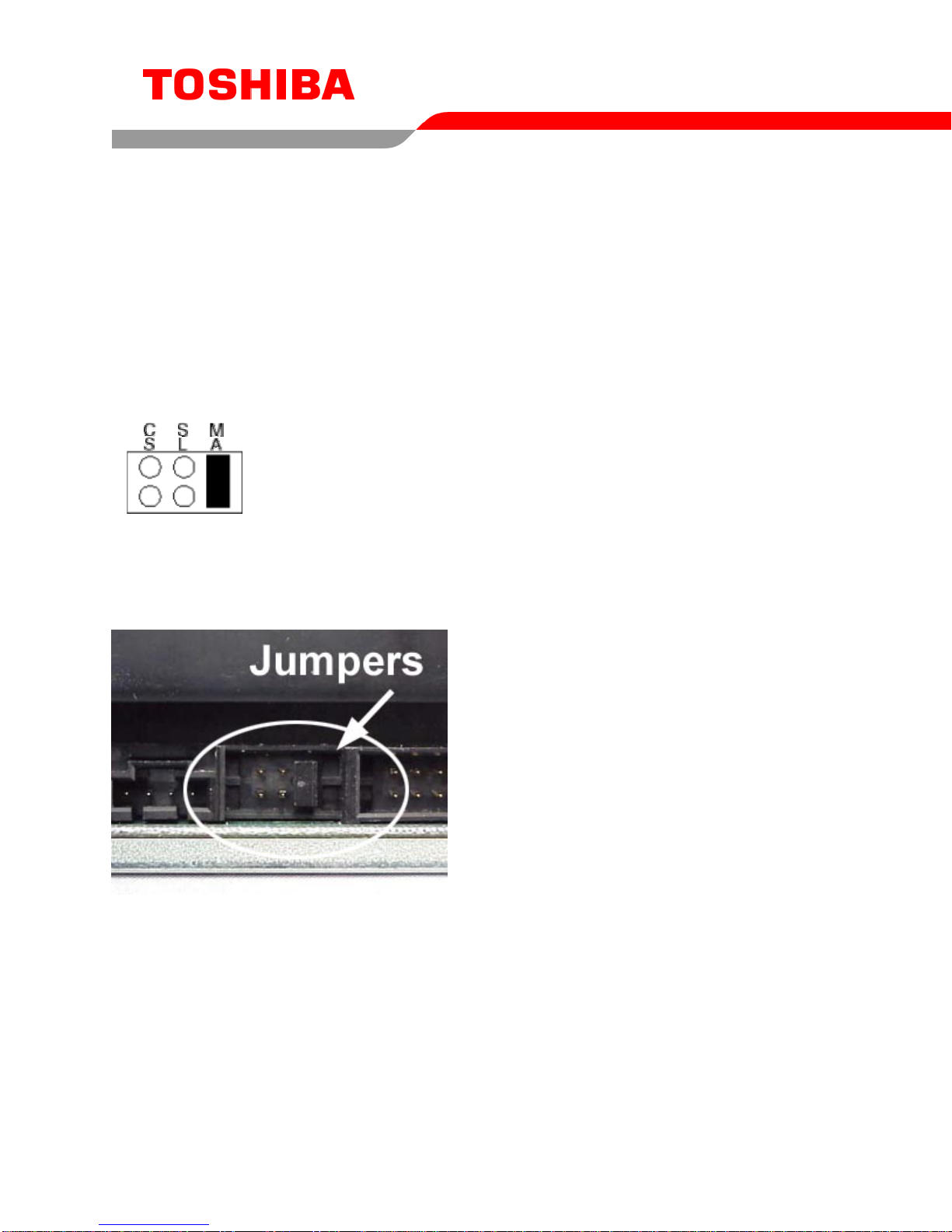

Jumper Settings

The mode select jumpers are 6 straight angle pins located on the rear of the DVD Rewriteable drive.

By placing a jumper on the pins, you can select the following functions:

Drive is configured using host interface signal CSEL

SL Configures drive as Slave

MA Configures drive as Master (default mode)

Figure 1.Mode Select Jumper

In most installations, jumper should remain in the MA position (factory default). It is recommended that

you install your DVD Rewriteable drive only on the secondary IDE BUS. If you are installing on primary

IDE BUS, your hard drive would then be the Master, and you should set your DVD Rewriteable drive to

the Slave position (SL)

Figure 2.Jumper Locations

Placing DVD Rewriteable Drive inside your Computer

Now that you have set the jumpers, you are ready to install your DVD Rewriteable drive inside your

computer.

Important Note: Disconnect power from your computer system before beginning installation.

Remove computer cover and faceplate if required. Refer to your computer systems manual for removal

information. If the DVD Rewriteable drive is replacing a CD-ROM or DVD-ROM, remove drive presently

installed in your system.

Your Toshiba DVD Rewriteable drive can be placed in any free half-height drive slot at the front of your

computer. (It can be mounted horizontally or vertically.)

Carefully start sliding the DVD Rewriteable drive into the opening with the disc tray facing the front of the

computer. Before you push the drive all the way in you will need to connect the IDE BUS cable, Audio

cable and the Power cable on the back of the drive.

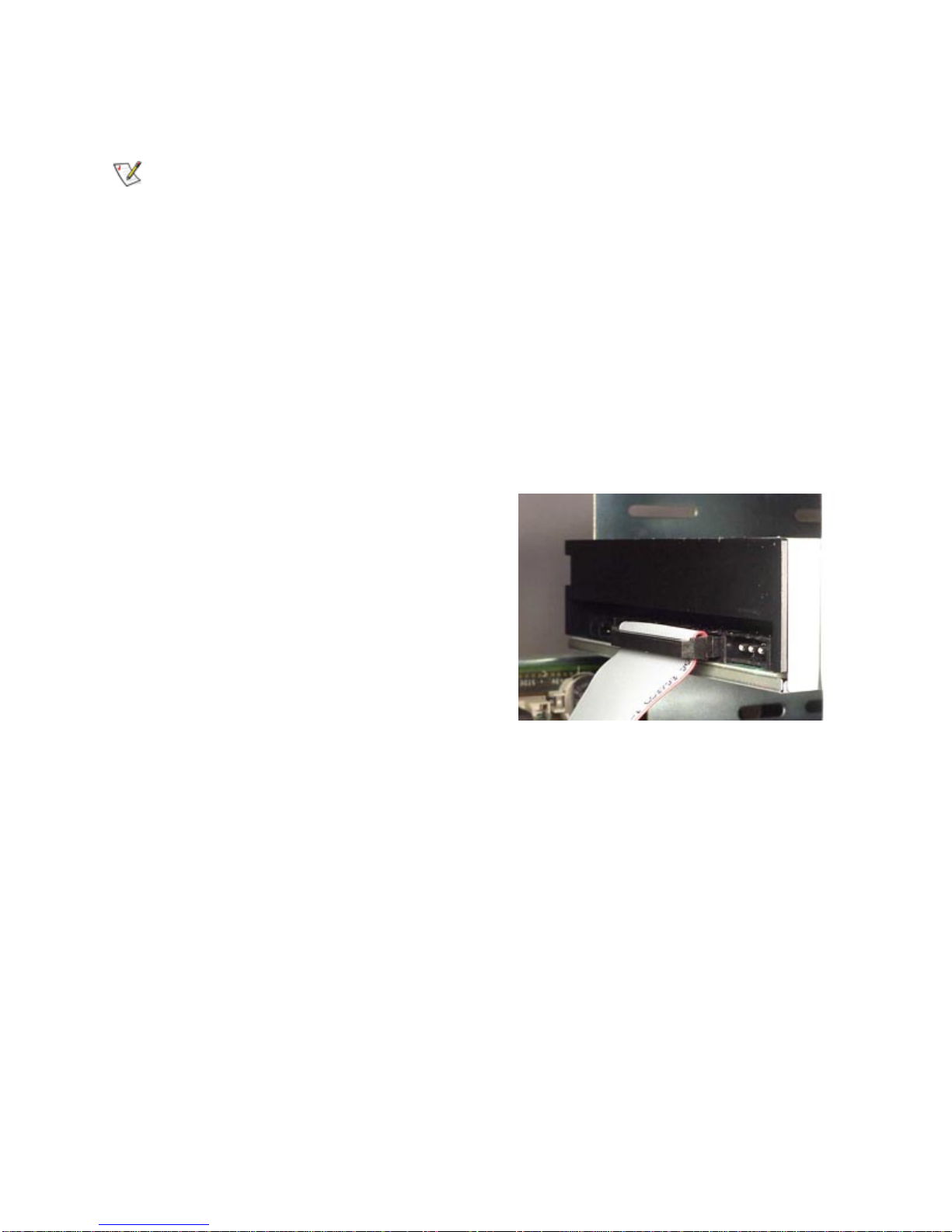

Connecting Cables

IDE BUS Cable (not supplied with drive) - Your computer system should have a primary and secondary

IDE BUS, cable with your Hard Drive most likely being the Master on the primary BUS. Connect BUS

cable as follows, assuring that pin 1 of cable (side with red stripe) is connected to pin 1 of the DVD

Rewriteable drive's interface connector:

If you are replacing your CD-ROM or DVD:

connect DVD Rewriteable drive to the BUS Cable

connector that the CD-ROM or DVD was connected to.

If DVD Rewriteable drive is not replacing a CD-

ROM/DVD or is an addition to a CD-ROM/DVD:

connect DVD Rewriteable drive to an open connector on

the secondary IDE BUS cable (not supplied with drive).

If DVD Rewriteable drive is to be slave on Primary BUS:

connect DVD Rewriteable drive to open connector on

the primary IDE BUS cable (not supplied with drive).

Figure 3.Installing BUS Cable

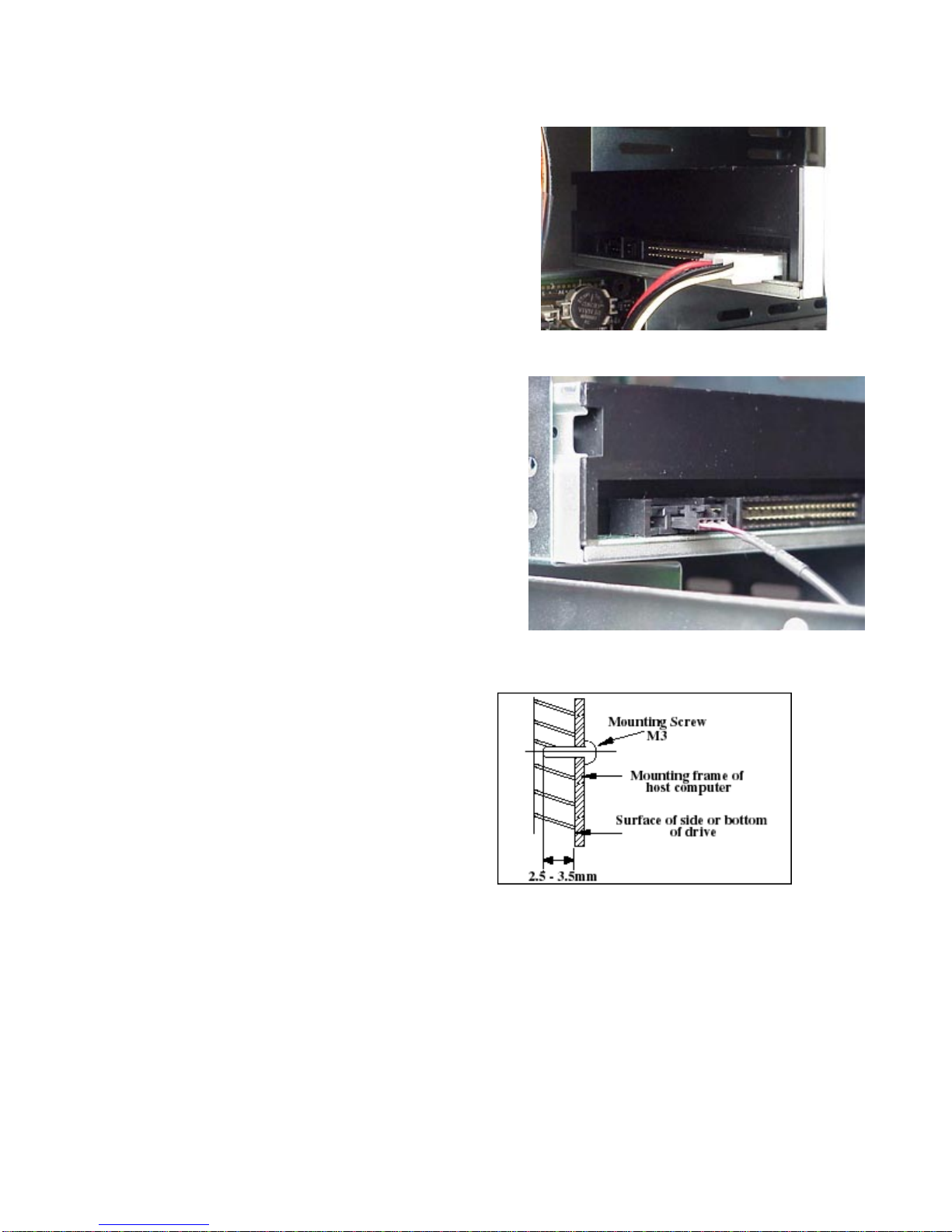

Power Cable - Connect an internal computer power

supply cable to the power socket at the back of the DVD

Rewriteable drive. One side of the plug has chamfered

edges, so the power connector fits only one way. Push

plug completely into the socket making sure the plug fits

correctly.

Figure 4.Installing Power Cable

Audio Cable (optional) - If you have a sound card and

speakers, and would like to play audio CDs on your

computer, you will need to install a CD/DVD audio cable.

Toshiba's DVD Rewriteable drives use a standard 4-pin

audio cable that can be purchased from most local

computer suppliers. The sound cable connects to your

sound card at one end and the other end connects to

the digital audio connector at the left rear of the DVD

Rewriteable drive (see DVD Rewriteable drive Back

Panel photo for location). Refer to the instructions that

came with your sound card for details on any sound-

driver software required.

Figure 5.Installing Audio Cable

Completing Installation

After you have connected all the necessary cables,

push the DVD Rewriteable drive completely into the

computers drive slot. Mount drive per your computers

instructions. The screw length should not exceed

30.5mm (measured from outside surface of side or

bottom of drive to tip of screw). Replace computer

cover and all outer screws.

Figure 6.Mounting Illustration

Software Driver - Toshiba's optical drives do not require any unique device drivers for Windows

'95/'98/2000/Me/XP/NT. After installing your drive and re-booting, your system should recognize your

drive. Windows '95/'98/2000/Me/XP/NT Operating Systems support all Toshiba optical drives natively If

you prefer using DOS, download the DOS ATAPI driver from our web site.

Other Software - Additional software is required to use the SD-R5372 CD-R/-RW, DVD-R/-RW and DVD

functions. When you purchase the SD-R5372 as a kit, it will include the following software (Nero6):

Nero6 OEM Suite 3 Software:

•Nero Burning Rom - This easy to use software enables you to create your own CDs and DVDs.

•Nero Backup - Easy to use data backup program.

•InCD 4 - Easy to use Packet writing tool.

•Nero Media Player - Easy to use software for CD Audio, Streaming Audio and Streaming Video.

•Nero ShowTime - a software DVD player for the most vibrant picture viewing of DVD movies and

your own projects, along with MPEG-4 (Nero Digital) compatibility

•NeroVision Express 2 - a software package that leads you comfortably through the whole

process of making Video CDs, Super VideoCDs or high-value DVDs

If you did not purchase the SD-R5372 as a kit, you will need to purchase third party software in order to

view DVDs and create CD-R/-RW and DVD-R/-RW discs.

USING THE DVD REWRITEABLE DRIVE – SD-R5372

Drive Operation

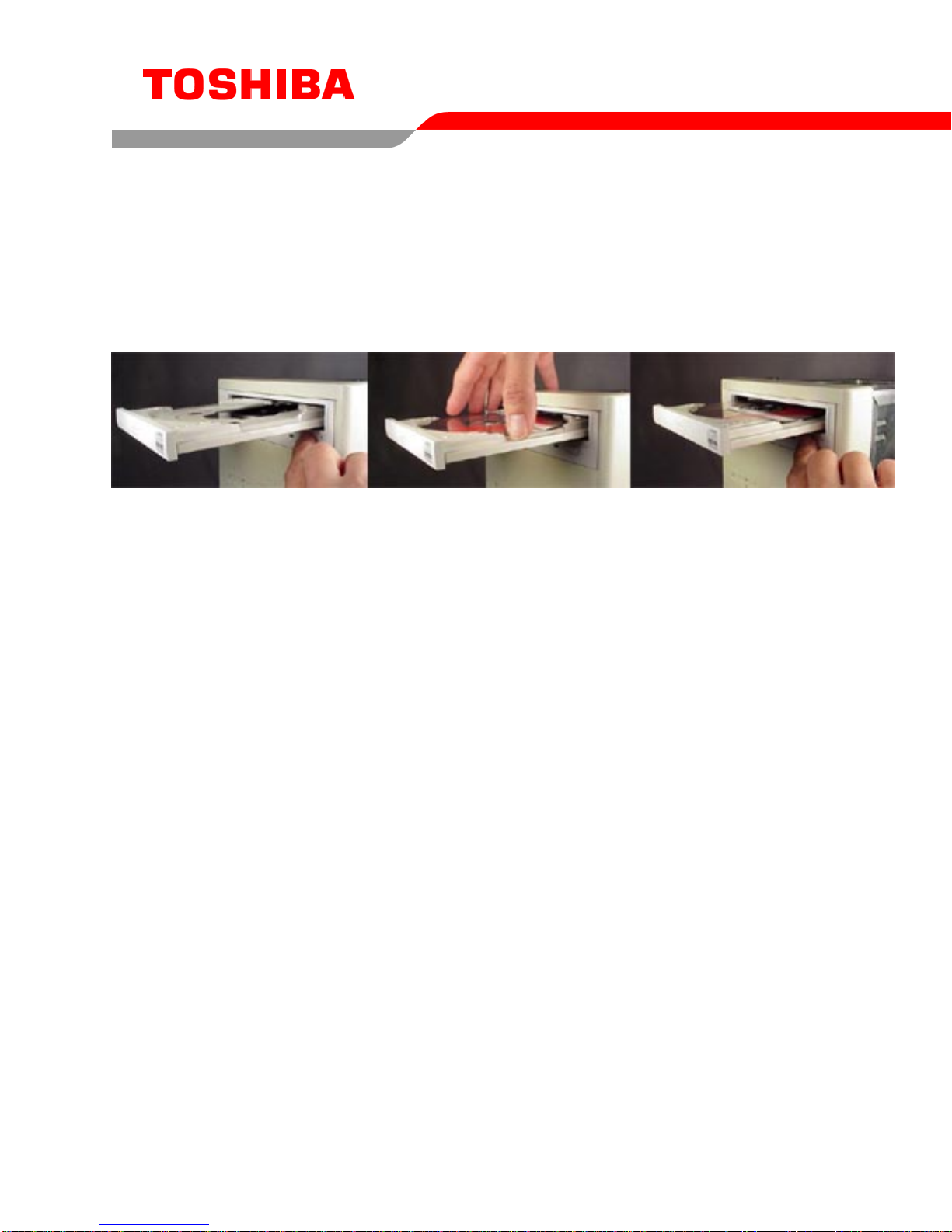

Inserting a Disc - Horizontally

To insert a disc into a drive that is mounted horizontally, perform the following steps:

Figure 1.Inserting Disc

1. Open the drive's Loading tray by pressing the Eject Button.

2. Place disc or into drive's Loading tray

3. Press Eject button again or gently push on the open disc tray. Tray will automatically close.

Inserting a Disc - Vertically

To insert a disc in a drive that is mounted vertically, perform the following steps:

1. Locate sliding disc holders (4 locations) on drive's Loading Tray.

2. The vertical position of the drive (eject button up or down) determines which of these four sliding

disc holders are used (see photo below). Position the disc behind 3 of the disc holders, two on

bottom, and one on upper rear, closest to drive). Using all four holders may cause the disc to not

set properly in tray.

3. Slide the disc holders towards the center of tray using your finger, opened paper clip or the end

of the emergency eject tool. The holder in the upper front side should be pulled away from the

center of tray.

4. Position the disc behind disc holders on upper and rear side of tray. Then put disc behind bottom

front holder

Check to see that all three disc holders are holding disc securely.

Close the drive by gently pushing in the tray or pressing the eject button.

Figure 2.Inserting Disc Vertically

Removing a Disc

To remove a disc from the DVD Rewriteable drive, perform the following steps:

1. Open the Loading Tray by pressing the Eject Button.

2. Slide disc holders away from disc.

3. Grasp disc by edges, and lift out of loading tray.

4. Press Eject Button again to close Loading Tray.

Software

When you purchase the SD-R5372 as a Kit, it will include Nero6 OEM Suite Software.

Nero6 OEM Suite 3 disc contains the following software:

Nero Burning Rom This easy to use software enables you to create your own CDs and

DVDs

Nero Backup Easy to use data backup program

InCD 4 Easy to use Packet writing tool

Nero Media Player Easy to use software for CD Audio, Streaming Audio and Streaming

Video

Nero ShowTime A software DVD player for the most vibrant picture viewing of DVD

movies and your own projects, along with MPEG-4 (Nero Digital)

compatibility

NeroVision Express 2 A software package that leads you comfortably through the whole

process of making Video CDs, Super VideoCDs or high-value DVDs

Media Recommendations

Toshiba recommends that major brand media be used for recording.

Below are recommended blank media speeds.

CD-R: all speeds DVD-R: 2X minimum

CD-RW: 1X - 4X DVD-RW: 1X minimum

High Speed CD-RW: 4X - 10X DVD+R/+RW: 2.4X minimum

Usage Guidelines

•Keep the disc tray closed when not using the DVD Rewriteable Drive.

•Do not press down on the disc tray when opening or closing it.

•Do not place objects on the disc tray.

•Never use a damaged, broken, or deformed disc.

•Do not press the Open/Close button while the drive is playing a DVD movie or accessing a disc.

To stop a DVD movie, click Stop button in the DVD player application program.

Table of contents

Other Toshiba DVD Drive manuals

Toshiba

Toshiba SD-R2612 User manual

Toshiba

Toshiba SD-M1502 User manual

Toshiba

Toshiba SD-M1401 User manual

Toshiba

Toshiba SD-R2312 User manual

Toshiba

Toshiba SD-M1711 User manual

Toshiba

Toshiba PA3761U-1DV2 - External USB 2.0 DVD Super Multi... Installation instructions

Toshiba

Toshiba SD-R5372V User manual

Toshiba

Toshiba SD-M2012C User manual

Toshiba

Toshiba SD-R1202 User manual

Toshiba

Toshiba SD-C2732 User manual

Toshiba

Toshiba C2402 - SD - DVD-ROM Drive User manual

Toshiba

Toshiba SD-R5272 User manual

Toshiba

Toshiba 1202kit User manual

Toshiba

Toshiba SD-C2502 User manual

Toshiba

Toshiba PA3454U-1DV2 - External USB 2.0 DVD Super Multi... User manual

Toshiba

Toshiba SD-C2612 User manual

Toshiba

Toshiba SD-R1002 User manual

Toshiba

Toshiba SD-M1912 User manual

Toshiba

Toshiba SD-M1201 User manual

Toshiba

Toshiba SD-W1111 Owner's manual

Toshiba

Toshiba SD-R6112 User manual

Toshiba

Toshiba SD-M1201 User manual

Toshiba

Toshiba SD-R6112 Owner's manual

Toshiba

Toshiba SD-R5002 User manual

Popular DVD Drive manuals by other brands

Panasonic

Panasonic CFVDM732U - DVD operating instructions

LG GSA-4160B Specifications

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive operating instructions

Sony

Sony DRU-500AX user guide

LG GSA-2164D user guide

Plextor

Plextor PX-755SA Installation and user manual

Pioneer

Pioneer BDC-TD03RS Product specification

Samsung

Samsung SM-332B user manual

Freecom

Freecom MOBILE DVD RW II datasheet

Plextor

Plextor PX-712 Installation and user manual

NEC

NEC ND-3550A user manual

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive user manual

Philips

Philips PCA532K Instructions for use

Sony

Sony AD-7740H user guide

Philips

Philips PCDV5016 Series Declaration of conformity

Pioneer

Pioneer LaserMemory DVD-115 operating instructions

Samsung

Samsung SE-S224Q user manual

IBM

IBM 71P7285 user guide
