Toplicht BLAKES LAVAC Zenith User manual
Notkestraße 97 · 22607 Hamburg
LAVAC Marine Toilets
Manual
TOPLICHT 20.August 2019
Contents
Introduction/Installation kit 2
Lavac System 3
Zenith Exploded Diagram 4
Parts list, Accessories & specification 5
Popular Exploded Diagram 6
Parts list, Accessories & specification 7
Manual Pump Exploded diagram 8
Parts list, Accessories & specification 9
Electric Pump Exploded diagram 10
Parts list, Accessories & specification 11
Zenith and Popular Spares kits 12
Lavac Operation diagrams 13
Installation
Seacocks 14
Lavac toilets 15
Electric pump 17
Holding Tanks
General 18
Lavac 19
Plumbing 20
Accessories 22
Operating your marine toilet 23
Lavac Maintenance 24
Replacing perishable parts 25
Operational solutions 27
LAVAC marine toilets
Tel.: +49 (0)40 - 88 90 100
www.toplicht.de
Schisausrüster
2
The Lavac
Congratulations on the purchase of a Lavac
marine toilet. Lavac marine toilets are firm
favourites with sailors throughout the world,
providing their owner with a long and trou-
ble free working life.
The Lavac is one of the most simple to
operate marine toilets available. After use,
the seat and lid are closed and the pump is
then operated for 14-16 strokes (For full
instructions see page 21). As waste is
pumped out, the bowl is sealed causing a
vacuum which draws in the flushing water.
It’s as simple as that!
Within this handbook you will find informa-
tion and practical help on installing, running
and maintaining your Lavac. If you require
any further help or advice, please contact
us either by:
Telephone: +44 (0)1489 580580
Fax: +44 (0)1489 580581
E-mail: info@blakes-lavac-taylors.co.uk
or by writing to:
Blakes Lavac Taylors
13 Harvey Crescent
Warsash
Southampton
SO31 9TA
United Kingdom
Over many years we have taken advice from
sailors around the world concerning their
requirements for marine equipment and our
current range is a result of this ongoing com-
mitment. If you have any comments or help-
ful hints that you would like to share with us,
we would be very pleased to hear from you.
Installation kit provided with your lavac
All Lavac marine toilets are provided wit the
following parts for installation.
zPump – Hand (T/A: On Bulkhead; U/D:
Behind Bulkhead) or Electric (12 volt DC
or 24 volt DC, including wiring loom, time
switch, fuse and fuse holder)
zPlastic Bleed Plugs (Spares No.
TLZ9251)
zSelf adhesive operating instructions
zOwners Handbook.
Because the nature of an installation varies
from owner to owner, certain components
are easier to source locally. We therefore
feel it is best for you to purchase the follow-
ing separately, depending on your require-
ments.
z4 x 6mm (¼“) diameter Stainless Steel
securing bolts or screws for base
z4 x 6mm (¼“) diameter Stainless Steel
securing bolts or screws for pump
zReinforced sanitation grade hose –
length dependant on installation:
19mm (¾“) bore for inlet
38mm (1½“)bore hose for outlet
zHose clips
3
The Lavac System
General
The well known Lavac system is unique
and probably the only single action, above
or below water line, marine WC.
The Lavac has a china pan and is available
as either hand or electrically operated. On
the electric models 12 or 24V DC can be
supplied.
To flush simply close the lid and operate a
single pump. Pressure is reduced in the
bowl as waste goes out and flushing water
is drawn in. A small air bleed valve in the
inlet pipe prevents siphoning.
The particularly hygienic operation and
quietness are characteristics which in
themselves make Lavac a popular choice
for discerning owners. Simplicity of opera-
tion, robustness and reliability are further
important features.
By using a diverter valve the Lavac’s pump
can also be used for other pumping opera-
tions, such as shower tray discharge, bilge
pumping or discharge of the holding tank
(see page 20).
Because legislation is now prohibiting over-
board discharge from toilets, or at least
making it impractical, this edition of the
Lavac owners handbook now gives guid-
ance on holding tanks (see pages 18).
Features
zEasy and versatile in installation.
zCan be mounted under bunk or locker
and pulled out for use.
zPump, separate from bowl, can be
mounted in most convenient position
(above bowl consistent with instructions).
For installation behind bulkhead, a spe-
cial hand pump option is available (see
illustration on p.9).
zParticularly quiet and hygienic in opera-
tion.
zPump can also empty holding tanks, be
used as a bilge pump and/or shower
tray discharge pump.
zAny type of paper can be used,
although tissue is recommended.
zVirtually no maintenance.
zQuick release pump cover for easy
access.
zSingle action operation.
zExceptionally sturdy and durable.
zFull flow valve system.
zLow water usage.
zRemote holding tank installation (if cho-
sen).
zA water seal is the only certain and
complete way of preventing odour from
the waste pipe and/or holding tank.
Electric – Extra Features
zOnly marine toilet to offer manual back-
up with electric version
(see page 17).
zExtremely quiet in operation.
zFully marinised, automatic, adjustable
time switch
4

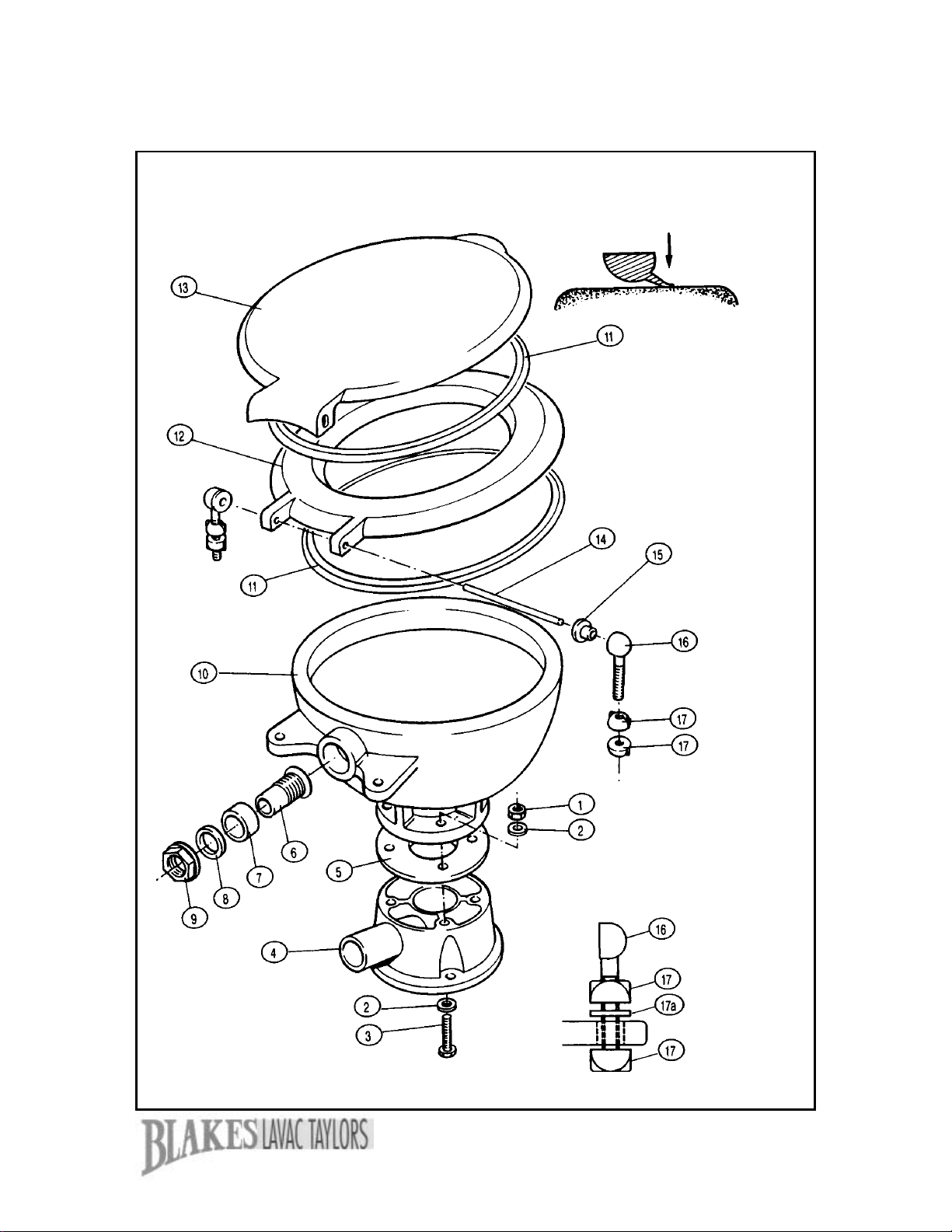

Exploded diagram of the Lavac Zenith
PRODUCT UPDATE
New Thermo-set seal (11) introduced July 1993
with no joins or weld points. Cross-section
below showing longer sealing lip conforms bet-
ter to contact surface (seat or bowl) for
improved vacuum.
PRODUCT UPDATE
New white rubber washer for dome nut.
5
Dimensions and specifications
Lavac Zenith toilet
zBowl – vitreous china for easy
cleaning and durability
zPedestal – injection mould uPVC.
Outlet can be set to either side or rear
of toilet.
zSeat and Lid – special purpose
plastic mouldings.
zHinge assembly – injection moulded
acetal. Stainless steel hinge pin.
zToilet connections –
Inlet 19mm (¾“) bore hose.
Discharge 38mm (1½“) bore hose.
Dimensions:
A - 185mm (7.3”) C - 368mm (14.5”)
B - 290mm (11.4”) D - 410mm (16.2”)
Lavac Zenith
Zenith Components
Diagram No Part No Description
1 TBB7215 x 4 M6 Nuts
2 TLZ9021 x 4 Pan bolt washers - small
TLZ9022 x 4 Pan bolt washers - large
3 TLZ9022 x 4 M6 x 35 Pan bolt
4 TLZ9005 Pedestral base
5 TLZ9010 Pan base joint
6, 7, 8, 9 TLZ9031 Spigot assembly
10 TLZ9025 Zenith pan
11 TLZ9065 x 2 Seals for seat and lid
12 TLZ9070 Zenith seat
13 TLZ9075 Zenith lid
14 TLZ9405 Zenith hinge pin
15(x2), 16(x2) TLZ9056 Hinge set
17(x4), 17a(x2)
Lavac Zenith - Accessories
Part No Description
TLZ9096 Clip for pump handle (38)
TLZ9310 Diverter (two-way) valve
TLZ9460 Bulkhead plate and shroud for U/D pump
6

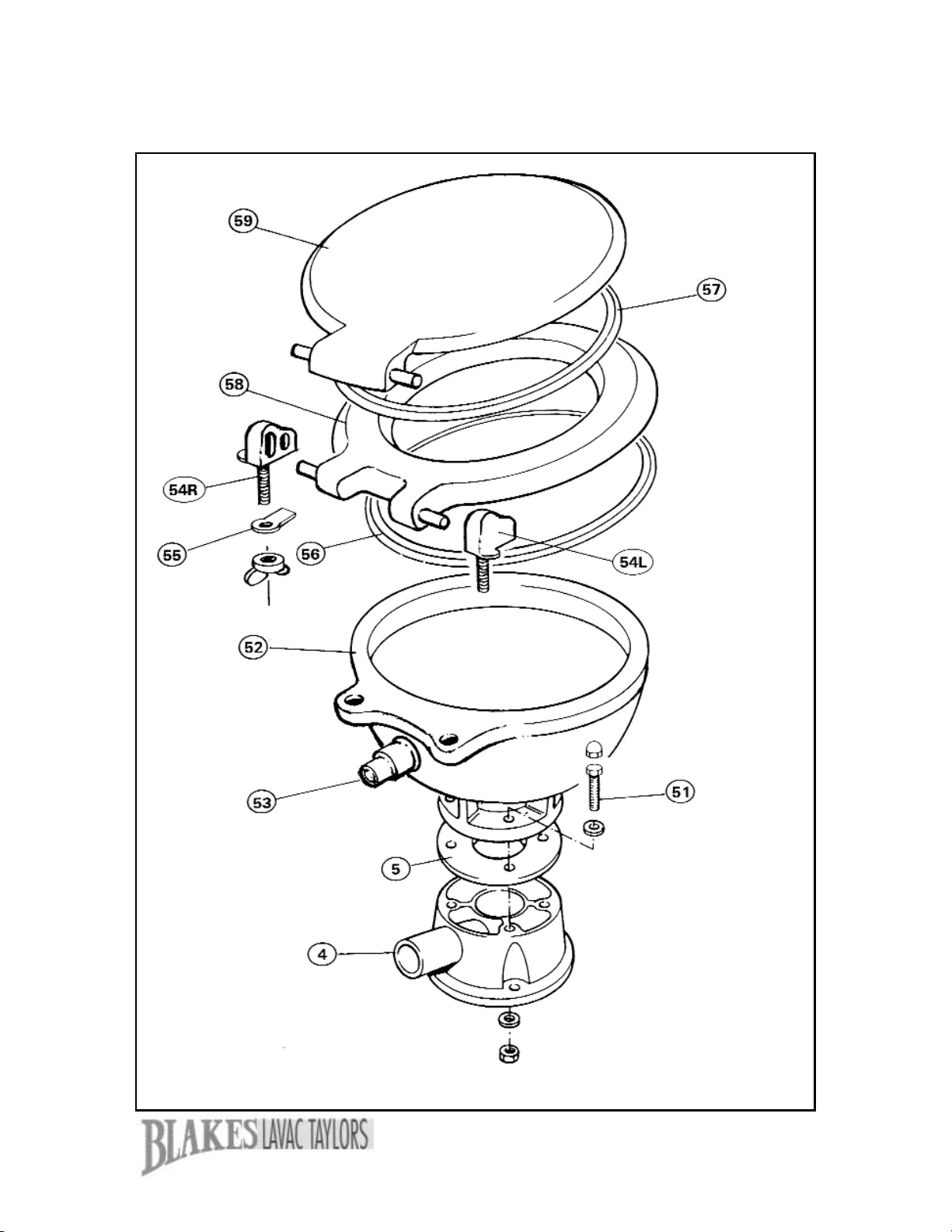

Exploded diagram of the Lavac Popular
7
Dimensions and specifications
Lavac Popular toilet
zBowl – vitreous china for easy
cleaning and durability
zPedestal – injection mould uPVC.
Outlet can be set to either side or rear
of toilet.
zSeat and Lid – special purpose
plastic mouldings.
zHinge assembly – injection moulded
acetal.
zToilet connections –
Inlet 19mm (¾“) bore hose.
Discharge 38mm (1½“) bore hose.

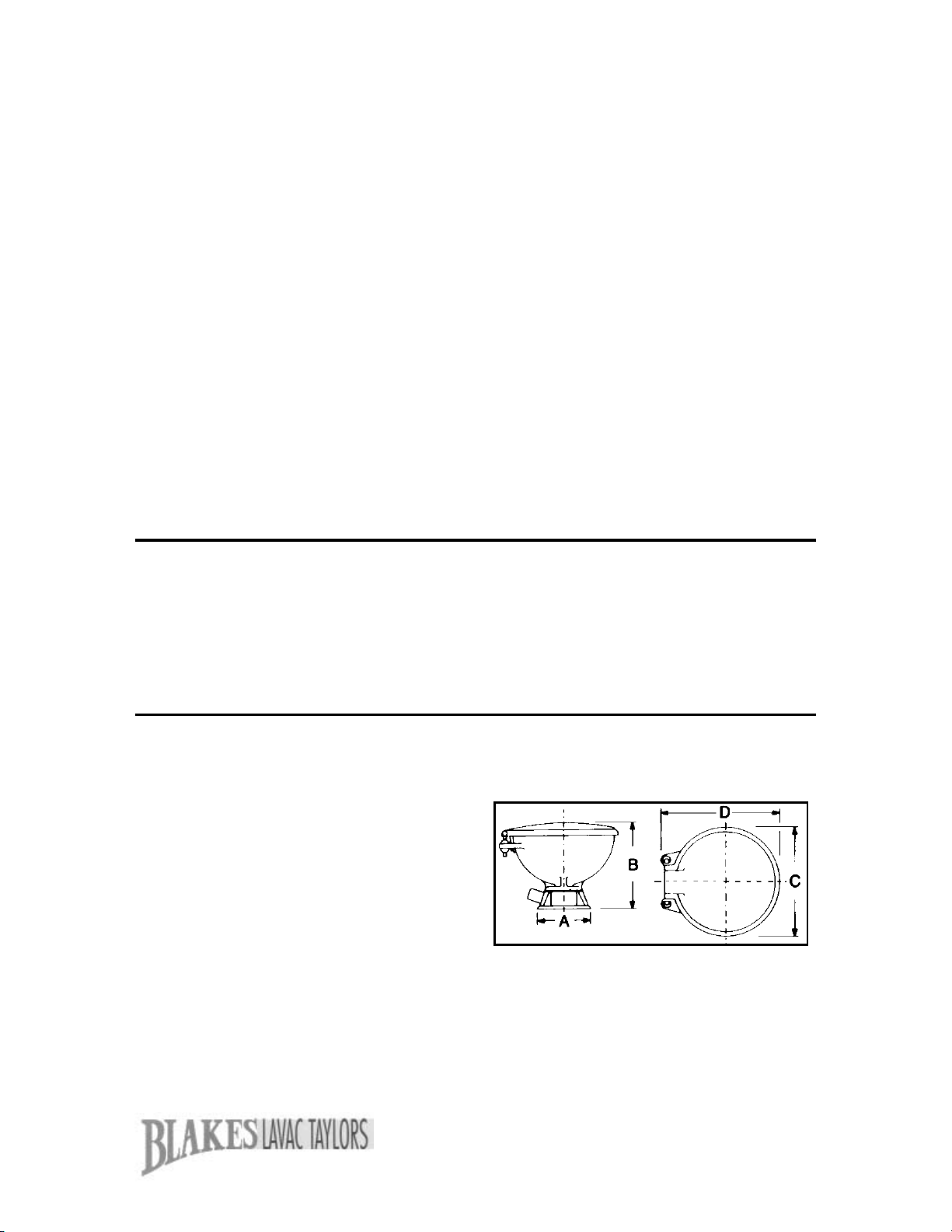

Dimensions:
A - 185mm (7.3”) C - 343mm (13.5”)
B - 352mm (13.9”) D - 416mm (16.4”)
Lavac Popular
Popular Components
Diagram No Part No Description
4 TLZ9005 Pedestal base
5 TLZ9010 Pan base joint
51 TLZ8015 x 4 M6 x 50 Pan bolt
TLZ8010 x 4 Plastic covers
TLZ8022 x 4 Plastic washer
TLZ8021 x 4 Stainless steel washer
TLZ8020 x 4 M6 nuts
52 TLZ8025 Popular pan
53 TLZ8031 Popular inlet spigot
54L, 54R. 55(x2) TLZ8056 Hinge set
56 TLZ8065 Popular seat seal
57 TLZ8066 Popular lid seal
58 TLZ8070 Popular seat
59 TLZ8075 Popular lid
Lavac Popular - Accessories
Part No Description
TLZ9096 Clip for pump handle (38)
TLZ9310 Diverter (two-way) valve
TLZ9460 Bulkhead plate and shroud for U/D pump
8
Note:
Bulkhead plate and shroud for the
U/D pump (makes a neat, flush
installation – Spares No: TLZ9460,
see installation diagram on p.15).
U/D Pump
Handle Position T/A Pump
Handle Position
Exploded diagram of Hand Pump
9
Dimensions and specifications
Hand Pump
zDiaphragm type
zInjection moulded plastic body
zStainless steel fastenings and handle
zAll rubber components of oil resistant
nitrile
Lavac Zenith & Popular Hand Pump
Components
Diagram No Part No Description
20 TLZ9110 Diaphragm
21 TLZ9175 x 8 2BA x 1” Bolts
TLZ9181 x 8 2BA nuts
22H TLZ9330 Inlet valve - hand
TLZ9335 Inlet valve plate
23 TLZ9320 Front cover
24 TLZ9325 Front cover seal
25 TLZ9125 Eye bolt nut
26 TLZ9100 Top cover complete with valves
27 TLZ9340 Outlet valve
28 TLZ9345 x 2 Outlet valve screws - long
TLZ9350 x 2 Outlet valve screws - short
29 TLZ9115 x 2 Diaphragm plates
30 TLZ9120 Eye bolt
35 N/A Not available as spares item
36 TLZ9406 Rocker arm hinge pin
TLZ9408 x 2 Circlips (rocker arm pin)
37 TLZ9450 U/D Rocker arm
38 TLZ9265 Pump handle
39 TLZ9455 T/A Rocker arm
Hand pump
Dimensions:
A - 170mm (6.6”) C - 140mm (5.5”)
B - 200mm (7.9”)
10

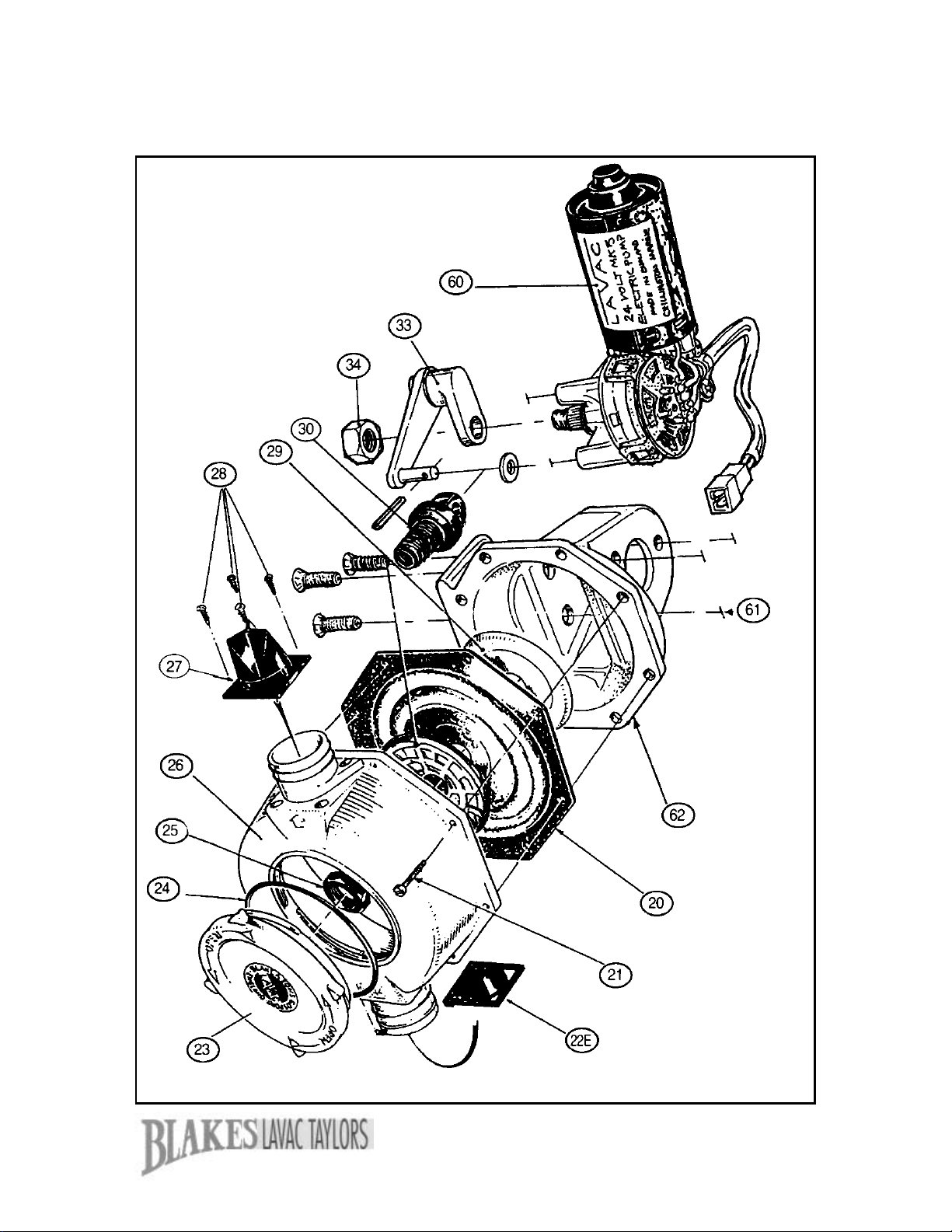

Exploded diagram of the electric pump – 12&24 Volt
