Topdon JUMPSURGE 1200 User manual
For Services and Support
USER MANUAL
JUMPSURGE 1200
For 12 volt lead-acid batteries
JUMP STARTER
86-755-21612590
1-833-629-4832 (North America)
www.topdon.com
@TopdonOcial
@TopdonOcial
2
English
Welcome
About JUMPSURGE 1200
Safety Cautions
Thank you for purchasing JUMPSURGE 1200. If any issues arise
during the use of this product, welcome to contact support@topdon.
com for ocial technical support.
JUMPSURGE 1200 serves as a portable Jump Starter that delivers
1,200 peak amps for jump starting a 12V lead-acid battery in
seconds. It supports quick and safe starts for 12V cars, boats,
motorcycles, ATVs, lawnmowers, caravans, tractors, trucks, etc., up
to 6.5-liter gasoline or 4.0-liter diesel engines, with 25 times boost
capability on a single charge. It can also be used as a power bank
to quickly charge electronic devices like phones and tablets, or
supply power to DC devices.
Please read this user manual carefully before use and keep it for
future reference.
1. ONLY use the battery clamps that come with this product.
2. DO NOT use this product if the cable or the jump starter has any
damage.
3. This product can be only used for starting vehicles with 12 volt
lead-acid batteries.
4. Only jump start vehicles when the battery level of the jump
starter is more than 50%.
EN
3 4
What's Included
Jump Starter
Battery Clamp
Type-C Cable
Nylon Bag
User Manual
5. If the engine does not start successfully at the rst try,
disconnect the clamps from the vehicle battery and wait at least
20 seconds before reconnecting. DO NOT attempt more than 3
consecutive jump starts within 2 minutes.
6. DO NOT put the product under direct sunlight or at hot areas.
7. DO NOT disassemble the product by yourself.
8. DO NOT place the product in high temperature environment for
a long time. The working temperature is -10°C~40°C (14°F~104°F).
9. Check the battery level of this product every two months and
charge it regularly.
10. A Lithium-ion battery is included in the product. Please dispose
of it under local regulations at the end of its life.
Positive
Clamp (Red) Safety
Indicator
Negative
Clamp (Black) BOOST
Button
What's Included
Type-C Input
(5V/3A 9V/2A)
Power Button
Jump Start Socket
LED Light
USB Output
(5V/2A)
Battery Level
Indicator
DC Output
(Max 16.8V/10A)
USB Output (5/9/12V
Quick Charge 3.0)
EN
5 6
Reverse polarity of battery clamps is detected.
The Jump Starter is ready for use.
The battery level of the vehicle is too low.
Press the "BOOST" Button and wait until
the Safety Indicator becomes solid green.
Then start your vehicle within 30 seconds.
Solid green
Press the Power Button once to turn on the jump starter.
Solid red
Press and hold the Power Button for 3 seconds to turn on the
LED Light. Then press the Power Button once separately to
toggle between Flashlight, Strobe, SOS and OFF in turn.
The battery of the vehicle may be totally dead.
Make sure that you have correctly connected
the clamps to the vehicle battery. Then press
the "BOOST" Button and wait until the Safety
Indicator becomes solid green. And then start
your vehicle within 30 seconds.
Flash green
You have tried 4 jump starts within 10
minutes. Please disconnect the clamps
and reconnect to try again.
Alternately ash
red and green
The indicator
doesn't light up
A guide to Safety Indicator:
A guide to LED Light:
Recharge the Jump Starter
Jump Start Vehicles (12V Only)
The product comes partially charged and needs to be fully charged
prior to use. Please charge your jump starter through the Type-C
Input port once you receive it.
Important:
Make sure you have turned o all of the power loads of the vehicle,
including headlights, radio, air conditioner, etc., before attempting to
jump start the vehicle.
Step 1:
Plug the blue end of jumper cable into the Jump Start Socket.
Note: Only jump start vehicles when the battery level of the jump
starter is more than 50%.
EN
7 8

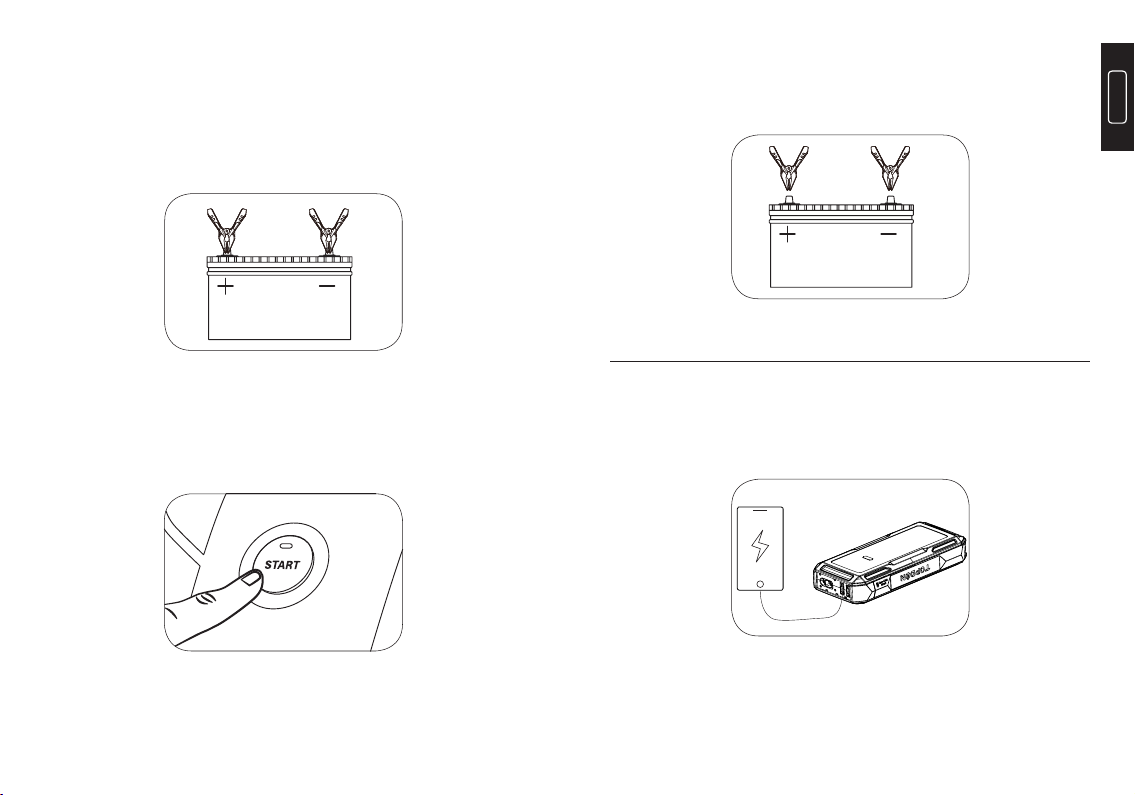

Step 2:
Connect the clamps to the vehicle battery. Red clamp to positive
polarity(+), black clamp to negative polarity(-). The Safety Indicator
will be solid green which indicates it is ready for jump starting.
Note: Please check the connection if the Safety Indicator is
abnormal or the buzzer rings.
Step 3:
Try to start the vehicle. If it fails, disconnect the clamps from the
vehicle battery and wait about 20 seconds, then reconnect and try
again. Do not attempt more than 3 consecutive jump starts within
2 minutes.
Step 4:
Remove the clamps from batteries, then separate the clamps and
jump starter after cranking the vehicle successfully. Your jump
starter will automatically power o in several seconds.
Other Functions
This jump starter is able to be used as a power bank.
Press the Power Button once to turn on the jump starter. Then you
can quickly charge your phone or tablet through the USB Output
Port. Or use it to supply DC power (Max 16.8V/10A) to devices
through the DC Output Port.
(Red) (Black)
(Red) (Black)
EN
9 10
Specications
Model
Battery capacity
Output
Input
Peak Current
Operating temperature
Storage temperature
JUMPSURGE1200
10,000mAh, 3.7V / 37Wh
USB1 QC18W, 5V/9V/12V;
USB2 5V 2A; DC Max 16.8V 10A
Type-C 5V 3A, 9V 2A
1200A
-10°C~40°C (14°F~104°F)
-20°C~75°C (-4°F~167°F)
FAQ
Q1: How many times can JS1200 jump start a car with a full charge?
Up to 25 times. It depends on the vehicle engine's power and
vehicle battery's power.
Q2: How long does it take to recharge JS1200 fully?
It varies with dierent chargers.
If your charger is 5V/3A, the charging time is 3 hours; if 5V/2A, then
4.5 hours.
Q3: How to turn o JS1200?
It will automatically power o without use.
Warranty
TOPDON One Year Limited Warranty
TOPDON warrants to its original purchaser that TOPDON products
will be free from defects in material and workmanship for 12 months
from the date of purchase (Warranty Period). For the defects reported
during the Warranty Period, TOPDON will, according to its technical
support analysis and conrmation, either repair or replace the
defective part or product.
The TOPDON shall not be liable for any incidental or consequential
damages arising from the use, misuse, or mounting of the device.
Some states do not allow limitation on how long an implied warranty
lasts, so the above limitations may not apply to you.
This limited warranty is void under the following conditions:
Misused, disassembled, altered or repaired by unauthorized stores or
technicians.
Careless handling and violation of operation.
Notice: All information in this manual is based on the latest
information available at the time of publication and no warranty can
be made for its accuracy or completeness. TOPDON reserves the
right to make changes at any time without notice.
EN
11
FCC WARNINGS
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Español
13 14
Bienvenido
Acerca de JUMPSURGE 1200
Precauciones de Seguridad
Gracias por comprar JUMPSURGE 1200. Si surge cualquier
problema durante el uso de este producto, le invitamos a ponerse
técnico ocial.
JUMPSURGE 1200 sirve como un arrancador portátil que entrega
1200 amperios pico (máximo)para arrancar una batería de plomo-
ácido de 12 V en segundos. Admite arranques rápidos y seguros
para automóviles, barcos, motocicletas, vehículos todo terreno,
cortadoras de césped, caravanas, tractores, camiones, etc. de 12
V, hasta motores de gasolina de 6,5 litros o diésel de 4,0 litros, con
una capacidad de aumento de 25 veces con una sola carga.
También puede ser utilizado como banco de energía para cargar
rápidamente dispositivos electrónicos como teléfonos y tabletas, o
para suministrar energía a dispositivos de CC.
Por favor lea este manual de usuario cuidadosamente antes de
utilizarlo y consérvelo para futuras consultas.
1. Solamente utilice las abrazaderas de batería que vienen con
este producto.
2. NO utilice este producto si el cable o el arrancador tienen
cualquier daño.
3. Este producto solo puede ser utilizado para arrancar vehículos
con baterías de plomo-ácido de 12 voltios.
Lista de Empaque
Arrancador
Abrazadera de la batería
Cable tipo C
Bolsa de nylon
Manual de Usuario
4. Solo arrancar vehículos cuando el nivel de la batería del
arrancador es superior a 50%.
5. Si el motor no arranca exitosamente en el primer intento,
desconecte las abrazaderas de la batería del vehículo y espere
al menos 20 segundos antes de volver a conectarlas. NO intente
más de 3 arranques consecutivos dentro de 2 minutos.
6. NO coloque el producto bajo la luz solar directa o en áreas
calientes.
7. NO desarme el producto usted mismo.
8. NO coloque el producto en un ambiente de alta temperatura
durante mucho tiempo. La temperatura de trabajo es de -10°C ~
40°C (14°F~104°F).
9. Compruebe el nivel de la batería de este producto cada dos
meses y cárguelo regularmente.
10. Una batería de iones de litio está incluida con el producto. Por
favor deséchelo bajo las regulaciones locales al nal de su vida útil.
ES
15 16
Abrazadera
negativa (negra) Indicador de
seguridad
Abrazadera
positiva (roja)
Botón BOOST
(AUMENTAR)
Información General del Producto
Entrada tipo C
(5V / 3A 9V / 2A)
Botón de encendido
Enchufe de Arranque
Luz LED
Salida
USB(5V/2A)
Indicador del
nivel de batería
Salida CC (Max
16.8V / 10A)
Salida USB (5/9/12V
Carga Rápida 3.0)
Se detecta la polaridad inversa de las
abrazaderas de la batería.
El Arrancador está listo para utilizarse.
El nivel de la batería del vehículo es
demasiado bajo. Presione el botón
"BOOST" y espere hasta que el indicador
de seguridad se vuelva verde jo. Luego
arranque su vehículo dentro de 30 segundos.
Luz verde ja
Presione el botón de encendido una vez para
encender el arrancador.
Luz roja ja
Mantenga presionado el botón de encendido durante 3
segundos para encender la luz LED. Luego presione el botón
de encendido una vez por separado para alternar entre
linterna, luz estroboscópica, SOS y apagado por turno.
La batería del vehículo puede que esté
totalmente descargada. Asegúrese de haber
conectado correctamente las abrazaderas a la
batería del vehículo. Luego presione el botón
"BOOST" y espere hasta que el indicador
de seguridad se vuelva verde jo. Y luego
arranque su vehículo dentro de 30 segundos.
Luz verde
intermitente
Ha intentado 4 arranques con salto en 10
minutos. Desconecte las abrazaderas y
vuelva a conectarlas para intentarlo de nuevo.
Parpadea
alternativamente
en rojo y verde
El indicador no se
enciende
Una guía para el indicador de seguridad:
Una guía de luz LED:
ES
17 18
Recargar el Arrancador
Arranque de Vehículos (solo 12 V)
El producto viene parcialmente cargado y necesita estar
completamente cargado antes de utilizarlo. Por favor cargue su
arrancador a través del puerto de entrada tipo C una vez que lo reciba.
Importante:
Asegúrese de haber apagado todas las cargas de energía del
vehículo, incluidos los faros, la radio, el aire acondicionado, etc.,
antes de intentar arrancar el vehículo.
Paso 1:
Enchufe el extremo azul del cable de puente en el enchufe de
arranque.
Nota:Solo arrancar vehículos cuando el nivel de la batería del
arrancador es superior a 50%.
Paso 2:
Conecte las abrazaderas a la batería del vehículo. Abrazadera roja
a la polaridad positiva (+), abrazadera negra a la polaridad negativa
(-). El indicador de seguridad será de color verde jo, lo que indica
que está listo para el arranque.
Nota:Por favor compruebe la conexión si el indicador de seguridad
es anormal o suena el timbre.
Paso 3:
Intente arrancar el vehículo. Si falla, desconecte las abrazaderas
de la batería del vehículo y espere unos 20 segundos, luego vuelva
a conectar y vuelva a intentarlo. No intente más de 3 arranques
consecutivos dentro de 2 minutos.
(Roja) (Negra)
ES
Other manuals for JUMPSURGE 1200
2
Table of contents
Languages:
Other Topdon Remote Starter manuals
Topdon
Topdon VOLCANO 1500 User manual
Topdon
Topdon V2200 PLUS User manual
Topdon
Topdon Volcano2000Pro User manual
Topdon
Topdon V2200Plus User manual
Topdon
Topdon Volcano2000Pros User manual
Topdon
Topdon VOLCANO 2000Pros User manual
Topdon
Topdon VS2000Plus User manual
Topdon
Topdon JUMPSURGE 1200 User manual
Topdon
Topdon JUMPSURGE 3000 User manual
Topdon
Topdon Volcano2000PRO+ User manual
