TKK systems EG-6CP0S-4 User manual

DNVR（Digital Network Video Recorder）

USER MANUAL

EG-6CP0S-4

EG-6CP0S-8

EG-6CP0S-16

EG-6CP1S-16

EG-6CP2S-32

Before using this system, please read the user manual

carefully.

Attention:

*Don’t use the system at place with high humility or dust or dirty.

*Avoid direct sunshine or being heated.

*Leave the system away from magnetism objects.

*Avoid high or low temperature(recommended temperature range: 5°C-35°C).

*Close the system before installing the hardware and software.

*Don’t place the system at some place where will likely have a shake.

*Please use it at the aeration place.

*Radio, television or wireless communicate device could cause damage to the

system.

*Don’t dismantle the system by yourself freely.

*Don’t put heavy object on the system.

Table of Content

Attention 2

Chapter 1. Product overview 3

1.1 Products features 3

1.2 Hardware requirement 4

1.3 Software requirement 4

Chapter 2. Install the system 5

2.1 Installdriver 5

2.2 Installsoftware 6

2.3 Apply for DDNS and p2p account 6

2.4 Channel number and draw mode selection 7

Chapter 3. Operate Main system 9

3.1 Log onsystem 9

3.2 Main screen of server 9

3.3 Setup 11

3.3.1Localusermanagement 11

3.3.2 Setup record with audio 12

3.3.3 Preview 13

3.3.4Record 13

3.3.5Alarm 14

3.3.6Schedule 17

3.3.7PTZ 18

3.3.8 Authorization(network user) 18

3.3.9Others 20

3.3.10Color Scheme 21

3.3.11 TV out 22

Chapter 4. Playback 22

Chapter 5. Remote view 25

5.1 Remote view by client software 25

5.2 Remote view via IE 27

5.3 Mobile view 28

Appendix 1. Auto login and auto run schedule setting 30

Appendix 2. Monitor audio and record audio synchronous 31

Appendix 3. Internet Explorer browser setting 33

Appendix 4. Pre-set setting 34

Chapter 1. Product overview

1.1 Products features

zRun under Windows XP 32bit OS, Windows Vista 32bit OS;

z6805 chipset 10-bit ADCs image quality;

zLightning-Proof design;

z6805 chipset could display in real time or not real time, if you choose one

channel each chipset, then the display will be real time. And if you

choose two, three or four channels each chipset, then the display will be

not real time;

zAdjust the setting for any channel, and can be applied to other

channels;

zSnapshot the dynamic picture or static picture while playback;

zDisplay, record, playback, control, backup can be done simultaneously;

zSnapshot picture for single frame or snapshot picture for all frames while

live displaying;

zMotion detection, alarm function;

zSupport different types of high speed dome, PTZ controller and alarm

decoder;

zHigh quality network transmitting function;

zRemote view, playback, PTZ control, through Wan or LAN;

zSearch by the date, time, location, alarm period, snapshot pictures;

zComplete automatically operation: user can set record schedule for each

camera within all the periods of each week; and the system will record

according to the schedule;

zUser can set alarm activation schedule for each alarm sensor within all

the periods of each week, the alarm sensor will activate according to the

schedule;

zUser can set motion detection for each camera within all the periods of

each week, and the motion detection will activate according to the

schedule;

zCircularly switch function; Can set single channel or multi channels to

switch circularly;

zUser-friendly interface, it is easy for user to operate it;

zThe system will show hard disk is full if the hard disk will up to the

capability.

1.2 Hardware requirement

zRAM：512MB or above

zDisplay card: ATI128MB or above,Geforce2 MX400 128MB or

above

zCPU: Celeron D2.8 G or above or Intel P4 2.4 G or above

zResolution of monitor: 1024*768(32bits color)

zHDD: IDE, SATA,SCSI, 80GB or above

zMotherboard: Intel Chipset 865 or above

1.3 Software requirement

zWindows 2000/Windows XP/Windows Vista 32bit OS

zDirectX 9.0

zThe latest driver for display card

Attention: before installing the driver of display card, please install the driver of

motherboard; otherwise it will affect the function of display card and video

surveillance system

Chapter 2. Install the system

2.1 Install driver

2.1.1. Insert the CD into CD/DVD-ROM, it will pop up a installation guide

window, shown as below:

Select Installation Driver option, it will pop up the driver installation window:

2.1.2. Click on Install button to install the driver, and it will show: Installing

driver, please wait…

2.1.3. Wait for about 30 seconds, it will show installation finished:

2.2 Install Software

2.2.1 Select Installation Server option, it will pop up the DVR server installation

window:

Click on Install button to begin install the software.

Remark: If you tick

“

Install Video Board Driver

”

option, it will install the card driver at the same

time while installing the software.

If tick

“

Install Record File Protect Driver

”

option, it will install a file protect driver, and you can

not delete the recording file manually. The recording file can only be deleted by the delete tool, or

be overwritten automatically by software while the HDD capacity is nearly full.

Note: For this software, users also can choose to run the software directly

without installation.

(Copy all the files from CD to PC, and run the DVRInit.exe to initialize, run

DVR.exe to run DVR surveillance system.)

2.3. Apply for DDNS and p2p account

2.3.1 First, initialize the software by double click on the DVRInit.exe icon.

Click on initialize button to begin initial. Please wait a moment, it will indicate

initialize successfully.

If you want to delete DDNS account, please tick “Delete DDNS account” option,

then it will delete DDNS account at the same time.

If you want to delete p2p account, please tick “Delete p2p service account”

option, then it will delete p2p account at the same time.

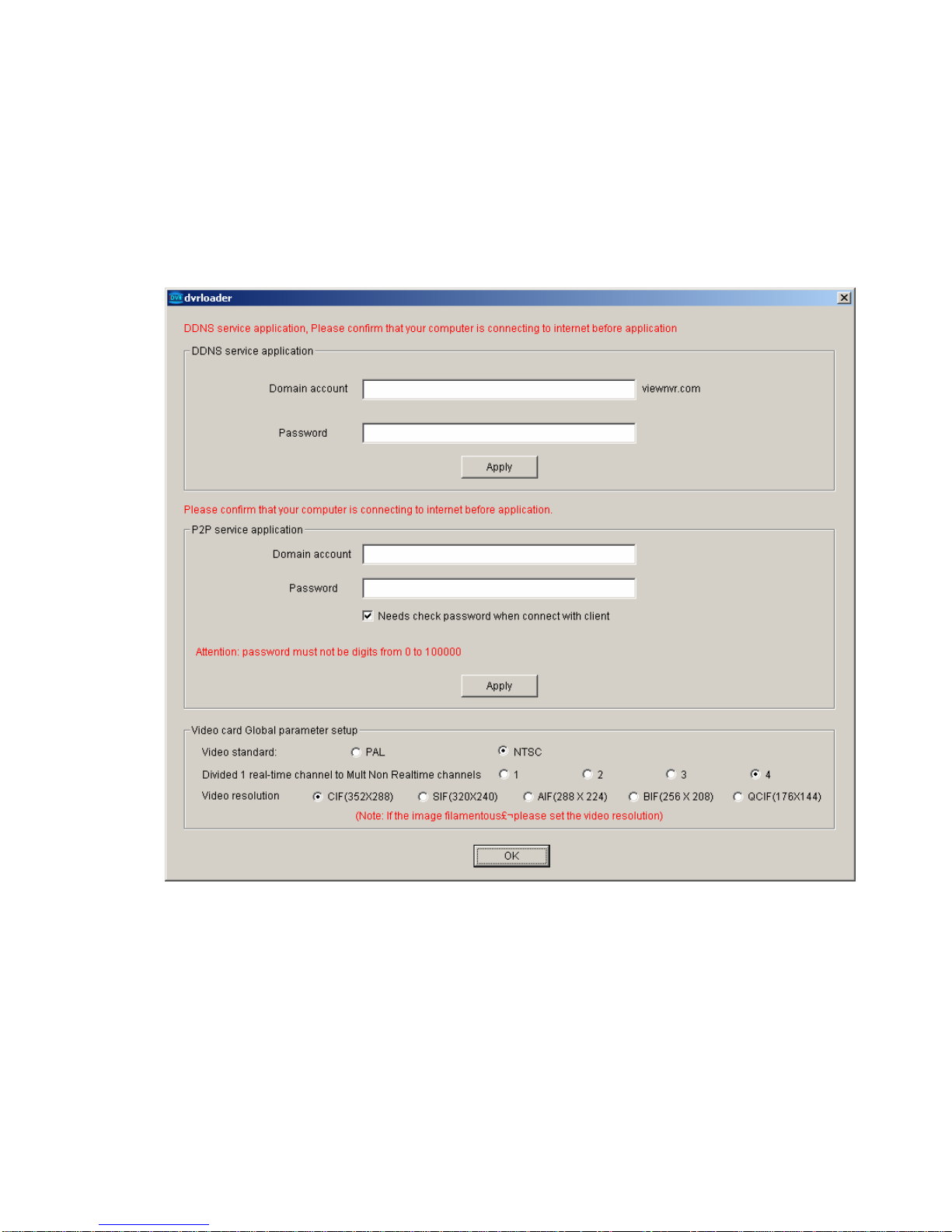

2.2.2 After initialization completely double click on DVR.exe icon, and go to the

DDNS and p2p account application interface. You can apply for a DDNS and a

p2p account in this window.

Input a account name and password then click on apply button to apply. After

completely application, it will show application succeeded information on the

top of the window.

Note: If you do not want to use the DDNS or the p2p, you can pass it without

application by click on Next button directly.

If you want to apply for another DDNS account or p2p account, please initialize

the software first, then apply for another one.

Standard: Select the right Video Standard (PAL or NTSC).

Remark: This series cards adopt 6805 chipset, and one chipset can support 4 channels at max. So,

there are 4 options of Channels/Device. The default is 2 channels/Device.

Take a EG-6CP0S-4 for example,

the default is 2, so it will show 2 channels in software by default.

If you choose 1 here, it will show only 1 channel in software.

If choose 3, it will show 3 channels in software.

And if 4, it will show 4 channels in software

Video Quality: you could ajust it and get different video quality. The default is

the highest.

Draw Mode: For a better compatible with different motherboards and graphic

cards, we provide 5 draw modes to choose. The default mode is mode 1. After

selected mode 1, it will show a live video image in the right window. And it will

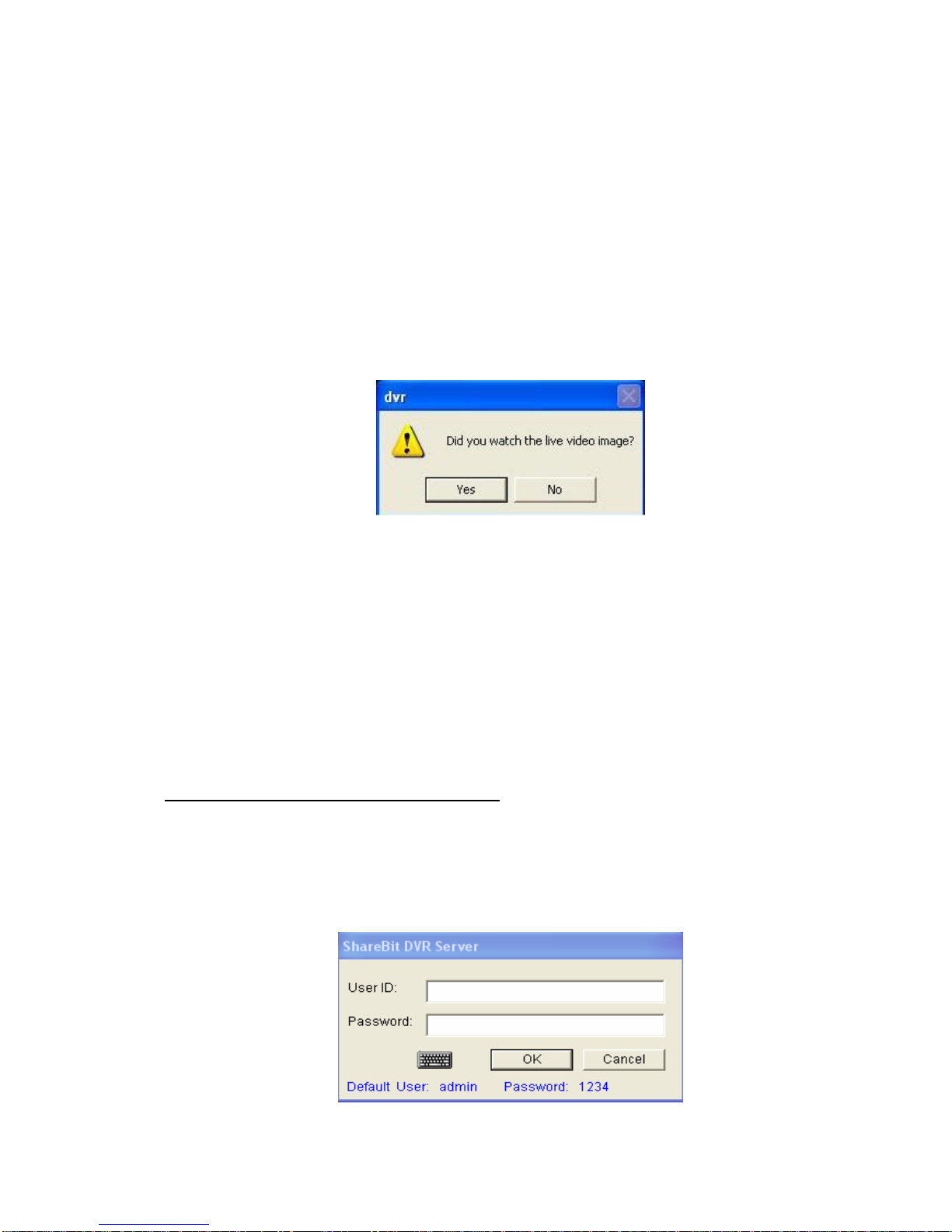

pop up a prompt window, show as below:

If the video quality is good, then click on “Yes” button, and go to next step.

If the video quality is not good or you want to try another mode, please click on

“No”, and it will alter to next mode automatically.

After selected the right Video Standard, channels/device, draw mode, and

watched the live video image, click yes to confirm, and click on finish to finish

these setting and enter into the DVR surveillance interface.

Note: If you want to change the channels/device number or draw mode after

finished these setting, please initialize the software first, then set again.

Chapter 3. Operate Main system

3.1 log on system

Click “DVR.exe” under sever folder, user will get following login window:

User ID: admin

Password: 1234

Press “OK” and login into the DVR surveillance system.

3.2 Main screen of server

System setup Playback

Capture picture

Monitor

Circular

Run schedule

Other

4: Screen split 4:Lock/Unlock 4: Exit

Note: When the button is selected, it will become red from grey.

2. System setup: click it, user can get following icon to set the preview, record,

alarm, schedule, PTZ, authorization, others as below picture

3. Run schedule: click it, the system will run according to the schedule

4. Playback: playback the recorded files

5. Monitor: Monitor the audio

6. Capture picture: it allows the function of snapshot

7. Circular preview: Auto scan for different channels, the default interval time

is five seconds.

8. Other: contains minimize, user management, remote connect information,

disk status.

9. Preview: choose the channel that you want to preview, click the number, it

will change to preview status when the number color change from grey to

green.

10. Record, alarm: choose the channel that you want to record or start alarm

function, click the channel number, it will start to record or start alarm function

when the number color change from grey to green

11. Color: adjust black/white, brightness, saturation according the actual

situation

12. PTZ: click the PTZ, user could adjust the PTZ setting.

3.3 Setup

3.3.1 Local user management

Click “other” button , and get tool list, click “local user

management”, ”user management” window will pop-up. ”user

management” is only for setting authority of server user, it is different from the

“Network user authorization “ (If user want to remote view through IE ,

user need to set “Network user authorization “)
