TIMEX®WATCHES
Congratulations on purchasing your TIMEX®watch.
Please read these instructions carefully to
understand how to operate your Timex timepiece.
Your watch may not have all of the features
described in this booklet.
For more information, and to register your product
please visit:
www.timex.com
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page ENii
TABLE OF CONTENTS
2 How to Start Your Watch
3 Water and Shock Resistance
4 Indiglo®Night-Light
5 Date Models
7 Day/Date/Am/Pm/Sun/Moon Models
9 Perpetual Calendar
11 Chronograph
21 Tachymeter Function
22 How to Adjust Bracelet
24 Bracelet Link Removal
25 Battery
27 Warranty
ENGLISH
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page ENiv
WATER AND SHOCK RESISTANCE
If your watch is water-resistant, meter marking
(WR_M) is indicated.
*pounds per square inch absolute
WARNING: TO MAINTAIN WATER-RESISTANCE,
DO NOT PRESS ANY BUTTONS OR PULL OUT
THE CROWN UNDER WATER UNLESS YOUR
WATCH IS INDICATED AS 200 METER WATER-
RESISTANT.
1. Watch is water-resistant only as long as crystal,
crown and case remain intact.
3
ENGLISH
HOW TO START YOUR WATCH
To start your watch remove the plastic guard from
under the crown, then press the crown in against the
case. The second hand will begin advancing in one-
second intervals.
Some deep-depth water-resistant watches require
the setting crown to be screwed in to secure water-
resistance. If your watch case has a protrusion with
screw threads, the crown must be screwed in after
setting the watch.
To screw in, push the crown firmly against the
threaded protrusion and hold in while turning the
crown clockwise. Continue to screw in the crown
until it is tight. You will need to unscrew the crown
(counter-clockwise) before pulling it out the next time
you want to set your watch.
2
ENGLISH
Water-Resistance Depth p.s.i.a. * Water pressure
Below Surface
30m/98ft 60
50m/164ft 86
100m/328ft 160
200m/656ft 284
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page 2

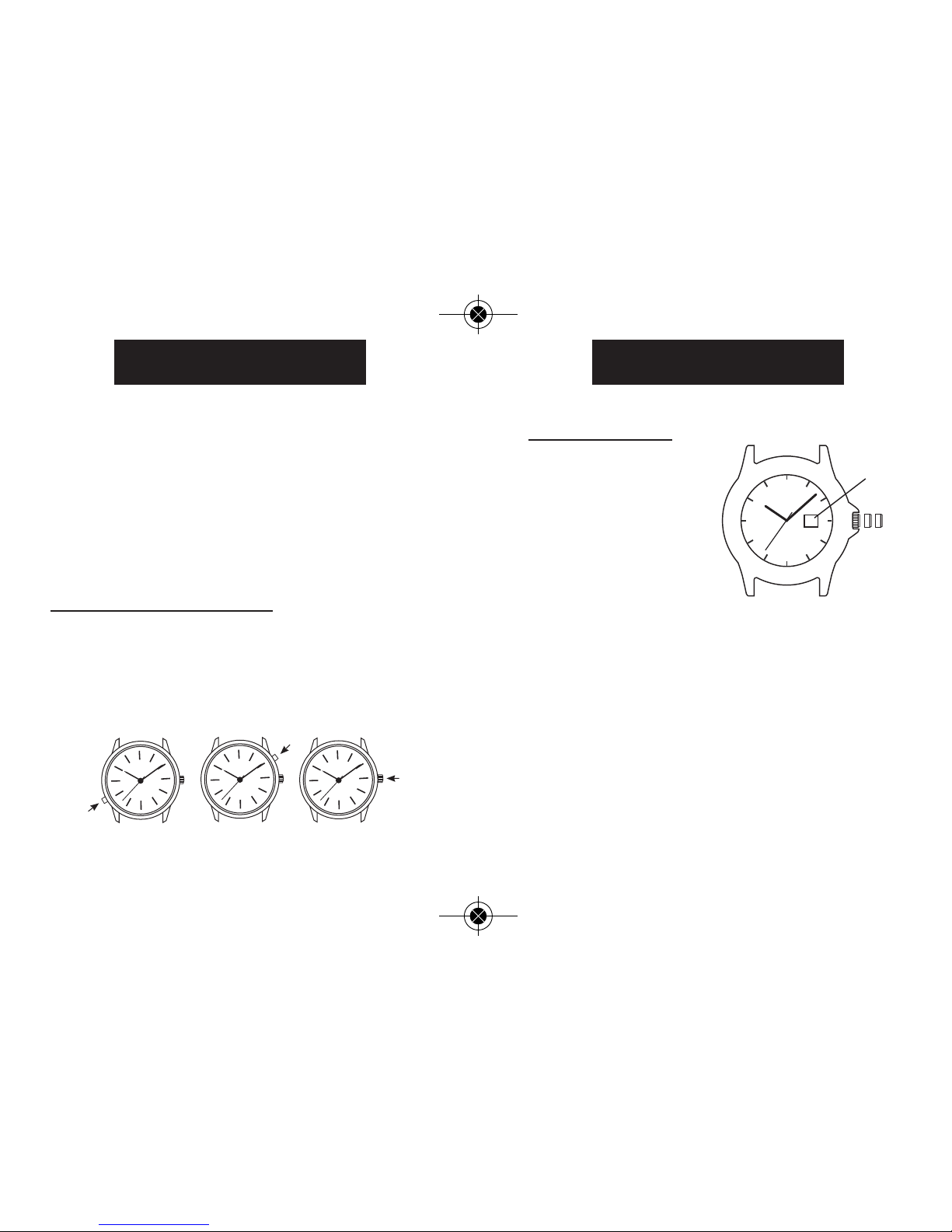

DATE MODELS
TO SET TIME:
1) PULL crown all the
way out and turn to
correct time.
2) Push crown in to
restart. For screw-in
setting crown, push
crown in while turning
CLOCKWISE to tighten.
Watches with date: Note correct time of day (A.M or
P.M.) for proper date function.
TO SET DAY:
1) PULL crown to “middle” position and turn
CLOCKWISE until correct day appears. If day does
not change, pull crown to “out” position and turn
CLOCKWISE or COUNTERCLOCKWISE through
necessary number of 24 hour periods until
correct day appears.
CROWN
POSITION
DATE
C
B
A
5
ENGLISH
2. Watch is not a diver watch and should not be
used for diving.
3. Rinse watch with fresh water after exposure to
salt water.
4. Shock-resistance will be indicated on the watch
face or caseback. Watches are designed to pass
ISO test for shock-resistance. However, care
should be taken to avoid damaging the crystal.
INDIGLO®NIGHT-LIGHT
Press button or crown to activate light.
Electroluminescent technology used in the INDIGLO®
night-light illuminates entire watch face at night and
in low light conditions.
4
ENGLISH
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page 4
DAY/DATE/AM/PM/
SUN/MOON MODELS
TO SET TIME:
1) PULL out crown to “C” position.
2) TURN crown clockwise to correct time.
Day/am/pm/moon will also change.
3) Push in crown to “A” position.
NOTE: Remember to set time for am or pm (sun or
moon.)
7
ENGLISH
TO SET QUICK DATE®FEATURE:
3-Position Crown:
1) Pull crown to “Middle” position and turn CLOCK-
WISE or COUNTERCLOCKWISE until correct date
appears.
2-Position Crown:
1) Pull crown to “OUT” position and turn CLOCKWISE
until date changes. Repeat until correct date
appears. Adjust date when month has less than
31 days. Push crown in when finished.
Caution: Wearing or storing the watch with the crown
in the "middle" position will cause damage to the move-
ment. Always return the crown to the normal position, or
if you wish to save the battery life while storing the
watch, leave the crown in the "out" position.
The date function advances the date between the
hours of 10 PM and 2 AM. Avoid setting the date
during this timeframe. If you attempt to set the date
during this time period, rotate the crown at a very
slow rate to avoid damaging the watch.
6
ENGLISH
C
B
A
CROWN
POSITION
DATE
DAY
AM/PM
SUN/MOON
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page 6
PERPETUAL CALENDAR
Your Perpetual Calendar watch accurately keeps
track of how many days are in each month. It also
adjusts for leap years. The date on your watch
(including the month and year) was preset at the fac-
tory to Eastern Standard Time, Greenwich Mean Time
or Hong Kong Standard Time (depending on where
you purchased your watch). You only need to adjust
the time.
TO SET TIME
To set time, simply pull crown all the way out and
turn. Day and date change automatically when time
is adjusted past midnight; there is no additional step
9
ENGLISH
TO SET DATE:
1) PULL out crown to “B” position.
2) TURN crown clockwise to correct date.
3) PUSH in crown to “A” position.
TO SET DAY:
1) PULL out crown to “C” position.
2) Advance time 24 hours to change the day.
3) PUSH in crown to “A” position.
8
ENGLISH
I
I
WED 14
I
I
WED 14
MIDDLE OUT
CHECK DATE
(FACTORY USE ONLY)
SET TIME DAY, DATE
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page 8

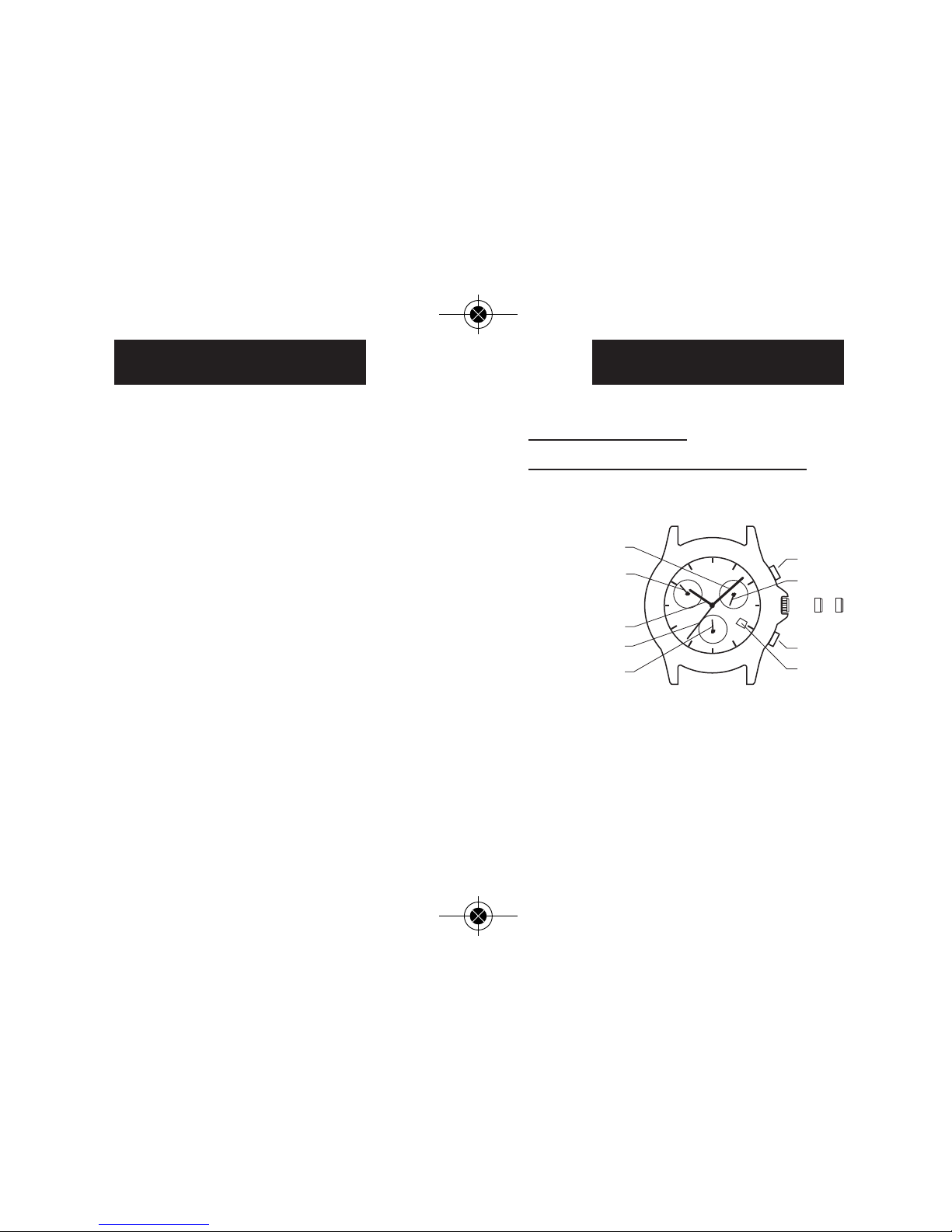

CHRONOGRAPH
WITH INDIGLO® NIGHT-LIGHT
THIS CHRONOGRAPH HAS TWO FUNCTIONS:
TIME & STOPWATCH
BASIC OPERATIONS
• 6 o’clock eye shows seconds.
• 10 o’clock eye shows “minutes elapsed” for
chronograph.
• 2 o’clock eye shows “1/20 seconds elapsed” for
chronograph.
11
ENGLISH
for setting day or date. Push crown in when done.
After setting, if date changes at noon, time needs to
be adjusted ahead or back 12 hours.
If crown is accidentally put in MIDDLE position and
turned, date display will change temporarily, but date
setting is unaffected. Simply pull crown all the way
out and set time. Proper date display will resume.
10
ENGLISH
B
D
A
C
PUSHER “A”
DATE
CHRONOGRAPH
1/20 SECOND
CROWN
POSITION
PUSHER “B”
SECOND
CHRONOGRAPH
SECOND
CHRONOGRAPH
MINUTE
HOUR
MINUTE
➧
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page 10
3. PUSH crown in to “A” position.
NOTE: The date changes automatically every 24
hours.
CHRONOGRAPH
THE CHRONOGRAPH IS CAPABLE OF
MEASURING:
• 1/20 seconds elapsed up to 1 second (2 o’clock
eye).
• Seconds elapsed up to 1 minute (chronograph
second hand).
• Minutes elapsed up to 30 minutes (10 o’clock
eye).
NOTE: Chronograph will operate continuously for
4 hours, after which it will automatically stop and
reset.
NOTE: The 1/20th of a second hand does not
move during chronograph function, the 1/20th
seconds are indicated when chronograph is
stopped and not yet reset.
13
ENGLISH
• Chronograph second hand shows “seconds
elapsed” for chronograph.
TIME
TO SET THE TIME:
1. PULL crown out to “C” position.
2. TURN crown either way to correct time.
3. PUSH crown in to “A” position.
TO ADJUST TO A NEW TIME ZONE:
1. PULL crown out to “B” position.
2. TURN crown either way to move the hour hand in
hour increments.
CALENDAR
TO SET THE CALENDAR:
1. PULL crown out to “B” position.
2. TURN crown either way to move hour hand. Two
complete revolutions relative to the 12 o’clock
position will move the date forward or backward.
This will correct both date and 24-hour time.
12
ENGLISH
T1003-01_W236_EN_analoglayout_4 3/10/10 10:02 AM Page 12
