Timago JMC-C 5300KD User manual

INSTRUCTIONS FOR USE

Toilet safety rail

Product code: JMC-C 5300KD

1. Characteristics

Toilet safety rail is made of ultra light anodized aluminium. It is height

and width adjustable in order to meet user’s needs.

The set includes:

•Left frame

•Right frame

•Connector

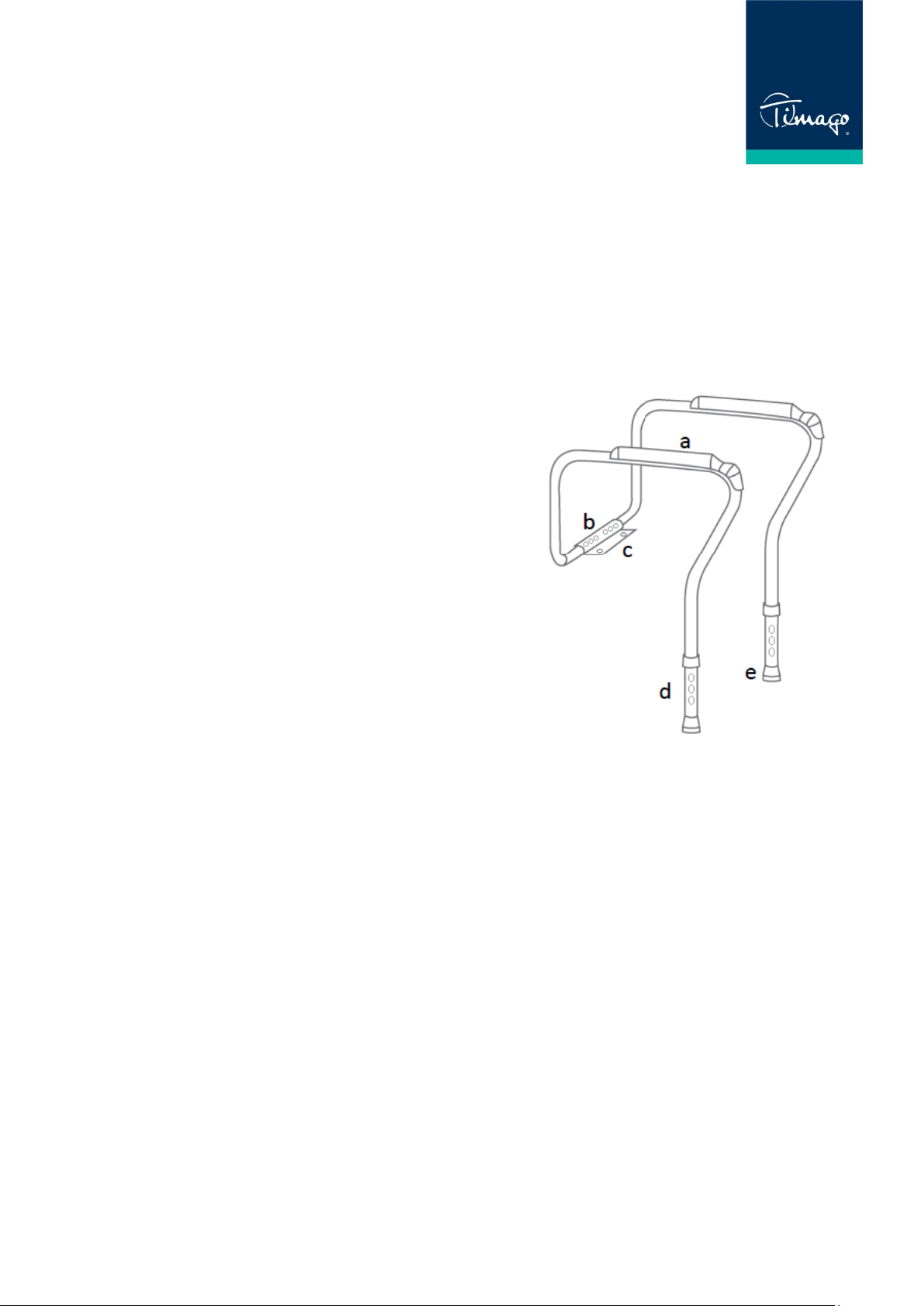

Elements of the commode chair:

a. armrest

b. width adjustment

c. mounting element

d. height adjustment – locking pin

e. anti-sliding tips

2. Application

Toilet safety rail is ancillary equipment which helps the user to perform

physiological activities. The rail is recommended to people with

dysfunctions and for those who lost the ability of unassisted sitting

down and standing up. Owing to height and width adjustment, the

frame can be adjusted to the size of the toilet.

3. Assembly

•Firstly, disassemble toilet seat; unscrew mounting screws of the

toilet bowl.

•Place mounting element of the toilet rail so that it matches with

the mounting openings of the toilet bowl.

•Install frame of the toilet rail.

•To adjust the width, press the metal pin at the mounting element,

select appropriate width, and lock the position of the tubes

relative to each other.

•To adjust the height, press the metal pin in the leg, select

appropriate height, and lock the position of the tubes relative to

each other.

•Assemble the toilet seat.

Note! The pins must be set on the same level in each leg. Legs should

stand stably on the ground.

4. Technical data

Overall width

53-63 cm

Overall depth 44 cm

Height 64-74 cm

Seat dimensions 47 cm x 42 cm

Weight 0.4 kg

Maximum capacity 100 kg

Frame colour silver

5. Notes

Timago International Group does not bear responsibility of improper

use of the toilet safety rail, failure to comply safety regulations and

misuse.

6. Maintenance

Reviews

Systematically make visual inspection of all the joining elements

(clamps, hinges) including:

•the condition of locking pins

•stability and look of the frame

Cleaning

Control the technical condition of the toilet safety rail regularly:

•Clean the rail regularly using only water and mild detergents. Dry

thoroughly.

•Do not use for cleaning: strong polishing agents and detergents,

abrasive agents, bleach, petrol or solvents (it may cause frame

damage, visible defects and in consequence - loss of warranty

rights).

7. Storage and transport conditions

Device should not be exposed to direct sunlight, water or moisture.

8. Warranty information

All products distributed by our company are covered by a warranty, the

terms of which are described in the warranty card available on our

website. Please contact the retailer from whom you purchased the

product. Please, keep in mind that for warranty purposes, the proof of

purchase (receipt or invoice) should be retained

9. Labels

Reference

number

Manufacturer

LOT number

Manufacture date

Serial number

Medical device

Note

Please read the

instruction

The manufacturer checked for compliance with

essential medical devices requirements.

Our complete line of products is available from our distributors.

Learn more at: www.timago.com. Thank you for choosing Timago!

Timago International Group

Spółka z o.o. i Spółka – Spółka komandytowa

ul. Karpacka 24/12

43-316 Bielsko-Biała, Polska

T.: +48 33 499 50 00

F.: +48 33 499 50 11

E.: info@timago.com

Rev. II, date 20.05.2021
