TigerStop TigerFence SLR User manual
1
®
TigerFence SLR
Installation Guide
Installation Guide
2017 TigerStop, LLC
February 2017 Mk1
2

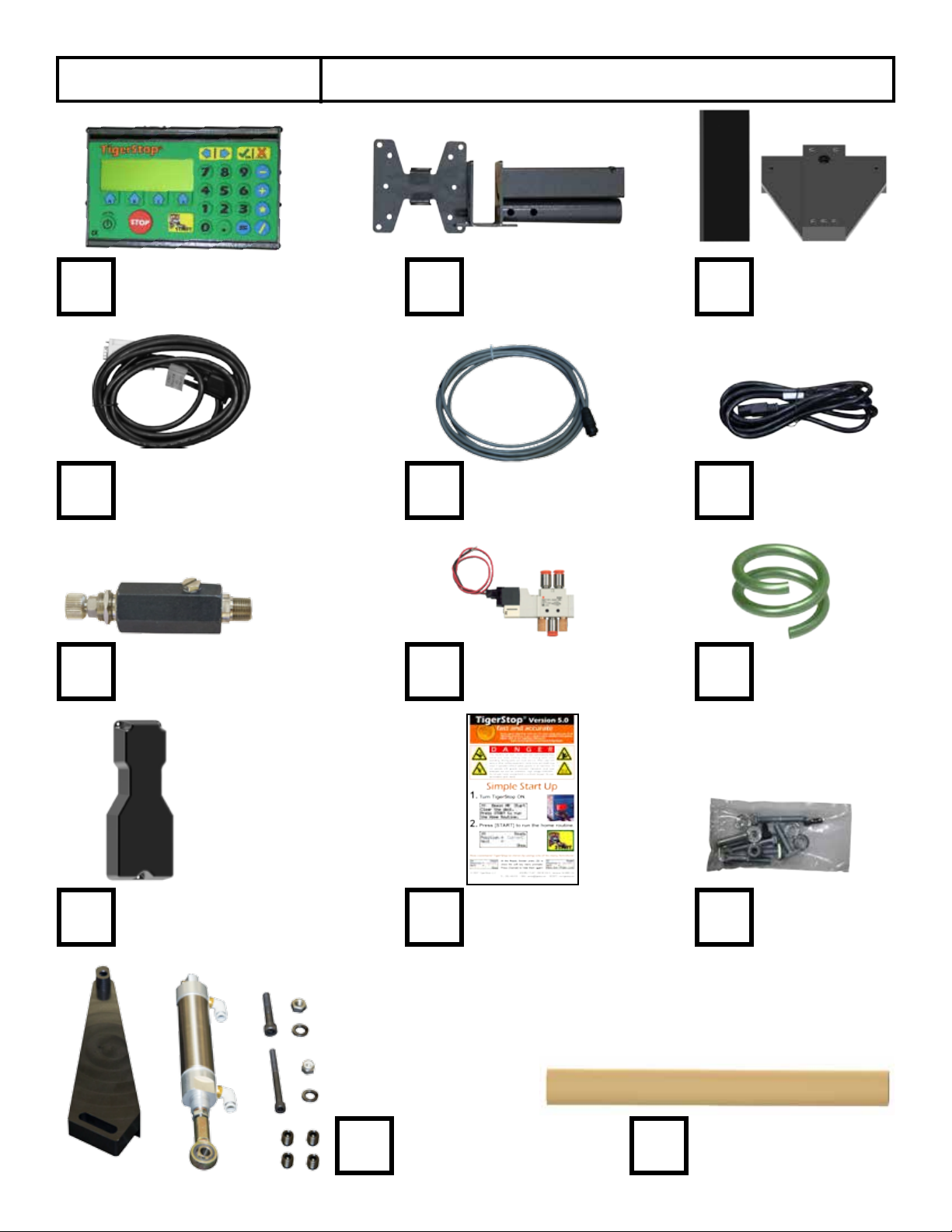

Quick Reference
Cards Nut Pack
Power Cable
Controller Cable
Controller
Stand
Controller
Serial Number
Solenoid Cable
Pneumatic
Tubing
Solenoid ValveRegulator
Drilling
Template
Mounting
Brackets
Nut Pack
Pneumatic
Kit
3
Safety First!
WARNING: Installation of your TigerStop Product must be done by a person trained in the safe
design and installation of automation products, and in the safe operation of power equipment. Ensure
that such installation meets all legally required safety requirements and guidelines, and that proper
guarding and safety devices are provided on all sides of the equipment to preclude unintended access
during operation. Consult with and follow the recommendations of a qualifi ed safety engineer.
WARNING: TigerStop Products are components intended for use in conjunction with potentially
dangerous machinery. The use of TigerStop Products does not make other machinery safe. TigerStop
Products are not intended to substitute, in any manner, for safe operating practices in general, or for
safety features present in other machines designed to make those machines as safe as possible.
TIGERSTOP PRODUCTS, IF USED OR INSTALLED IMPROPERLY, MAY CAUSE PERSONAL
INJURY OR DEATH AND SHOULD ONLY BE OPERATED BY PERSONS TRAINED IN THEIR
SAFE OPERATING PROCEDURES. Illustrations of TigerStop Products in use do not show, and are
not intended to show, all safety features and practices necessary for their safe operation.
GENERAL
WARNINGS
IMPORTANT SAFETY INFORMATION. READ ALL WARNINGS BEFORE OPERATING THIS PRODUCT.
WARNING: TigerStop Products must be installed in accordance with all local, state, and federal
regulations. Only personnel properly trained in the safe design and installation of automation
machinery and related power equipment should install TigerStop Products onto other equipment, to
ensure a safe and proper work station. TigerStop Products should not be operated without proper
training, both in the operation of TigerStop Products, and in the operation of related equipment.
INSTALLATION
WARNINGS
IMPORTANT CAUTION:
The motor box (compartment) contains DC voltage with potentially FATAL amperage. NEVER attempt
any unauthorized actions inside the motor box.
WARNING: Using a TigerStop interconnect does not relieve you of the responsibility for making sure
that your saw or other tool has all the necessary safety equipment in place. All installations must
meet all legally required safety requirements and guidelines. Installation and training should be done
following the recommendations of a qualifi ed safety engineer.
INTERCONNECTS
DANGER: This machine can start, move and stop automatically. Keep hands and loose clothing
clear of moving parts while operating. Moving parts can crush and cut. When used with a saw or
other cutting equipment, bodily injury and death may result if operated without safety guards on
all machines. Do not operate with guards removed. Operators must wear adequate eye and ear
protection.
OPERATION
DANGER! Don’t get pinched by the push feeder. Keep your hands away when in motion!
4
IMPORTANT SAFETY INFORMATION. READ ALL WARNINGS BEFORE OPERATING THIS PRODUCT.
Do not use TigerStop machines in a dangerous environment. Using power tools in damp or wet
locations or in rain can cause shock or electrocution.
Do not operate near fl ammable liquids or in gaseous or explosive atmospheres!
Wear proper apparel, no loose clothes, long hair or jewelry which could get pulled into moving
machinery or materials.
Wear non slip footwear, safety glasses, ear protection and a dust mask.
Use only 3- wire extension cords that have 3-prong grounding type plugs and 3-pole receptacles that
accept the tools plug for 120VAC. Use only 5-wire cords and plugs when using 3 phase.
DO NOT operate this or any machine under the infl uence of drugs or alcohol!
Do not open motor compartment or controller keypad. DC Voltage with potentially FATAL amperage!
Disconnect power before servicing. No user-serviceable parts inside.
No one should operate this machine except for fully qualifi ed personnel.
Read the manual!
Keep the work area clean and well lighted to avoid accidental injury.
5
Table of Contents
Table of Contents
Installation Requirements..............................................................................................6
TigerFence SLR Installation.............................................................................................7
Enable Code..............................................................................................................14
First Power Up...........................................................................................................15
Find the End Limits
Auto Detect
Calibrate
Set Kerf
Set Units
Set Optimizer Settings
Basic TigerFence Functions..........................................................................................20
Entering Decimals
Entering Fractions
Calculator Mode
Jog
Increment
PreSet
Quick Calibration
Working with Part Lists...............................................................................................24
Maintenance Schedule................................................................................................27
6
Installation Requirements
Installation Requirements
Do NOT drill or tap into the TigerStop beam!
Drilling holes into the TigerStop beam may damage the drive system. All fastening or
attachment to the fence beam must be made by inserting T-bolts or T-nuts with washers.
Do NOT over tighten mounting hardware!
It is critical, especially if not using the TigerStop Universal Attachment brackets, that the
bolts are prevented from over tightening and driving into the fence beam. Always use washers.
ALWAYS evenly tighten mounting hardware!
Uneven tightening of mounting hardware can introduce a slight twist or other deformation in the beam.
This will result in inaccurate measurement and premature failure of the drive belt or other components.
NEVER open TigerStop Motor Box!
The motor box compartment contains DC voltage with potentially FATAL amperage.
NEVER attempt unauthorized actions inside the motor box!
110 VAC 15 Amps
208 VAC 20 Amps
240 VAC 20 Amps
TigerFence SLR Power Requirements
TigerFence SLR must have a dedicated circuit. No other equipment should be on the same circuit.
WARNING! Do NOT use a high leg delta circuit to power TigerFence SLR.
If you are not sure what kind of circuit you are using, STOP! Have a qualified electrician confirm the main power circuit.
7
TigerFence SLR Installation
TigerFence SLR Installation
TigerFence SLR Anatomy
Mount TigerFence to Saw
Controller
Motor Box
Carriage
TigerFence
Mounting Slots
(Back)
Cylinder
Bracket
WARNING!
WARNING! Read all instructions before performing installation! NEVER power up
system while motor box is open! ALWAYS lock out/tag out TigerStop machinery
before installing!
Cutting Line - Edge of Saw Blade
Fold Along This Line
Maximum distance between holes on top line not more than 8”
End of TigerFence beam is here - DO NOT POSITION CLOSER TO SAW BLADE
OR SEVERE DAMAGE TO YOUR MACHINE CAN OCCUR!
Mark this line
with center
punches or
scribe.
2”
3/4”
All holes 3/8” - 9.5mm Diameter
8” 203mm

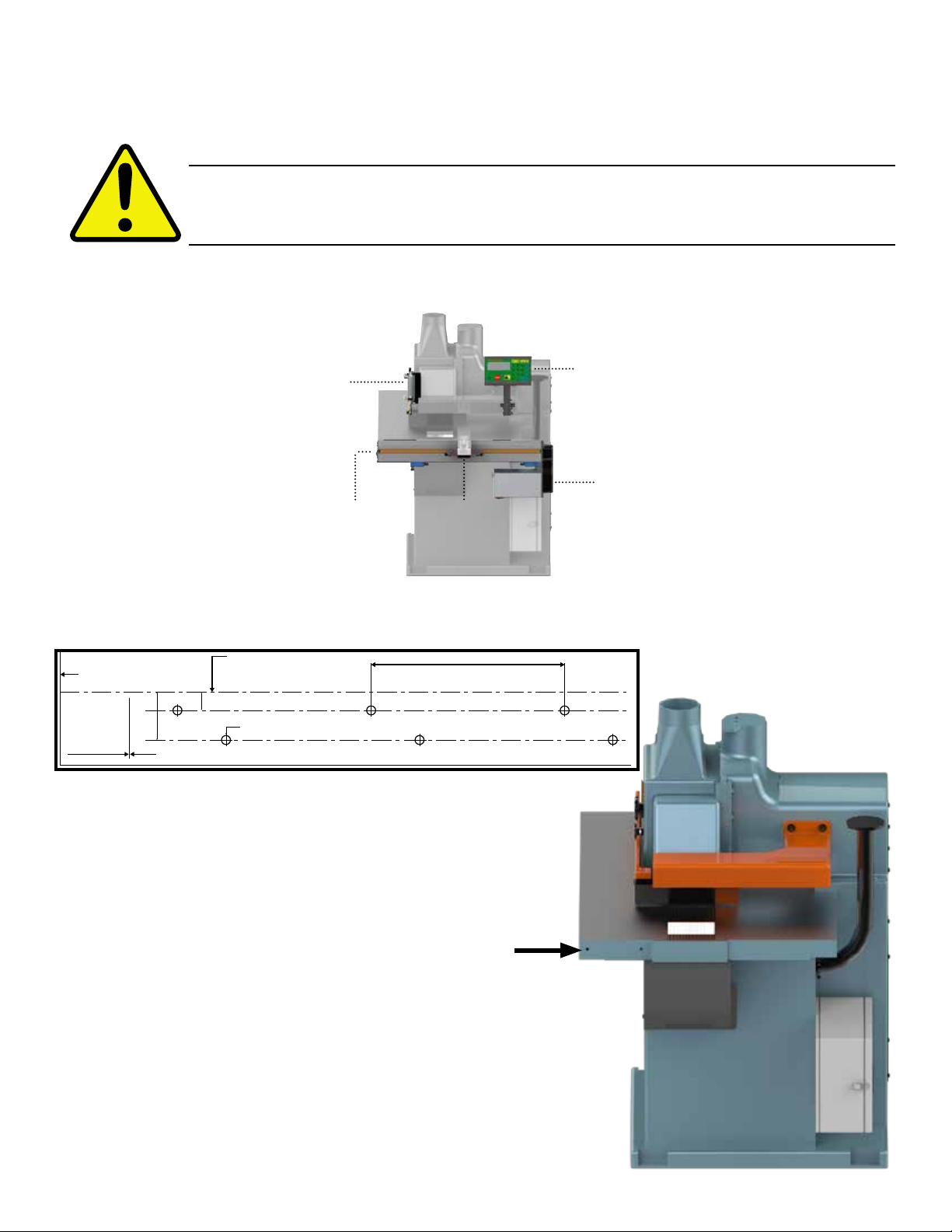

TigerFence Drilling Template
(Shipped in cardboard tube)
1. Remove the existing rip fence from the saw.
Note: Set the fence and fence mounting bolts aside to be
used later.
2. Lay the drilling template over the saw table
and drill the mounting holes into the saw
table and the spacer blocks, as shown on the
template.
Fence
Removed
8
Lock Washer

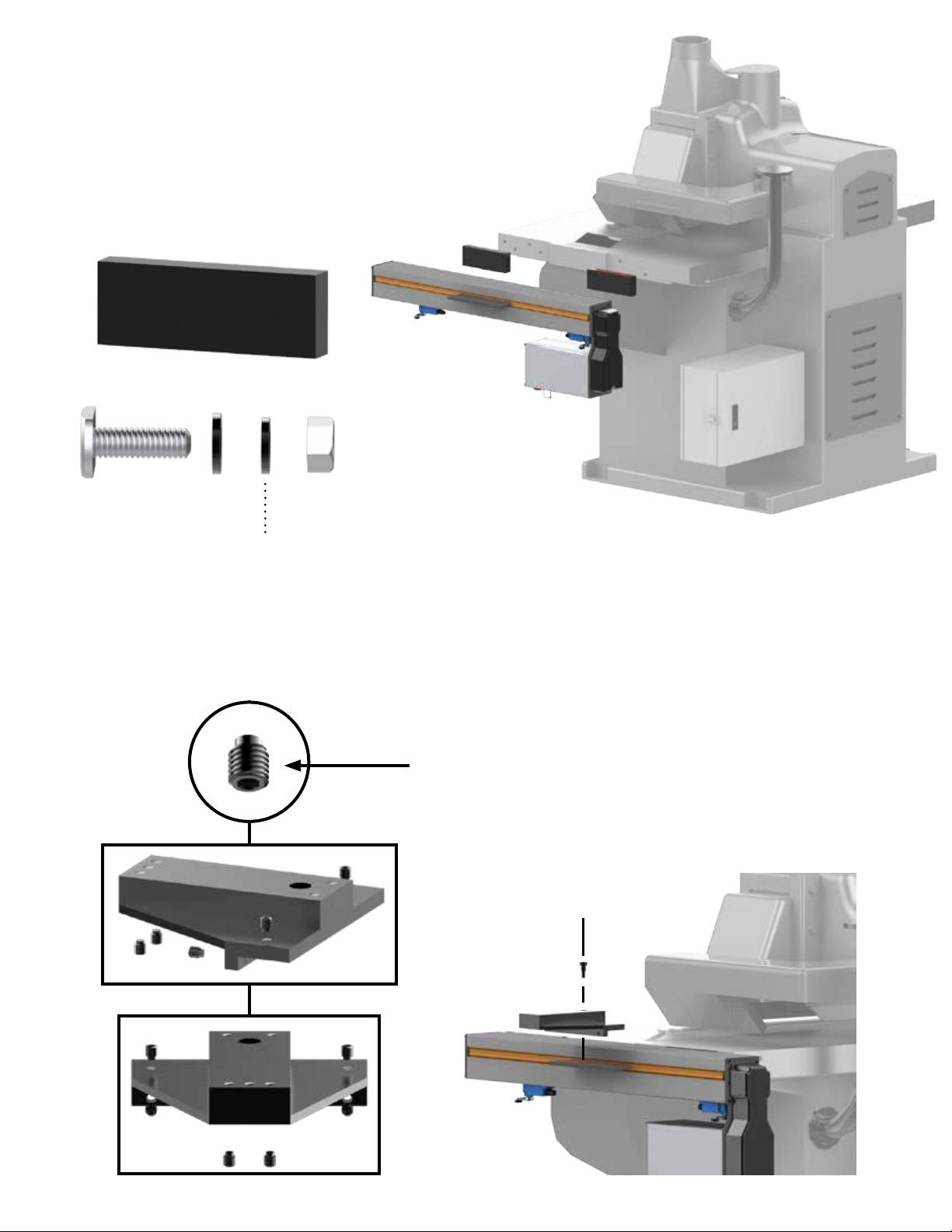

3. Attach TigerFence SLR to the table using the spacers and
supplied hardware.
Note: Ensure the TigerFence SLR is flush with the saw table top.
Mount Fence to TigerFence
Fence Square Adjustment Screws
9
Mount Anti-Kickback Teeth Control
Drill & Tap

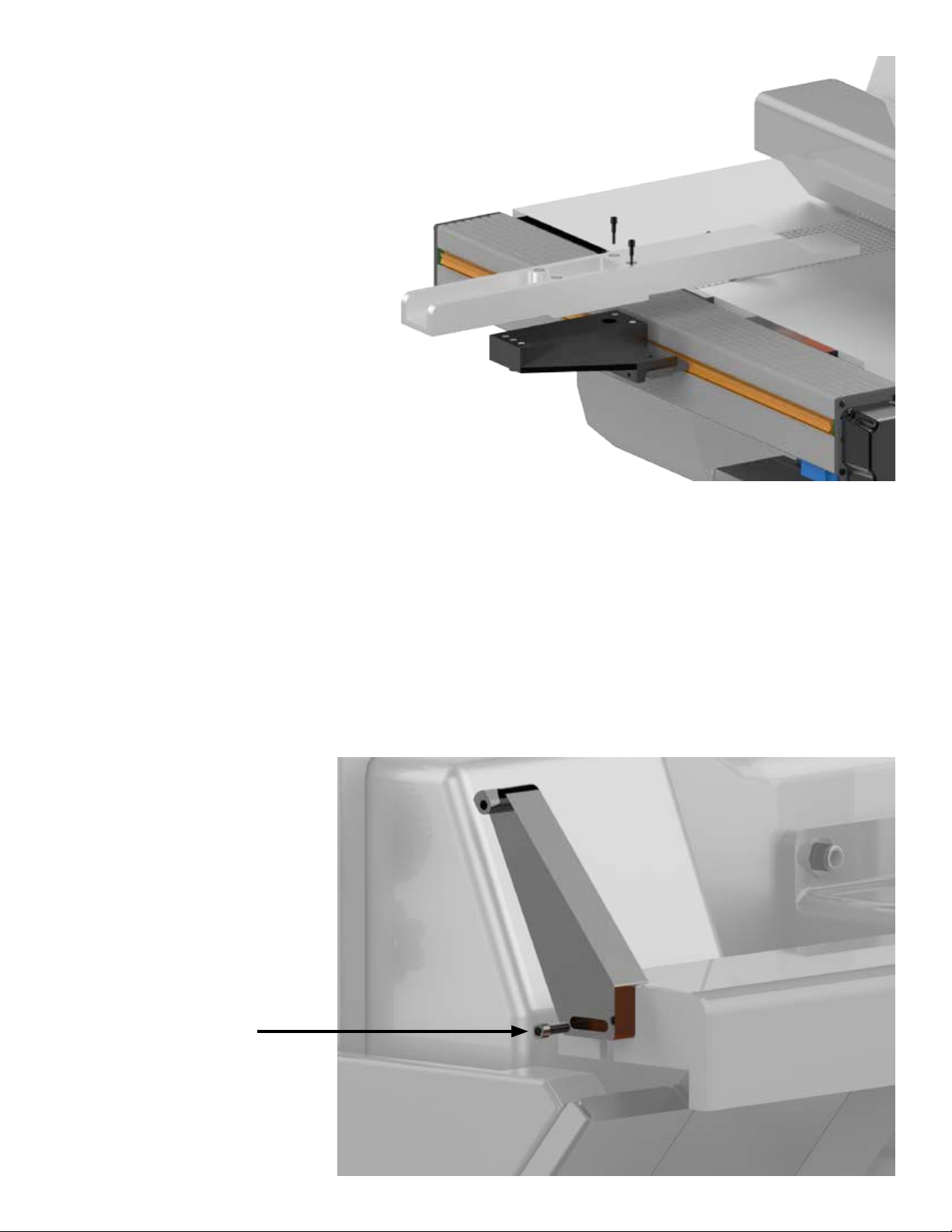

4. Attach your existing ripping fence to
the TigerFence SLR fence bracket.
Note: You may need to drill the existing rip fence.
10
Connect to anti kick back lever

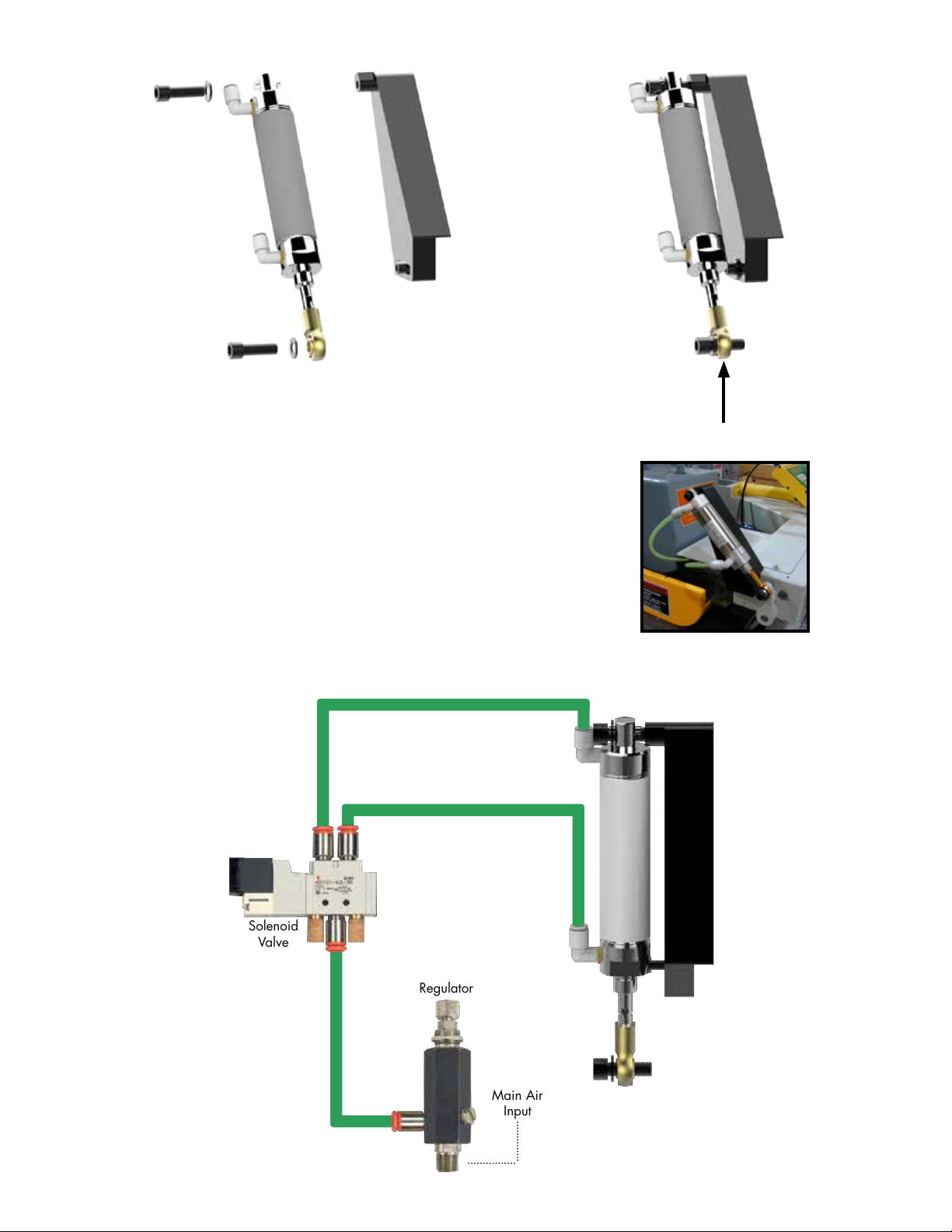

Plumb Pneumatics
Main Air
Input
Regulator
Solenoid
Valve
Anti Kick Back
Cylinder
