Thunderbook Titan A803 Instruction manual

QUIck user’S GUIDE

titan A803

TABLE OF CONTENTS

Safety Instructions....................................................................................4

Package Contents.....................................................................................6

Device Description....................................................................................7

Inserting SIM y Micro-SD Cards...............................................................8

Use of the barcode reader.......................................................................10

SAFETY INSTRUCTIONS

Batteries:

Batteries are parts whose life cycle depends on handling. If no failure is reported

within 3 months after receipt of the equipment, the battery will be considered to be

functioning properly. Failure to comply with these regulations will lead to the loss of

guarantee.

Please note the following:

• Fully charge the battery every three months.

• Do not work with the device at less than 20% battery as it may damage the battery.

The device will not come under warranty if it is detected that the battery is at 0%

charge.

• The LED indicator on the front of the tablet should blink during charging. If not, it is

due to a battery failure.

• Before working in negative temperatures, make sure the battery is 85% charged or

higher.

• In negative temperatures do not work with the equipment with a load below 60%.

• The battery charge temperature is 0ºC to 40ºC.

• The storage temperature of the battery is between 0ºC and 25ºC. Charge the battery

(or equipment) before storing it.

• Avoid exposing the device or battery to high temperatures.

• Do not overcharge the battery. The full charge is indicated when the indicator LED

stops flashing.

• Do not expose the battery to mechanical stress.

• Do not damage the batteries with sharp or pointed objects.

• Do not throw batteries into re - they may explode.

• Do not throw liquids on the batteries.

• Avoid short-circuiting the batteries, as it can lead to overheating and ignition of the

battery.

• If liquid comes out of the battery and comes into contact with eyes or skin, rinse

immediately with clean water and seek medical attention.

• Incorrect battery replacement may cause a risk of explosion.

• Replace the battery only with the same or equivalent recommended by the

manufacturer.

• Batteries should not be disposed of with normal household waste. Use the service of

specialized stores that perform recycling.

Warning: Please read and observe carefully before using the device!

Environment:

Protect the device from temperatures outside the specied range. The device is

protected against spray water but must not be submerged in water or be exposed to

water jets. Do not expose the unit to strong magnetic elds or strong static electricity.

Once water or liquid has entered the unit, turn it off and do not use until it is dried.

Have it checked by a qualied specialist.

Safety in operation:

Do not drop the device. Do not bend or twist it. This may result in a breakage of the

display glass or of circuit boards and mechanical parts. To avoid hearing damage,

listen to music via headphones at a moderate volume and never place the speaker

outputs directly in front of your ear. Keep packaging materials and small parts away

from children. There is a danger of suffocation. Never open the case of the appliance

or the charger (risk ofelectric shock, short-circuit and re). Do not put objects through

slots or openings on the appliance or charger (risk of electric shock, short circuit,

and re). Do not attempt to open the unit, the unit may be destroyed and you will lose

warranty.

Cleaning:

Never clean the surface of the appliance with solvents, detergents or other chemical

products. Use a soft, dry cloth instead.

Power supply:

Always use the original charger or one with suitable current and voltage rating to

prevent damage to the device. If you use an universal charger, consider the polarity of

the charger as well as the current and the voltage rating. Do not unplug the charger

from the wall outlet by pulling the cable. Do not use chargers with damaged cables or

plugs.

Disposal:

Dispose used electronic equipment at the appropriate collection points. Please note

that your device has a battery and therefore it must not be disposed with normal

household waste. Please consult your local or municipal authorities for the correct

disposal route of your device and battery.

Package Contents

Check your product box for the following items:

- Titan A803

- Hand Strap

- USB type C to female USB cord (15cm)

- USB type C to male USB cord (1m)

- Charger

This device is in compliance with the essential safety

requirementsand other relevant provisions set out in the

European Directive.

DEVICE DESCRIPTION

1211

2 3

1. Barcode scanner trigger

2. Power button

3. Volume (+ / -)

4. Barcode scanner (optional)

5. Rear camera

6. Audio

7. Mini HDMI

8. USB type C

9. USB 3.0

10. DC-jack

11. Speaker

12. Hand strap ﬁxation points

Inserting SIM & Micro-SD cards

Opening

Pull to open the rubber cover. Opening is hard to ensure the IP sealing.

Inserting the mini SIM card

The slot accepts only mini SIM cards. Insert the card into the SIM slot

like shown in the picture on the next page.

Inserting a SD card

Insert the micro SD card into SD card slot.

Closing

Close the protective caps after inserting the cards to preserve IP

sealing.

Tip:

For the SIM card, a Pin number may be requested. Enter the SIM card

pin number and tap OK.

Warning:

Before inserting SIM or SD card the device has to be shut down.

Micro

SIM

Micro

Use barcode reader

1. Make sure there is an application open on the device and that a

text eld is focused (with the text cursor in the text eld).

2. Point to a barcode with the top of the device.

3. Press and hold the shutter button (located on the top of the device

with the letter “F”).

4. The data capture LED is lit and a beep sounds by default to

indicate that the barcode has been decoded correctly. Focus the

capture LED on the barcode until the beep sounds.

5. Release the trace button. Barcode content data is displayed in the

text eld.

Attention:

• To activate the reader it is necessary to start the

“application” HardDeCode if the device has been

rebooted, shut down or restored.

• Your device may not have a barcode reader,

depending on the conguration acquired.

• Note that the default conguration of the reader is via

USB HID.

Use of the barcode reader

Table of contents

Other Thunderbook Tablet manuals

Thunderbook

Thunderbook TITAN A103 Instruction manual

Thunderbook

Thunderbook COLOSSUS A800 Instruction manual

Thunderbook

Thunderbook COLOSSUS W103 Instruction manual

Thunderbook

Thunderbook TITAN W100 Instruction manual

Thunderbook

Thunderbook Goliath W100 Instruction manual

Thunderbook

Thunderbook Colossus W125 Instruction manual

Thunderbook

Thunderbook COLOSSUS W803 Instruction manual

Thunderbook

Thunderbook TITAN W103 Instruction manual

Thunderbook

Thunderbook COLOSSUS W105 Instruction manual

Thunderbook

Thunderbook Colossus A100 Instruction manual

Thunderbook

Thunderbook COLOSSUS W100 Instruction manual

Thunderbook

Thunderbook TITAN W803 Instruction manual

Thunderbook

Thunderbook Goliath A800 Instruction manual

Thunderbook

Thunderbook Atlas W115 Instruction manual

Thunderbook

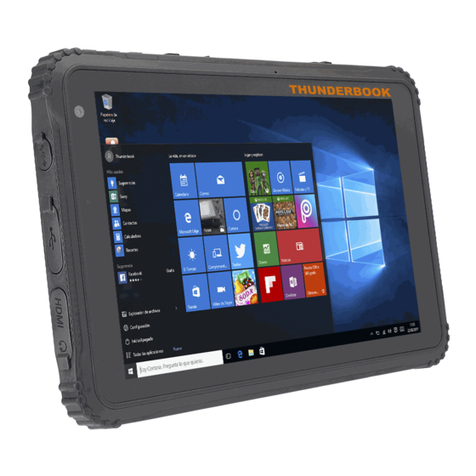

Thunderbook Colossus W800 Instruction manual
