THRIVE AGRITECH Boost User manual

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

Table of Contents

Introduction.......................................................................................................................................... 2

General Guidelines............................................................................................................................... 2

Daisy-Chaining...................................................................................................................................... 2

Installation Instructions: Flush Mount ............................................................................................... 3

Installation Instructions: Suspension Mount ..................................................................................... 8

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

Introduction

This manual provides installation instructions for Boost and Infinity 2.0 LED light bars for top lighting. For

under canopy lighting, use “Installation Guide, Under Canopy Lighting” located on Thrive Agritech’s website.

General Guidelines

•Confirm the overall integrity of the light bars prior to installation.

•Maintain at least 8 inches (0.2 meters) between the light fixture and any combustible materials.

•Keep the light fixture away from sources of heat.

•The LED light is an indoor fixture operated within an ambient temperature range of -20oC to 30oC.

•Ensure power is off before installation. Installation must be carried out by qualified electricians.

•To clean the light fixture, switch power off and use a dry cloth without corrosive cleaning agents.

Daisy-Chaining

The maximum number of lights that can be daisy-chained together at various input voltages is shown in the

tables below. Also shown is the nominal current supplied to each fixture. 16AWG wire is recommended.

Boost LED Light

Parameter

120 Volts

240 Volts

277 Volts

Nominal current / fixture

1.1A

0.55A

0.48A

Max # of fixtures linked together in

a daisy-chain

7 fixtures

12 fixtures

16 fixtures

Infinity 2.0 LED Light

Parameter

120 Volts

240 Volts

277 Volts

Nominal current / fixture

0.54A

0.27A

0.23A

Max # of fixtures linked together in

a daisy-chain

10 fixtures

20 fixtures

30 fixtures

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

Installation Instructions: Flush Mount

This guide provides installation instructions using a 4’x16’ canopy as an example. While your specific canopy

may be a different geometry, the same general installation procedures apply. Please contact Thrive Agritech

customer support with any questions not covered in this guide.

Parts for Flush Mount Installation

Item

Part Number


Website Link

Boost

Infinity 2.0

BST-130W-FS2

TBAR-65W-FS2

thriveagritech.com/products/

Slide & Lock Clips

SLCLIP

Interconnection Clips

INCLIP-BD

Unistrut

Various

unistrut.us/product-details/p3000t

Cone Nuts

CM-100B-1/2

mscdirect.com/product/details/54055116

¼-20x1.5” machine screws

¼-20x1.5” hex bolts

Various

www.grainger.com

Power Cables

BDPCX-XX

Power Interconnection

Cables (optional)

BDINCX-XX

Dimming Controller Cables

(optional)

DIMPCX-XX

Dimming Interconnection

Cables (optional)

DIMINCX-XX

End Caps

ENDCAP-BD

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

Figure 1 shows the completed installation example of the lights (either Boost or Infinity 2.0) over a 4’x16’

canopy. The installation consists of 4 lines of lights, with each line containing 4 lights connected end-to-end

for a total of 16 lights over the canopy.

Figure 1

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

1) Attach the Unistrut bars to the mounting surface as shown in Figure 2. The first two Unistrut bars of

a line of lights should be approximately 36” apart, and all subsequent Unistrut bars should be about

47.25” apart.

2) Slide the cone nuts into the Unistrut bars and position them where the lights will be located (Figures

3 & 4). The center spacing of the light bars must match the lighting design provided by Thrive

Agritech to ensure proper light intensity and uniformity.

3) Position the Slide & Lock clips on top of the cone nuts and secure in place using ¼-20 x 1.5” machine

screws or hex bolts (Figure 5). Ensure all locking arms of the clips are facing the same direction.

36”

47.25”

Unistrut

Figure 2

Figure 4

Cone Nuts

Light bar

Spacing

Figure 3

Figure 5

Slide & Lock Clip

Locking Arm

47.25”

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

4) Beginning with the Unistrut bars that are spaced 36” apart, secure the lights to the slide & lock clips

as shown in Figure 6, but leave the locking arms disengaged to allow the lights to slide and connect

with each other.

Figure 6

Slide & Lock Clip

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

5) Once the lights are connected end-to-end, make any final positional adjustments such as ensuring

the ends of the lights are aligned.

6) Attach the interconnection clip as shown in Figure 7 to secure the lights mechanically and

electrically.

7) Compress the locking arms of the slide & lock clips to secure the lights in place.

8) Connect power cables to lights. Connect optional interconnection cables or dimming cables as

needed. When using interconnection cables to electrically connect fixtures side by side, ensure the

fixture direction is alternating male to female (Figure 8).

9) Cover any exposed connectors with the end caps.

Interconnection Clip

Figure 7

Female

Connectors

Male

Connectors

Figure 8

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

Installation Instructions: Suspension Mount

In some circumstances, customers may prefer to install Boost or Infinity 2.0 lights using suspension

cables.

Parts for Suspension Mount Installation

Item

Part Number


Boost

Infinity 2.0

BST-130W-FS2

TBAR-65W-FS2

Suspending kit

SKIT-BD

Interconnection Clips

(optional

INCLIP-BD

Power Cables

BDPCX-XX

Power Interconnection

Cables (optional)

BDINCX-XX

Dimming Controller Cables

(optional)

DIMPCX-XX

Dimming Interconnection

Cables (optional)

DIMINCX-XX

End Caps

ENDCAP-BD

___________________________________________________________________________

www.thriveagritech.com

[email protected]

800-205-7216

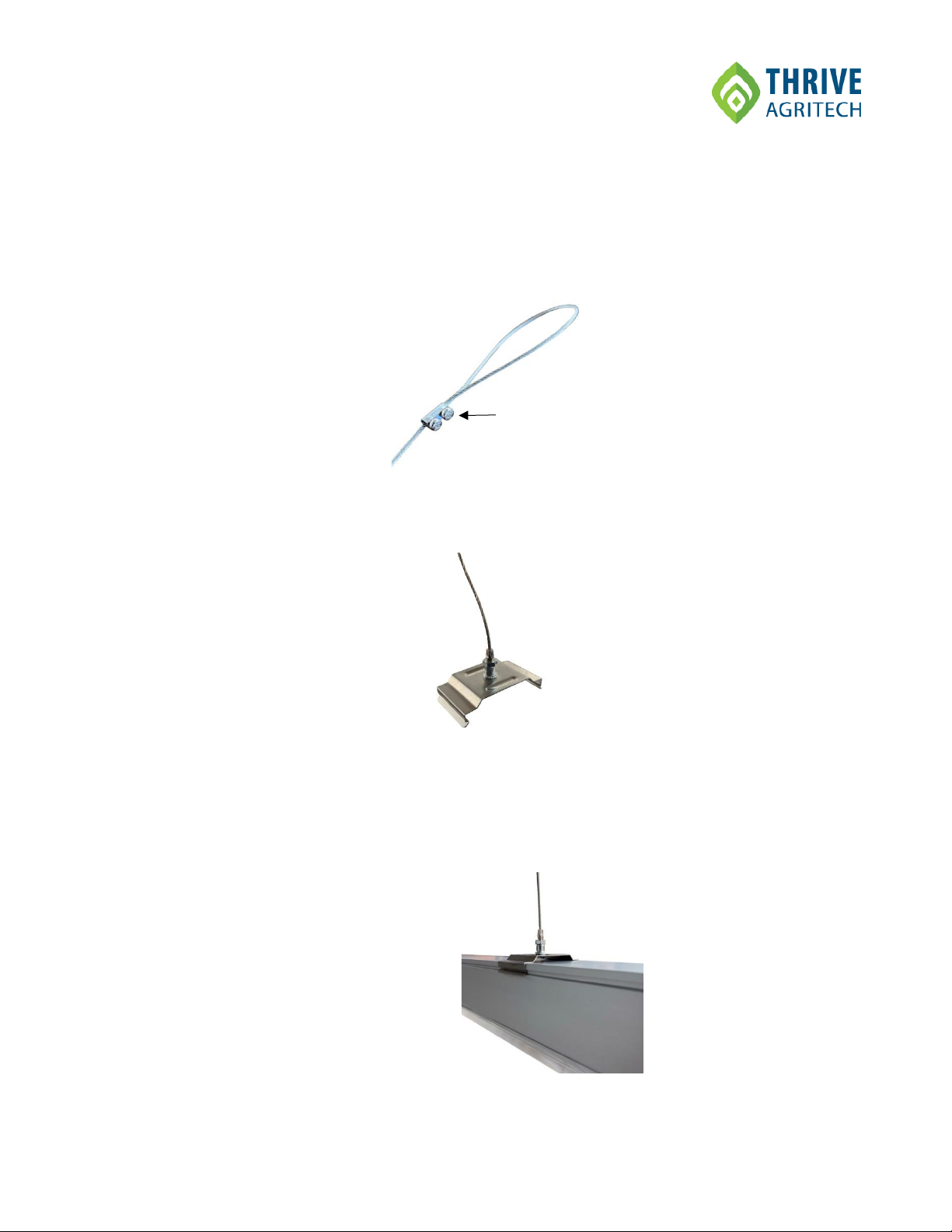

1) Unpack the suspending kit (SKIT-BD) clips and cables.

2) Loosen of the cable screws for each cable and adjust the length of the cables so the lights will

hang at the desired height above the canopy. The cables are normally all set to the same length.

After setting the cables to the appropriate length, tighten the cable screws to lock in place.

Figure 9

3) Attached the suspension clips to the cables using the provided screw (Figure 10).

Figure 10

4) Secure the suspension clip & cable assemblies to the mounting structure (e.g., Unistrut, eye

bolts, hooks, etc.) at the positions above the canopy as specified in the lighting design. The cable

assemblies should be positioned so that two (2) suspension clips can attach to the light bar

approximately 6”from each end of the light.

5) Attach the Boost or Infinity 2.0 light bar to the suspension clips (Figure 11).

Figure 11

Suspension Clip

Cable Screws
