Thermaltake Wing RS 101 User manual
VG8000BNS Manual
VG8000BNS
Manual
2007 Thermaltake Technology Co., Ltd. All Rights Reserved. 2007.04
C
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
All other registered trademarks belong to their respectivecompanies. www.thermaltake.com VG8000BNS
VG8000BNS Manual
VG8000BNS
Manual
1l2
Chapter 1. Product Introduction
Chapter 2. Case Mechanical Operation
Specification
Chapter3 Motherboard & Lends Installation
Motherboard installation
Case LED connections
USB2.0 connection
Audio connection
2-1
2-2
2-3
2-4
2-5
2-6
2-7
How to open the side panel
External 5.25" device installation
External 3.5" device installation
HDD installation
Front fan installation (Optional)
PCI slot usage
How to install PSU
1-1
3-1
3-2
3-3
3-4
Chapter4 RSI Cooler and Power Supply
RSI Cooler (Optional)
RSI Power Supply (Optional)
4-1
4-2
02
03
04
07
10
11
12
14
15
16
17
18
19
Specification
Chapter 1. Product Introduction
ContentS
Model
Case Type
Net Weight
Dimension
(H*W*D)
Cooling System
Drive Bays
- Accessible
- Hidden
Material
Color
Expansion Slots
Motherboards
VG8000BNS
Middle Tower
4.60 kg ; 10.14 lb
415 x 190 x 480 mm
16.3 X 7.5 X 18.9 inch
Front (Intake) :
120 x 120 x 25 mm (optional)
Rear (Exhaust) :
120 x 120 x 25 mm, 1300rpm, 17dBA
10
4 x 5.25", 1 x 3.5"
5 x 3.5"
SECC
Black
7
Micro ATX , Standard ATX
I/O Ports Dual USB 2.0, MIC & Speaker
20
VG8000BNS Manual
VG8000BNS
Manual
3l4
2-1 How to open the side panel
Chapter 2. Case Mechanical Operation
To remove the side panel, please
remove upper and bottom thumb
screws on the back of the case.
Remove the side panel,
please refer to the
orientation of the
picture.
Open the side panel
1
23
2-2 External 5.25" device installation
Remove the front panel
Pull out the front panel
as shown
Remove the 5.25"
drive bay cover
1
2
3
Important Notice:
If the air guide interferes with CPU cooling fan,
please remove the CPU air guide as shown.
VG8000BNS Manual
VG8000BNS
Manual
5l6
Remove the 5.25" drive bay
metal cover
4
7
Place 5.25" device into the
drive bay
Find the proper openings
Put back the lock device and
turn lock device clockwise to
lock
5.25" device installation
complete
8
9
10
Turn lock device
counterclockwise to unlock
Remove lock device
5
6
1
2
2
1
VG8000BNS Manual
VG8000BNS
Manual
7l8

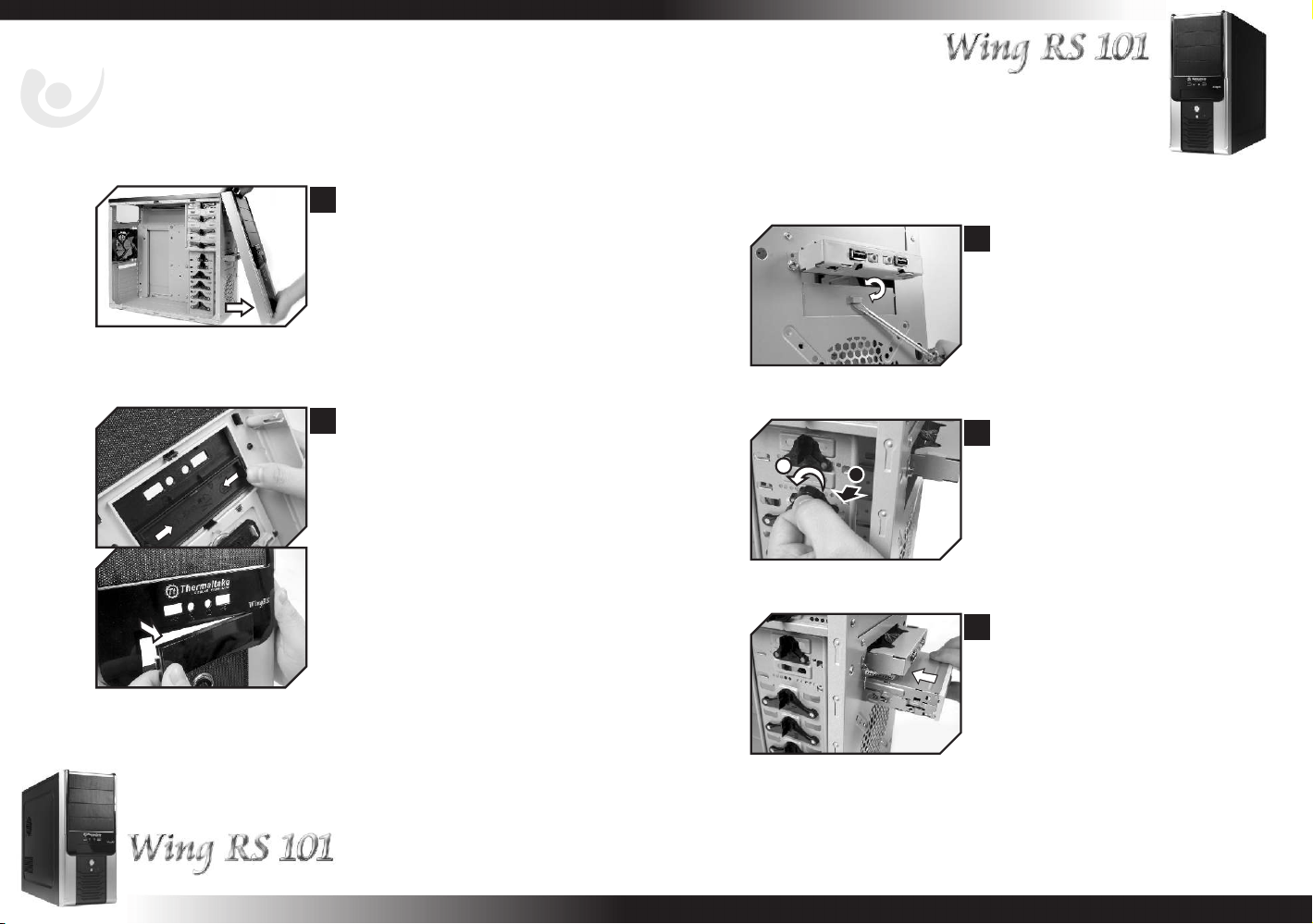

2-3 External 3.5" device installation
Pull out the front
panel as shown
Remove the 3.5"
drive bay plastic cover
1
2
Remove the 3.5" drive bay
metal cover
Turn lock device counter-
clockwise to unlock
Remove lock device and
insert the device into the
3.5" drive bay
3
4
5
12
VG8000BNS Manual
VG8000BNS
Manual
9l10

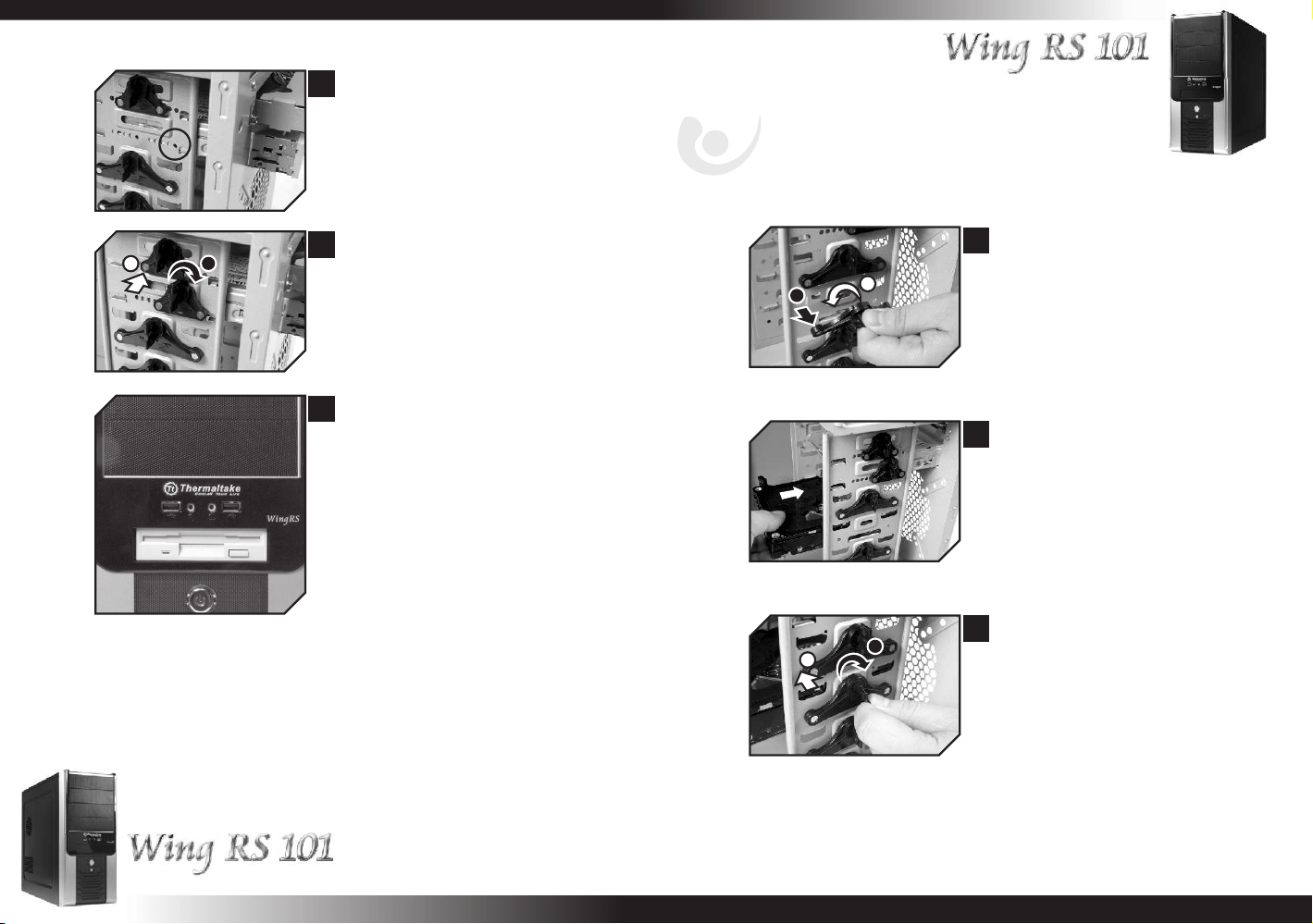

Find the proper openings
Put back the lock device
and turn clockwise to
secure the drive
3.5" device installation
complete
6
7
8
2-4 HDD installation
Turn lock device counter-
clockwise to unlock
Remove lock device then
place HDD into drive bay
Put back the lock device and
turn lock device clockwise to
secure the HDD
1
2
3
1
2
2
1
2
1
Important Notice:
The upper 3.5" external drive bay is not compatible with FDD,
but HDD is able to be installed in it. While installing HDD,
please remove the tool-free kit and secure HDD by screws.
VG8000BNS Manual
VG8000BNS
Manual
11l12
2-5 Front fan installation (optional)
Remove the front panel
Place the fan as shown
Secure the fan by screws
1
2
3
2-6 PCI slot usage
Remove thumb screw from
PCI slot bracket
Take off the PCI slot
bracket as shown
Insert the PCI device
into PCI slot
1
2
3
VG8000BNS Manual
VG8000BNS
Manual
13l14
Put back the PCI slot bracket
Screw the thumb screw
as shown
Finish installation
4
5
6
2-7 How to install PSU
Place the PSU over the
location as shown
Secure it by screws
Finish installation
1
2
3
VG8000BNS Manual
VG8000BNS
Manual
15l16

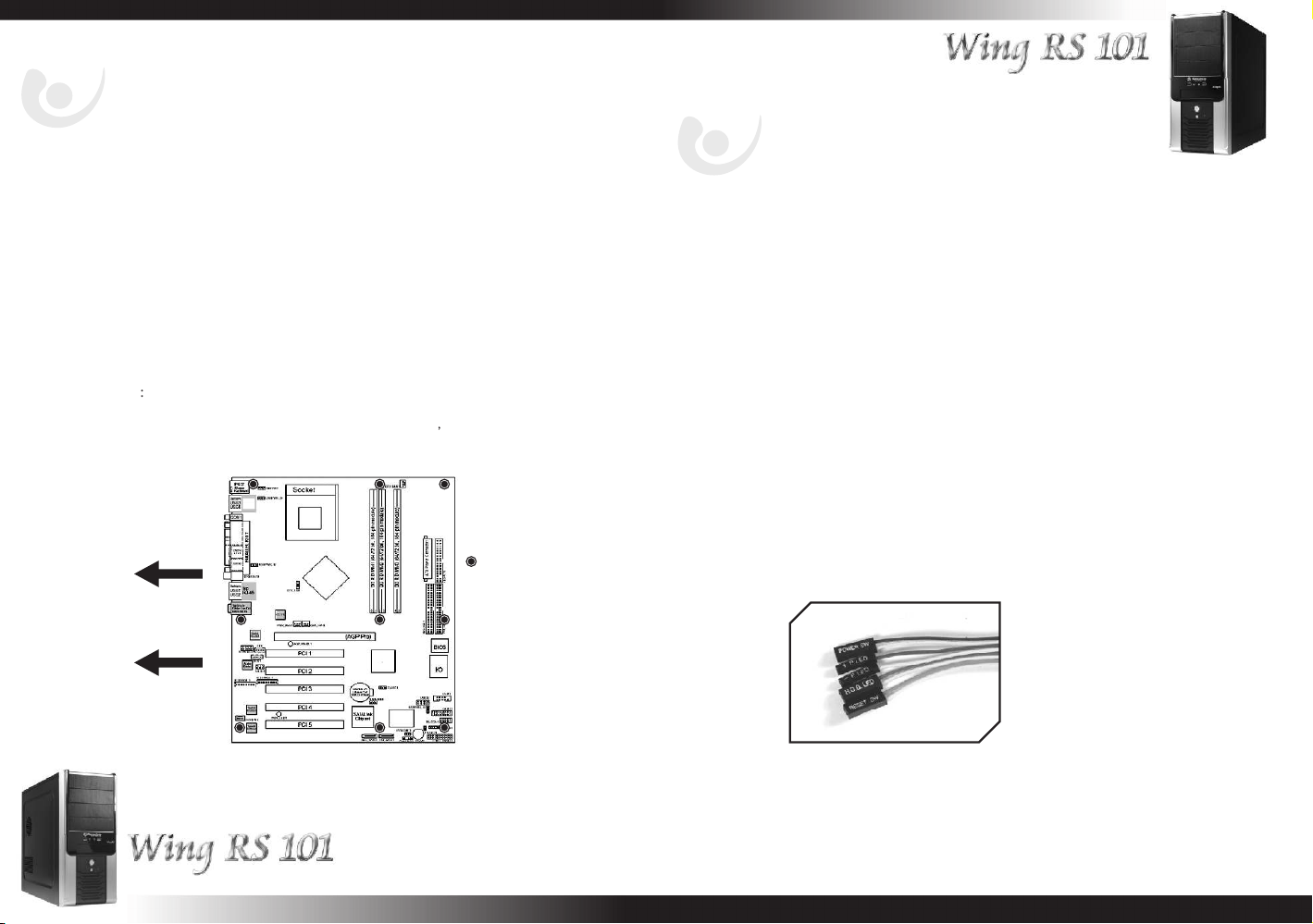

3-1 Motherboard Installation
Chapter.3 Motherboard & Leads Installation
Each motherboard has different standoff layout. It is highly suggested
that you refer to your motherboard's manual when installing
motherboard into the Case. The cases are applicable with Standard ATX,
Micro ATX motherboards. Your motherboard may require a special I/O
Panel, which should be included with your motherboard.
Placement Direction:
When installing the motherboard, make sure you follow the direction
provided by your motherboard manufacturer. On most standard
motherboards, the edge with external ports goes to the rear part of the
chassis. It is highly recommended that you install CPU, heat sink and
modular components before fixing the motherboard inside the chassis.
Note
Due to the variety of motherboards on the market, the majority of the
motherboards come with their own I/O plates. It s necessary for you
to remove the fan holder before install the I/O plates.
478
The locations of the
screw holes. Note
these locations and
place included
standoffs on the
chassis first.
Above illustration is a sample of what the motherboard's
layout. For more detail screw hole placement, please refer
to your motherboard manual.
This side towards
the rear of the
chassis
3-2 Case LED connections
On the front of the case, you can find some LEDs and
switch leads (POWER SW*1, POWER LED*1, H.D.D.
LED*1, RESET SW*1).
Please consult user manual of your motherboard
manufacturer, then connect these leads to the panel
header on the motherboard. These leads are usually
labeled; if not, please trace them back to the case
front to find out their source.
- POWER LED
connects to your M/B at the PLED
- POWER SW
connects to the PWR connector on the motherboard.
- H.D.D LED
connects to the 2-pin labeled HDD LED connector.
- RESET SW
connects to the RSW connector on the motherboard,
VG8000BNS Manual
VG8000BNS
Manual
17l18

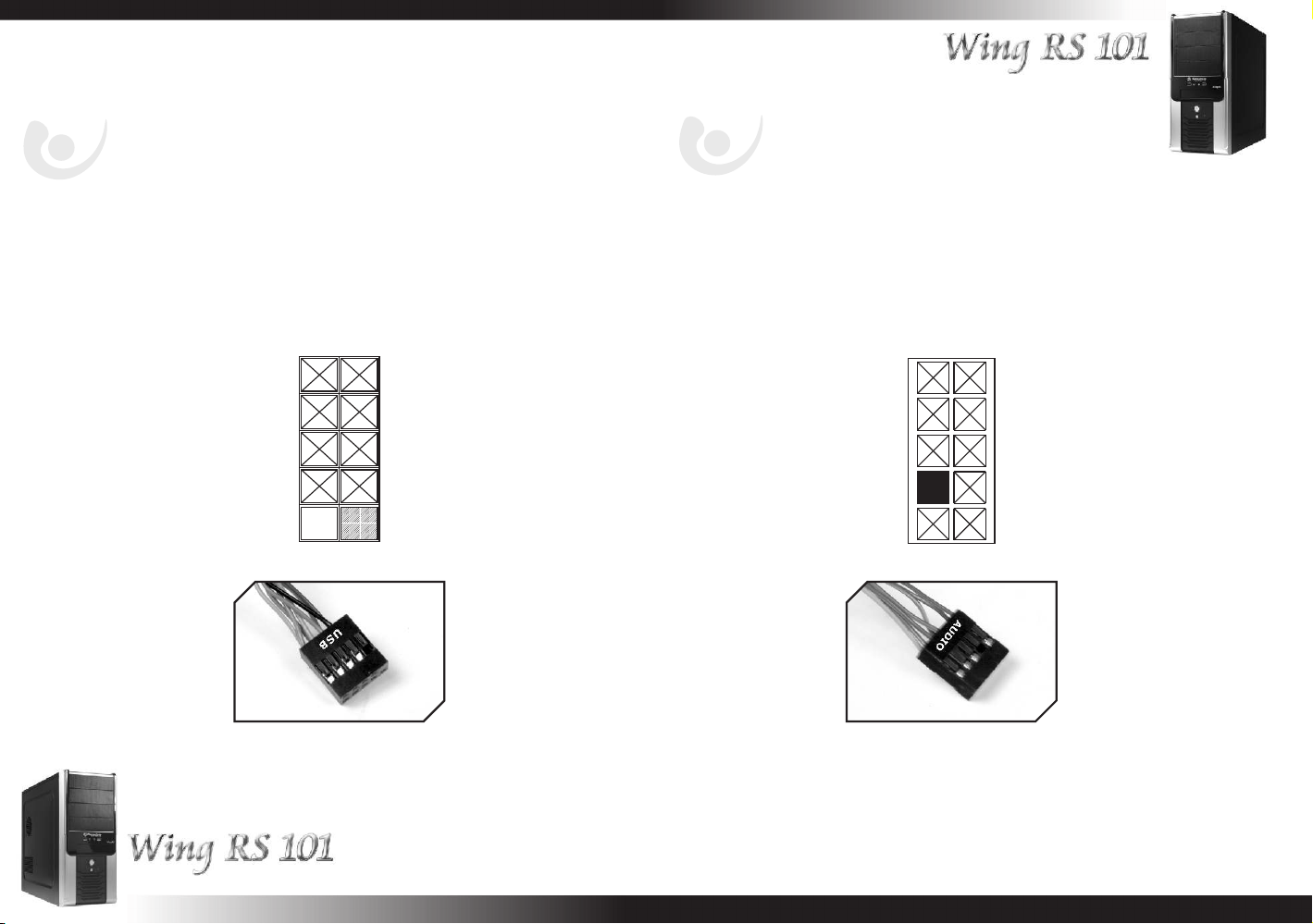

USB connection
Please consult your motherboard manual to find
out the section of "USB connection".
3-3 USB2.0 connection
Please consult your motherboard manual
to find out the section of "front panel
audio connector".
3-4 Audio connection
USB
1
3
5
7
9
2
4
6
8
10
VCC1
D1-
D1+
GND
NC
VCC2
D2-
D2+
GND
KEY
AUDIO
1
3
5
7
9
2
4
6
8
10
AUD_GND
AUD_GND
FP_RET_R
KEY
FP_RET_L
MIC
MIC_BIAS
FP_OUT_R
AUD_VCC
FP_OUT_L
