10. Settings with remote control
You can also enter the settings with remote controls the-
Senda P and theSenda S.
LIf a new function/parameter is set, the detector ashes
3 x for conrmation.

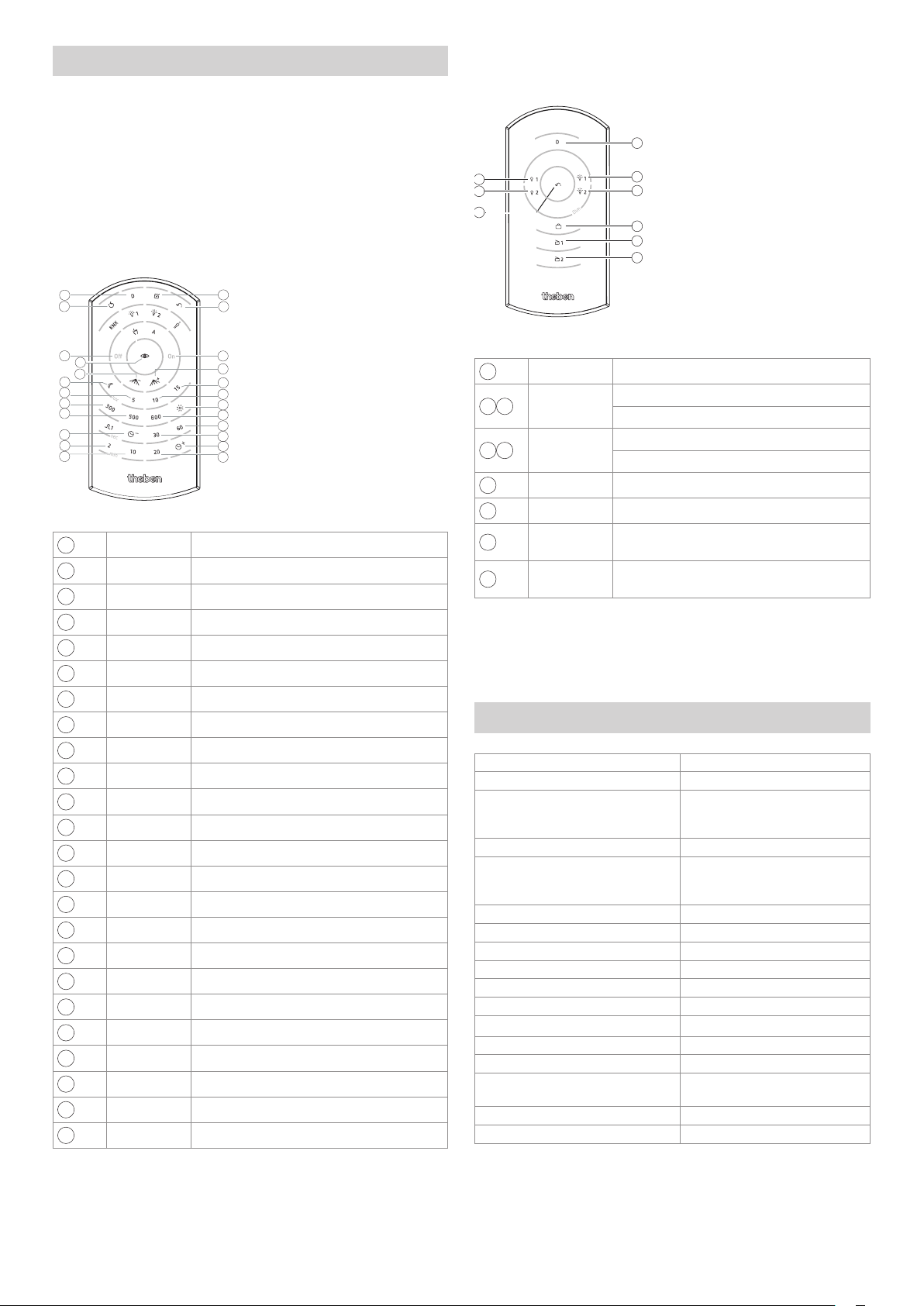

Settings using theSenda P (9070910)
The following parameters or functions can be set with
theSenda P:
31 1
2
6
8
9
10
11
12
13
14
15
23
22
21
20
18
17
16
26
25
24
30
7
1Test Test mode, ends after 10 min
2Auto return to Automatic mode
6On Switch on light (8 hrs)
7Range + Increase sensitivity
815 lux Brightness setpoint value 15 lux
910 lux Brightness setpoint value 10 lux
10 Lux On Deactivation of brightness measurement
11 800 lux Brightness setpoint value 800 lux
12 60 sec Lighting time delay 60 sec
13 30 sec Lighting time delay 30 sec
14 max. time max. lighting time delay, 20 min
15 20 min Lighting time delay 20 min
16 10 min Lighting time delay 10 min
17 2 min Lighting time delay 2 min
18 min. time min. lighting time delay, 10 sec
20 500 lux Brightness setpoint value 500 lux
21 300 lux Brightness setpoint value 300 lux
22 5 lux Brightness setpoint value 5 lux
23 min. lux min. brightness setpoint value, 1 lux
24 Range – Reduce sensitivity
25 Teach-in Teach in of the brightness setpoint value
26 Off Switch off light
30 Reset Restart of the detector
31 D mode Twilight switch (motion detector deactivated)
Settings using theSenda S (9070911)
1D mode Twilight switch (motion detector deactivated)
24Off short button push -> switches off the light
long button push -> dimming the light down
3 5 On short button push -> switches on the light
long button push -> dimming the light up
6Auto return to Automatic mode
7Holiday mode Presence simulation
8Lighting
scenario 1
Pressing the button shortly -> the dimming
value of 33 % is set
9Lighting
scenario 2
Pressing the button shortly -> the dimming
value of 66 % is set
Holiday mode
The holiday mode is a presence simulation, which is intended
to prevent burglary during temporary absence.
11. Technical Data
Operating voltage: 230 V ± 10 %
Frequency: 50–60 Hz
Consumption with light On:
theLeda P12:
theLeda P24:
11 W
20 W
Standby output: max. 0.4 W
LED output (lighting current):
theLeda P12:
theLeda P24:
900 lm
900 lm x 2
Colour temperature: 4000 K
Colour rendering index: CRI < 80
Service life: L80/B10/50 000 h
Protection rating: IP 55 in accordance with EN 60529
Protection class: II in accordance with EN 60598-1
Operating temperature: –25 °C ... +45 °C
Brightness setting range: 5–800 lx/∞
Duty cycle range: 10 sec–20 min
Detection angle: 180°
Detection area: lateral:
frontal:
max. 12 m
max. 5 m
Installation height: 1.8 m–2.5 m
Energy efciency class: A+
