The Handy THLSS-B User manual

Assembly Instructions

THLSS-B

Please carefully read the assembly instructions before starting work.

Sales and Helpline: 01793 333220

Log Splitter Stand-THLSS-B

This stand is produced to support The Handy Log splitter THLS-B

Thank you for purchasing The Handy log splitter stand. Please carefully read the

assembly instructions for the safety of yourself and the persons around you.

PRODUCT SPECIFICATION

Measure: 74x64x70cm

Net Weight: 9.5kg

Gross Weight: 10kg

ASSEMBLY:

Fig 1: List of components

Check the components according to the following list and Figure 1.

A. Main upright support leg

—

top section fixing point for the log splitter THLS-B

B. Horizontal bars

C. Horizontal bars

D. Stand fixing bar for the electrical motor of the log splitter THLS-B

E. Leg Supports

F. Leg Supports

G. Axle and wheels

Fig 1

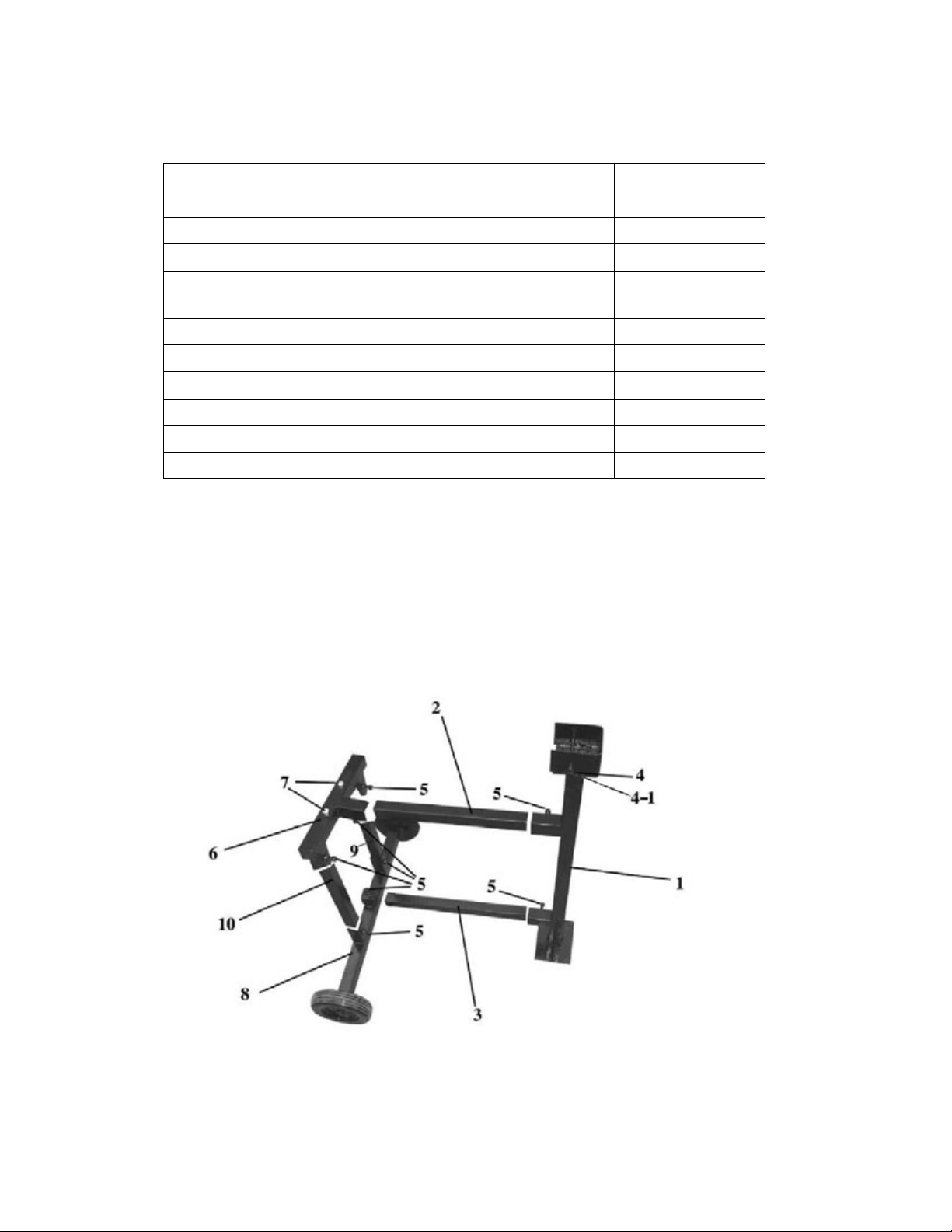

Parts List and diagram

Fig 2.

No Name Qty

1 Main upright support leg 1

2 Horizontal bars 1

3 Horizontal bars 1

4Screw (M8 X 90) 1

4-1 Nut (M8) 1

5 Screw(M8 X 15) 8

6 Stand fixing for electrical motor 1

7 Screw(M8 X 50) 2

8 Axle and wheels 1

9 Leg Supports 1

10 Leg Supports 1

Change the first sentence as follows. Remove all the parts from the carton and check against the

parts list.

Assemble the parts as figure 3.

Connect part B with parts A and part D by screw (M8 x 15),

Connect part C with parts A and part G by screw (M8 x 15)

Connect part E with parts G and part D by screw (M 8 x 15),

Connect parts F with parts G and part D by screw (M8 x 15).

Ensure that all the fixing points tight and secure.

Fig 3

Assembled Log Splitter stand THLSS-B with The Handy Log splitter THLS-B

Carefully fit the log splitter to your fully assembled stand, use the screws and nut supplied (part

list items 4-1 & 7, M8 X 50 & M8) to secure the log splitter to the stand.

Secure your log splitter at points A ( top section of the main support leg) and D.

Ensure all fixing points are tight and secure.
