The Collection By Michael Miller Glimpse Mounting instructions

Glimpse, Glimpse Duplex R,

Glimpse Duplex L

& Glimpse Triplex

LOG EFFECT BALANCED FLUE ROO HEATER

Installation, aintenance & User Instructions

Hand these instructions to the user

odel No. DCHLSTRN, DCHLCRRN, DCHLLRN & DCHL3SRN are for use on Natural

Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.

CONTENTS

PAGE

Section 1 Information and requirements

1.0 Appliance information 3

1.1 Product dimensions - Glimpse model 4

1.2 Product dimensions - Glimpse “Duplex R” model 5

1.3 Product dimensions - Glimpse “Duplex L” model 6

1.4 Product dimensions - Glimpse “Triplex” model 7

1.5 Conditions of installation 8

1.6 Flue terminal position 9

Section 2 Installation of the fire

2.1 Unpacking the components 9

2.2 Specifying the flue system and associated components 10

2.3 Installation of the gas supply 11

2.4 Balanced flue system in horizontal configuration 12

2.5 Balanced flue system in vertical configuration 13

2.6 Balanced flue system in vertical configuration (flat roof) 13-14

2.7 Balanced flue system in vertical configuration (pitched roof) 14

2.8 Securing the combustion chamber - Glimpse model 15

2.9 Securing the combustion chamber - Glimpse “Duplex R” & “Duplex L” models 16

2.10 Securing the combustion chamber - Glimpse “Triplex” model 17

2.11 Assembling the false chimney breast - Glimpse model 18-21

2.12 Assembling the false chimney breast - Glimpse “Duplex R” & “Duplex L” models 22-25

2.13 Assembling the false chimney breast - Glimpse “Triplex” model 26-30

2.14 Removing / replacing the glass panels - all models 31-32

Section 3 Assembling the fuel-bed and commissioning

3.1 Assembling the log fuel-bed - Glimpse, Glimpse “Duplex R” & Glimpse “Triplex” models 33

3.2 Assembling the log fuel-bed - Glimpse “Duplex L” model 34

3.3 Assembling the pebble fuel-bed - all Glimpse models 35

3.4 Ceramic log set advice 36

3.5 Positioning the flue restrictor plates 36

3.6 Making the final gas connection & checking for gas tightness 36-37

3.7 Making the electrical connection 37

3.8 Lighting the appliance 37-40

3.9 Fitting the handset wall bracket & dimmer light bulbs 40

3.10 Instructing the user / product handover 40

Section 4 Servicing and maintenance / repair

4.1 Removing and replacing the burner assembly 41

4.2 Removing and replacing the burner controls plate assembly 41

4.3 Removing and replacing the gas control valve 41

4.4 Removing and replacing the control board / receiver unit 41

4.5 Removing and replacing the pilot assembly 42

4.6 Removing and replacing the main burner injector 42

4.7 Removing and replacing the power module 42

4.8 Removing and replacing the convection fan assembly 42

4.9 Removing and replacing a dimmer light bulb 43

4.10 Wiring diagram 44

4.11 Spare parts list 45

Section 5 User Instructions

5.1 Installation Information 46

5.2 About your new gas fire 46

5.3 Lighting the fire / user controls 47-50

5.4 Cleaning instructions 50

5.5 Removing / replacing the glass panels 51-52

5.6 Assembling the log fuel-bed - Glimpse, Glimpse “Duplex R” & Glimpse “Triplex” models 53

5.7 Assembling the log fuel-bed - Glimpse “Duplex L” model 54

5.8 Assembling the pebble fuel-bed - all Glimpse models 55

5.9 Ceramic log set advice 55

5.10 User replaceable spare parts list 56

SECTION 1

INFOR ATION AND REQUIRE ENTS

1.0 APPLIANCE INFOR ATION

GAS INFOR ATION

Main injector : (1 off) Stereomatic Pattern 4 – size 2.55mm

Pilot Type : Black Technigas - Polidoro G27.2

Max. Gross Heat Input : 9.8kW

Min. Gross Heat Input : 4.5kW

Gas Rate : 0.903 m3/hr (High)

0.415 m3/hr (Low)

Cold Pressure : (G20) 20.0+/-1.0 mbar (8.0 +/- 0.4 in w.g.)

Ignition : Via remote handset, integral to gas valve control system

Electrode Spark Gap : 4.0mm

NOx Level Class 5

Packed Weight Combustion Chamber 105kg

ELECTRICAL INFOR ATION - PLEASE NOTE THIS PRODUCT REQUIRES A AINS ELECTRICITY SUPPLY

Supply Voltage : 230V a.c.

Supply Frequency : 50Hz

Supply Fuse : 3 Amp to BS 1362

Electrical Supply Required 230v AC, 50Hz

IP Rating IPX0

APPLIANCE EFFICIENCY DECLARATION

The efficiency of this appliance has been measured as specified in BS EN 613 : 2001 on a CII flue systen and the result

obtained is up to 69%. The gross calorific value of the fuel has been used for this efficiency calculation. The test data from

which it has been calculated has been certified by BSI. The efficiency value may be used in the U Government’s Standard

Assessment Procedure (SAP) for energy rating of dwellings.

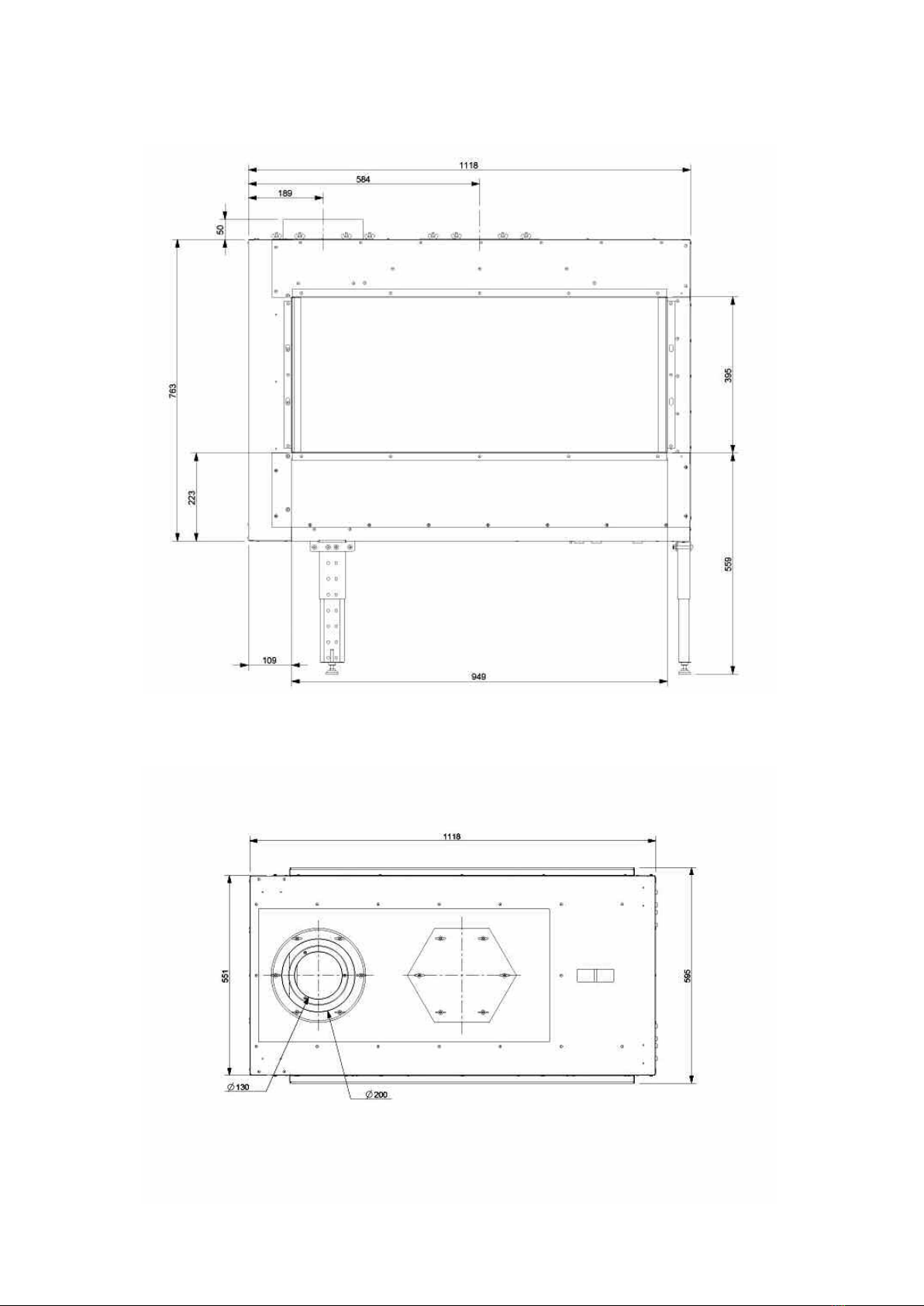

1.1 PRODUCT DI ENSIONS - GLI PSE ODEL

Fig. 1 FRONT VIEW

Fig. 2 TOP VIEW

1.2 PRODUCT DI ENSIONS - GLI PSE “DUPLEX R” ODEL

Fig. 3 FRONT VIEW

Fig. 4 TOP VIEW

1.3 PRODUCT DI ENSIONS - GLI PSE “DUPLEX L” ODEL

Fig. 5 FRONT VIEW

Fig. 6 TOP VIEW

1.4 PRODUCT DI ENSIONS - GLI PSE “TRIPLEX” ODEL

Fig. 7 FRONT VIEW

Fig. 8 TOP VIEW

INSTALLATION REQUIRE ENTS

1.5 CONDITIONS OF INSTALLATION

It is the law that all gas appliances are installed only by a GAS SAFE Registered Installer, in accordance with these

installation instructions and the Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install

appliances correctly could lead to prosecution. It is in your own interest and that of safety to comply with the law.

The installation must also be in accordance with all relevant parts of the Local and National Building Regulations where

appropriate, the Building Regulations (Scotland Consolidation) issued by the Scottish Development Department, and all a

pplicable requirements of the following British Standard Code of Practice.

1. B.S. 5871 Part 1 Installation of Gas Fires

2. B.S. 6891 Installation of Gas Pipework

3. B.S. 5440 Parts 1 & 2 Installation of Flues and Ventilation

4. I.S 813 : 1996 Domestic Gas Installation, issued by the National Standards Authority of Ireland.

1.6 FLUE TER INAL POSITION

The minimum acceptable dimensions from the flue terminal to obstructions and ventilation openings are shown

below and listed in the table. It is important that the position of the flue allows the free passage of air across it at

all times. The minimum acceptable space from the flue terminal to obstructions and ventilation openings are s

pecified below in figure 9.

Fig. 9

DI ENSION TER INAL POSITION INI U DI ENSION

A Directly below an opening, air brick, 300mm (12in)

opening window

B Above an opening, air brick, 300mm (12in)

opening window

C Horizontally to an opening, air brick,

opening window etc.

D Below gutters, soil pipes or drain pipes 300mm (12in)

E Below eaves 300mm (12in)

F Below balconies or car port roof 600mm (12in)

G From a vertical drain pipe or soil pipe 300mm (12in)

H From an internal or external corner 600mm (24in)

I Above ground roof or balcony level 300mm (12in)

J From a surface facing the terminal 600mm (24in)

K From a terminal facing the terminal 600mm (24in)

L From an opening in the car port 1200m (48in)

Vertically from a terminal on the same wall 1500mm(59in)

N Horizontally from a terminal on the 300mm (12in)

same Wall

O NOT APPLICABLE N/A

P NOT APPLICABLE N/A

Q NOT APPLICABLE N/A

SECTION 2

INSTALLATION OF FIRE

2.1 UNPACKING THE CO PONENTS

Remove the loose item packaging carefully from the pack. Check the contents as listed :-

Packing Check List - Product & Flue Kit

Pack 1 of 3 - Combustion Chamber Pack

1 off Combustion chamber & glass assembly

1 off Boxed ceramic fuel-bed set (packed inside combustion chamber)

1 off Installation / user instruction manual

2 off Convection air grills (Glimpse or Glimpse “Duplex L” or “Duplex R” models only)

3 off Convection air grills (Triplex models only)

1 off Loose items pack – containing :- 3 off AAA 1.5v batteries, 2 off combustion chamber securing

brackets, remote handset, 1 off handset wall brkt (inc. fixings),

1 off glass removal tool, 2 off G9 Halogen bulbs (Duplex “L” &

Duplex “R” models) 4 off off G9 Halogen bulbs (Glimpse & Triplex models

only)

Pack 2 of 3 - Horizontal Balanced Flue System Pack

1 off Adaptor 1 off 0.5m length of flue 1 off Terminal guard

1 off 90 degree elbow 1 off Horizontal wall terminal 2 off Locking bands

1 off Protection band

Pack 2 of 3 - Vertical Flue Kit

1 off Adaptor 1 off Vertical terminal

In addition, all flue lengths, roof flashing, clamps and accessories as required by the individual flue system design should be

purchased as required from the manufacturer, if you require to purchase any additional flue components, please contact the

U distributor for Metaloterm products, contact details as below :-

H Docherty Ltd

Unit 15 &16 Colthrop Business Park

Colthrop Lane

Thatcham

Berkshire

RG19 4NB

Tel : 0845 6031715 Fax : 01635 201737

Packing Check List - False Chimey Assembly Kits

Pack 3 of 3 - Glimpse “Triplex” Kit or Pack 3 of 3 - Glimpse “Duplex L or R” Kit

10 off 3 metre lengths of “C” section frame 7 off 3 metre lengths of “C” section frame

4 off Horizontal channel “A” 2 off Horizontal channel “A”

4 off Horizontal channel “B” 4 off Horizontal channel “B”

4 off Floor / ceiling channel “A” 2 off Floor / ceiling channel “A”

4 off Floor / ceiling channel “B” 2 off Floor / ceiling channel “C”

1 off Front support channel 2 off Horizontal channel “C”

2 off Tie bar bracket 1 off Front support channel

2 off Lengths of M8 threaded bar - 1400mm long 1 off Tie bar bracket

8 off M8 hex nuts (black) 2 off Lengths of M8 threaded bar - 1400mm long

4 off M8 hex nuts (black)

or Pack 3 of 3 - Glimpse “See Thru” Kit

12 off 3 metre lengths of “C” section frame

4 off Horizontal channel “D”

8 off Horizontal channel “E”

2 off Floor / ceiling channel “D”

2 off Floor / ceiling channel “B”

2 off Horizontal channel “C”

DO NOT UNDER ANY CIRCU STANCES INSTALL THIS APPLIANCE IF ANY OF THE GLASS

PANELS ARE BROKEN OR NOT SECURELY FIXED TO THE CO BUSTION CHA BER.

2.2 SPECIFYING THE FLUE SYSTE & ASSOCIATED CO PONENTS

This product comes with the option of 2 methods of flueing :-

Decide upon the method of flue that is most suitable for the property in which you are installing the product, from the

following options :-

2.2.1 Balanced Flue in Horizontal Configuration

This flueing method uses a 0.5 metre vertical pipe starter pipe section, then utilises a 90 degree elbow and a terminal

section to provide a horizontal pipe from 324mm (minimum) up to 469mm (maximum). Additional flue duct can then be

purchased to allow installation up to a maximum wall thickness of 1395mm. The flue can be installed to terminate directly

out the wall behind the appliance or at the L/H side or R/H side by rotating the elbow section. If the terminal is fitted below

2m from ground level, a terminal guard must be fitted in England & Wales. BFM Europe supply a suitable guard in the

Horizontal Flue it. See section 2.4

2.2.2 Balanced Flue in Vertical Configuration

This flueing method utilses a rigid interlocking balanced flue duct to enable a vertical balanced flue system to be used. All

components required are supplied within the flue kit with the exception of the lengths of co-axial pipe and storm collars

which are dependent upon the individual installation. This method is most suited when a false chimney breast is being

constructed due to no chimney / insufficient depth and an outside wall is not available. See section 2.5

2.2.3 Flue Outlet Position

For vertical balanced flue configurations a choice of 2 outlet positions for the flue ducting are provided on the top of the

combustion chamber as shown below in figure 10. Dependent upon the flue outlet chosen and flue

configuration utilised a differing flue restrictor position will be required, see section 3.5 for further details.

THE CENTRAL FLUE OUTLET POSITION UST ONLY BE USED FOR VERTICAL FLUE CONFIGURATIONS. FOR

HORIZONTAL FLUE CONFIGURATIONS USE THE END FLUE OUTLET ON TOP OF THE CO BUSTION CHA BER.

Fig. 10

Central flue outlet (for vertical flue use only)

End flue outlet (for vertical or horizontal flue)

Remove cardboard packing fitment from here

(retains explosion relief flaps in position)

This manual suits for next models

Table of contents

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
