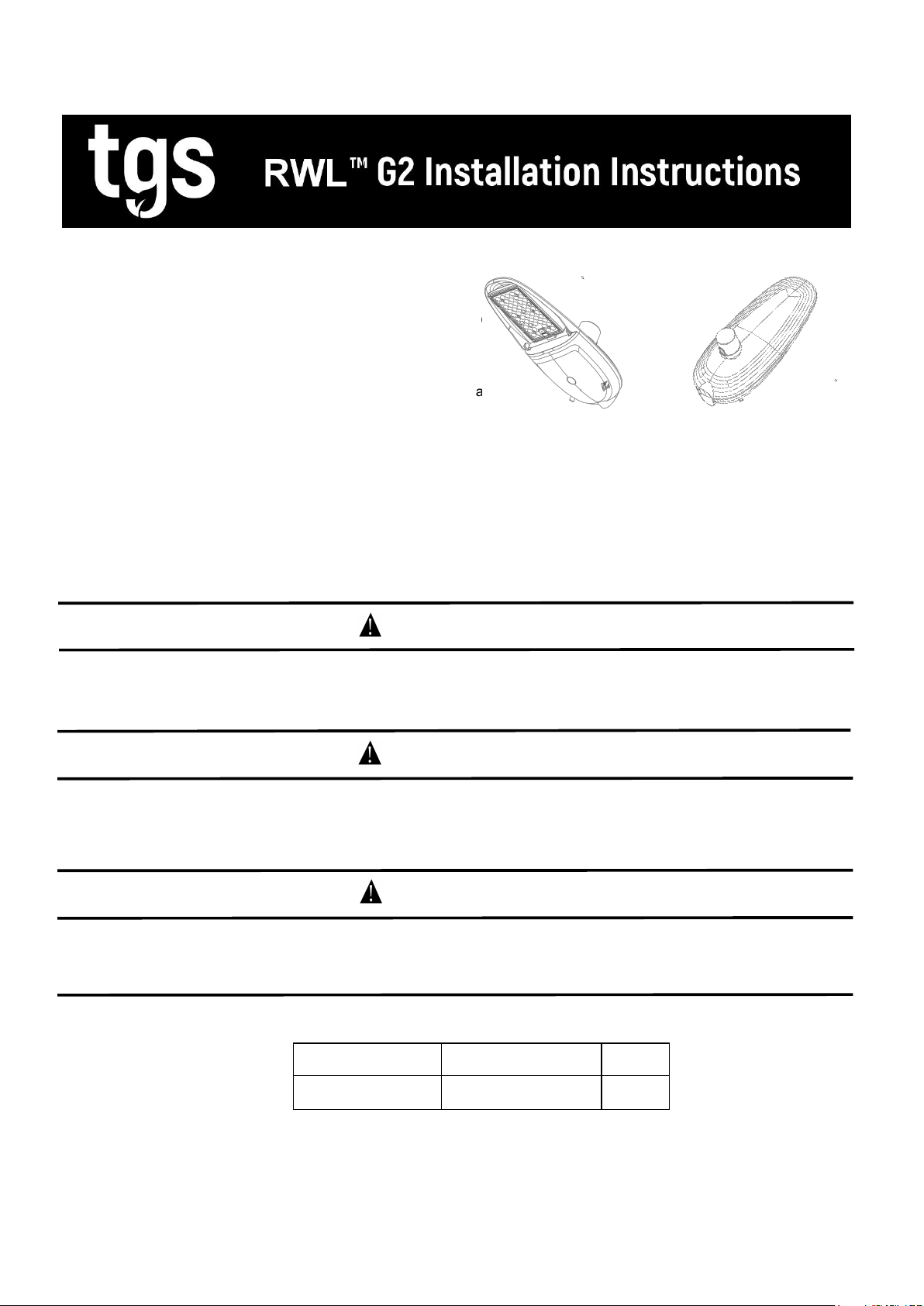

TGS RWL G2 User manual
This manual applies to the following:
40W-75W 90W-165W
Product Features:
•The material of heat sink is high thermal conductivity Die-cust (
ADC12)
aluminum, good for heat dissipation and the surface is anti-static.
• The unique design of the housing helps to speed up the heat
dissipation, further ensuring the life of the fixture.
• The integrated design of appearance makes the fixture look
elegant.
• This fixture is waterproof, dust-proof, and anti-corrosive
SAFETY INSTRUCTIONS
Read and understand this entire manual before attempting to assemble, operate, or install the LED Luminaire. If you have
any questions regarding the product, please call TGS Customer Service at (818) 206-4404.
1.All electrical work must conform to the National Electric Code (NEC) and all applicable local codes and ordinances.
2.Only qualifi ed personnel shall install and maintain the luminaires. TGS recommends that a licensed electrician
install and maintain the luminaire. Verify the safety of existing power distribution system before beginning installation.
FAILURE TO FOLLOW OPERATING INSTRUCTIONS MAY LEAD TO DEATH, SEVERE INJURY, OR PROPERTY
DAMAGE.
WARNING
Turn off power before performing any electrical or control work. FAILURE TO FOLLOW THIS WARNING MAY
LEAD TO DEATH SEVERE INJURY, OR PROPERTY DAMAGE.
DO NOT make or alter any open holes in the luminaire. Do not modify the luminaire.
WARNING
Follow all applicable safety procedures and use Personal Protective Equipment such as hardhats, safety glasses, refl ective
vests, electrical safety gloves, fall protection equipment and safety toe boots during the installation, operation, and maintena-
nce of the luminaire. FAILURE TO FOLLOW THIS WARNING MAY LEAD TO DEATH,SEVERE INJURY, OR PROPERTY
DAMAGE.
WARNING
Risk of eye injury! Eye protection is required at all times during the installation, operation, and maintenance of the luminaire.
The high intensity light produced by the luminaire can cause severe damage to the eye if viewed directly at close range.
Avoid being in front of a luminaire that is on or wear suitable light blocking protective eyewear such as welding goggles.
Store luminaires in a clean, dry place, protected from dirt, water, and sunlight See table for required storage and operating
conditions:
WARNING
Please read the manual carefully before installation. Power off before installation. Please authorize only qualifi ed person
or professional engineer to install the fi xture. Before installation, please check if the local voltage range corresponds with
working voltage of the fi xture. If the fi xture is damaged, it should be replaced by the supplier, a service agent or a qualified
person. Please keep the fi xture away from fi re, electric shock, and/or vibration.
Storage Temperature Operating Temperature Humidity
40°F to 176°F -20°~122°F 65%

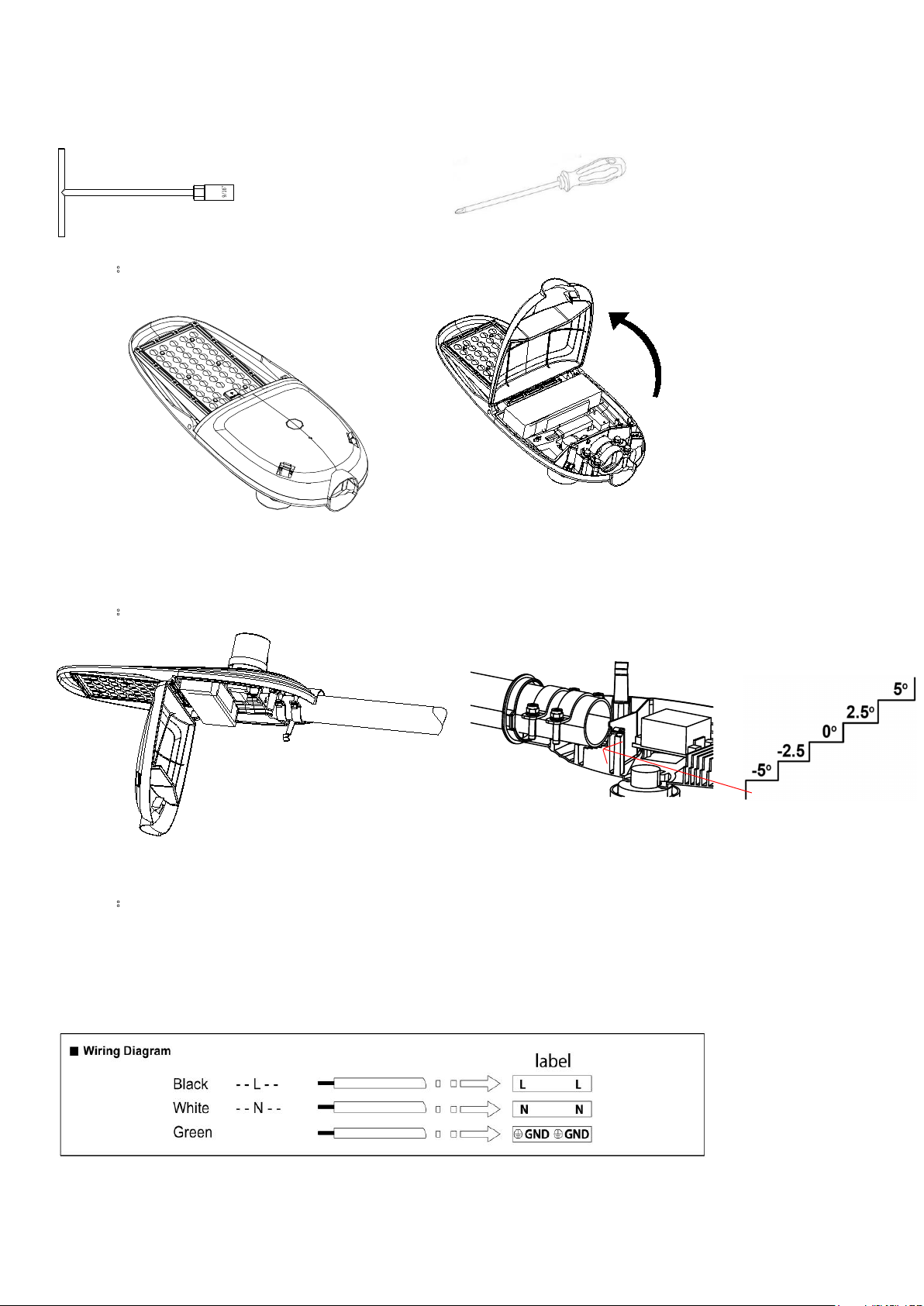

Preparation tools
Phillips wrench
STEP1：Open the cover
STEP2：Installation of lamps
Mount
the
fixture
to
the
pole
and
adjust
the
angle（-5to5°）
use
tools：
Can
be
used
for
8/4”(50.8mm)-
2-
3/8”
(60.3mm)
light
poles
STEP3：connecting cables
9/16”Socket Wrench
WARNING
Always turn power to fi xture OFF before performing any work on control wiring. Turn transmitters off before working
on main control lines. Performing any work on control connections while fi xtures are receiving the signal may result
in transient or fl uttering control signals which can cause damage to the luminaire. FAILURE TO FOLLOW THIS
WARNING MAY LEAD TO LUMINAIRE INTERNAL DAMAGE AND FAILURE.

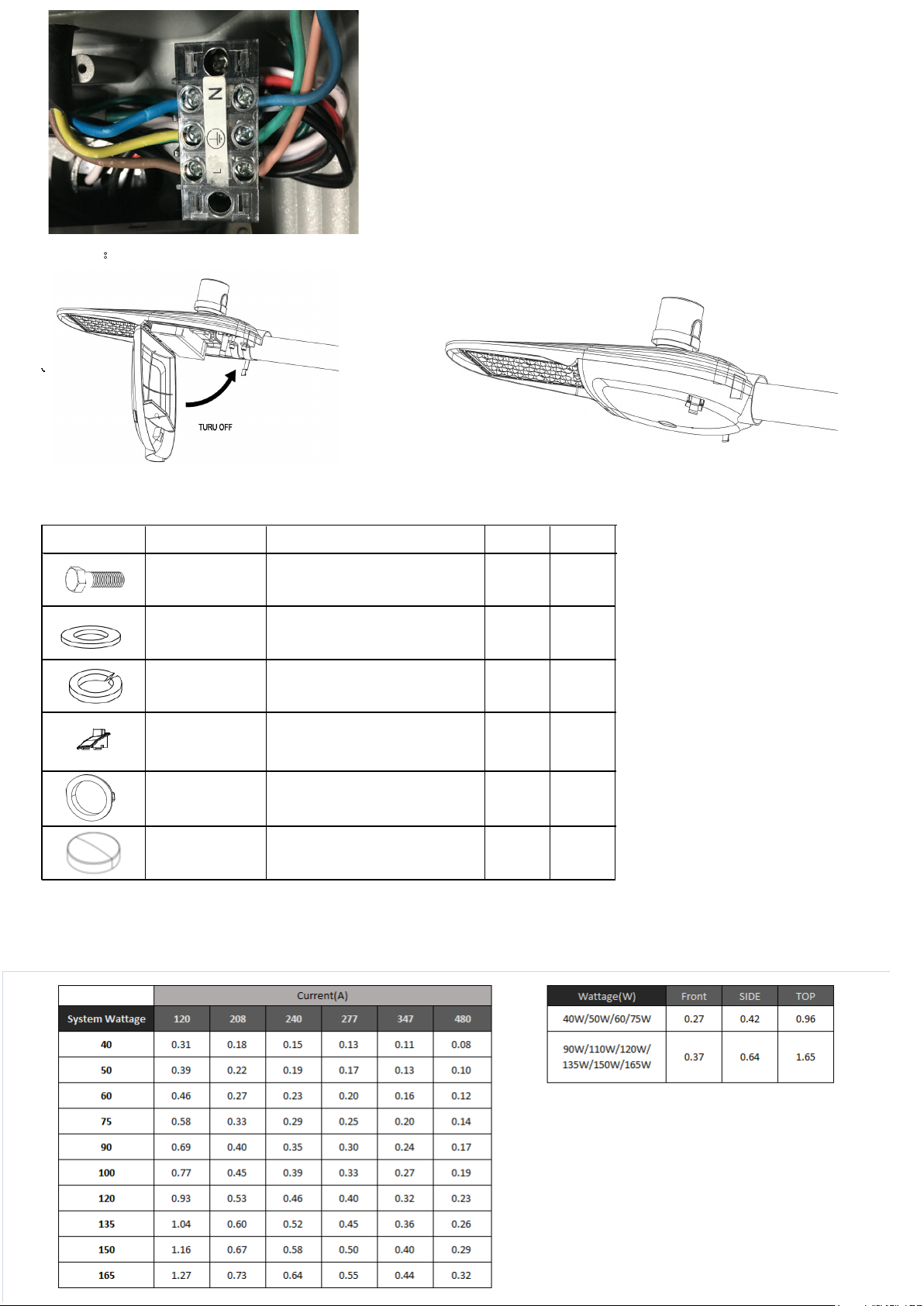

Press the snap to open the lid.
9/16"Socket Wrench
Install
the
LGN
cable
to
the
socket
use
tools：Phillips
wrench
STEP4：Close
the
power
cover
CLOSE
Image Accessary Specificaons Quanty Remarks
Hex Head Screw
3/8-16
Thread length 1-3/8
Stainless
Steel 304 4
Plain
Washer M10 4
Spring
Washer M10 4
Clip Rubber Gray 2
Pole Rubber Gray 1
Accessories Included
Gray 1
Buble
EPA Rating Information ( ft )
2
Electrical Load
