Texas Instruments TPS55165Q1-EVM User manual

SLVUAY1–November 2017

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

User's Guide

SLVUAY1–November 2017

TPS5516xQ1-EVM Evaluation Module for 1-A Single-

Inductor Buck-Boost-Converter

The Texas Instruments TPS55160Q1-EVM and TPS55165Q1-EVM evaluation modules (EVMs) help

designers evaluate the operation and performance of the TPS55160-Q1 and TPS55165-Q1 1-A single-

inductor buck-boost converters. This user's guide describes how to set up and configure the EVMs for

operation. This document also provides the board layout, the schematic, and the bill of materials (BoM) for

the EVMs.

The TPS55160-Q1 device allows users to set the output voltage from 5.7 V to 9 V through a feedback-

divider. The TPS55165-Q1 device has a selectable output voltage of 5 V or 12 V.

Contents

1 Introduction ................................................................................................................... 3

2 Schematic, Bill of Materials, and Layout ................................................................................. 3

2.1 Schematic ........................................................................................................... 4

2.2 Bill of Materials...................................................................................................... 5

2.3 Layout and Component Placement............................................................................... 7

3 Setup and Operation ...................................................................................................... 11

3.1 Input and Output Connector Descriptions...................................................................... 11

3.2 Jumper Configuration............................................................................................. 12

3.3 Test Point Description ............................................................................................ 14

3.4 Basic Operation.................................................................................................... 15

4 Typical Performance....................................................................................................... 16

4.1 Efficiency ........................................................................................................... 16

4.2 Startup Waveforms................................................................................................ 16

4.3 Switch Node Waveforms in Buck Mode, Boost Mode, and in Buck-Boost Mode......................... 17

4.4 Load-Step Response ............................................................................................. 18

4.5 Line step response / Cranking support......................................................................... 19

5 Related Documentation.................................................................................................... 20

List of Figures

1 TPS55160Q1-EVM With Jumper Settings................................................................................ 3

2 TPS55165Q1-EVM With Jumper Settings................................................................................ 3

3 Schematic Diagram—No Variations ...................................................................................... 4

4 TPS55160Q1-EVM Schematic Diagram—Assembly Option .......................................................... 4

5 TPS55165Q1-EVM Schematic Diagram—Assembly Option........................................................... 5

6 Component Placement—Top .............................................................................................. 7

7 TPS55160Q1-EVM Top Layer—Overview ............................................................................... 8

8 TPS55165Q1-EVM Top Layer—Overview ............................................................................... 8

9 Component Placement—Bottom .......................................................................................... 9

10 TPS55160Q1-EVM Bottom Layer—Overview .......................................................................... 9

11 TPS55165Q1-EVM Bottom Layer—Overview ......................................................................... 10

12 Layout—Top Layer......................................................................................................... 10

13 Layout—Layer 2............................................................................................................ 10

14 Layout—Layer 3............................................................................................................ 10

15 Layout—Bottom Layer..................................................................................................... 10

www.ti.com

2SLVUAY1–November 2017

Submit Documentation Feedback

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

16 TPS55165Q1-EVM Showing Supply and Load Connections ........................................................ 11

17 Ignition Jumper Configuration Default: ON (Device powers up when power is applied).......................... 12

18 Power-Latch Jumper Configuration Default: LATCH .................................................................. 12

19 Spread Spectrum Enable Jumper Configuration Default: Jumper Installed, Spread Spectrum Disabled...... 13

20 Power-Good Delay Selection Jumper Configuration Default: Jumper Not Installed, 3-ms Delay ............... 13

21 Low-Power-Mode Enable Jumper Configuration Default: Jumper Set to PWM, LPM Prohibited ............... 13

22 Output Voltage Selection Jumper Configuration Default: 5 V for TPS55165-Q1 .................................. 14

23 Output Voltage Selection Jumper Configuration Default: 8 V for TPS55160-Q1, Configured by R6 and R7.. 14

24 Typical Efficiency for 5-V Output......................................................................................... 16

25 Typical Efficiency for 12-V Output ....................................................................................... 16

26 Startup When VIN is Already Present and IGN is Pulled High....................................................... 16

27 Startup With IGN Tied to VIN and Both Ramp Up..................................................................... 16

28 Switch-Nodes in Buck Mode (VVIN = 12 V, VVOUT = 5 V) ............................................................... 17

29 Switch-Nodes in Buck-Boost-Mode (VVIN = 5 V, VVOUT = 5 V)......................................................... 17

30 Switch-Nodes in Boost Mode (VVIN = 2.5 V, VVOUT = 5 V).............................................................. 17

31 Load-Step Response VVIN = 12 V, VVOUT = 5 V (Buck Mode), 100 mA-1 A-100 mA ............................... 18

32 Load-Step Response VVIN = 2.5 V, VVOUT = 5 V (Boost Mode), 50 mA-400 mA-50 mA ........................... 18

33 Load-Step Response VVIN = 14 V, VVOUT = 12 V (Buck Mode), 100 mA-800 mA-100 mA ........................ 18

34 Load-Step Response VVIN = 12 V, VVOUT = 12 V (Buck-Boost Mode), 100 mA-600 mA-100 mA................. 18

35 Load-step-response VVIN = 4 V, VVOUT = 12 V (Boost Mode), 50 mA-150 mA-50 mA ............................. 18

36 Cranking Pulse Response With 5-V Output, 200-mA Load, 2 s/div................................................. 19

37 Cranking Pulse Response With 5-V Output, 200-mA Load, Zoom to 100 ms/div................................. 19

38 Cranking Pulse Response With 5-V Output, 200-mA Load, Zoom to 5 ms/div.................................... 19

39 Cranking Pulse Response With 5-V Output, 200-mA load, Zoom to 200 µs/div................................... 19

List of Tables

1 Bill of Materials (BOM) ..................................................................................................... 5

2 Terminal Descriptions...................................................................................................... 11

Trademarks

All trademarks are the property of their respective owners.

www.ti.com

Introduction

SLVUAY1–November 2017

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

1 Introduction

The HVL143B is a fully-assembled EVM design for evaluation of TPS55165-Q1 or TPS55160-Q1 1-A

single-inductor buck-boost converter. Figure 1 and Figure 2 show the TPS55160Q1-EVM and

TPS55165Q1-EVM boards with jumper settings.

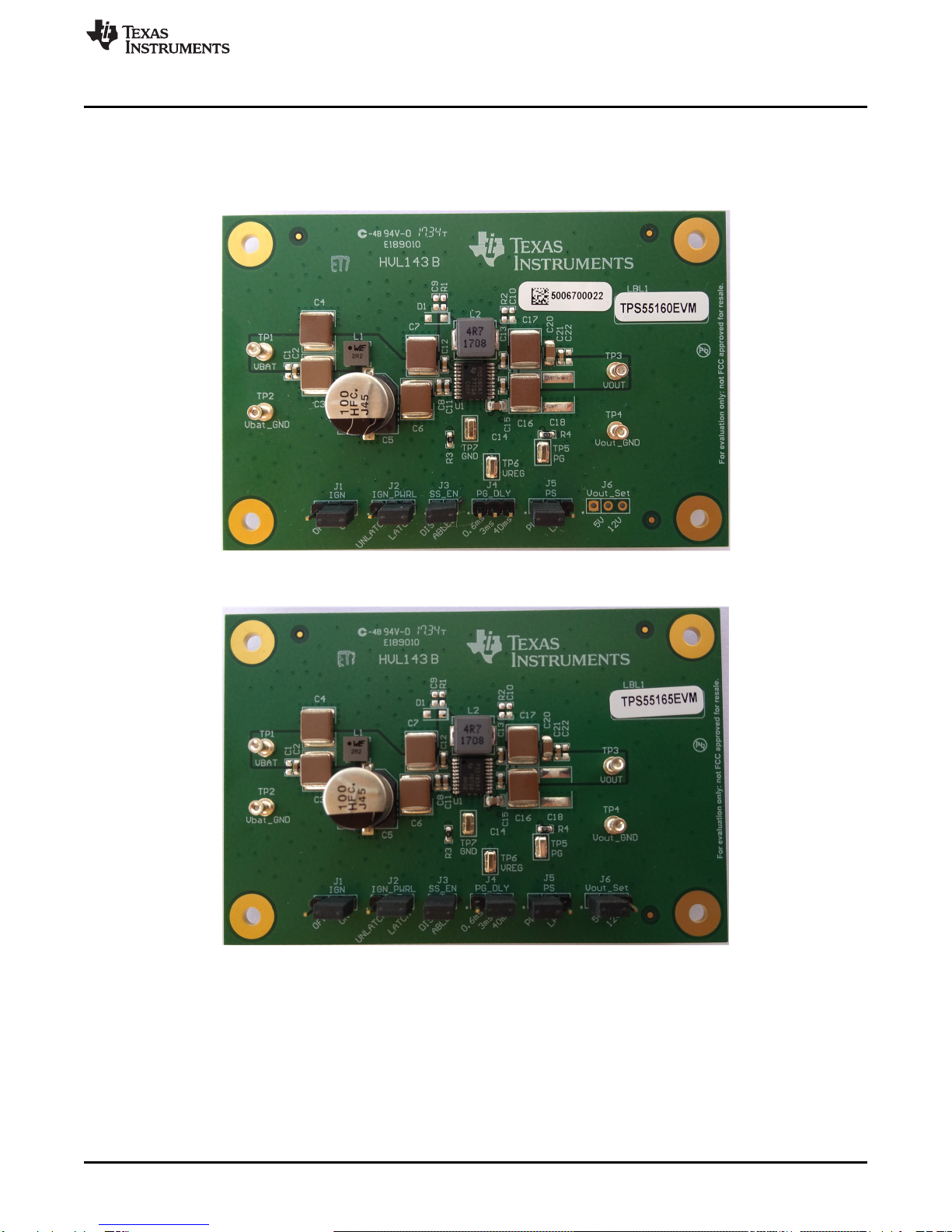

Figure 1. TPS55160Q1-EVM With Jumper Settings

Figure 2. TPS55165Q1-EVM With Jumper Settings

2 Schematic, Bill of Materials, and Layout

This section provides a more detailed description of the schematic, bill of materials (BOM), and layout.

100k

PG_DLY

VREG

VBAT_F VOUTTP5

TP6

VREG

VOS_FB

PGND 1

VINP

VINL

IGN

IGN_PWRL

8SS_EN 9

PG_DLY 10

VREG_Q 11

VREG 12

GND 13

VOS_FB 14

PG 15

VOUT_SENSE 16

VOUT 17

GND 18

PAD 21

BST1

BST2

TPS55165PWPQ1

BST1

VREG

BST2

TP7

GND

10.0k

DNP

VOUT

1.00k

DNP 1.00k

DNP

4V - 36V (12V output)

2V - 36V (5V output)

5V / 12V / adjustable

1A (buck mode only,

4.7µH

0.1µF

C12

0.1µF

C13

9.09k

DNP

82.5k

DNP

0.01µF

DNP

0.01µF

C10

DNP

0.47µF

C11

0.1µF

C15

TP1

VBAT

TP2

Vbat_GND

TP3

VOUT

TP4

Vout_GND

4.7µF

C14

DNP

10µF

PGND PGNDPGND PGND

reduced in boost-mode)

PGND PGND PGND

PGND

VBAT

10µF

LPM

PWM

UNLATCH

LATCH

IGN_PWRL

OFF

IGN

100µF

0.1µF

2.2µHL1

PGND

PGND PGND

PGND

3ms

40ms

0.6ms

PG_DLY

SS_EN

0.01µF

DNP

0.01µF

C22

DNP

10µF

C19

DNP

PGND

VREG

PGND

12V

Vout_Set

0.1µF

C21

2.2µF

C20

10µF

C16

10µF

C17

10µF

C18

DNP

100k

PG_DLY

VREG

VBAT_F VOUTTP5

TP6

VREG

VOS_FB

PGND 1

VINP

VINL

IGN

IGN_PWRL

8SS_EN 9

PG_DLY 10

VREG_Q 11

VREG 12

GND 13

VOS_FB 14

PG 15

VOUT_SENSE 16

VOUT 17

GND 18

PAD 21

BST1

BST2

TPS55165PWPQ1

BST1

VREG

BST2

TP7

GND

10.0k

VOUT

1.00k

4V - 36V (12V output)

2V - 36V (5V output)

5V / 12V / adjustable

1A (buck mode only,

4.7µH

0.1µF

C12

0.1µF

C13

9.09k

82.5k

0.01µF

C10

0.47µF

C11

0.1µF

C15

TP1

VBAT

TP2

Vbat_GND

TP3

VOUT

TP4

Vout_GND

4.7µF

C14

10µF

PGND PGNDPGND PGND

reduced in boost-mode)

PGND PGND PGND

PGND

VBAT

10µF

LPM

PWM

UNLATCH

LATCH

IGN_PWRL

OFF

IGN

100µF

0.1µF

2.2µHL1

PGND

PGND PGND

PGND

3ms

40ms

0.6ms

PG_DLY

SS_EN

0.01µF

C22

10µF

C19

PGND

VREG

PGND

12V

Vout_Set

0.1µF

C21

2.2µF

C20

10µF

C16

10µF

C17

10µF

C18

Schematic, Bill of Materials, and Layout

www.ti.com

4SLVUAY1–November 2017

Submit Documentation Feedback

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

2.1 Schematic

Figure 3. Schematic Diagram—No Variations

Figure 4. TPS55160Q1-EVM Schematic Diagram—Assembly Option

100k

PG_DLY

VREG

VBAT_F VOUTTP5

TP6

VREG

VOS_FB

PGND 1

VINP

VINL

IGN

IGN_PWRL

8SS_EN 9

PG_DLY 10

VREG_Q 11

VREG 12

GND 13

VOS_FB 14

PG 15

VOUT_SENSE 16

VOUT 17

GND 18

PAD 21

BST1

BST2

TPS55160PWPQ1

BST1

VREG

BST2

TP7

GND

10.0k

DNP

VOUT

1.00k

DNP 1.00k

DNP

4V - 36V (12V output)

2V - 36V (5V output)

5V / 12V / adjustable

1A (buck mode only,

4.7µH

0.1µF

C12

0.1µF

C13

9.09k

82.5k

0.01µF

DNP

0.01µF

C10

DNP

0.47µF

C11

0.1µF

C15

TP1

VBAT

TP2

Vbat_GND

TP3

VOUT

TP4

Vout_GND

4.7µF

C14

DNP

10µF

PGND PGNDPGND PGND

reduced in boost-mode)

PGND PGND PGND

PGND

VBAT

10µF

LPM

PWM

UNLATCH

LATCH

IGN_PWRL

OFF

IGN

100µF

0.1µF

2.2µHL1

PGND

PGND PGND

PGND

3ms

40ms

0.6ms

PG_DLY

SS_EN

0.01µF

DNP

0.01µF

C22

DNP

10µF

C19

DNP

PGND

DNP

VREG

PGND

12V

Vout_Set

DNP

0.1µF

C21

2.2µF

C20

10µF

C16

10µF

C17

10µF

C18

DNP

www.ti.com

Schematic, Bill of Materials, and Layout

SLVUAY1–November 2017

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

Figure 5. TPS55165Q1-EVM Schematic Diagram—Assembly Option

2.2 Bill of Materials

Table 1. Bill of Materials (BOM)

Designator

Quantityfor

TPS55165Q

1-EVM

(Variant

001)

Quantityfor

TPS55160Q

1-EVM

(Variant

002)

Value Description Package Reference Part Number Manufacturer

!PCB 1 1 Printed Circuit Board HVL143 Any

C2, C8, C12, C13, C15,

C21 6 6 0.1 µF CAP, CERM, 0.1 µF, 50 V, ± 10%, X7R, 0603 0603 GCM188R71H104KA57D MuRata

C3, C4, C6, C7, C16, C17 6 6 10 µF CAP, CERM, 10 µF, 50 V, ± 10%, X7R, AEC-Q200

Grade 1, 2220 2220 CGA9N3X7R1H106K230KB TDK

C5 1 1 100 µF CAP, AL, 100 µF, 50 V, ± 20%, 0.3 ohm, SMD SMT Radial G EEE-FC1H101P Panasonic

C11 1 1 0.47 µF CAP, CERM, 0.47 µF, 50 V, +/- 10%, X7R, AEC-Q200

Grade 1, 0603 0603 CGA3E3X7R1H474K080AE TDK

C14 1 1 4.7 µF CAP, CERM, 4.7 µF, 16 V, ± 10%, X7R, AEC-Q200

Grade 1, 0805 0805 GCM21BR71C475KA73K MuRata

C20 1 1 2.2 µF CAP, CERM, 2.2 µF, 50 V, +/- 10%, X7R, AEC-Q200

Grade 1, 1206 1206 GCM31CR71H225KA55L MuRata

FID1, FID2, FID3, FID4,

FID5, FID6 6 6 Fiducial mark. There is nothing to buy or mount. N/A N/A N/A

H9, H10, H11, H12 4 4 Bumpon, Hemisphere, 0.44 X 0.20, Clear Transparent Bumpon SJ-5303 (CLEAR) 3M

J1 1 1 ON Header, 100mil, 3x1, Gold, TH Header, 100mil, 3x1, TH HTSW-103-07-G-S Samtec

J2 1 1 Header, 100mil, 3x1, Gold, TH Header, 100mil, 3x1, TH HTSW-102-07-G-S Samtec

Schematic, Bill of Materials, and Layout

www.ti.com

6SLVUAY1–November 2017

Submit Documentation Feedback

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

Table 1. Bill of Materials (BOM) (continued)

Designator

Quantityfor

TPS55165Q

1-EVM

(Variant

001)

Quantityfor

TPS55160Q

1-EVM

(Variant

002)

Value Description Package Reference Part Number Manufacturer

J3 1 1 Header, 100mil, 2x1, Gold, TH Header, 100mil, 2x1, TH HTSW-103-07-G-S Samtec

J4 1 1 3 ms Header, 100mil, 3x1, Gold, TH Header, 100mil, 3x1, TH HTSW-103-07-G-S Samtec

J5 1 1 LPM Header, 100mil, 3x1, Gold, TH Header, 100mil, 3x1, TH HTSW-103-07-G-S Samtec

J6 1 0 5 V Header, 100mil, 3x1, Gold, TH Header, 100mil, 3x1, TH HTSW-103-07-G-S Samtec

L1 1 1 2.2 µH Inductor, Shielded, Powdered Iron, 2.2 µH, 4.7 A, 0.035

ohm, AEC-Q200 Grade 1, SMD 4.1x4.1mm 78438356022 Wurth Elektronik

L2 1 1 4.7 µH Inductor, Wirewound, 4.7 µH, 5.5 A, 0.04 ohm, AEC-

Q200 Grade 0, SMD 7.3 x 6.6 mm SRP7028A-4R7M Bourns

LBL1 1 1 Thermal Transfer Printable Labels, 0.650" W x 0.200" H

- 10,000 per roll PCB Label 0.650 x 0.200

inch THT-14-423-10 Brady

R3 1 1 10.0 k RES, 10.0 k, 1%, 0.1 W, 0603 0603 CRCW060310K0FKEA Vishay-Dale

R4 1 1 100 k RES, 100 k, 5%, 0.1 W, 0603 0603 CRCW0603100KJNEA Vishay-Dale

R5 1 0 0 RES, 0, 5%, 0.063 W, 0402 0402 CRCW04020000Z0ED Vishay-Dale

R6 0 1 82.5 k RES, 82.5 k, 1%, 0.1 W, 0603 0603 CRCW060382K5FKEA Vishay-Dale

R7 0 1 9.09 k RES, 9.09 k, 1%, 0.1 W, 0603 0603 CRCW06039K09FKEA Vishay-Dale

SH-J1, SH-J2, SH-J3, SH-

J4, SH-J5 5 5 1 × 2 Shunt, 100mil, Gold plated, Black Shunt 969102-0000-DA 3M

TP1, TP2, TP3, TP4 4 4 PCB Pin, Swage Mount, TH PCB Pin (2505-2) 2505-2-00-44-00-00-07-0 Mill-Max

TP5, TP6, TP7 3 3 Test Point, Miniature, SMT Test Point, Miniature, SMT 5019 Keystone

U1 1 1 36-V, 1-A Output, 2-MHz, Single Inductor, Synchronous

Step-Up and Step-Down Voltage Regulator, PWP0020P

(TSSOP-20) PWP0020P TPS55165PWPQ1 Texas Instruments

C1, C9, C10, C22 0 0 0.01 µF CAP, CERM, 0.01 µF, 50 V, +/- 10%, X7R, AEC-Q200

Grade 1, 0603 0603 GCM188R71H103KA37D MuRata

C18, C19 0 0 10 µF CAP, CERM, 10 µF, 50 V, +/- 10%, X7R, AEC-Q200

Grade 1, 2220 2220 CGA9N3X7R1H106K230KB TDK

D1, D2 0 0 60 V Diode, Schottky, 60 V, 1 A, SOD-123F SOD-123F PMEG6010CEH,115 Nexperia

H1, H2, H3, H4 0 0 Machine Screw, Round, #4-40 x 1/4, Nylon, Philips

panhead Screw NY PMS 440 0025 PH B & F Fastener

Supply

H5, H6, H7, H8 0 0 Standoff, Hex, 0.5"L #4-40 Nylon Standoff 1902C Keystone

R1, R2 0 0 1.00 k RES, 1.00 k, 1%, 0.1 W, 0603 0603 CRCW06031K00FKEA Vishay-Dale

R6 0 0 82.5 k RES, 82.5 k, 1%, 0.1 W, 0603 0603 CRCW060382K5FKEA Vishay-Dale

R7 0 0 9.09 k RES, 9.09 k, 1%, 0.1 W, 0603 0603 CRCW06039K09FKEA Vishay-Dale

www.ti.com

Schematic, Bill of Materials, and Layout

SLVUAY1–November 2017

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

2.3 Layout and Component Placement

The TPS55160Q1-EVM and TPS55165Q1-EVM share the same PCB which is named HVL143B.

The C1, C18, C19, and C22 capacitors are not installed. Their footprints allow for additional input

decoupling or bulk capacitance.

The R6 and R7 resistors are not populated on the TPS55165Q1-EVM. Select the output voltage of either

5V or 12V using J6, which is named Vout_Set.

The R6 and R7 resistors are populated on the TPS55160Q1-EVM. These resistors set the output voltage

to 8V. To eliminate the long trace to the J6jumper, which is prone to pick up noise, the R5 resistor and J6

jumper are not assembled on the TPS55160Q1-EVM.

Figure 4,Figure 7, and Figure 8 show the top layout of the EVM, with assembly options for the fixed

voltage version (TPS55165Q1-EVM) at the adjustable voltage version (TPS55160Q1-EVM).

Figure 6. Component Placement—Top

Schematic, Bill of Materials, and Layout

www.ti.com

8SLVUAY1–November 2017

Submit Documentation Feedback

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

Figure 7. TPS55160Q1-EVM Top Layer—Overview

Figure 8. TPS55165Q1-EVM Top Layer—Overview

www.ti.com

Schematic, Bill of Materials, and Layout

SLVUAY1–November 2017

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

Figure 9,Figure 10, and Figure 11 show the bottom layout of the EVM, with assembly options for the fixed

voltage version (TPS55165Q1-EVM) at the adjustable voltage version (TPS55160Q1-EVM).

Figure 9. Component Placement—Bottom

Figure 10. TPS55160Q1-EVM Bottom Layer—Overview

Schematic, Bill of Materials, and Layout

www.ti.com

10 SLVUAY1–November 2017

Submit Documentation Feedback

TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost-

Converter

Figure 11. TPS55165Q1-EVM Bottom Layer—Overview

Figure 12,Figure 13,Figure 14, and Figure 15 show the EVM board layers.

Figure 12. Layout—Top Layer Figure 13. Layout—Layer 2

Figure 14. Layout—Layer 3 Figure 15. Layout—Bottom Layer

This manual suits for next models

Table of contents

Other Texas Instruments Control Unit manuals

Texas Instruments

Texas Instruments TPS54335AEVM-010 User manual

Texas Instruments

Texas Instruments TRF7963A User manual

Texas Instruments

Texas Instruments CC256xEM User manual

Texas Instruments

Texas Instruments TPS61020EVM User manual

Texas Instruments

Texas Instruments TPS6381xEVM User manual

Texas Instruments

Texas Instruments SimpleLink Wi-Fi CC3 20 Series User manual

Texas Instruments

Texas Instruments OPT3005DTSEVM User manual

Texas Instruments

Texas Instruments BQ25181 User manual

Texas Instruments

Texas Instruments TAS3208EVM-LC User manual

Texas Instruments

Texas Instruments DRV2605LEVM-MD User manual

Texas Instruments

Texas Instruments S6350 User manual

Texas Instruments

Texas Instruments bq27 10EVM Series User manual

Texas Instruments

Texas Instruments DLPDLCR660TEVM User manual

Texas Instruments

Texas Instruments TCA5405EVM User manual

Texas Instruments

Texas Instruments LM3643EVM User manual

Texas Instruments

Texas Instruments Piccolo F280049C User manual

Texas Instruments

Texas Instruments WL1835MODCOM8B User manual

Texas Instruments

Texas Instruments bq2570 Series User manual

Texas Instruments

Texas Instruments AFE79 Series Assembly instructions

Texas Instruments

Texas Instruments TAS3251 User manual

Texas Instruments

Texas Instruments ADC12DL 00 Series User manual

Texas Instruments

Texas Instruments TPS546C23 User manual

Texas Instruments

Texas Instruments TPSM8282xEVM-080 User manual

Texas Instruments

Texas Instruments DAC8771EVM User manual

Popular Control Unit manuals by other brands

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation

JS Automation MPC3034A user manual

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum

Spektrum Air Module System manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS

KHADAS BT Magic quick start

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton

Eaton Powerware Series user guide

WAGO

WAGO 750-407/040-000 manual

Sony

Sony CCU-590 Operation manual

Graco

Graco 25D614 instructions

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini

Shini SPV-U Series manual
