Tessonics R05-F-2-REMOTE User manual
Regulatory Compliance Statements
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC Interference Statement
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
FCC Caution
Any changes or modifications to the equipment not expressly
approved by the party responsible for compliance could void your
authority to operate the equipment. This transmitter must not be co-
located or operating in conjunction with any other antenna or
transmitter.
FCC ID : YI5-R05F2REM
RSWA
User’s Manual
Tessonics Inc.
787 Ouellette Avenue
Windsor, Ontario
N9A 4J4, Canada
www.tessonics.com
Remote
Control
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada
applicable aux appareils radio exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
"This Class (A) digital apparatus complies with Canadian ICES-003.“
"Cet appareil numérique de la classe (A) est conforme à la norme
NMB-003 du Canada.“
IC : 9065A-R05F2REM
Model : R05-F-2-REMOTE

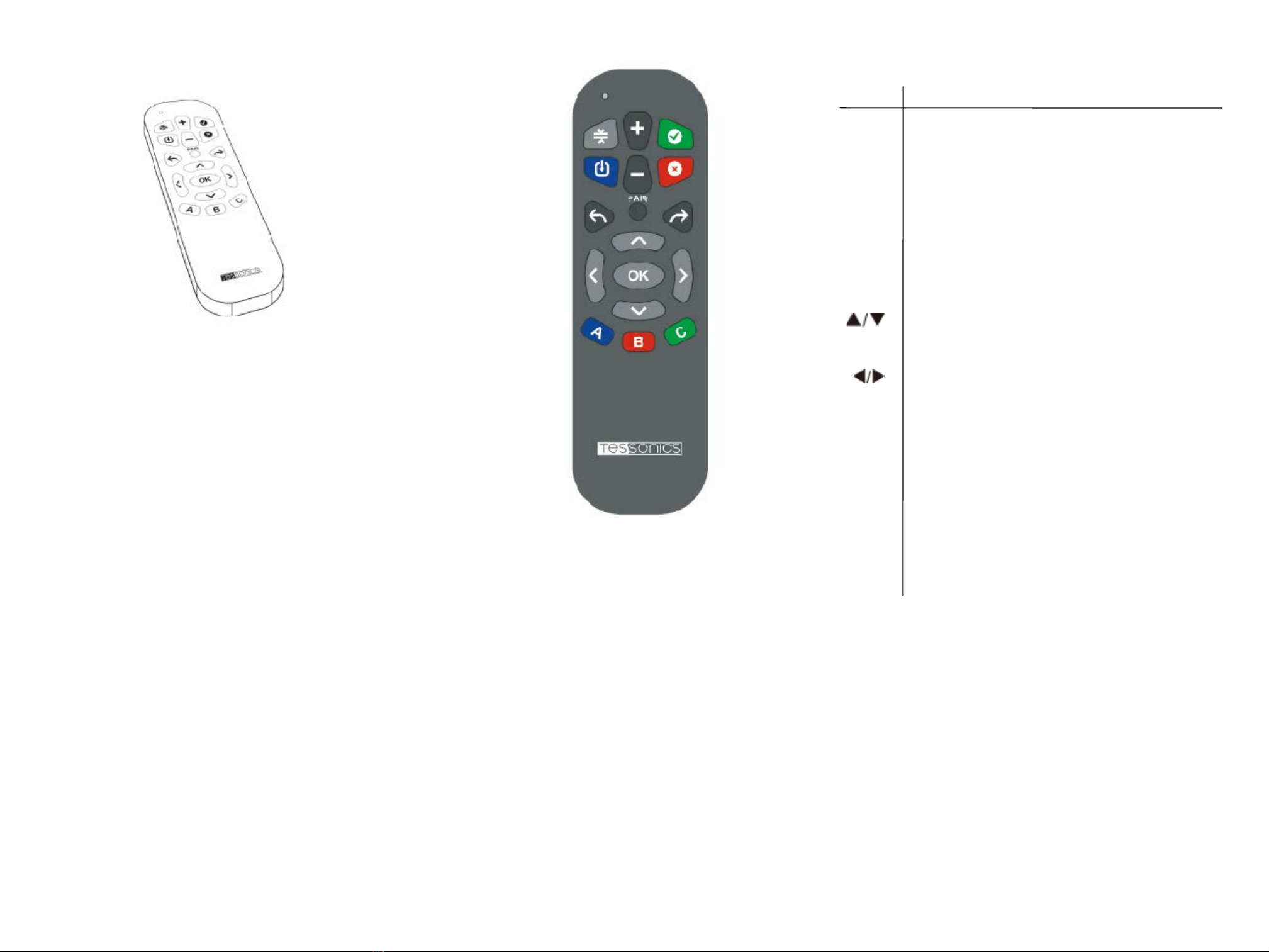

Button Assignments
The package contains the remote and the receiver module.
Pairing the Remote
To pair the remote control with the receiver:
• Press and Hold Pairing Button for 3 seconds
• Green Feedback LED turns ON
• Remote will send pairing request to RX
• RX accepts pairing request
• Green Feedback LED blinks one time (slowly), turns OFF
and remote exits pairing mode.
• Remote is now paired to RX.
Normal Use –Remote Paired (User: Remote
Paired / Battery Good)
• User pushes a button on remote
• GREEN LED on remote blinks (x times) and turns OFF
Attempted Use –Remote Not Paired (User:
Remote not paired / Battery Good)
• User pushes a button on remote
• GREEN LED on remote blinks (x times) and turns OFF
Batteries Low –Remote Paired (User:
Remote Paired / Battery Low)
• User pushes a button on remote
• GREEN LED on remote blinks (x times) and aer a short
pause
• RED LED blinks 5 times and turns OFF
*Low Voltage reshold: 2.3V / Microcontroller
Minimum Voltage: 1.8V
Batteries Low –Remote Not Paired (User:
Remote not Paired / Battery Low)
• User pushes a button on remote
• RED LED on remote blinks (x times) and aer a short pause
• RED LED blinks 5 times and turns OFF
Un-Pairing Process
• Press and Hold Pairing Button for 3 seconds
• RED Feedback LED turns ON
• RED feedback LED blinks X number of times (slowly)
• Remote is now un-paired to RX
Setting Up the Remote
Button Description
Setup Perform Setup procedure
Get Get RSWA measurement
+/-Increase/decrease the diameter of the circle
Pass/Fail Make a decision on weld quality
Next Move to next weld or unit
Back Exit from menu or dialog
Ok Confirm selection in menus and dialogs
Up and down cursor keys; in Array
Explorer’s main window: Navigate up and
down in the weld list view
Left and right cursor keys; in Array
Explorer’s main window; Navigate left
And right in recent measurements
AOpens drop down menu in A-scan view
(may be changed in future software releases)
BToggles between front and back cells in
weld list view (may be changed in future
software releases)
CToggles between automatic and manual
circle measurements (may be changed in
Future software releases)
Replacing the Battery
This remote needs a battery to operate. Replace the
Battery when needs with AAA * 3 batteries.
To replace the battery:
• Pull the battery compartment out and remove the old battery
• Insert the replacement battery with the positive side facing up
• Close the battery compartment
• If necessary, perporm the pairing procedure
• Operating temp. : 0 ℃ ~ 50 ℃
• Rated input : DC 3V (AAA * 2 Batteries)
