TerraWave Solutions T24030MO13602 User manual

TerraWave Solutions®802.11n 2.4 GHz 3 dBi Ceiling Mount

MIMO Omnidirectional Antenna with RPTNC Connectors

TerraWave’s new 2.4 GHz ceiling mount multiple-input and multiple-output (MIMO) omnidirectional

antenna is designed to operate with many manufacturers’ enterprise-class 802.11n MIMO access

points (APs). The antenna features three integrated 2.4 GHz omni antennas in one enclosure,

making it an ideal and aesthetically pleasing antenna to support demanding applications in next

generation IEEE 802.11n wireless indoor communication systems. Every TerraWave antenna is

covered by the Company’s two-year TerraNet warranty program. Visit www.terrawave.com for

additional information.

Vertical Radiation Pattern Horizontal Radiation Pattern

Specifications

Model T24030MO13602

Frequency Range 2400 ~ 2500 MHz

Bandwidth 100 MHz

Gain 3 dBi

Vertical Beamwidth 60°

Horizontal Beamwidth 360°

VSWR ≤1.5

Nominal Impedance 50 Ohms

Polarization Vertical

Max Power 50 Watts

Connector RPTNC Plug

Dimensions 9.5” x 3.5” x 1.3”

Weight 0.97 lbs

Operating Temperature Range -22°F to +158°F

Mounting Style Ceiling Tile Clip / Thread Mount

Distributed by Solid Signal www.solidsignal.com 877.312.4547

Two Mounting Options are Included with Each Antenna

1. Ceiling Tile Grid Clips: The antenna may be mounted to the ceiling tile grid with clips.

2. Screw Mount: The antenna may be installed to a flat ceiling without grid by pre-cutting holes into

the ceiling and inserting the antenna’s pigtails into the holes. The antenna is then secured with

screw on mounts. (Ceiling tile clips may be removed before installation so the antenna is flush with

the flat ceiling surface.)

TerraWave Solutions®802.11n 2.4 GHz 3 dBi Ceiling Mount

MIMO Omnidirectional Antenna with RPTNC Connectors

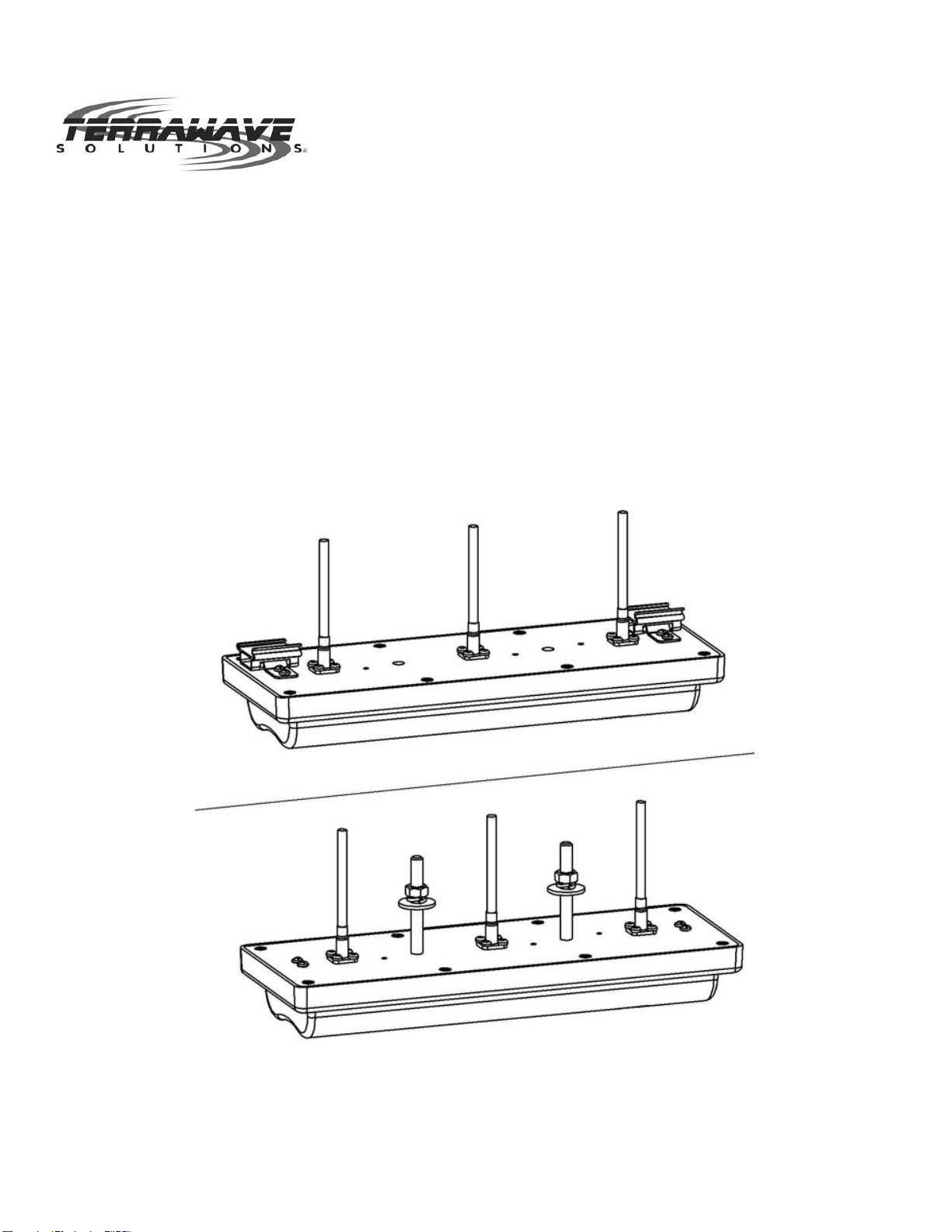

Mounting Information for T24030MO13602

Ceiling Tile Grid Clips

Screw Mount

Distributed by Solid Signal www.solidsignal.com 877.312.4547
