Tepro Chill&Grill LAMBADA User manual

P130227_ChillGrill_KohleBBQ_1121_Lambada_A5_IM_DE_20131017_V1.indd 1

17/10/13 10:41 AM

User Guide

Charcoal BBQ

LAMBADA

Rectangular Easy Assemble BBQ

Art. Nr. 1121

P130227_ChillGrill_KohleBBQ_1121_Lambada_A5_IM_DE_20131017_V1.indd 2

17/10/13 10:41 AM

P130227_ChillGrill_KohleBBQ_1121_Lambada_A5_IM_DE_20131017_V1.indd 3

17/10/13 10:41 AM

Content

Before Using the Unit............................................................................................................. 4

Delivery Content .............................................................................................................. 4

Intended Use

......................................................................................................................... 5

For your security

................................................................................................... 5 - 7

Warning symbols ......................................................................................................... 5

Safety .......................................................................................................... 5 - 7

Setup ..................................................................................................................... 7 - 8

Preparation .................................................................................................................. 7

Unpacking the BBQ ..................................................................................................... 7

BBQ Assembly

................................................................................................... 8 - 9

Set up the BBQ ................................................................................................................ 9

Prior to Cooking .............................................................................................................. 9

Operation ................................................................................................................................ 9

Maintenance and Cleaning

................................................................................................ 10

Disposals

............................................................................................................................. 11

Technical Data ...................................................................................................................... 11

Warranty ........................................................................................................................ 11

Service ........................................................................................................................... 11

Distributor ...................................................................................................................... 11

P130227_ChillGrill_KohleBBQ_1121_Lambada_A5_IM_DE_20131017_V1.indd 4

17/10/13 10:41 AM

Nr.

Description

BBQ

Rear Windscreen

Right Windshield

Left Windshield

Left forward leg (short

mounting wheel)

Left rear leg (short

mounting wheel)

Right front supporting

leg (long)

Right rear supporting

leg (long)

Side tray

Fuel tank

Lower tray

Wheel

Axle

Before using the Appliance

Check after unpacking the appliance and before using the appliance, if the appliance is damaged.

If this is the case, do not use the appliance and contact your dealer immediately.

The User Guide is based on the standards and regulations of the European Union. Please also

pay attention to your country-specific guidelines and regulations!

Carefully read the safety instructions and the operating instructions before using the

Appliance. This allows you to use all functions safely and reliably. This ensures a secure

and proper use of the appliance. Please retain the operating instructions for future

reference and please also pass these on to any future users.

Delivery Content

Please check that the delivered assembly

parts are complete and without damage.

If on the rare occasion that one of the

parts is faulty, please contact your

supplier immediately. Returns after full- or

partial installation of the product will not

be accepted.

Foot

BBQ handle

Wheel Cover

Safety Pin

Intended Use

This BBQ Grill is used to heat up, - slow cook, - or barbecue meat.

The BBQ Grill is for outdoor use only and only for private use.

It is important that you use the product only in the way described in this User Guide

Any other use is considered improper and can lead to property damage or even personal

injury. The manufacturer accepts no liability for any damage caused by misuse of the

product and usage of the product outside the user guidelines.

For your own Safety

Warning signs

Danger High Risk!

Ignoring this warning can be

life threatening and can cause damage to the body.

Attention Medium Risk!

Ignoring this warning can cause property damage.

Caution Low Risk!

The careful handling of problems is required, which can occur while handling

the device.

Important Advice

Danger Flammable!

The glowing charcoal and the operating grill parts can get very hot and can ignite fires.

- A fire extinguisher and a first aid kit should be to hand at all times in case of an

accident or fire.

- Place grill on a flat, horizontal, safe, heat-resistant and clean surface.

- Place the grill so, that it is at least 1 m away from highly-inflammable materials, such

as Awnings, wooden decks or furniture.

- While in operation do not transport the product

- Only burn the coal in the sheltered area.

- Fill the BBQ with maximum 3 kg of charcoal

- Some foods produce combustible fats and juices. Therefore the BBQ needs to be

cleaned regularly, preferably after each use.

- Dispose of the ashes only when the charcoal is completely burned out and cooled

down.

Danger Combustion and Accidents!

This appliance should not be used by a person (including children) with reduced physical, sensory or lack

of experience / knowledge. Therefore people with these conditions should be made aware of the dangers

of the product and should be supervised by another person for their own safety.

– Any changes to the product are a huge danger to your own safety and are forbidden. Therefore

impermissible interventions should be prevented. If any damage, reparations or problems occur

with the product, please contact our service desk or one of our present specialists.

– Children and Animals need to be kept away from the product at all times

The BBQ, the charcoal inside of the BBQ and the BBQ food become very hot while the BBQ is in

use, so that any contact with them can lead to severe burns.

– Therefore please keep enough distance from the hot parts.

– Use kitchen gloves if you handle the BBQ at all times.

– Only use BBQ equipment with long heat protected handles.

– Do not wear clothes with loose sleeves.

– Only use dry lighter or special liquid barbecue lighter to light (please use the EN 1860-3

instructions).

– Please cool down the BBQ completely before you clean it or put it away.

Danger of Toxication!

Burning of Charcoal produces carbon monoxide – it has no scent and

can lead to death if used in confined spaces - As a result the BBQ

should only be used outdoors.

Danger of Explosion!

Flammable Liquids which are poured into the fire can cause random flames or

explosions.

– Never use flammable liquids like petrol and spirits.

– Do not soak the charcoal in flammable liquids or place the soaked charcoal in the

flames.

Danger for Children!

Children can entangle themselves within the package foil while playing

with it and can suffocate.

– Therefore children should not play with the package foil.

– Pay attention that your children will not put any of the applications parts in their mouth.

They could swallow these and could choke as a result.

Risk of injury

On the BBQ and on the some of the features are sharp corners.

– The single features of the BBQ should be handled carefully, to prevent accidents or

injury during the installation or during the general use of the BBQ. It may be

advisable to wear protective gloves.

– Do not place the BBQ near Entrances or Exits or busy zones.

– Always handle the BBQ carefully while you barbecue. Any disturbances can lead to

improper handling of the BBQ.

Always pay attention and take care of what you do with the BBQ. Do not use the BBQ if

you are tired, not concentrating or under influence of drugs, alcohol or medicines. Failure

to pay proper attention ev e n f o r a s h o r t p e r i o d o f t im e w h il e u s i ng th e B B Q

c an l e a d t o s e r i o u s in j u r i e s .

Caution damage danger!

During the use of the BBQ it is possible that the screw starts to loosen and

this can affect the stability of the BBQ.

– Therefore please check the screws before using the BBQ. If necessary please tighten

the screws again to ensure stability.

Attention damage danger!

Do not use strong or grinding solvent or scouring pads, because they can

damage the surface and leave abrasive marks

Assembly Guide

Preparations

Danger of Injury!

Not following the assembly guide can lead to problems and danger while using

the BBQ.

– Please follow all the detailed assembly instructions

Read the Assembly instructions fully.

Make sure you have enough time to assemble the BBQ and make sure you

have a flat, even working space of about one to two square meter.

Pay attention to sharp edges of plates while you assemble the BBQ. It is

therefore advisable to wear protective gloves during the assemblage.

Unpacking the BBQ

1. Unpack the BBQ and remove all the packaging.

2. Please store the packaging out of reach of children and after completing the

assembly please recycle the packaging following the guidelines.

3. Please pay attention to the assembly picture

P130227_ChillGrill_KohleBBQ_1121_Lambada_A5_IM_DE_20131017_V1.indd 9 17/10/13 10:41 AM

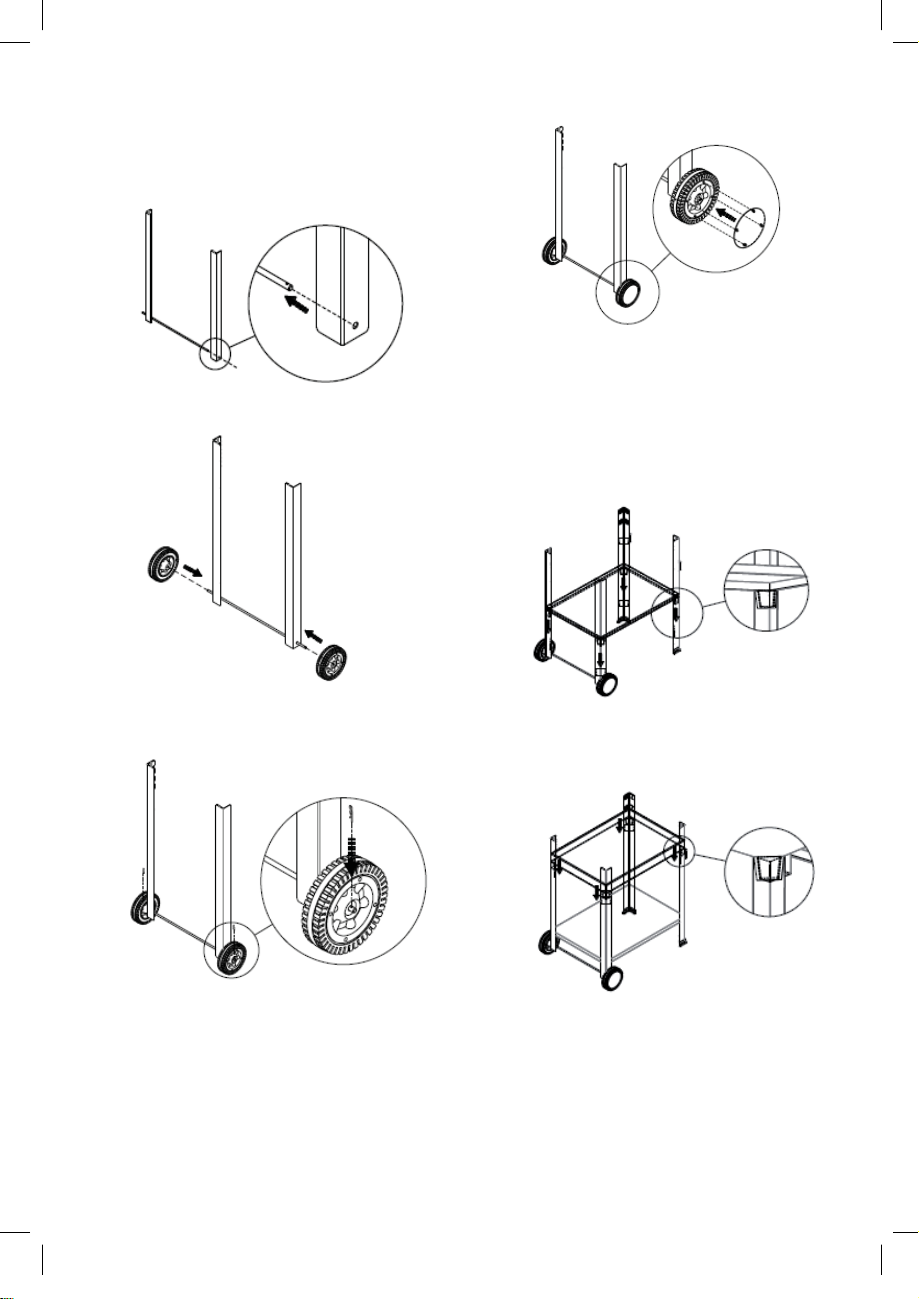

BBQ Assembly

Set the two shorter legs

perpendicular on the floor. Make

sure that the holes for the axel are

on opposite sides when you install

the axel.

Attach the wheels.

Insert the locking pins into the holes

on both sides.

Attach the wheel covers and press them tightly

onto the wheel.

Make sure that both of the longer legs

stand vertically on the ground. Ensure

that the slots for the side shelf are on

the right side. Now install the lower

tray.

Install the fuel tank.

P130227_ChillGrill_KohleBBQ_1121_Lambada_A5_IM_DE_20131017_V1.indd 10 17/10/13 10:41 AM

Plug the lateral deviation in the

two slots of the support legs on

the right side.

Put the three parts of draft shields into

the recesses of the legs. Make sure

the left windscreen is placed and fixed

as shown as in the magnification. The

other wind screen is for the right

side

Hang the grill grate onto the right and

left side of the windscreen.

Standing up the BBQ

Danger of Damage!

During use the fittings can

loosen gradually and the

stability of the BBQ can be

affected.

–

Therefore check the BBQ before

each use regarding its stability

Before the BBQ

 Before using the BBQ place it on a

flat, stable surface outdoors

 Wash the BBQ grate before first use

with warm rinsing water

 Pre-heat

Before the first BBQ session, the BBQ

must be preheated for approximately

1-2 hours at a temperature of 100 °-

200 ° C.

This is needed to make the inside

and the outside of the BBQ ready

and to bake on the heat resistant

colour form outside.

–
