Tennant T16 Training manual

IB 9007961 (08- 2015) 1

INSTRUCTION BULLETIN

No. 9007961

Machine: T16

Published: 08- 2015

Rev. 01

NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the

Parts List in the appropriate place in the machine manual for future

reference. Retaining the Parts List will make it easier to reorder

individual parts and will save the cost of ordering an entire kit.

NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9008135

SYNOPSIS:

This kit contains the parts needed to install a strobe light kit on T16 scrubbers equipped with overhead

guards.

Please follow step-by-step instructions.

SPECIAL TOOLS / CONSIDERATIONS: NONE

(Estimated time to complete: 1.25 hours)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components

such as batteries and fluids in an environmentally safe way according

to local waste disposal regulations.

Always remember to recycle.

PREPARATION:

1. Park the machine on a clean level surface,

turn off the machine, and remove the key.

FOR SAFETY: Before leaving or servicing

machine, stop on level surface, turn off

machine, and remove key.

2. Disconnect the battery cables from the

batteries.

WARNING: Always disconnect battery

cables from machine before working on

electrical components.

IB 9007961 (08- 2015)2

INSTALLATION:

NOTE:Complete Step 1 through Step 5 only if

machine is not equipped with a front headlight.

Proceed to Step 6 if machine is equipped with

optional front headlight.

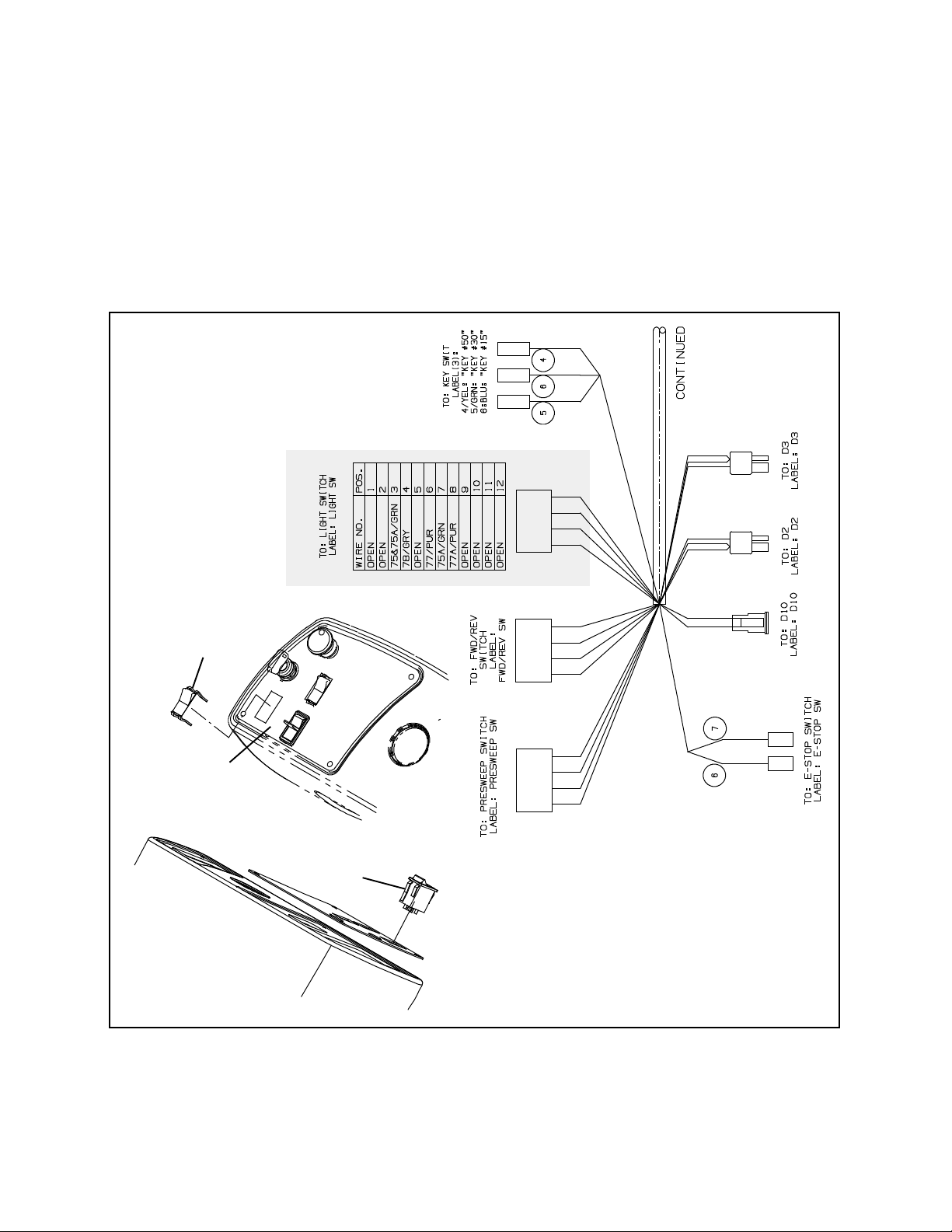

1. Carefully remove the instrument panel from

the machine. Do not break any wire

connections. Set the hardware aside. (Fig. 1)

2. Remove the hole plug from the instrument

panel. Discard the hole plug. (Fig. 1)

3. Insert the rocker switch (12) into the

instrument panel where the hole plug was

previously located. (Fig. 1)

4. Connect the main wire harness to the rocker

switch (12). (Fig. 1)

5. Reinstall the instrument panel onto the

machine. (Fig. 1)

Remove and

discard hole plug

Instrument

panel

FIG. 1

IB 9007961 (08- 2015) 3

6. Crimp the bullet terminals (11) onto the strobe

light (1) wires. (Fig. 2)

7. Insert the rubber grommet (8) into the hole in

the overhead guard. (Fig. 2)

8. Route the strobe light (1) wires down through

the rubber grommet (8) installed in the

overhead guard. (Fig. 2)

9. Use two M5 pan screws (2), two flat washers

(3), and two hex nuts (4) to install the strobe

light (1) onto the overhead guard. (Fig. 2)

10. Use two M6 hex screws (6) and two flat

washers (7) to install the light guard (5) onto

the overhead guard. (Fig. 2)

Connect to main

wire harness

FIG. 2

IB 9007961 (08- 2015)4

11. Connect the overhead guard light wire

harness (9) to the main wire harness. (Fig. 2 /

Fig. 4)

12. Route the overhead guard light wire harness

(9) up to the strobe light (1) and connect the

harness to the strobe light. (Fig. 2 / Fig. 4)

13. Use three cable tie mounts (13) and three

cable ties (14) to secure the overhead guard

light wire harness (9) to the overhead guard.

(Fig. 3)

14. Use the larger cable ties (10) to secure the

overhead guard light wire harness (9) to the

overhead guard leg. (Fig. 2)

FIG. 3

FIG. 4

IB 9007961 (08- 2015) 5

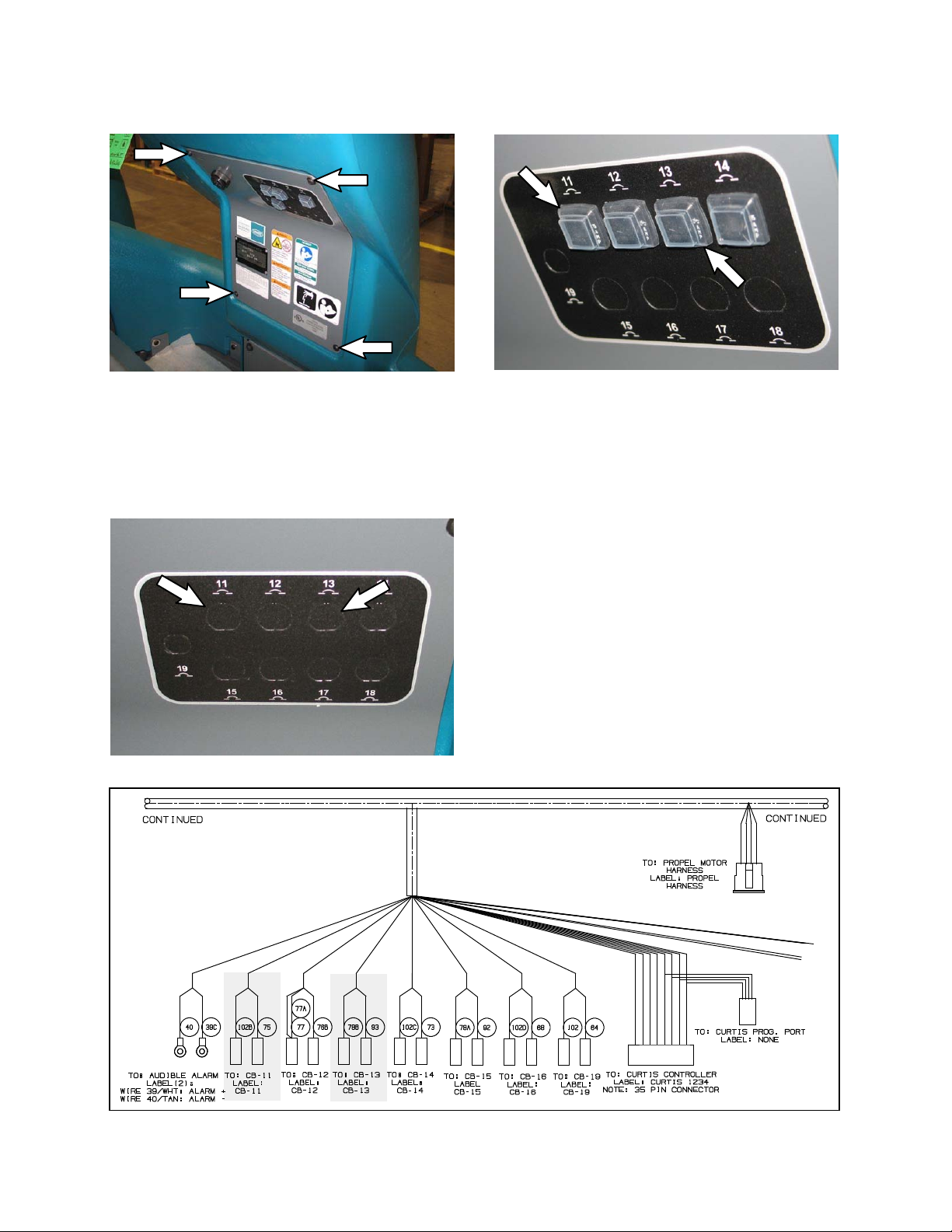

15. Remove the hardware holding the electrical

panel to the machine. Set the hardware aside.

(Fig. 5)

FIG. 5

16. Carefully remove the electrical panel from the

machine. Take care to not break any cable /

wire connections when removing the panel.

17. Remove the blanks from the CB13 and CB11

locations on the electrical panel. (Fig, 6)

FIG. 6

18. Install a 2.5- Amp circuit breaker (16) and a

circuit breaker boot (17) into electrical panel

CB13 location. (Fig, 7)

FIG. 7

19. Install a 15- Amp circuit breaker (15) and a

circuit breaker boot (17) into electrical panel

CB11 location. (Fig, 7)

20. Connect the main wire harness to the 2.5

Amp circuit breaker (16) and 15- Amp circuit

breaker (15) installed in the previous steps.

(Fig.7/Fig.8)

21. Reinstall the electrical panel onto the

machine.

22. Reconnect the battery cables to the batteries.

23. Start and test the machine. Place the light

switch into the top position and ensure the

strobe light is functioning.

FIG. 8

IB 9007961 (08- 2015)6

FIG. 9

IB 9007961 (08- 2015) 7

Bill Of Materials For Light Kit, Strobe, OHG, CI [T16] - 9008135

Ref.

Tennant

Part No. Description Qty.

o9008135 Light Kit, Strobe, OHG, CI [T16] 1

Yo1 1017250 Light, Strobe, Amb, 12- 48VDC 1

YY 9000845 Lamp, Bulb, Strobe 1

YY 9000879 Lens, Amb, F/ Revl / Flasher 1

Y2 06933 Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 2

Y319066 Washer, Flat, 0.25b 0.56d .05, Pl, 10 2

Y4 06549 Nut, Hex, Lock, M5 X 0.80, Nl 2

Y5 1039392 Guard, Light, Revl / Strobe 1

Y6 74455 Screw, Hex, M6 X 1.00 X 12, Fmg 2

Y7 32490 Washer, Flat, 0.25, Std 2

Y810632- 2 Grommet, Rbr, 0.62id, F/0.9h, .12 Matl 1

Y9 1058141 Harness, Wire, Light, OHG [T16] 1

Y10 130773 Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 5

Y11 55272 Terminal, Bullet, Mal, .157D, 12GA 1

Y12 377084 Switch, Rocker, Prgrsv 1

Y13 55248 Mount, Cable Tie 3

Y14 49266 Tie, Cable, Nyl, 07.3L .19W 1.8 Max D 3

Y15 1064188 Circuit Breaker, 15.0a, Resettable 1

Y16 1064184 Circuit Breaker, 02.5a, Resettable 1

Y17 1064191 Boot, Circuit Breaker 2

TENNANT COMPANY

P. O. Box 1452

Minneapolis, MN 55440-1452
