Tennant 1200 Product manual

Portable Carpet Extractor

1200

Operator and Parts Manual

607302

Rev. 00 (01-00)

Model No.:

607186

FAX: 1–800–678–4240

CUSTOMER SERVICE: 1–800-982–7658

TENNANT COMPANY

Commercial Products

12875 RANSOM STREET

HOLLAND MI 49424 U.S.A.

ELECTRICAL DIAGRAMS

Tennant 1200 (01–00)

120V WIRING

DIAGRAM

GND

GRN

WHT

ORG

GRNGRN

GRN

WHTBLK

GRN

ORG

WHT

RED

WHT

PUR

WHT

BLU

BLK

WHT

BLU

BLK

PUR

BLK

RED GRN

WHT

RED

YEL

BRN

YEL

PUR

GRN

PUMP

RECTIFIER PUMP / BRUSH

RECTIFIER

18/2

CORD

18/3

CORD

18/5

CORD

VACUUM

MOTOR

PUMP/

BRUSH

MOTOR

SOLENOID

CIRCUIT

BREAKER

PUMP

MAIN/VAC

SWITCH

TRIGGER

SWITCH

2 AMP

BRUSH/PUMP

SWITCH

BLK

BLK WHT

YEL

ORG WHT

WHT

BLK

RED RED

WHT

BLK

PUR

BLU

BRN

VAC

PUMP/

BRUSH

AC AC

SOLUTION

SOLENOID

AC AC

TRIGGER

SWITCH

2 AMP

PUMP

RECTIFIER

PUMP BRUSH

RECTIFIER

120 VAC

120V LADDER

DIAGRAM

PARTS LIST

Tennant 1200 (01–00)

SOLUTION TANK GROUP

678

34 36

16 38

PARTS LIST

Tennant 1200 (01–00) 13

SOLUTION TANK GROUP

REF PART # DESCRIPTION QTY.

1 608429 SOL TANK, RM–TEAL 1

2120192 DECAL, ”TENNANT” 1

3607298 STRAINER, SCREEN 1

4609063 FOAM, SOUND 1

5609071 DECAL, ”1200” SIDE 2

6230739 AXLE, 1/2DIAX13–1/8 1

7140045 WASHER, 1/2 FLAT 2

8607277 WHEEL, 8”DIA GRAY 2

9103019 CAP, HUB 2

10 607181 FOAM, SOUND 1

11 608322 SCREW, M6X1.0X16 4

12 140052 WASHER, 1/4 EXT 12

13 230746 BRACKET, AXLE OFFSET 2

14 609111 PLATE, SHIM 2

15 607179 VAC, MOTOR 5.7 2S 120V 1

190155 BRUSH, CARBON 2/PK 2

16 607276 HOSE, VAC 1–1/2IDX19” 1

17 140307 CLAMP, HOSE 1

18 100143 GASKET, VAC MOTOR 1

19 140340 SCREW, #10X5/8 4

20 14865 BUSHING 1

REF PART # DESCRIPTION QTY.

21 140297 NUT, M5X.8 HEX 2

22 608322 SCREW, M6X1.0X16 4

23 607180 PLATE, VAC MOTOR MTG 1

24 609064 FOAM, SOUND 1

∇25 607170 VAC, TOOL 13” ASSEMBLY 1

26 608324 SCREW, M6X1.0X40 4

27 607183 SEAL, CAP 1

28 140011 WASHER, 3/16 FLAT 1

29 140801 SCREW, 8–32X3/8 1

30 130646 CORD, 18/3X28 1

31 140897 SCREW, GROUND 1

32 140032 WASHER, #6 FLAT 2

33 140826 SCREW #6X3/4 2

34 608332 CORD, 18/2X76” BLACK 1

35 140324 CLAMP, CABLE 5/16ID 1

36 140340 SCREW, #10X5/8 1

37 140011 WASHER, 3/16 FLAT 1

38 607275 HOSE, VAC 1–1/2IDX33” 1

39 140027 WASHER, 5/16 FLAT 4

∇ASSEMBLY

INCLUDED IN ASSEMBLY

RECOMMENDED STOCK ITEMS

PARTS LIST

Tennant 1200 (01–00)

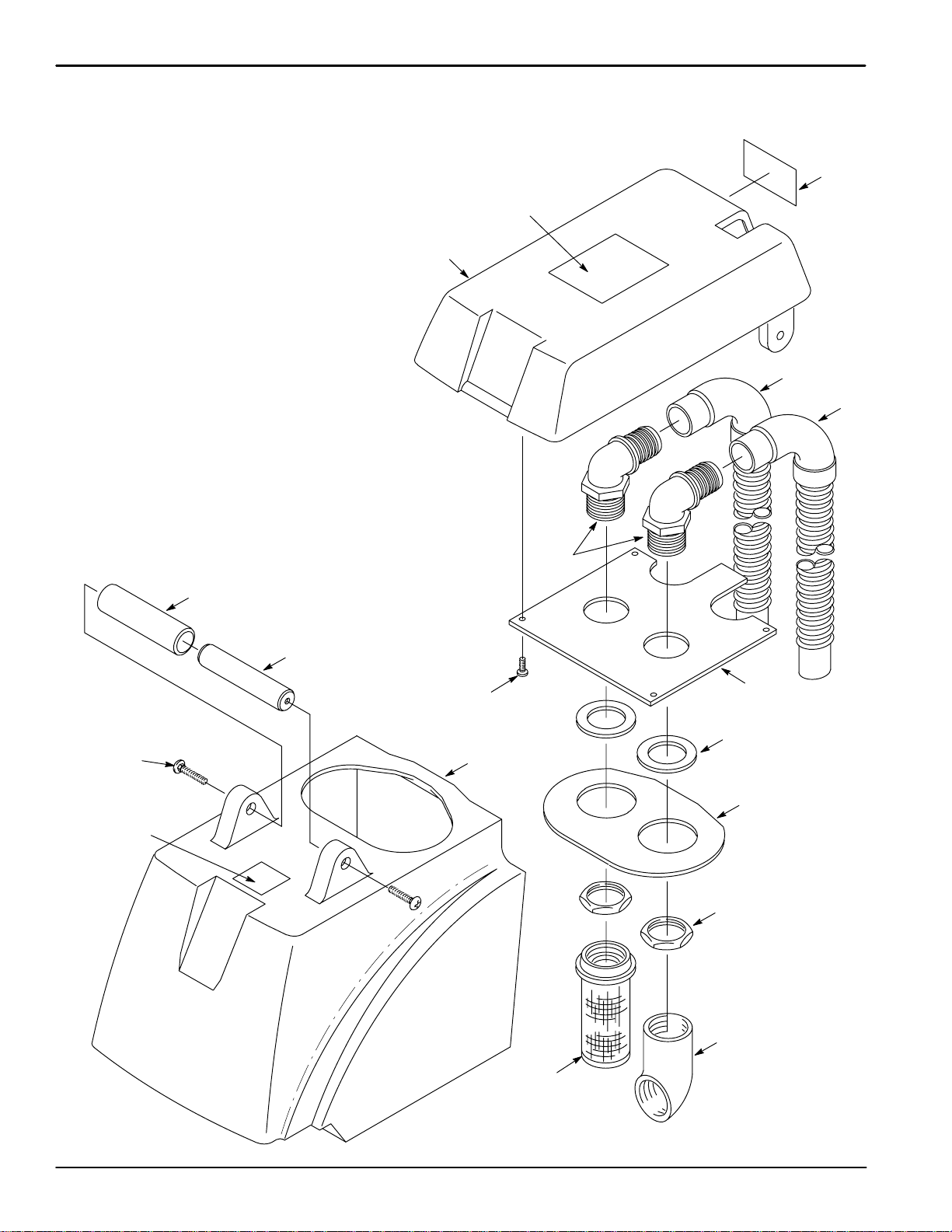

RECOVERY TANK GROUP

PARTS LIST

Tennant 1200 (01–00) 15

RECOVERY TANK GROUP

REF PART # DESCRIPTION QTY.

1 608439 COVER, RM–TEAL 1

2608329 DECAL, ”INSTRUCTIONS” 1

3120619 DECAL, ”WARNING–EXTRACTORS” 1

4607276 HOSE, VAC 1–1/2IDX19” 1

5607275 HOSE, VAC 1–1/2IDX33” 1

6607297 FITTING, 1–1/2MX1–1/2H90 2

7607172 COVER, PLATE 1

8210234 GASKET 2

9 607290 GASKET, COVER PLATE 1

REF PART # DESCRIPTION QTY.

10 210240 NUT, FLANGE 2

11 609065 FITTING, 1–1/2F 90PVC 1

12 609531 FLOAT, SHUT–OFF (1)BALL 1

13 608434 REC TANK, RM–TEAL 1

14 607006 SCREW M4X.7X12 4

15 630420 DECAL, ”FLAMMABLE MATERIAL” 1

16 608324 SCREW, M6X1.0X40 2

17 607294 BAR 1

18 102569 GRIP, FOAM 1

RECOMMENDED STOCK ITEMS

PARTS LIST

Tennant 1200 (01–00)

HANDLE GROUP

21 28

21 22 28

25 27

PARTS LIST

Tennant 1200 (01–00) 17

HANDLE GROUP

REF PART # DESCRIPTION QTY.

1 608444 HANDLE, RM–TEAL 1

2607315 LEVER, CAMLOCK 1

3607278 PIN, CLEVIS 1

4140630 PIN, COTTER 1

5140011 WASHER, 3/16 FLAT 4

6130712 SWITCH, MOMENTARY PULSE 1

7578430 WASHER, 1/2” FLAT 1

8606349 GASKET, TRIGGER CONSOLE 1

9069764190 SCREW, M3X.5X16 2

10 200662012 WASHER, M3 INT 2

11 578186000 WASHER, M4 FLAT 2

12 578082000 SPACER 2

13 578002000 ARM, TRIGGER 2

14 601429 CONSOLE, TRIGGER 1

REF PART # DESCRIPTION QTY.

15 140023 WASHER, #8 INT 3

16 200070354 SCREW, M4X.7X30 3

17 608332 CORD, 18/2X76” BLACK 1

18 608323 BUSHING, STRAIN–RELIEF 1

19 200160019 NUT, M12 1

20 140045 WASHER, 1/2 FLAT 4

21 607175 SERRATED PAD 4

22 604930 SCREW, M5X.8X10 4

23 608419 TUBE 1

24 607177 SHAFT 1

25 579223 CLAMP, CORD 2

26 230920.BK HOOK, CORD 2

27 607006 SCREW, M4X.7X12 4

28 608322 SCREW, M6X1.0X16 4

RECOMMENDED STOCK ITEMS

PARTS LIST

Tennant 1200 (01–00)

REAR PANEL GROUP

10 12

16 15 14

PARTS LIST

Tennant 1200 (01–00) 19

REAR PANEL GROUP

REF PART # DESCRIPTION QTY.

1 608446 PANEL, REAR RM–BLACK 1

2609080 BREAKER, CIRCUIT 2A 1

3130166 GRIP, STRAIN–RELIEF W/NUT 1

4130222 CORD, 16/3X25’ YELLOW 1

5602670 SWITCH, ROCKER 1

6607282 SWITCH, ROCKER ON/ON 1

7607283 DECAL, ”SWITCHES” 1

8140336 NUT, 10–24 2

9130304 RECTIFIER, BRIDGE 600V 15AMP 2

10 578734 SPLASHGUARD CRCT BREAKER 1

11 140335 SCREW, 10–24X1 2

REF PART # DESCRIPTION QTY.

12 578729 DECAL, ”READ MANUAL” 1

13 608322 SCREW, M6X1.0X16 2

14 608332 CORD, 18/2X76” 1

15 608323 BUSHING, STRAIN–RELIEF 1

16 607006 SCREW, M4X.7X12 8

17 608420 COVER, PLATE 2

18 608333 CORD, 18/5X30” BLACK 1

19 130194 BUSHING, STRAIN–RELIEF 1

20 130646 CORD, 18/3X28” BLACK 1

21 608323 BUSHING, STRAIN–RELIEF 1

RECOMMENDED STOCK ITEMS
