3: Unpacking
The wheelbase and interface are delivered together in a cardboard carton. This measures
680mm wide x 480mm deep x 1030mm high and weighs approximately 12Kg.
WARNING:
The transit carton is quite bulky so moving and unpacking must be done with care.
Observe all lifting and handling regulations.
Stand the carton upright making sure it is supported and cannot fall over. Open the carton
and remove any packages or packing, which could obstruct the removal of the wheelbase.
Remove the wheelbase.
The carton should contain the following items:
Item Component QTY. Yes No
1 Size 1 or 2 Wheelbase 1
2 Size 1 or 2 Interface 1
3 User Manual 1
IMPORTANT:

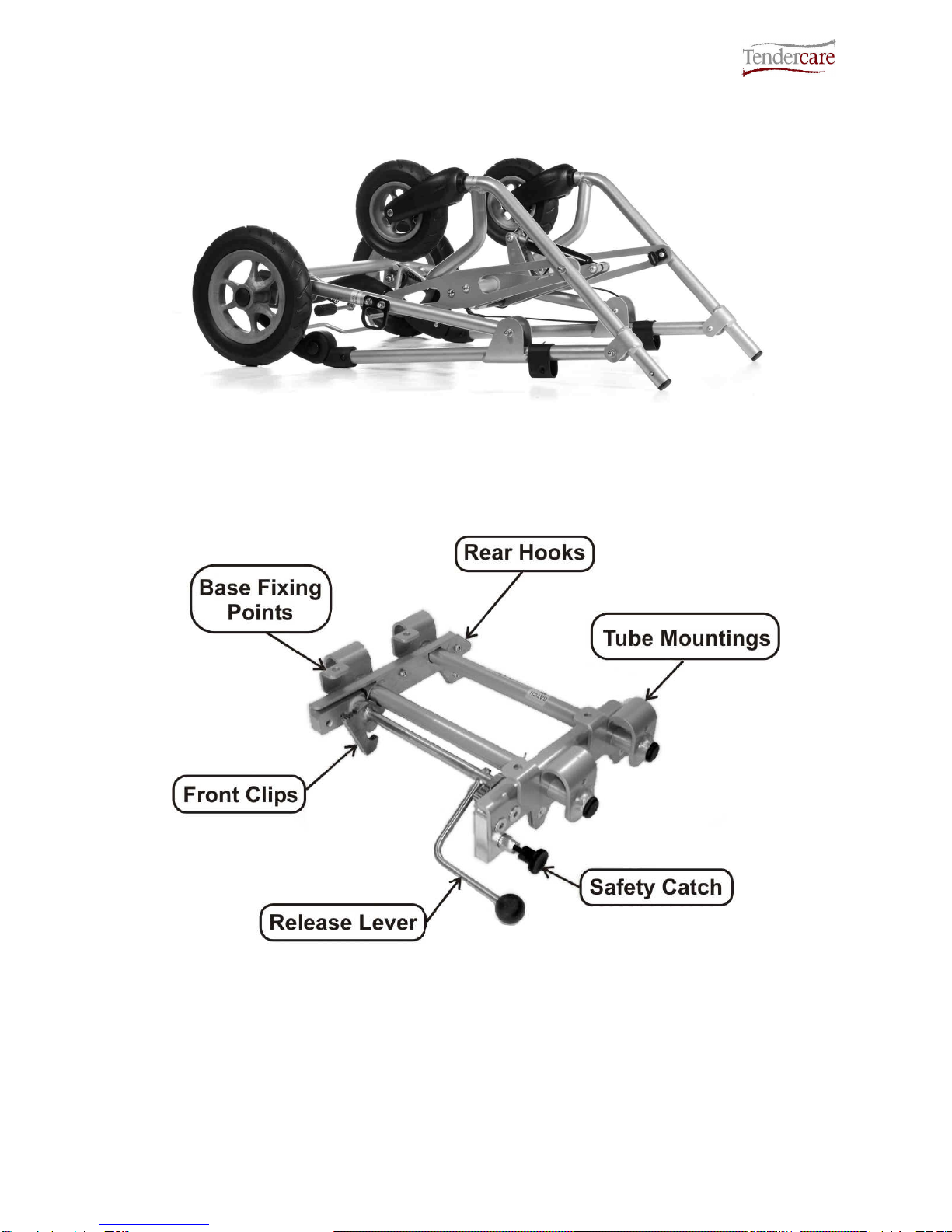

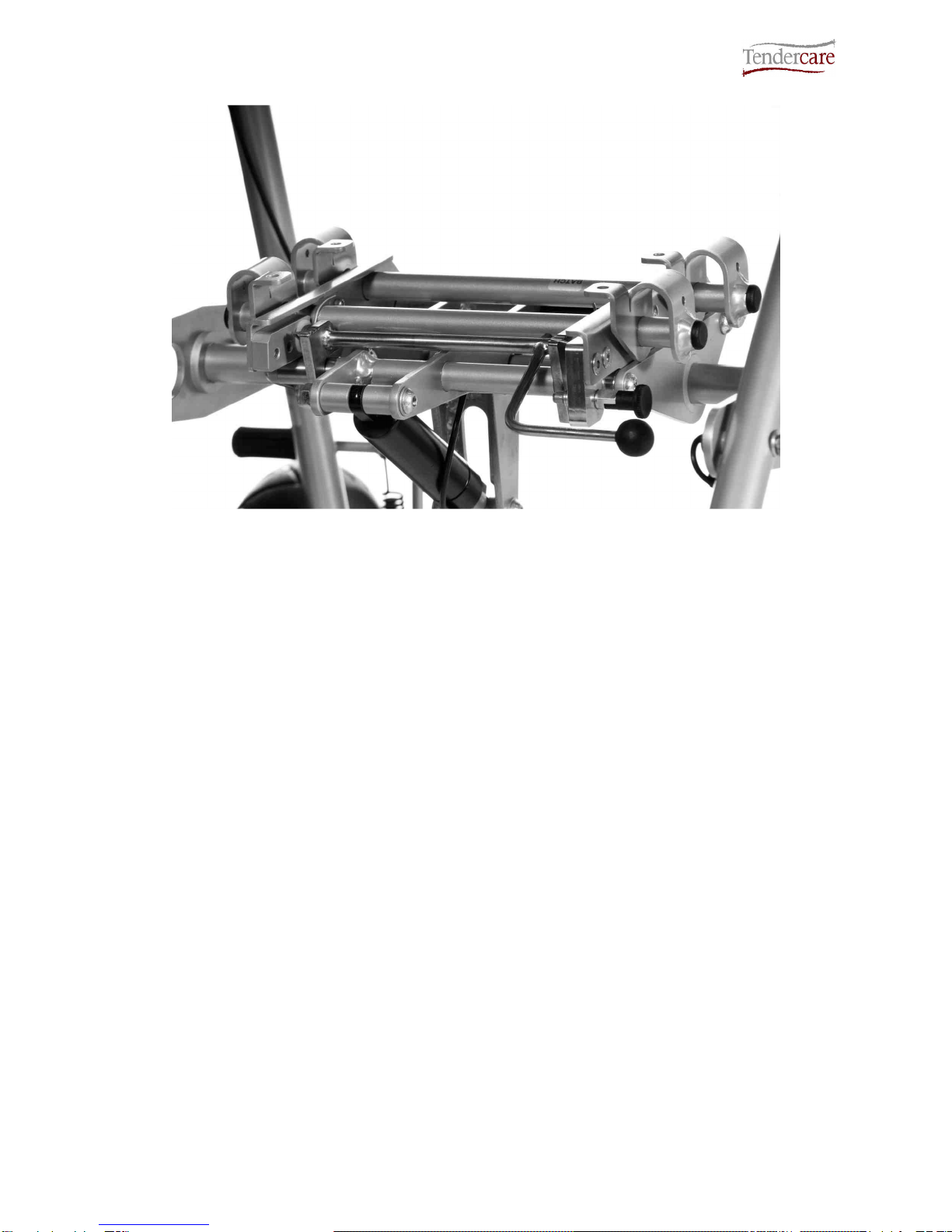

The interface will be supplied fitted to the frame. This can easily be separated by releasing
the interface catch, once the frame has been removed from its packaging. Please refer to
section 4.4 for more information on working with the interface.
If any items are damaged or missing, then please contact Tendercare, preferably by email at
info@tendercareltd.com or alternatively please call us on (01903) 726161 within 36 hours of
delivery.
After unpacking and checking you have all components and they are in good condition
dispose of the packaging at your local recycling centre. Alternatively retain and reuse.
4: Preparing the wheelbase for use

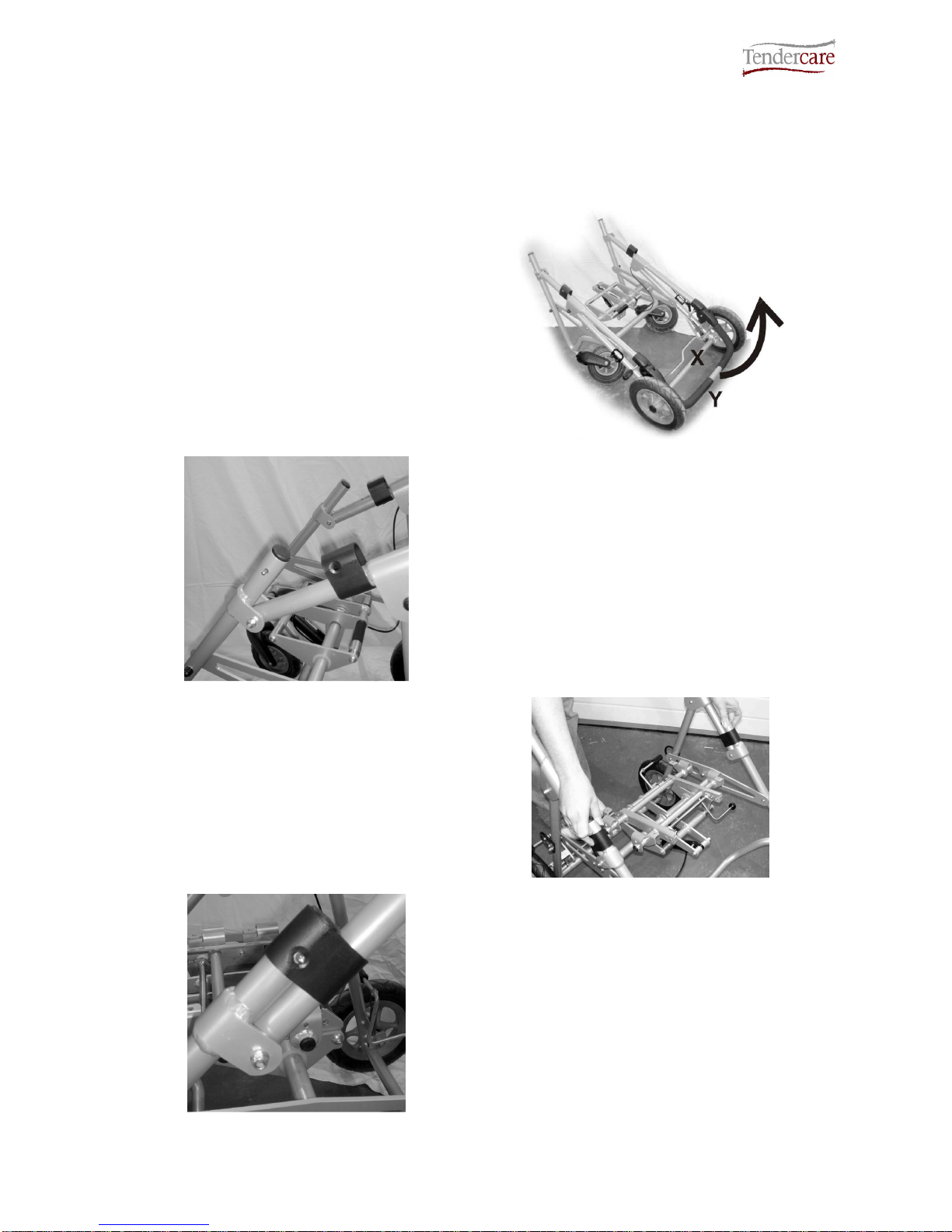

WARNING:
When opening or folding the wheelbase, ensure that you hold the frame so that you
avoid any danger of catching your fingers in moving parts.
Keep children clear of the wheelbase during opening and folding.
