Telycam TLC-1000-U2-DJ User manual

USB2.0 HD Video Camera

User Manual

Version V1.0

（English）

CONTENTS

CONTENTS ...............................................................................................................................错误！未定义书签。

SAFE GUIDES............................................................................................................................错误！未定义书签。

ACCESSORIES ...........................................................................................................................错误！未定义书签。

QUICK START.............................................................................................................................................................5

PRODUCT LIGHLIGHTS.............................................................................................................错误！未定义书签。

PRODUCT SPEC ........................................................................................................................错误！未定义书签。

CAMERA INTERFACE ................................................................................................................错误！未定义书签。

CAMERA DIMENSION ..............................................................................................................错误！未定义书签。

IR REMOTE...................................................................................................................................................... 7

LEARNING FUNCTION ....................................................................................................... 错误！未定义书签。

VISCA IN(RS232) PORT..................................................................................................................................... 9

SERIAL CONFIGURATION.................................................................................................................................. 9

VISCA PROTOCOL ...........................................................................................................................................10

PELCO-D PROTOCOL .......................................................................................................................................17

PELCO-P PROTOCOL........................................................................................................................................18

OSD MENU.....................................................................................................................................................19

IR TRANSFER(IR PASS)...................................................................................................................................222

UVC CONTROL ........................................................................................................................................................22

SAFETY GUIDES

1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this

manual with the camera.

2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before

powering on.

3.The camera power voltage is 12VDC, rated currency is 1.5A. We suggest you use it with the original power

supply adapter supplied by the factory.

4.Please keep the power cable, video cable and control cable in a safe place. Protect all cables especially the

connectors.

5.Operational environment: 0℃-50℃, humidity less than 90%.To avoid any danger, do not put anything inside the

camera, and keep away from the corrosive liquid.

6.Avoid stress, vibration and damp during transportation, storage and installation.

7.Do not detetch the camera housing and cover. For any service, please contact authorized technicians.

8.RF cable and control cable should be individually shielded, and cannot be substituted with other cables. Do not

direct the camera lens towards strong light, such as the sun or the intensive light.

9.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent when there is need to

clean. To avoid damage on the camera lens, never use strong or abrasive cleaning agents on the camera housing.

10.Do not move the camera by holding the camera head. To avoid mechanical trouble, do not rotate the camera

head by hand.

11.Put the camera on fixed and smooth desk or platform, avoid leaned installation.

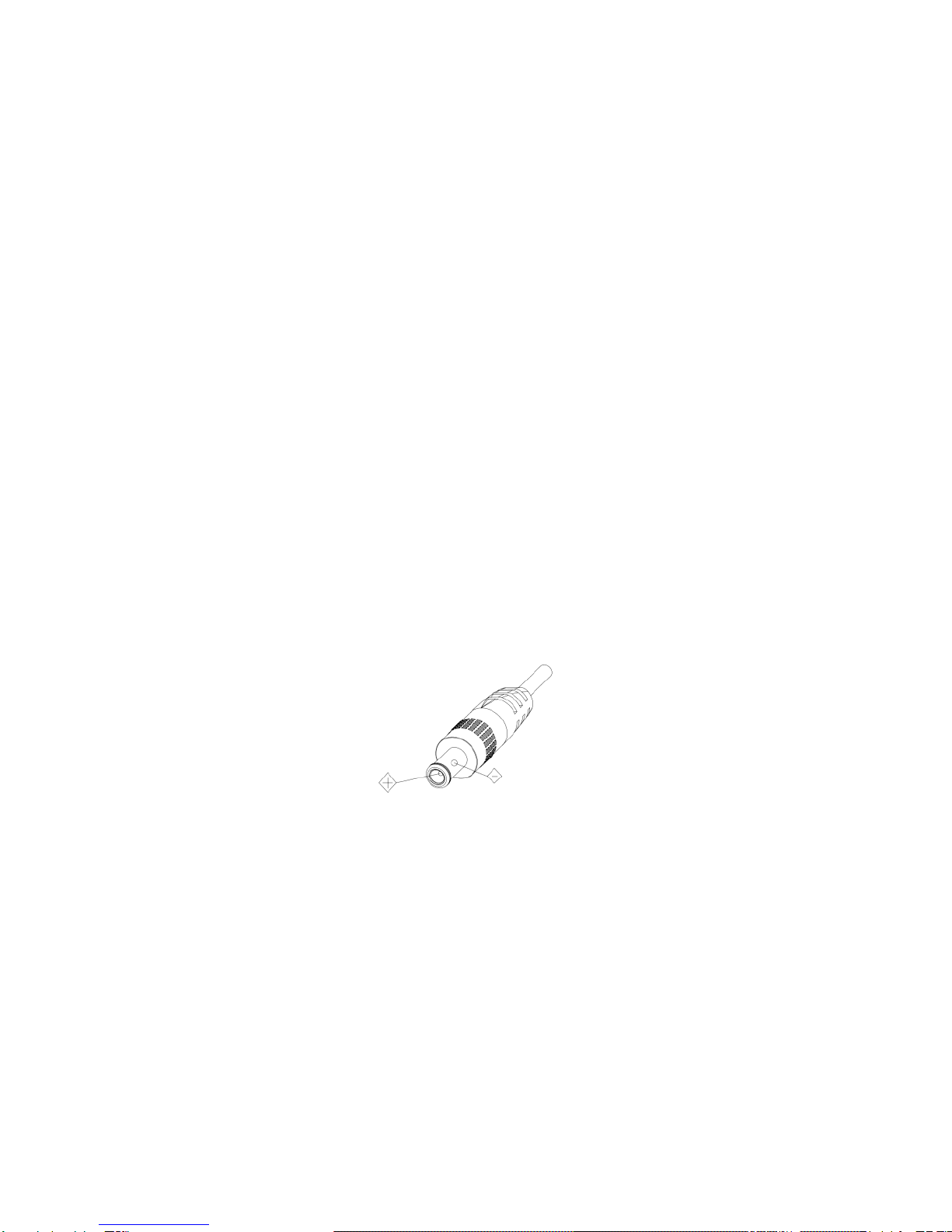

12. Power Supply Polarity(Drawing)

Notice:

The camera video may be affected when the electromagnetic fields is at specific frequency.

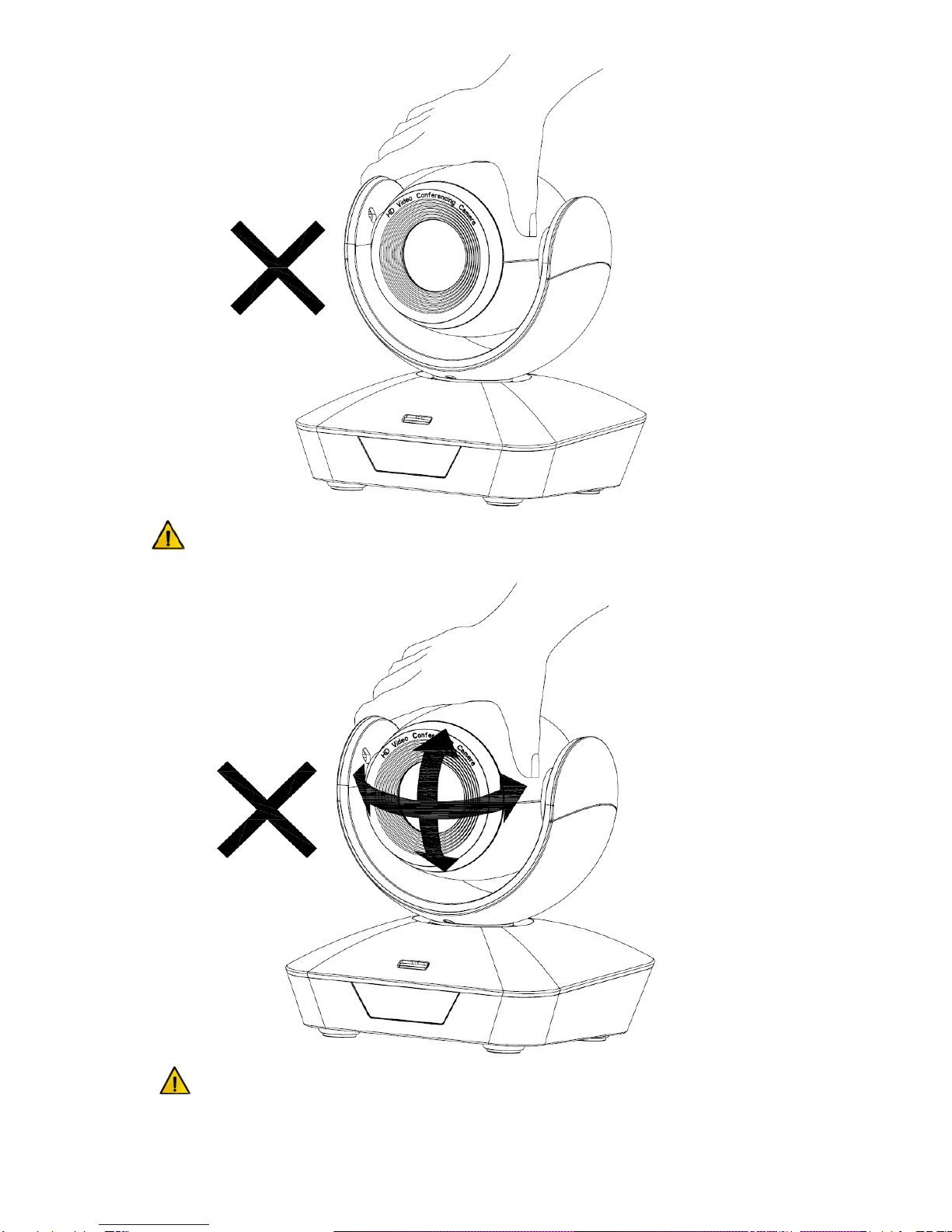

DO NOT use hands to take the camera head, otherwise it may damage

the camera rotation structure.

DO NOT use hands to move the camera head, otherwise it may damage

the rotation structure or even broke the driving motor.

ACCESSORIES

Check all bellow items when open the package:

Camera······································································· 1

Power Adapter ······························································ 1

Power Cable·································································1

RS232 Control Cable······················································· 1

USB2.0 Cable………………………………………………………. 1

Remote Controller·························································· 1

User Manual·································································1

Double-sided Adhesive……………………………………………... 1

Quality Certificate…………………………………………………….1

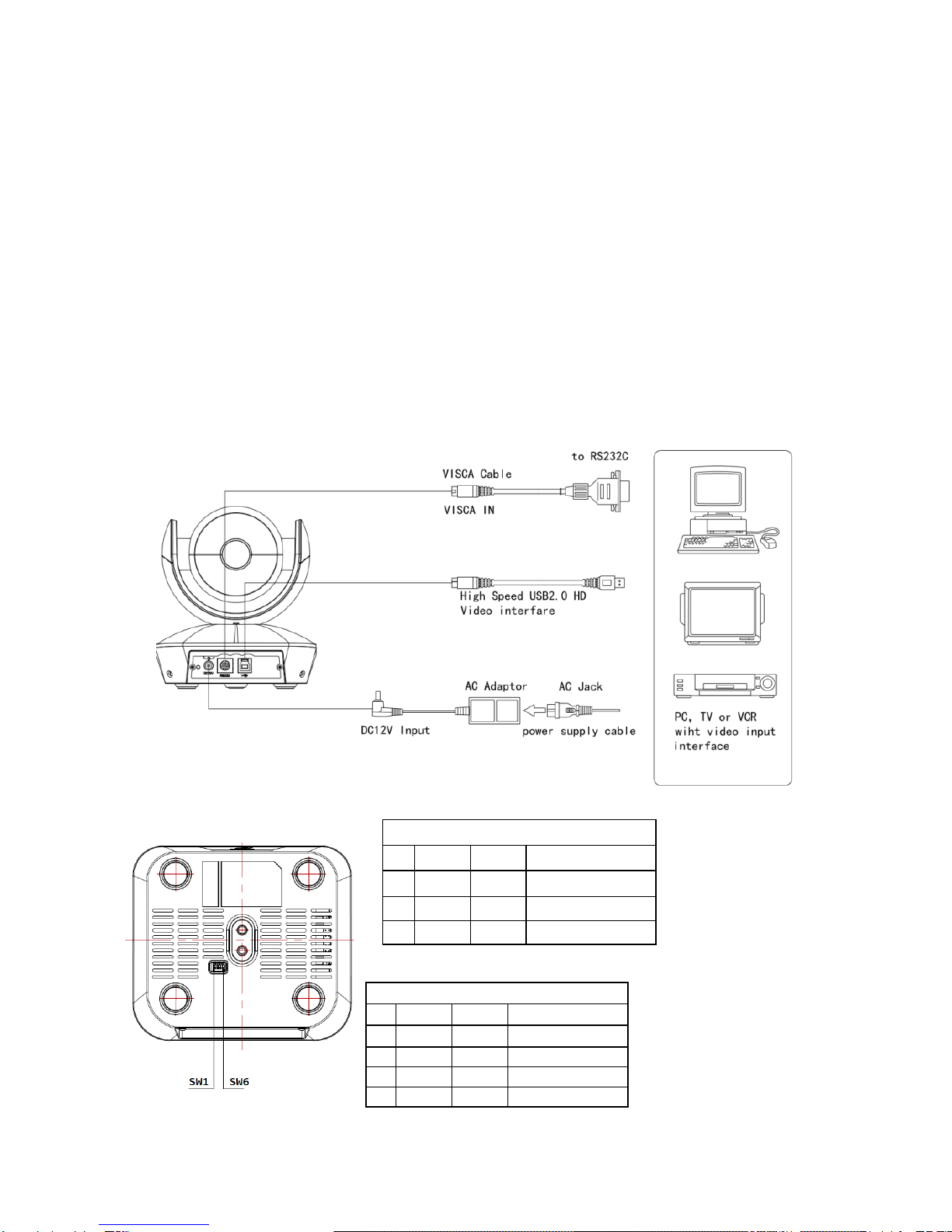

QUICK START

1. 1.Check all cable connections before power on.

2. DIP Switch Setting (at the bottom of the camera):

Function（ARM）

SW-1

SW-2

Instruction

OFF

Updating mode

OFF

Debugging mode

Working mode

Function（USB）

SW-5

SW-6

Instruction

OFF

Working mode

OFF

Updating mode

OFF

Undefined

PRODUCT HIGHLIGHTS

Adopts advanced DSP，1/2.7 inch 5.1MP image sensor, and high quality 4K wide angle lens

Smart and fashion design, ideal for cloud-based conferencing

Wide angle of viewing: 82.5degree, suitable for huddle room application

Fast switching between different video formats: less than 1 second

10X Optical Zoom + 12XDigital Zoom

Fast and accurate focus performance

Easy firmware upgrade-(field-upgradable)

USB2.0 high speed output

Effective RS232/485 serial control

Up to 128 presets

Compatible with the majority of videoconferencing software (UVC1.5 protocol standard)

With powerful functional remote controller

IR transfer/IR pass function: except receiving the camera remote controller signal, the camera can

also receive other codec’s IR remote control signal, and pass these IR control signal to the codec’s

IR receiver (via VISCA IN port).

OSD Menu: Chinese, English

PRODUCT SPEC

Video Format

MJPG/H.264

1920x1080P30/25/20/15/10/5; 1280x720P30/25/20/15/10/5;

720x576P30/30/25/20/15/10/5; 640x480P30/25/20/15/10/5;

320x240P30/25/20/15/10/5

Video Port

USB2.0

Image Sensor

1/2.7 inch high quality, 5.1MegaPixel CMOS sensor

Lens

F=3mm（fixed）, Aperture F2.1, Field of Viewing: D x H x V = 96.7°x 84.4°x 67.9°

Zoom

4xlossless digital zoom

Pan Tilt Angle

Pan:±170°; Tilt: -30°~+90°;

Pan Tilt Speed

Pan: 6.7°- 45°/s; Tilt: 6.7°-45°/s

Preset

10 via remote; 128 via RS232; Preset Accuracy0.2°

Control Port

RS232/RS485 , USB2.0

Minimum Lux

0.1 Lux

White Balance

Auto/Manual/Manual 2/Tracking/ One Push/ Indoor/Outdoor/ Sodium/Fluorescent

Focus

Fixed Focus

Iris

Fixed Iris

Electronic Shutter

Auto/Manual

WDR

Support

Anti-Flicker

OFF/50Hz/60Hz

Gamma

Support

Up-Side Down

Support

Mirror Image

Support

Night Mode

Support

BLC

Support

2DNR

Support

3DNR

Support

Input Voltage

DC12V 1A

Size

148mm×132mm×161mm

Net Weight

0.9KGS（2LBS）

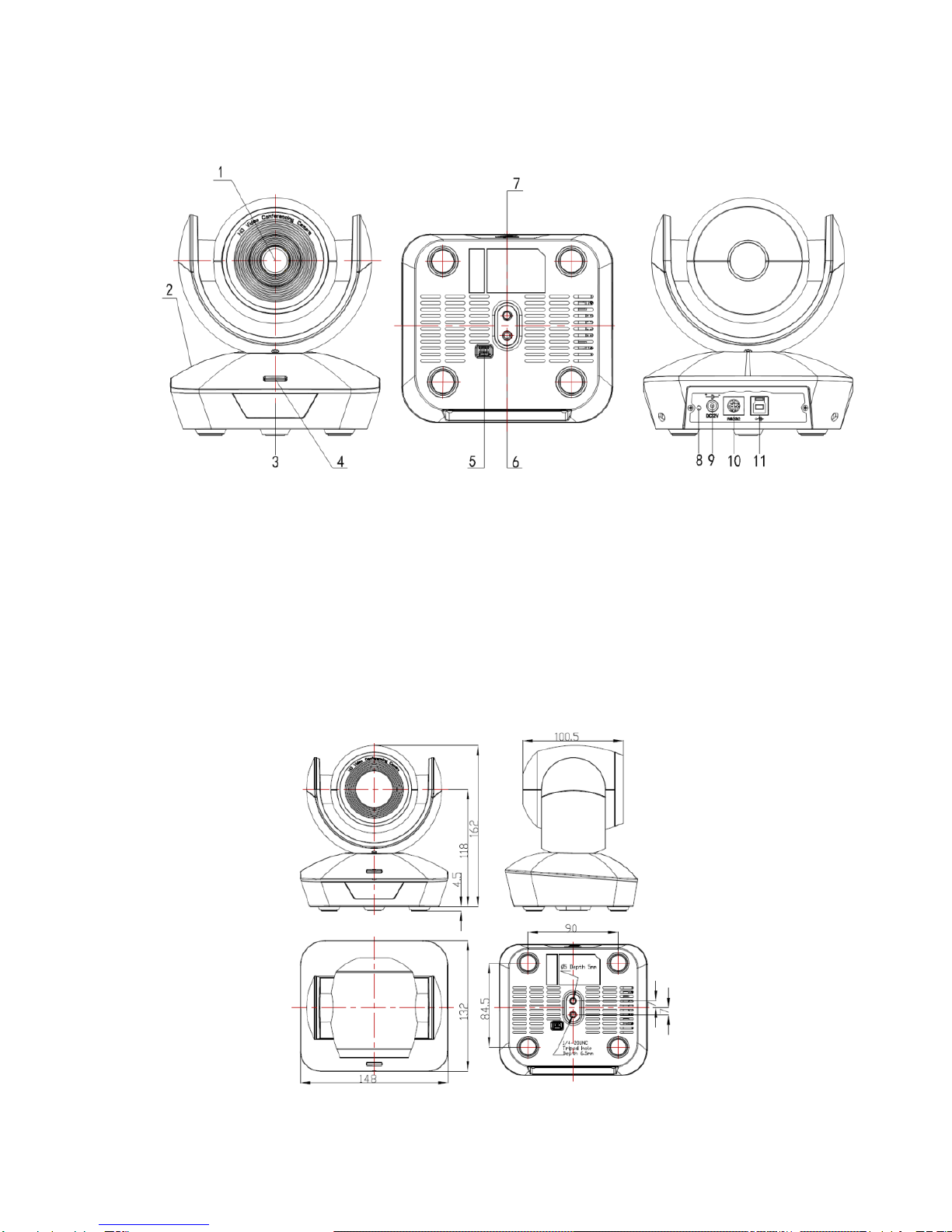

CAMERA INTERFACE

1.Camera Lens 5.Dial Switch 9. 12VDC Power Input

2.Camera Base 6.Tripod Screw Hole 10. RS232/485Control Port(Input)

3. IR Receive Panel 7.Installation Hole 11.USB2.0 Port

4.Indicator Light 8. Power Indicator Light(Red)

CAMERA DIMENSION(MM)

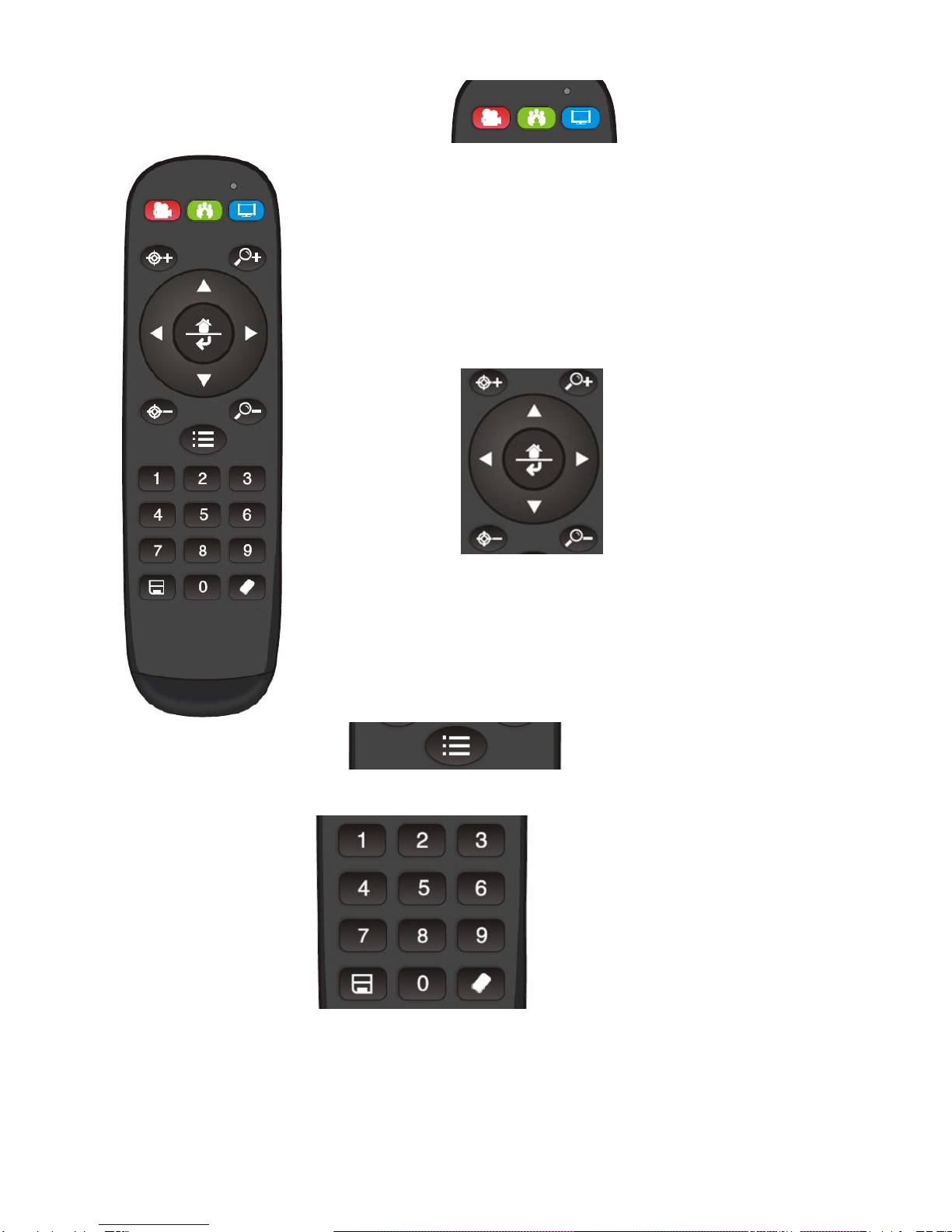

IR REMOTE CONTROLLER

LED Function Instruction

Press any button and shows in red color: Current selection is to control the camera;

Press any button and shows in green color: Current selection is to control the codec;

Press any button and shows in blue color: Current selection is to control the TV;

Power button

Red button: in normal work mode, short press one time, camera will enter standby

mode; short press again, the camera will start self-configuration and go to HOME

position; it will go to No.0 preset position if that was set;

Green button: Codec power button(need to learn the button coding);

Blue button: TV power button( need to learn the button coding);

Focus (Left): +/-

Manual focus, only valid under manual focus model;

Zoom (Right): +/-

Control the lens zoom rate;

Navigate : Up/Down/Left/Right

In normal working mode, use navigate key to control pan/tilt;

Confirm/Home button:

In normal working mode, short press to let the camera go back to Home position.

Menu button: show the camera version

Number buttons

Set Preset: Long press(3seconds) the number button to save preset;

Clear Preset: Clear+number button to clear the relative preset;

Long press(3seconds) the Clear button to clear all preset;

Run Preset: Short press the number button to run the relative preset.

LEARNING FUNCTION：

1. Press the green button, the LED indicator light will show in green color for 1 second, means switch to video

terminal/codec control mode;

2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED

will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ),

now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm

distance), then press the button which need to be learned, the LED re-flickering when learning finishes ; press other

buttons which also need to be learned; Press the Home+"0" buttons simultaneously to exit and save all remote data.

If the button learning fails, the camera will enter normal working mode after 15seconds, LED will extinguish.

3. All Button Coding: long press (3seconds) Home+number"2" button simultaneously, the green indicator LED

will start flickering(1HZ), to enter all button learning mode: get codec remote point to the camera remote’s infrared

tube( about 10cm distance), to start all button coding mode, the LED will extinguish when learning finished.

If the button learning fails, the camera will enter normal working mode after 15seconds, LED will extinguish.

4.All Button Sending Mode: long press (3seconds) the Menu+ number "3" button simultaneously, the remote will

enter all button sending mode.

5. Similar operation for the TV control mode learning.

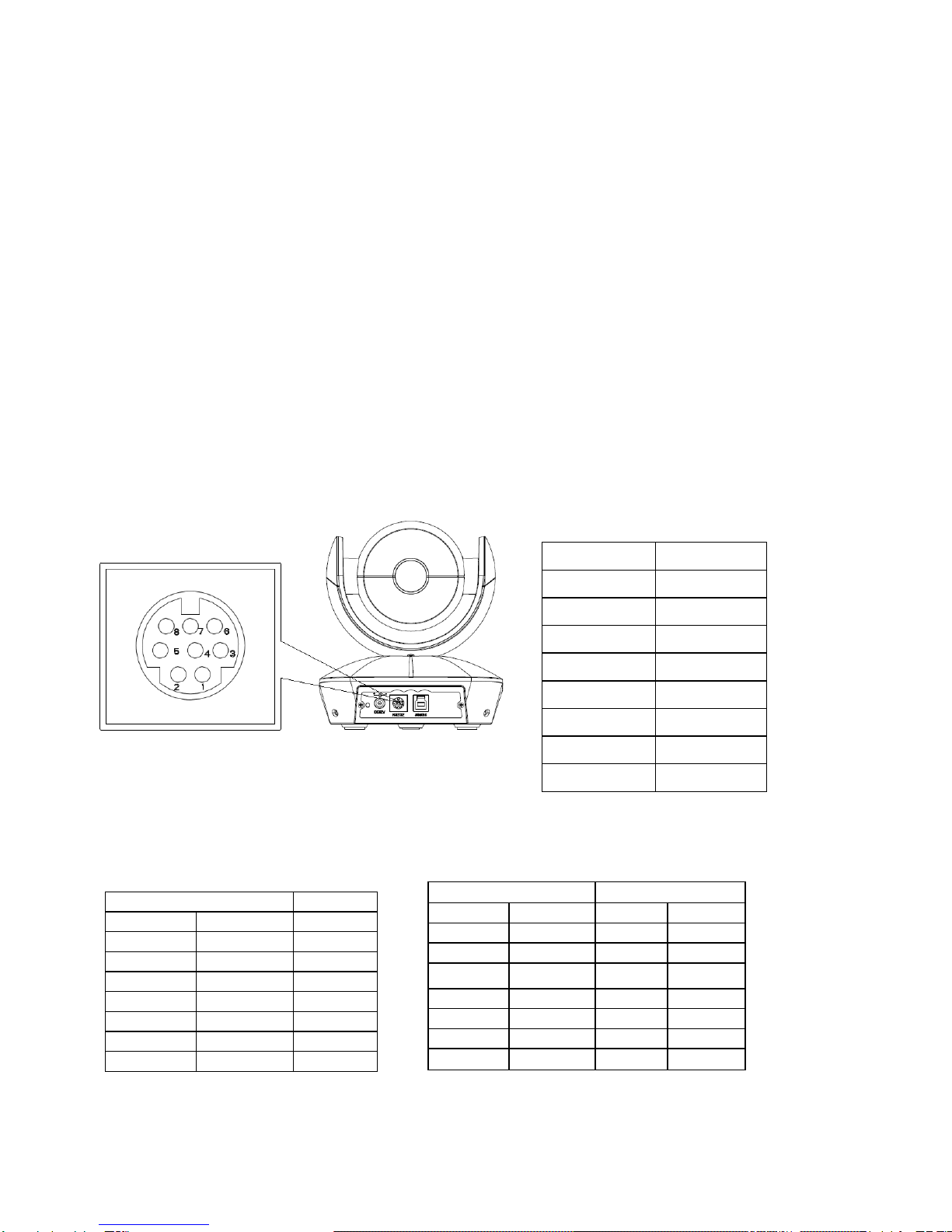

VISCA IN (RS232) PORT

SERIAL PORT CONFIGURATION:

No.

Function

DTR

DSR

TXD

GND

RXD

IR OUT

VISCA IN &RS485 Connection

Camera VISCA IN

RS485

DTR

DSR

TXD

GND

RXD

A(+)

IR OUT

B(-)

VISCA IN &DB9 Connection

Camera VISCA IN

Windows DB-9

DTR

DSR

DTR

TXD

RXD

GND

RXD

TXD

A(+)

IR OUT

B(-)
