Teltonika FMB130 Installation guide
FMB130
Advanced tracker with
flexible inputs configuration
Quick Manual v1.5
Quick Manual v1.5 // FMB130 2
CONTENT
Know your device................................................................................................................................................................................................3
Pinout ...................................................................................................................................................................................................................4
WIRING SCHEME .................................................................................................................................................................................................5
Set up your device ..............................................................................................................................................................................................6
PC Connection (Windows)..................................................................................................................................................................................7
How to install USB drivers (Windows) ..............................................................................................................................................................7
Conguration.......................................................................................................................................................................................................8
Quick SMS conguration................................................................................................................................................................................. 10
Mounting recommendations.......................................................................................................................................................................... 12
Basic characteristics ........................................................................................................................................................................................ 13
LED indications................................................................................................................................................................................................. 13
Electrical characteristics.................................................................................................................................................................................. 16
Safety information .......................................................................................................................................................................................... 18
Certication and Approvals ............................................................................................................................................................................ 19
Warranty ........................................................................................................................................................................................................... 20
Warranty disclaimer ........................................................................................................................................................................................ 20
Quick Manual v1.5 // FMB130 3

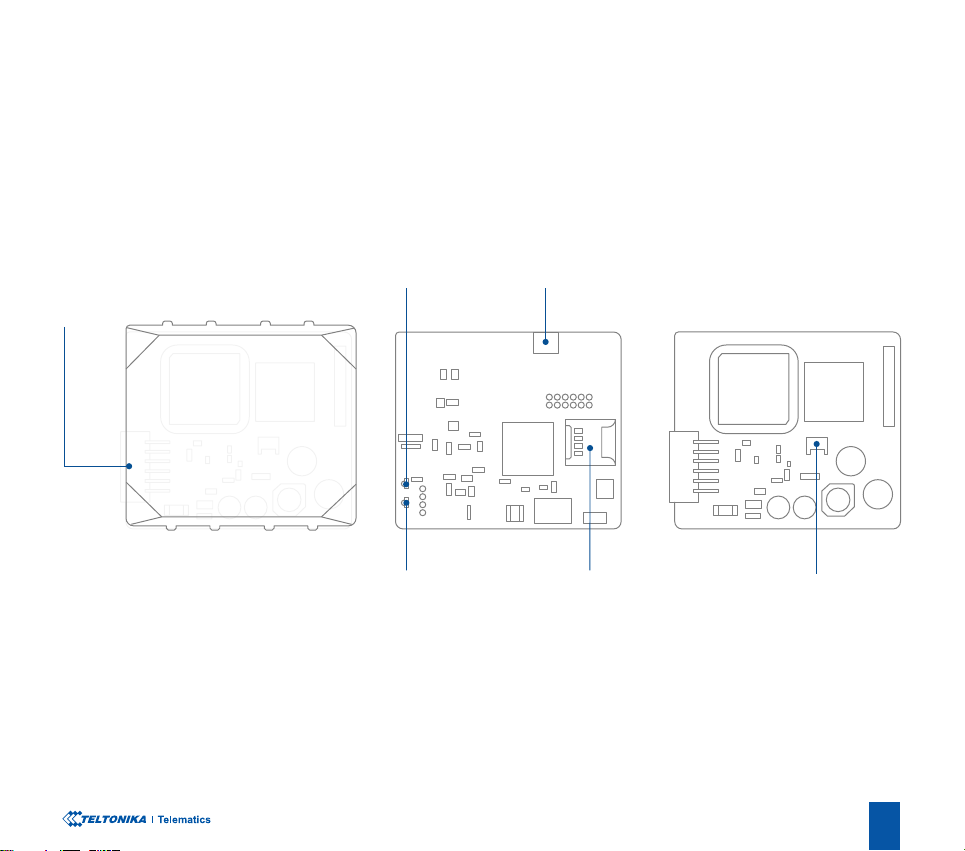

KNOW YOUR DEVICE
2X6
SOCKET
STATUS
LED
MICRO SIM
SLOT
BATTERY
SOCKET
NAVIGATE
LED
MICRO
USB
TOP VIEW TOP VIEW (WITHOUT COVER)BOTTOM VIEW (WITHOUT COVER)
Quick Manual v1.5 // FMB130 4
PIN NUMBER PIN NAME DESCRIPTION
1VCC (10-30) V
DC (+) Power supply (+10-30 V DC).
2 DOUT 3
Digital output, channel 3.
Open collector output. Max.
0,5 A DC..
3DIN 3 / AIN 2
Analog input, channel 2.
Input range: 0-30 V DC /
Digital input, channel 3.
4DIN 2-N /
AIN 1
Digital input, channel 2,
Negative input, Analog input,
channel 1, Input range: 0-30
V DC.
5 DIN 1 Digital input, channel 1.
6 INPUT 6 TX EXT (LVCAN – TX).
7 GND (-) Ground pin. (10-30) V DC (―)
8 DOUT 1
Digital output, channel 1.
Open collector output. Max.
0,5 A DC..
9 DOUT 2
Digital output, channel 2.
Open collector output. Max.
0,5 A DC.
10 1WIRE POWER +3,8 V output for 1–Wire
devices.
11 1WIRE DATA Data for 1–Wire devices.
12 INPUT 5 RX EXT (LVCAN - RX).
PINOUT
DOUT2
1WIRE POWER
1WIRE DATA
GND
DOUT1
INPUT 5
DIN3/AIN2
DIN2-N/AIN1
DIN1
DOUT3
+10...30 V DC
INPUT 6
10
9
8
7
11
12
4
3
2
1
5
6

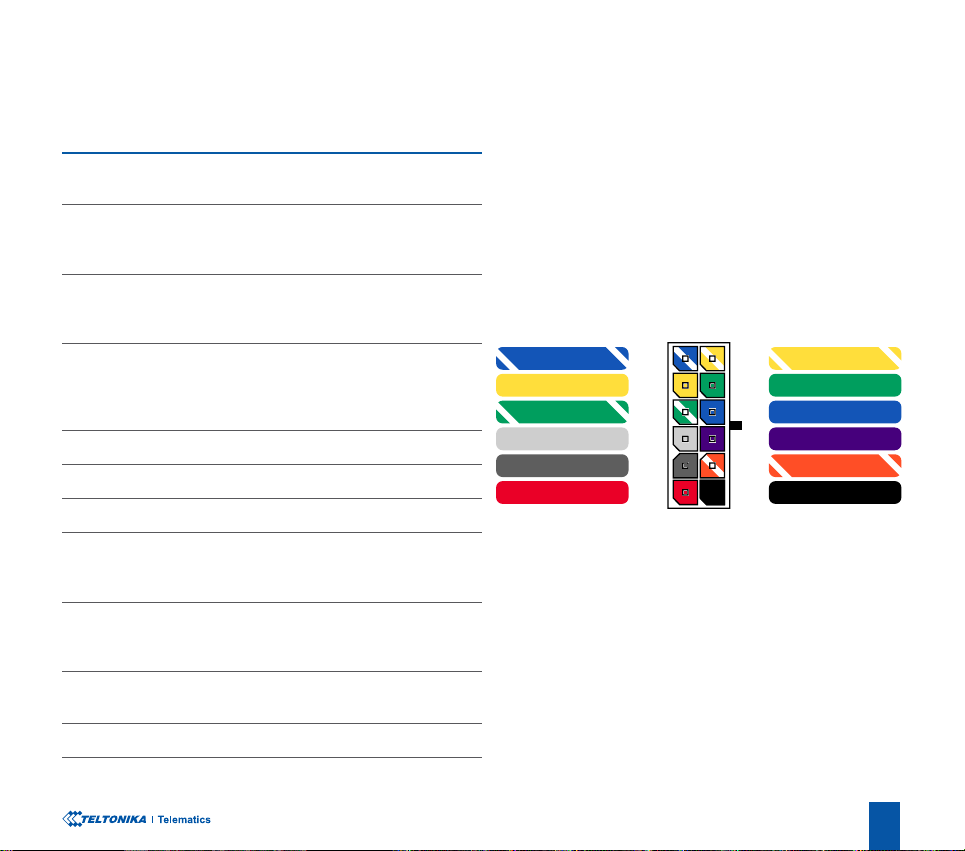

FMB130 2x6 socket pinout
Quick Manual v1.5 // FMB130 5
WIRING SCHEME
BUZZER
30
8586
87a
87
IGNITION
DETECTION
FUEL GAUGE
STARTER
IBUTTON
POWER SUPPLY
10 - 30V DC
ANALOG
LLS SENSOR
CAN-CONTROL
ALARM BUTTON
DOOR SENSOR CENTRAL LOCK
DOUT2
1WIRE POWER
1WIRE DATA
GND
DOUT1
INPUT 5
DIN3/AIN2
DIN2-N/AIN1
DIN1
DOUT3
+10...30 V DC
INPUT 6
10
9
8
7
11
12
4
3
2
1
5
6
AIN2
DIN3
DIN2
DIN2-N
Quick Manual v1.5 // FMB130 6
SET UP YOUR DEVICE
HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY
4
1COVER REMOVAL 3BATTERY CONNECTION
2MICRO-SIM CARD INSERT ATTACHING COVER BACK
Gently remove FMB130
cover using plastic pry
tool from both sides. Then
remove the top cover..
Insert Micro-SIM card as
shown with PIN request
disabled or read our Wiki1
how to enter it later in
Teltonika Congurator2.
Make sure that Micro-
SIM card cut-o corner is
pointing forward to slot.
1 wiki.teltonika-gps.com/view/
FMB130_Security_info
2 wiki.teltonika-gps.com/view/
Teltonika_Congurator
Connect battery as shown to
device. Position the battery
in place where it does not
obstruct other components.
After conguration, see “PC
Connection (Windows)1”,
attach device cover back.
1 Page 7, "PC Connection
(Windows)"
Quick Manual v1.5 // FMB130 7
PC CONNECTION (WINDOWS)
HOW TO INSTALL USB DRIVERS (WINDOWS)
1. Please download COM port drivers from here1.
2. Extract and run TeltonikaCOMDriver.exe.
3. Click Next in driver installation window.
4. In the following window click Install button.
5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the
setup.
1 teltonika.lt/downloads/en/FMB130/TeltonikaCOMDriver.zip
1. Power-up FMB130 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED
indications1”.
2. Connect device to computer using Micro-USB cable or Bluetooth connection:
• Using Micro-USB cable
• You will need to install USB drivers, see “How to install USB drivers (Windows)2”
• Using Bluetooth
• FMB130 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >
Bluetooth. Choose your device named – “FMB130_last_7_imei_digits”, without LE in the end. Enter default password 5555,
press Connect and then select Done.
3. You are now ready to use the device on your computer.
1 wiki.teltonika-gps.com/view/FMB130_LED_status
2 Page 6, "How to install USB drivers"
Quick Manual v1.5 // FMB130 8
MS .NET REQUIREMENTS
Operating system MS .NET Framework version Version Links
Windows Vista
Windows 7
Windows 8.1
Windows 10
MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1
1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462
At rst FMB130 device will have default factory settings set. These settings should be changed according to the users needs. Main
conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator
operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
1 wiki.teltonika-gps.com/view/Teltonika_Congurator
2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions
CONFIGURATION
Quick Manual v1.5 // FMB130 9
Downloaded Congurator will be in compressed archive.
Extract it and launch Congurator.exe. After launch software
language can be changed by clicking 🌐 in the right bottom
corner.
Conguration process begins by pressing on connected device.
FMB130
Various Status window1 tabs display information about GNSS2,
GSM3, I/O4, Maintenance5and etc. FMB130 has one user
editable prole, which can be loaded and saved to the device.
After any modication of conguration the changes need to
be saved to device using Save to device button. Main buttons
oer following functionality:

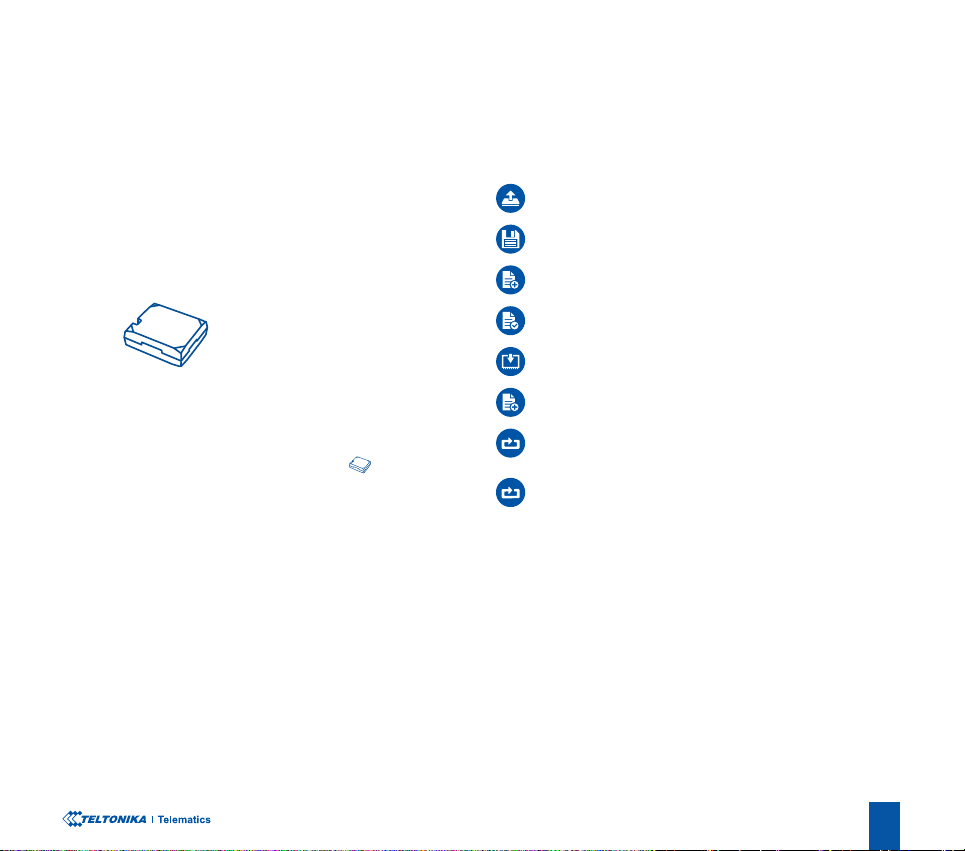

Load from device – loads conguration from device.
Save to device – saves conguration to device.
Load from le – loads conguration from le.
Save to le – saves conguration to le.
Update rmware – updates rmware on device.
Read records – reads records from the device.
Reboot device – restarts device.
Reset conguration – sets device conguration to
default.
Most important congurator section is GPRS – where all
your server and GPRS settings6 can be congured and Data
Acquisition7 – where data acquiring parameters can be
congured. More details about FMB130 conguration using
Congurator can be found in our Wiki8.
After connection to Congurator Status window will be
displayed.
FMB130
1 wiki.teltonika-gps.com/view/FMB130_Status_info
2 wiki.teltonika-gps.com/view/FMB130_Status_info#GNSS_Info
3 wiki.teltonika-gps.com/view/FMB130_Status_info#GSM_Info
4 wiki.teltonika-gps.com/view/FMB130_Status_info#I.2FO_Info
5 wiki.teltonika-gps.com/view/FMB130_Status_info#Maintenance
6 wiki.teltonika-gps.com/index.php?title=FMB130_GPRS_settings
7 wiki.teltonika-gps.com/index.php?title=FMB130_Data_acquisition_
settings
8 wiki.teltonika-gps.com/index.php?title=FMB130_Conguration
Quick Manual v1.5 // FMB130 10
QUICK SMS CONFIGURATION
Default conguration has optimal parameters present to ensure best performance of track quality and data usage.
Quickly set up your device by sending this SMS command to it:
Note: Before SMS text, two space symbols should be inserted.
GPRS SETTINGS:
2001 – APN
2002 – APN username (if there are no APN username,
empty eld should be left)
2003 – APN password (if there are no APN password,
empty eld should be left)
SERVER SETTINGS:
2004 – Domain
2005 – Port
2006 – Data sending protocol (0 – TCP, 1 – UDP)
« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»
1 2 3 4 5 6
1
2
3
4
5
6
