1 Main functions of the GPRS Pager3

The GPRS Pager3 can be used as an optional transmission module for alarm control

panels, as well as an individual 4 zone GPRS alarm control panel.

Further functions:

•Sending SMS with adjustable text for each event

•Different events for activation and restoration of inputs

2 Operating mode, installation

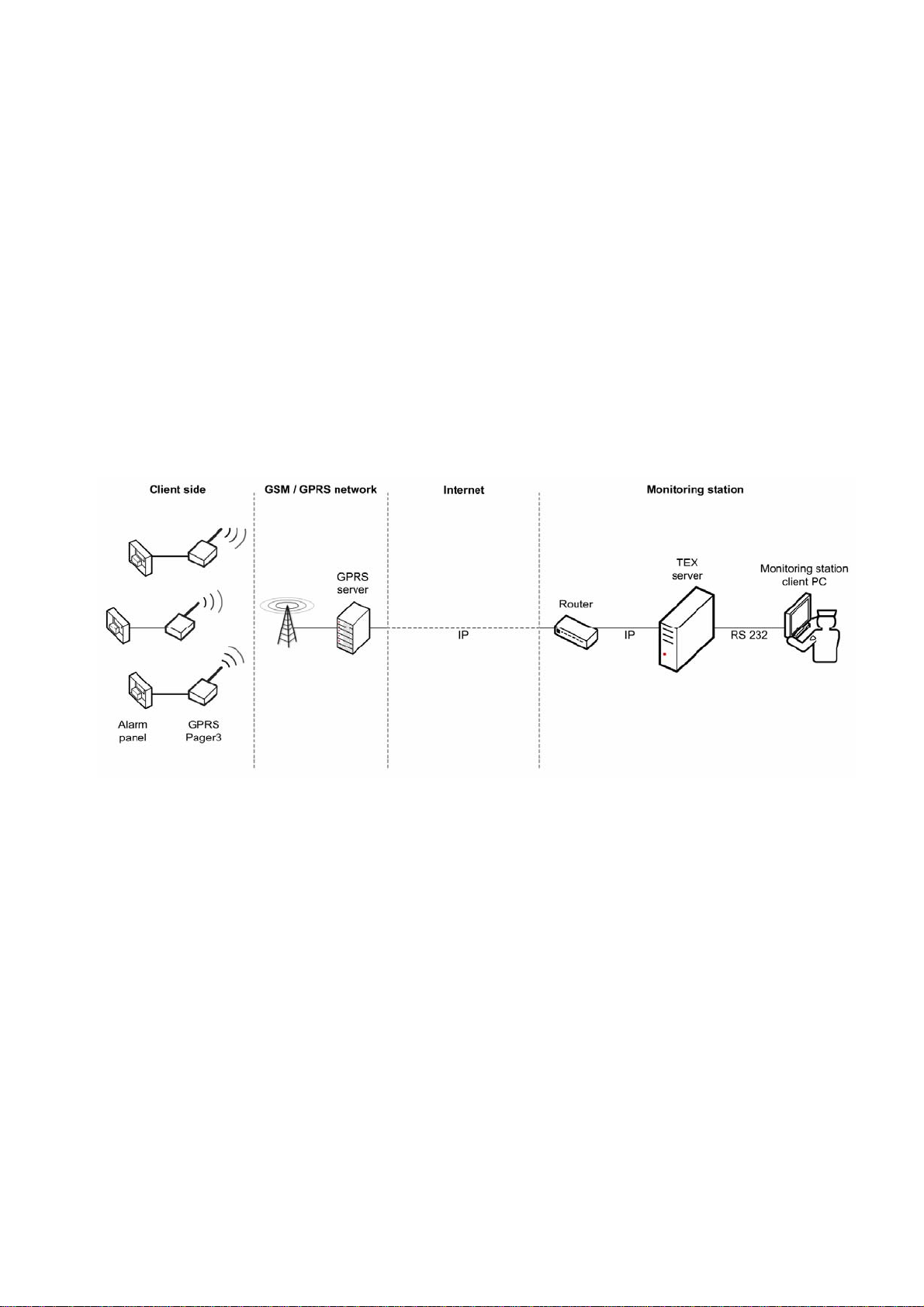

In normal mode signals of the GPRS Pager3 are transfered first from the GPRS station

to the monitoring station's router through internet, then to the TEX server. After the

adequate transformations, the server forwards the alarm signals towards the monitoring

station client PC through serial port. On the client PC any kind of monitoring station

program can be used, even the one used so far (e.g. Alarm-Sys):

2.1 Installation if no local network is available

In case there is no local network at the monitoring station or the Pager would be

installed separately from the existing local network and no router is used to divert data

traffic, a fixed IP address obtained from the internet service provider should be set in the

server’s software. In order to assure establishing and maintaining of the internet

connection an external device is needed, for example using ADSL connection an ADSL

router is necessary into which the connection password and user ID has to be set as

well as the continuous maintenance of the connection. E.g. without router is possible the

use of most cable TV type internet services. In this case request technical help from

manufacturer.

2.2 Instalation in local network / router configuration

•The server’s default local IP address is indicated on the back side.

•This address should fit into the subnet, that is the first three numbers of the server

and router IP address should be identical. (e.g. 192.168.1.)

•For signal transmissions of the GPRS Pager3 in router settings forward port 3333

to the TEX server's local IP address.

•To access the WEB page of the server from an external address, forward port

8280 to the TEX server's local IP address as well.

•Forward port 22 to the TEX server's local IP address for future firmware updates

but enable this only on manufacturer's request.

The example below shows settings for local IP address 192.168.1.30:

3 Safety Reserve mode

In this mode GPRS Pager's signals are transfered through internet from GPRS station to

the TELL Backup server, then to the monitoring station's router. The router forwards the

signals to the Backup PC which makes the adequate transformations and transfers the

datas to the monitoring station client PC through serial port. On the client PC any kind

of monitoring station program can be used, even the one used so far (e.g. Alarm-Sys):

On the Backup PC, GPRS_COM.exe program has to run with the following settings:

3.1 Setup „GPRS_COM.exe”

•Start software „GPRS_COM.exe” (found on CD enclosed)

•Connect Backup PC and Monitoring station client PC with serial Null-modem cable

•Enter WEB password. The password has to be entered only at first start.

•Select the physical serial port (where the cable has been connected) and open it in

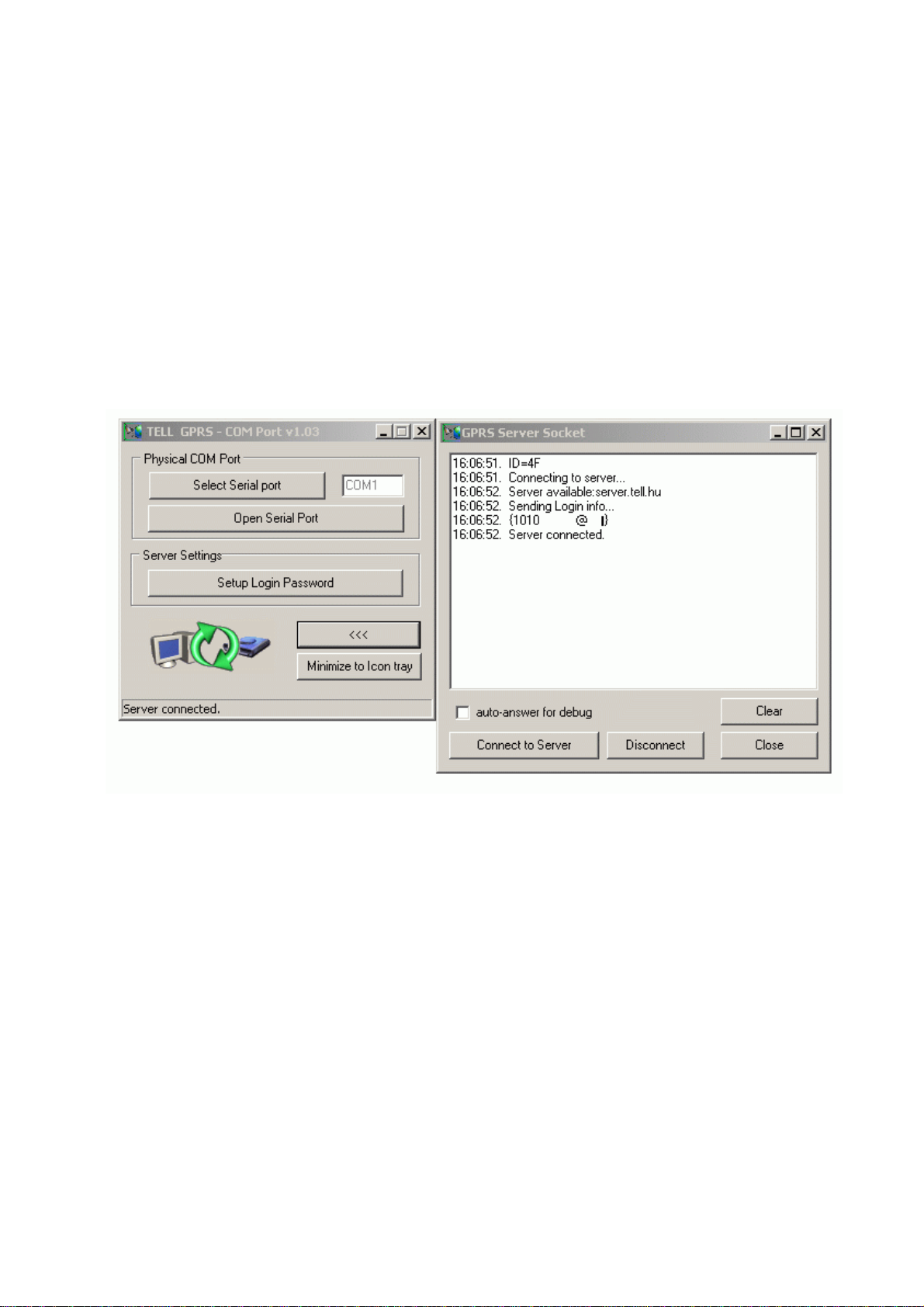

GPRS_COM.exe program

•Check if the connection to the server has established (green icon)

•Set the serial port parameters in the monitoring station program according to

chapter „Setting serial port connection”

•When serial port connection is established, the Backup PC will receive the

incoming Contact-ID messages through internet and will forward them through

serial cable (the same way as a standard PSTN receiver) towards the monitoring

station client PC. The monitoring program will display and store the received

Contact-ID messages.

4 Monitoring software settings

4.1 Setting serial port connection

In the monitoring program serial connection should be set as follows:

•Baud Rate: 9600

•Databits: 8

•Parity: None

•Stopbits: 1

E.g. in Alarm-Sys program:

4.2 Event code settings

The following event is generated by the GPRS Server, but transferred with the user ID

set in the GPRS Pager:

Contact-ID code Event

E360 GPRS test report timeout

The following events are generated by the GPRS Server and transferred with 9999 user

identifier, meaning the internal messages of the server:

Contact-ID code Event

E361 Internet1 connection failure

E362 Internet2 connection failure

E363 LAN connection failure

The server also transmits the restoration event for the above Contact-ID codes.

e.g: E361, when internet1 connection failure occurs, then R361 when connection

restores.

For easier identification, the events can be named according to the above table in the

monitoring software.

5 GPRS Pager3 setup

For setting the GPRS Pager3 a PC is necessary with Windows operating system

(Windows XP recommended) and the two programming softwares found on the CD

enclosed:

•GPRS_Setup.exe: for server parameter settings through USB or internet/GPRS

•Remoter software for installer settings through USB or internet/GPRS (further

details in „Installer settings” chapter)

5.1 Setting server parameters

Server parameters can be set using USB port or internet/GPRS connection.

5.1.1 Setting server parameters using USB port

•Start „GPRS_Setup.exe” program (found on CD enclosed)

•Language can be selected by clicking on the middle cell of the row on the bottom

of the window (Magyar / English)

•Enter the module's serial number in the second cell of "Serial nr." row (found in the

framed part of the label on the back of the module)

•Enter the module's own password (found in text file on the CD enclosed)

•Select USB window

•Power off the module (disconnect from power supply)

•If you have already connected the module to PC then disconnect the USB cable

•Set „AUTO USB” function or connect the module to USB port and select serial port

manually after pressing „COM Select” button

•Press „Connect” button

•In case of „AUTO USB” connect the module to the PC now with USB cable (setting

details in chapter 5.1.3)

5.1.2 Setting server parameters using internet/GPRS connection

•Start „GPRS_Setup.exe” program (found on CD enclosed)

•Language can be selected by clicking on the middle cell of the row on the bottom

of the window (Magyar / English)

•Enter the module's serial number in the second cell of "Serial nr." row (found in the

framed part of the label on the back of the module)

•Enter the module's own password (found in text file on the CD enclosed)

•Select GPRS window

•Enter GPRS server IP address

•Press „Connect” button

•When connection has established press "Read settings from module" button to

download actual settings from the module

•You can interrupt connection at anytime during communication by pressing "Stop"

buton if necessary (setting details in chapter 5.1.3)

5.1.3 Server parameter setting details

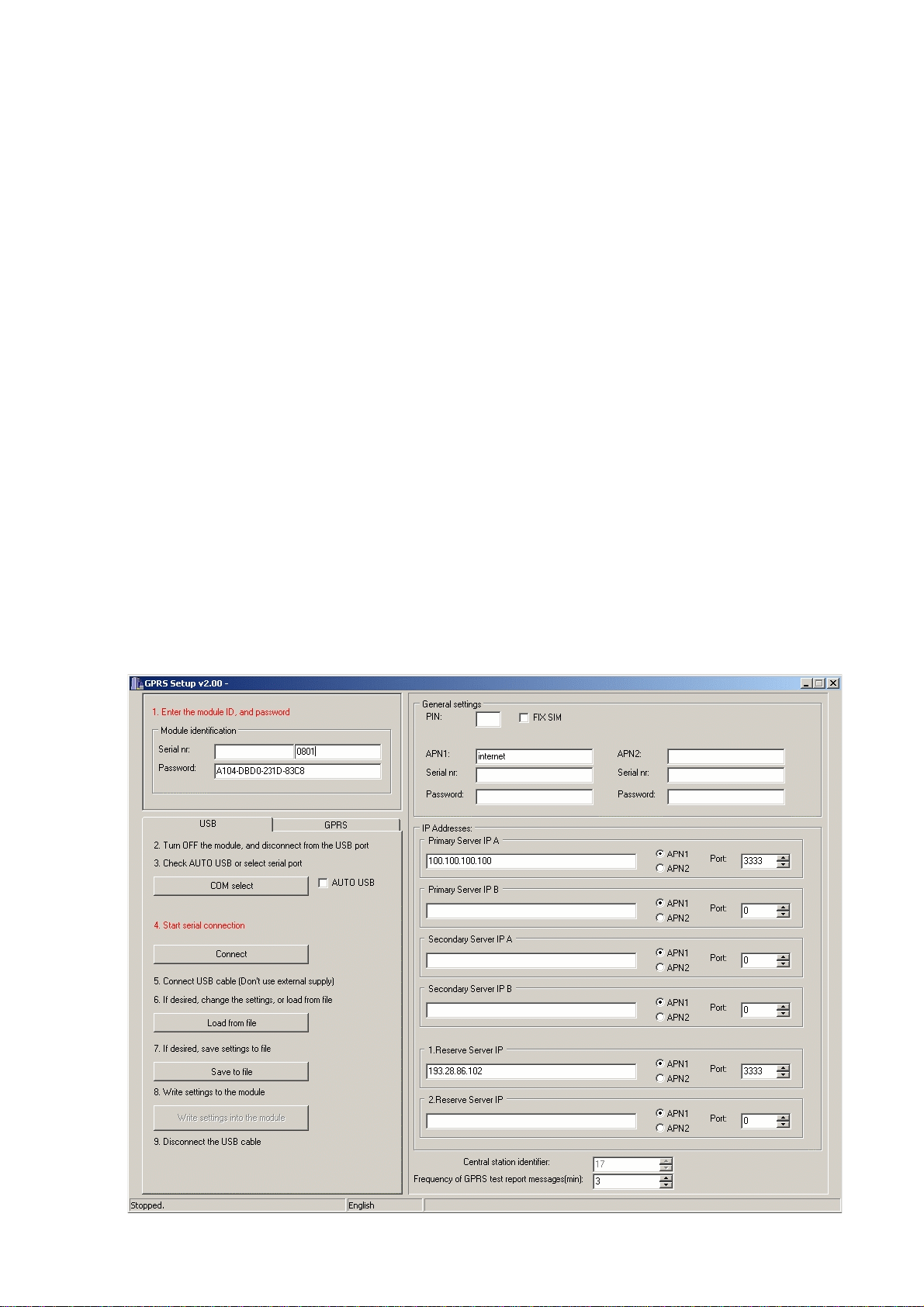

•In a few seconds the actual GPRS settings will be downloaded from the module

•Saved settings can be imported by pressing "Load from file" button or can be

saved by pressing "Save to file" button.

•Import settings or perform the desired changes

•Check the following settings:

•„General settings”:

Enter new APN name in „APN1” field (e.g.: internet – in case of T-Mobile

service or the name supplied by your GSM service provider)

If you want the module to operate only with the SIM card inserted then enter

the card's PIN code in „PIN” field and set "FIX SIM"option. In this case when

the module restarts it will register the inserted SIM card's serial number and

will operate only with that specific SIM !

If you wish the module to operate with other SIM cards as well then leave the

"PIN" field blank. Do not select "FIX SIM"option and disable PIN code

request on the SIM card to be placed in the module.

•„IP Addresses” :

„Primary Server IP A” :

•Enter the IP address of the monitoring station’s internet connection (has

to be a fixed IP address supplied by the internet provider)

•Select „APN1”

•Set „Port” 3333

„1. Reserve Server IP”:

•Set reserve server IP address 193.28.86.102 (this is the TELL test server

IP address)

•Select „APN1”

•Set „Port” 3333

•"Frequency of GPRS test report messages" : the frequency of GPRS test report

messages is adjustable in minutes to test the existance of GPRS connection.

(default setting: 3 min)

•If you have ensured the set parameters are correct, press „Write settings into

the module” button

•Wait a few seconds to complete the writing procedure

•In case of programming through internet/GPRS the new settings will become

effective only after pressing "Restart the module" button !

•When programming is finished disconnect the USB cable if USB connection has

been used. In case of programming through internet/GPRS the window can be

closed.

6 Installer settings

6.1 Setting parameters using USB serial port connection

•Start „GPRS Pager3” remoter software

•Power off the module (disconnect from power supply)

•If you have already connected the module to PC then disconnect the USB cable

•Press „Auto detect USB port” button then connect the module to the PC with USB

cable (or after pressing „Select serial port manually” button you can select the

serial port manually).

•When the program has detected the serial port used by the module (e.g. COM1)

press „Open serial port” button to establish connection.

•Enter module's password (default setting: 1111)

•Further details about settings can be found in the following chapters

6.2 Setting parameters using internet/GPRS connection

•Start „GPRS Pager3” remoter software

•Enter the server’s IP address and the module’s serial number

•Press „Setup Login Password” button

•Enter the password of WEB connection

•Press „Open IP connection” button to establish connection

•Further details about settings can be found in the following chapters

6.3 Further settings

When connection is established, the following functions and buttons are available:

By pressing „>>” button, informations about processes being in progress in the module

can be displayed.

The program can be closed by pressing „Close” button but before it is recomended to

interrupt the established connection with the corresponding buttons ("Close serial port "

or "Close IP connection " depending on the conection used).

Table of contents

Other tell Pager manuals

tell

tell Pager4 PRO Series User manual

tell

tell GSM Pager3 Z6 User manual

Popular Pager manuals by other brands

Alpha

Alpha Elite user guide

LRS

LRS RX-E467 user manual

Bellman & Symfon

Bellman & Symfon Visit BE1470 user manual

unication

unication E3 user manual

Infostream

Infostream X5 User's reference manual

Motorola

Motorola BR850 user guide

ACE TELECOM

ACE TELECOM ACE-2040 user manual

Intek

Intek Allure owner's manual

Pocsag

Pocsag PG-2092P user manual

Motorola

Motorola Bravo classic user guide

Motorola

Motorola LS750 user guide

Alert Systems

Alert Systems HyperGuard MP10D manual

Motorola

Motorola Talkabout T900 user guide

Motorola

Motorola Advisor Graphix CP1250 user guide

Radio Shack

Radio Shack 17-7040 owner's manual

PageOne

PageOne Advisor Graphix instruction manual

Syscall

Syscall Nttworks GP-210RT user manual

unication

unication G4 Configuring

tell GPRS Pager 3 User manual

Popular Pager manuals by other brands
