Telefunken TF37K82H User manual

TF32K82A

TF37A82H

.Safety Notice 2 . Printed Circuit Board 31

.Display Modes . Block Diagram 34

.Specifications 4 .Wiring Diagram 35

.Location and Function of

Controls 6 . Exploded View and Mechanical Parts 36

.Installation and connecting 8 . Ics function description 39

. Parts List(For Reference Only)55

. Schemtic Diagrams 15

COMPONENT VIDEO (YPbPr) INPUT

720p/60 720 44.96 59.94/60.00

576i 576 15.63 50.00

480i 480 15.73 59.94/60.00

576p 576 31.26 50.00

480p 480 31.47 59.94/60.00

1080i/50 1080 28.13 50.00

1080i/60 1080 33.75 59.94/60.00

Mode Resolution Horizontal Frequency (K Hz) Vertical Frequency (Hz)

● Modes, which are not listed in the above table, may not be supported. For an optimal picture is

recommended to choose a mode listed in the table.

● The incoming display modes compatible with WINDOWS as shown in the table above.

● Sometimes, the image may be disrupted due to the frequency standard from the VGA card.

However, this is not an error. You may improve this situation by activating the automatic

adjustment or by manually changing the phase and the clock settings in the menu.

● To extend the service life of the product, we recommend that you use your computer’s power

management function.

RGB INPUT

1024x768 38.36(N) 60.00(N) 65.00

640x480 31.47 (N) 60.00 (N) 25.18 DOS

800x600 37.88 (P) 60.32(P) 40.00 VESA

VESA

1280X768 64.00(P) 60.00(P) 108.00 VESA

Resolution Horizontal

Frequency (KHz)

Pixel

Frequency (MHz) Comment

Vertical

Frequency (Hz)

1080i/60 1920X1080 33.75 60.00

60.00

VGA 640X480 31.47 59.94

576p 720X576 31.25 50.00

50.00

1080i/50 1920X1080 28.13

Mode Resolution Horizontal Frequency (K Hz) Vertical Frequency (Hz)

720p/50 1280X720

1280X720

37.50

720p/60 45.00

HDMI INPUT

Display Modes

Specifications

LCD Panel

Size

Display size

Pixel Pitch

View Angle

Frequency

Horizontal

Vertical

Display color

Display Resolution

Maximum Mode

Optimum Mode

Input Source

Sync.

Video Signal

Color System

Sound System

Video

Color System

Video Format

Power Supply

Input

RGB Signal

Power Consumption

Working

Standby

Environmental Considerations

Operating Temperature

Operating Humidity

Audio Characteristics

Dimension ( WXDXH)mm

Weight (Kg)

Net Weight

Audio Input

Frequency

Response

Audio Input (PC)

Note:

● Design and specifications are subject to change without notice.

● Weight and dimensions shown are approximate values only.

Gross Weight

Without Stand

With Stand

H/V separate, TTL, P. or N.

1Vp-p @ 75 ohm

0.7 Vp-p @ 75 ohm

PAL/SECAM

BG, DK, I, L

AC 100~240V, 50/60Hz

10℃ ~ 40 ℃(50°F ~ 104°F)

10% ~ 80%

RCA Jack (L, R), 0.5Vrms (-9dB)

RF: 100Hz~12KHz (at ± 3dB)

A/V: 100Hz~13KHz (at ± 3dB)

RCA Jack (L, R), 0.5Vrms (-9dB)

30~80KHz

56~60Hz

16.7M colors

PAL/SECAM/NTSC

CVBS, S-VHS, RGB

165W

< 3W

15.2

18.2

32" Diagonal

697.68(H) X 392.26 (V) mm

0.51075(H) X 0.51075 (V) mm

178 °/178°(H/V)

1280 X 768 @ 60Hz

796X114X546

796X233X582

H/V separate, TTL, P. or N.

1Vp-p @ 75 ohm

0.7 Vp-p @ 75 ohm

PAL/SECAM

BG, DK, I, L

AC 100~240V, 50/60Hz

10℃ ~ 40 ℃(50°F ~ 104°F)

10% ~ 80%

RCA Jack (L, R), 0.5Vrms (-9dB)

RF: 100Hz~12KHz (at ± 3dB)

A/V: 100Hz~13KHz (at ± 3dB)

RCA Jack (L, R), 0.5Vrms (-9dB)

30~80KHz

56~60Hz

16.7M colors

PAL/SECAM/NTSC

CVBS, S-VHS, RGB

200W

< 3W

23.5

37” Diagonal

819.6(H) X 460.8 (V) mm

0.6(H) X 0.6 (V) mm

178 °/178°(H/V)

1280 X 768 @ 60Hz

947X126X644

947X310X710

Location and Function of Controls

EQ MODE

You may recall the equalizer mode

by pressing this button. Each time

pressed, EQ mode is changed in

following sequence.

Off Rock Pop Live

Soft

Dance

Techno

Classic

NICAM

Switch between NICAM Stereo,

NICAM DUAL1,NICAM DUAL2,

NICAM Mono or Mono.

INPUT SOURCE SELECT

TV button

Select the TV mode.

VIDEO button

Select a mode among AV,

S-Video and SCART.

PC button

Select the VGA and HDMI mode.

COMP button

Select the YPbPr mode.

RETURN

Return to previously selected

program number.

Note:

the prompt message “Invalid Key” will appear if you press a button for a function that is not

available.

STANDBY

Switch on the LCD TV when at

standby mode or vice versa.

MUTE

Switch the sound on or off.

DISPLAY

Display the source and channel

information.

PROGRAM SELECT

Press these buttons to select

a TV program directly.

DISPLAY MODE

You may recall the display mode

by pressing this button. Each time

pressed, display mode is changed

in following sequence.

4:3 16:9

Full Auto

Normal

TELETEXT

These buttons are used for

certain models with Teletext

functions. For further details,

refer to “TELETEXT

FUNCTION” section.

COLOR BUTTONS

These buttons are used for program

editing function. For further details,

refer to ‘‘Program Edit ’’.

MENU SELECT

Enter or exit from the OSD

menu.

CH+/CH-

Select channel in ascending or

descending order.

p q t u and ENTER

select menu items and adjust

menu values.

VOL+/VOL-

Press to increase or decrease

volume. SLEEP

To select the sleep time.

PICTURE MODE

You may recall the picture

mode by pressing this button.

Each time pressed, picture

mode is changed in following

sequence:

Sport Vivid Hi-Bright

User

NICAM

Location and Function of Controls

Button NameButton Name DescriptionDescription

VOL +/-

Power Indicator

Remote Sensor

Increase or decrease the volume.

Adjust the values of the selected menu item in the OSD menu.

Enter or exit from the menu.

Switch on the LCD TV when in standby mode or vice versa.

Illuminates red in standby mode.

Illuminates green when the LCD TV is switched on.

ItemItem

When you are watching the TV program, press these buttons

to select channel in ascending or descending order.

Select the upper or lower menu item in the OSD menu.

Select an input signal between TV, AV, S-Video, SCART,YPbPr,

HDMI and VGA.

SOURCE/INPUT

Infrared sensor for the remote control.

CHÚ/ÙCHÚ Ù

8Main Power Switch Switch on/off the LCD TV.

Note:

If there is no signal input from VGA/HDMI for 1 minute, or no signal input from other video source

(the blue background should be set to On) for over 15 minutes, the LCD TV will switch to standby

automatically. The power indicator will light up in red.

678

INPUT 4

TF32K82A:

TF37A82H:

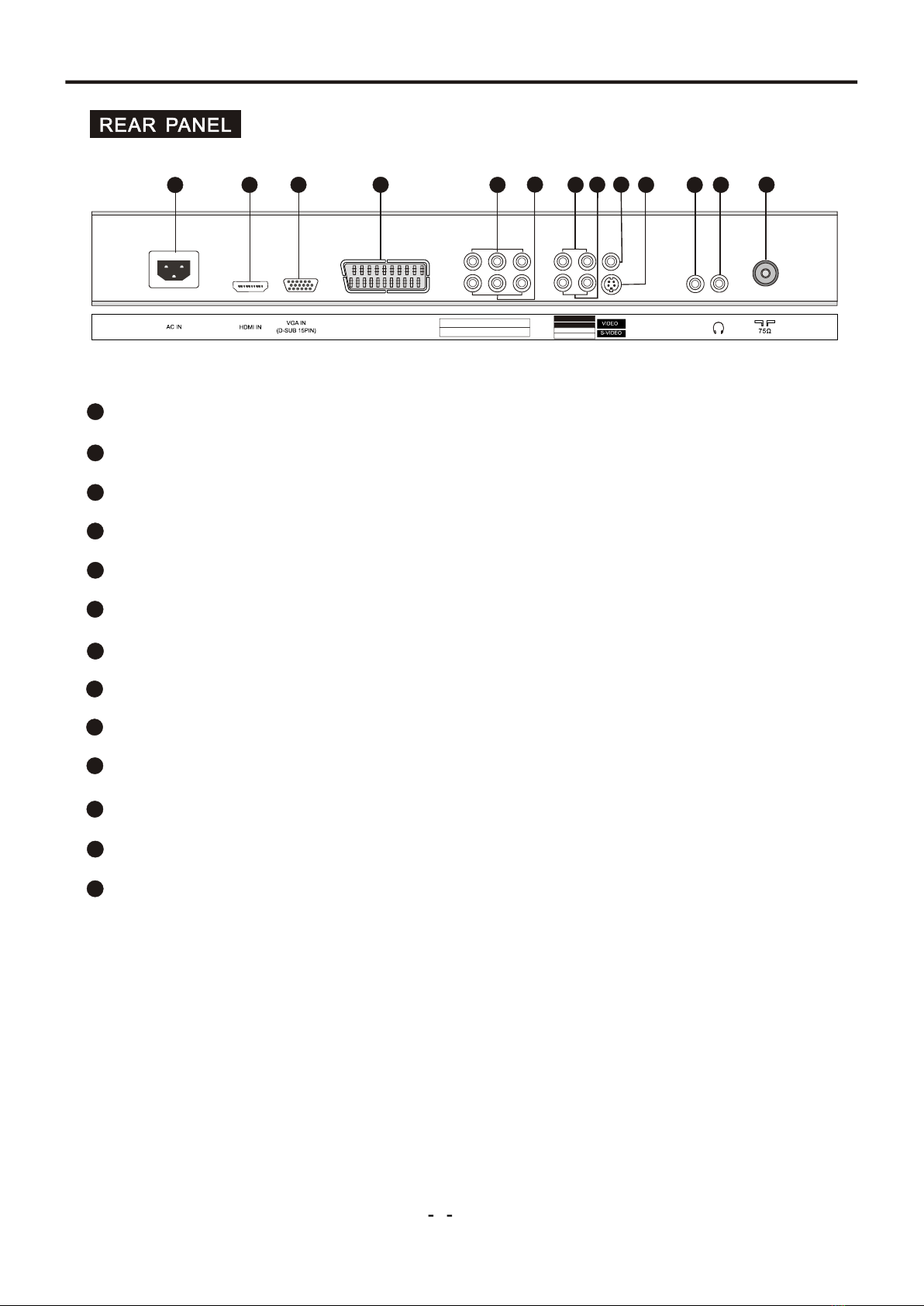

Installation and Connecting

1AC Input Socket

2HDMI Input Connector

3VGA Input Terminal

S-VIDEO Terminal

9Video Input Terminal

8YPbPr-Audio Input Terminals

11 LINE IN (VGA Audio) Terminal

Headphone Output Terminal

5YPbPr Component Video Input Terminals

RF Input Socket

6AV Out Terminals

7Video-Audio Input Terminals

SCART Connector

12378

611

410

SCART

LINE IN

AV OUT VIDEO L R

Y Pb Pr

VIDEO-AUDIO IN

L R

YPbPr-AUDIO IN

L R
