TeleEye RX538 User manual

TeleEye RX538 User Guide Page 1

RX Series

Mobile Digital Video Recorder

RX 538

User Guide

TeleEye RX538 User Guide

TeleEye RX538 User Guide Page 2

Notice:

Signal Communications Limited reserves the right to make improvements to the product

described in this manual at any time and without notice.

This manual is copyrighted. All rights are reserved. This manual should not be copied,

reproduced or translated in whole or part without prior consent from Signal

Communications Limited.

TeleEye is a trademark of Signal Communications Limited and is registered in China,

European Communities, ong Kong, US and other countries.

All other trademarks are the property of their respective owners.

Version 1.00

Limits of Liability and Disclaimer of Warranty

Signal Communications Limited has taken care in preparation of this manual, but makes

no expressed or implied warranty of any kind and assumes no responsibility for errors or

omissions. No liability is assumed for incidental or consequential damages in connection

with or arising out of the use of the information or accessories contained herein.

Features and specifications are subject to change without prior notice.

TeleEye RX538 User Guide

TeleEye RX538 User Guide Page 3

Content

1. Introduction

1.1 Introduction ....................................................................................................................... 4

1.2 Packages contents ............................................................................................................ 5

1.3 Features ............................................................................................................................ 6

1.4 Front Panel Description .................................................................................................... 6

1.5 Rear panel Description ..................................................................................................... 7

2. Hardware Installation

2.1 Hard Disk Installation ........................................................................................................

2.2 Hard Disk Removal ........................................................................................................... 9

2.3 Mobile Data Modem Installation ..................................................................................... 10

2.4 Wireless LAN Adaptor Installation .................................................................................. 10

2.5 Vehicle Mounting ............................................................................................................. 11

2.6 Video Installation ............................................................................................................. 13

2.7 Alarm installation ............................................................................................................. 14

2. Power Connection ........................................................................................................... 15

3. Set-up Procedures

3.1 Before Set-up ................................................................................................................... 16

3.1.1 TeleEye sureSIGHT Lite Installation ..................................................................... 16

3.1.2 TeleEye IP Setup Utility Installation ...................................................................... 20

3.1.3 Set-up Preparation ................................................................................................ 22

3.2 Hard Disk Formatting ...................................................................................................... 25

3.3 Hard Disk Available Event ............................................................................................... 26

3.4 Network Setting ............................................................................................................... 27

4. Operation

4.1 Live Operation Through Mobile Data Modem ................................................................. 29

4.2 Live Operation Through LAN/Wireless LAN ................................................................... 32

4.3 Recording ........................................................................................................................ 32

4.4 Footage Extraction .......................................................................................................... 37

5. Appendix

5.1 Limited Warranty ............................................................................................................. 39

5.2 SureLink Technology ....................................................................................................... 40

5.3 Firmware Upgrade .......................................................................................................... 43

5.4 Security Mode ................................................................................................................. 45

5.5 Specification .................................................................................................................... 47

TeleEye RX538 User Guide

TeleEye RX538 User Guide Page 4

1. Introduction

1.1 Introduction

TeleEye RX53 is a robust digtal video recorder designed for fleet security applications.

By using the award-winning SMAC-M multi-streaming video compression technology,

TeleEye RX53 delivers no compromise performance on simultaneous recording and

transmission via mobile network.

TeleEye RX53 can continuously record videos of every single detail during the vehicle in

service. By connecting TeleEye RX53 to a mobile data modem, the driver can push a

button to trigger the TeleEye RX53 to send an alarm and seamless video back to the

central monitoring station via mobile networks such as HSDPA, UMTS, EDGE or GPRS

in an emergency situation. In conjunction to a Wi-Fi gateway, the recorded data can be

reviewed and extracted to the central storage server via a Wi-Fi network after the vehicle

returning back to the depot.

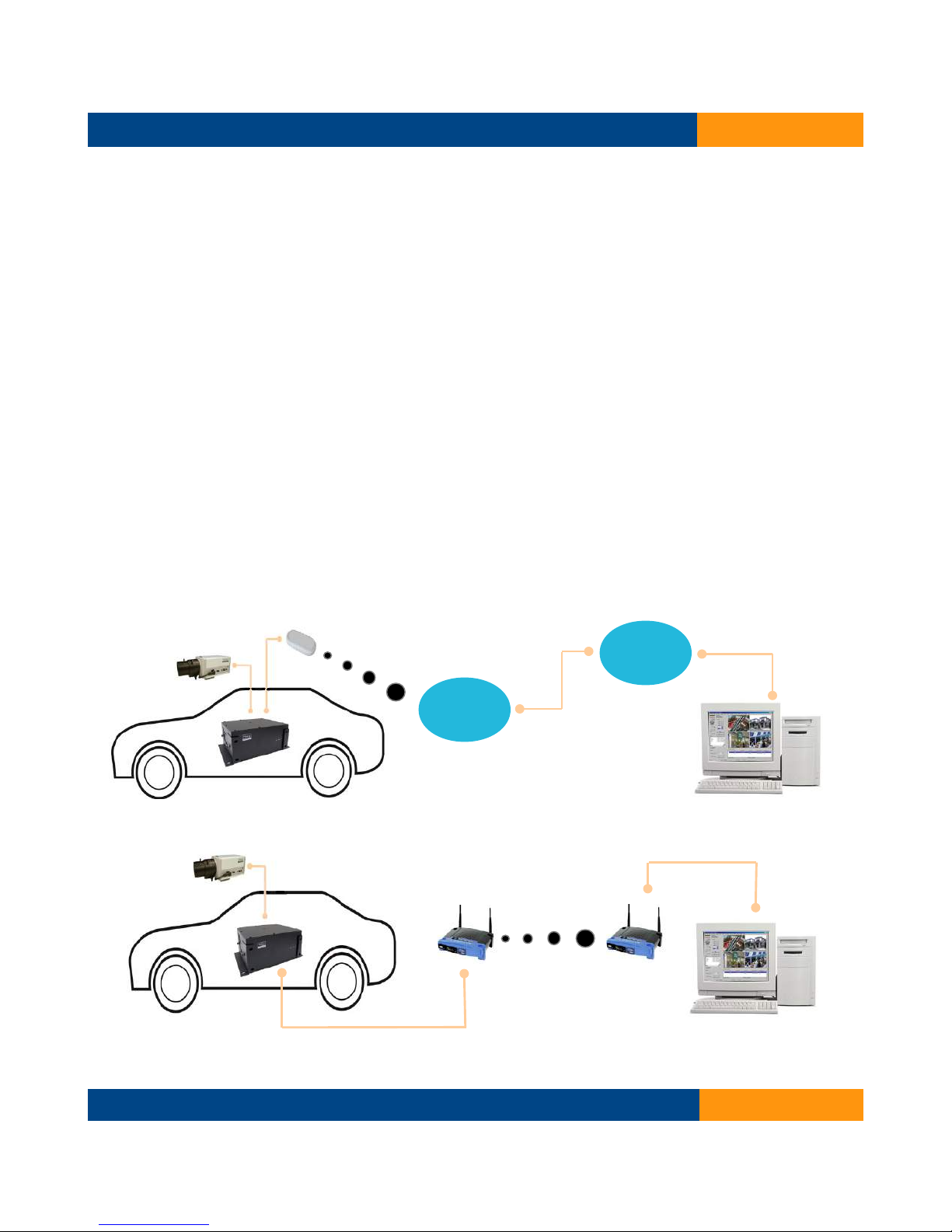

Live onitoring using obile network

Video extraction and playback via WiFi

TeleEye RX538 User Guide

Mobile Data Modem

TeleEye

RX538

Mobile

Network

I ter et

TeleEye CMS

TeleEye

RX538

TeleEye SF360

TeleEye

RX538

TeleEye sureSIGHT

TeleEye RX538 User Guide Page 5

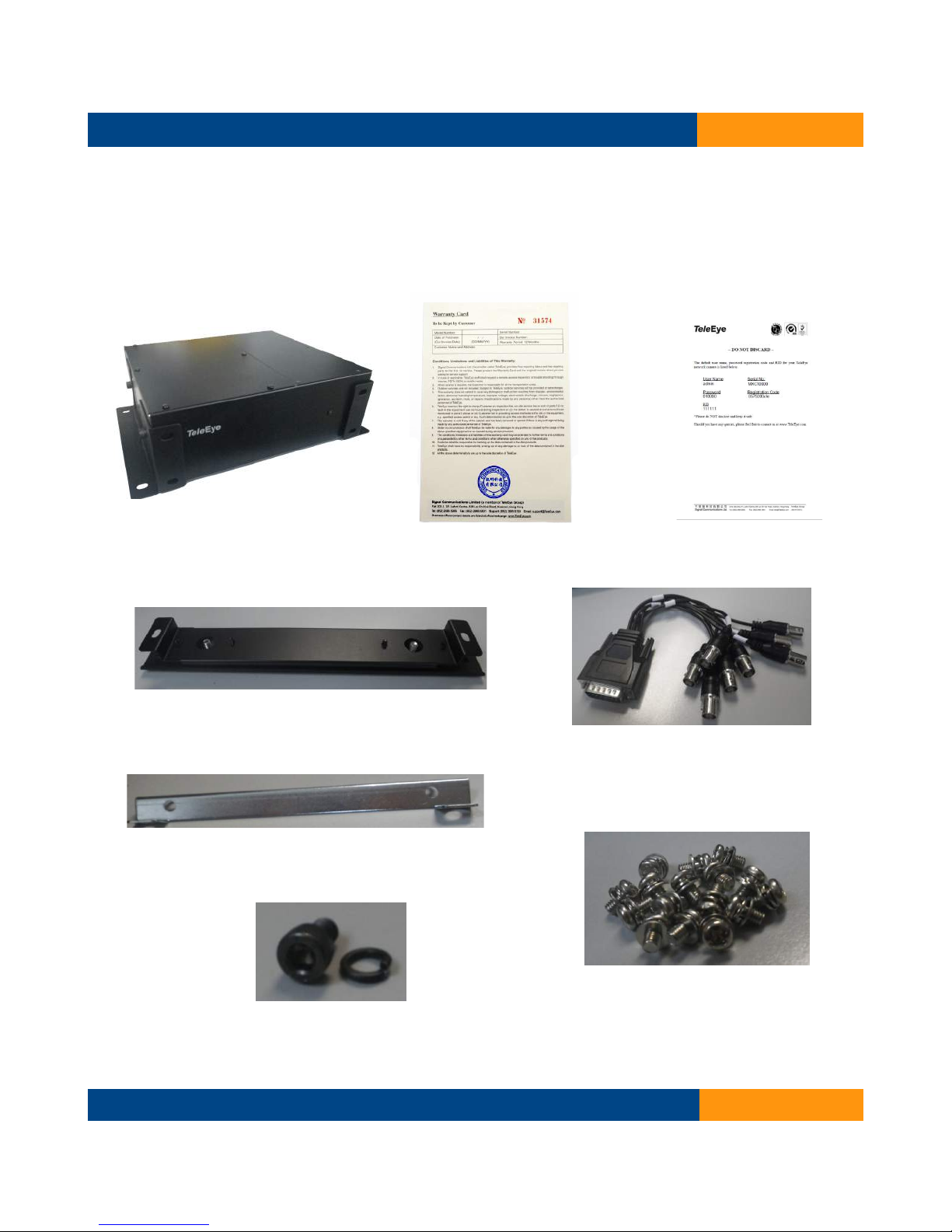

1.2 Packages Contents

TeleEye RX538 User Guide

1.TeleEye RX 538 2.Warra ty Card 3.Registratio Code Sheet

6.HDD Mou t

5.DB 15 Video Cable

8.HDD Mou ti g Screws

7.Mou ti g Screws (Bracket)

4.Bracket

TeleEye RX538 User Guide Page 6

1.3 Features

Automated digital recording initiated by vehicle's ignition

Remote video surveillance on 3G & 4G Network

Max. resolution per channel:

960x576 @25fps (P)

960x4 0 @30fps (N)

Real time crystal clear video recording

Hacker resistant technology

Dual compressions: H.264 for recording and enhanced SMAC-M for video streaming

Support up to 2 x2.5” SATA HDDs

Triplex operations: simultaneous monitoring, recording & playback

Multiple login accounts

sureLink for reliable connection through dynamic IP

BS 41 compliant for sophisticated event management with sureGUARD

Video management software with sureSIGHT

iView HD for remote monitoring on mobile phones

Fast detachment & shock protection design

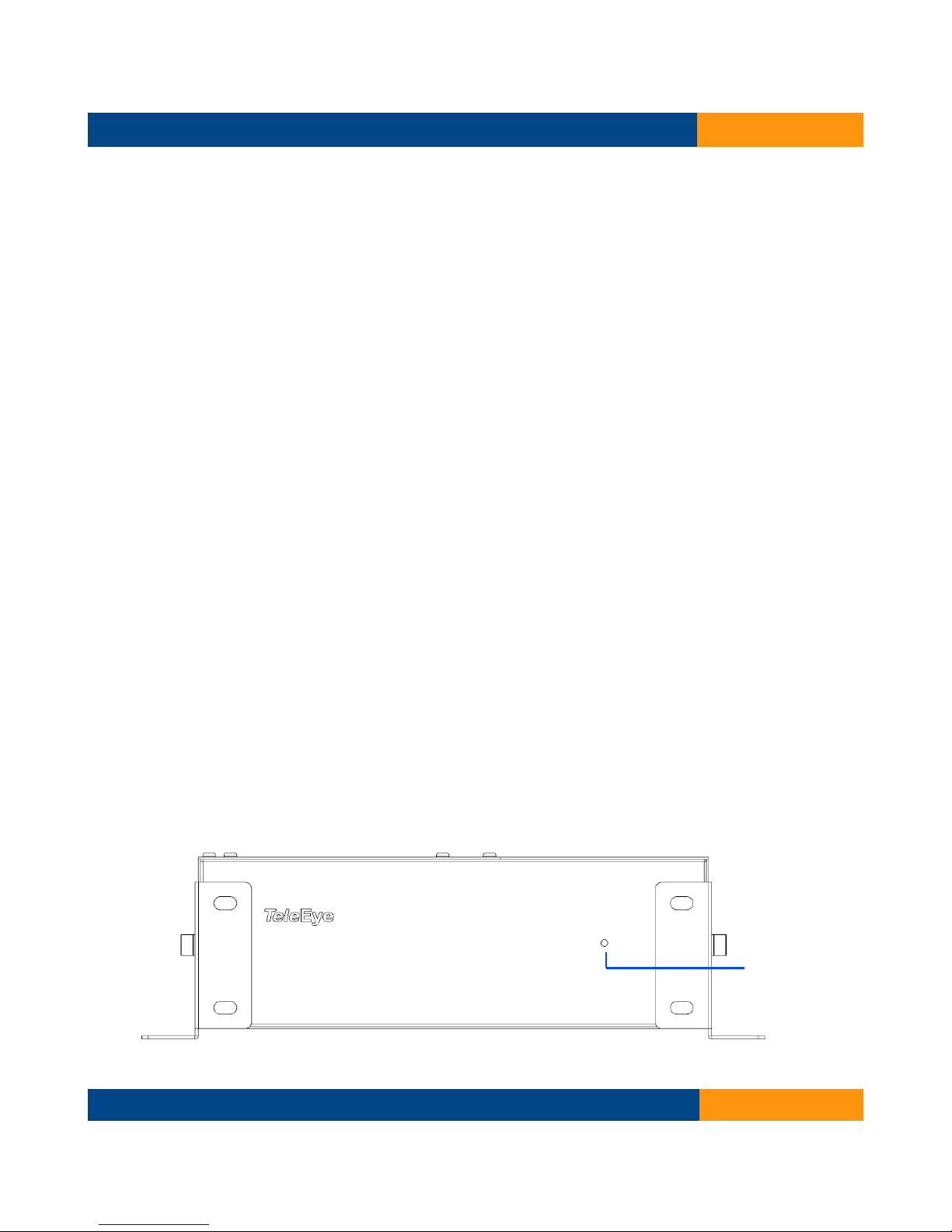

1.4 Front panel description

TeleEye RX538 User Guide

Power LED

TeleEye RX538 User Guide Page 7

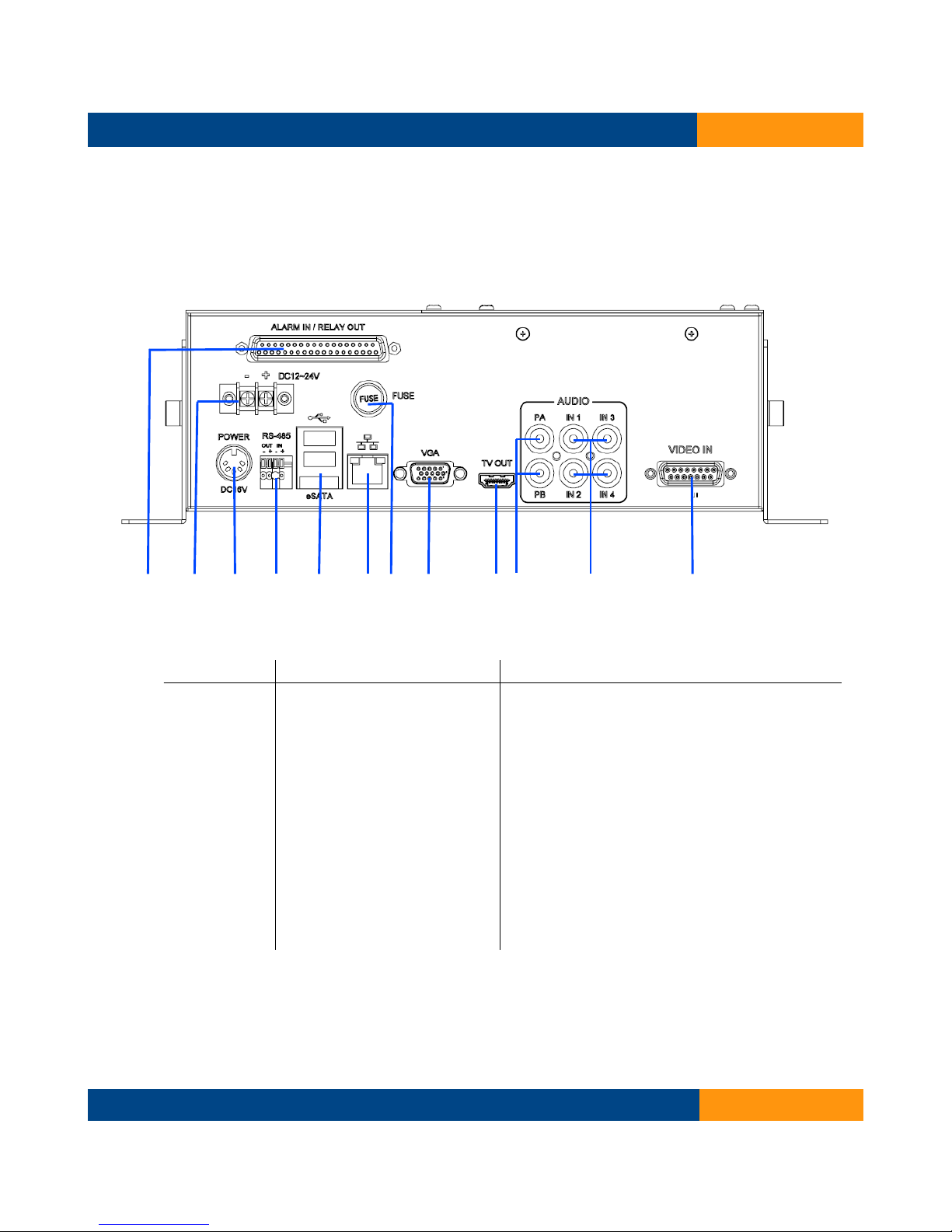

1.5 Rear panel description

1 2 3 4 5 6 7 8 9 10 11 12

TeleEye RX538 User Guide

Item Name Function

1 Alarm IN/ Relay OUT External alarm input and relay output

2 DC12-24V Connecting 12-24 V DC input

3 Power Jack Connecting to 16V DC power adapter

4 RS-4 5 For telemetry use

5 USB port Connecting 3G USB modem

6 Ethernet RJ45 socket for network connection

7 Fuse Protect the machine

VGA port Connecting with VGA port

9 TV OUT Digital video output

10 Audio PA output/ PB output

11 Audio input Audio input

12 Video-in Video input

TeleEye RX538 User Guide Page 8

2. Hardware Installation

2.1 Hard Disk Installation

Step 1

Remove screws on left cover.

Step 2

Open the left cover.

Step 3

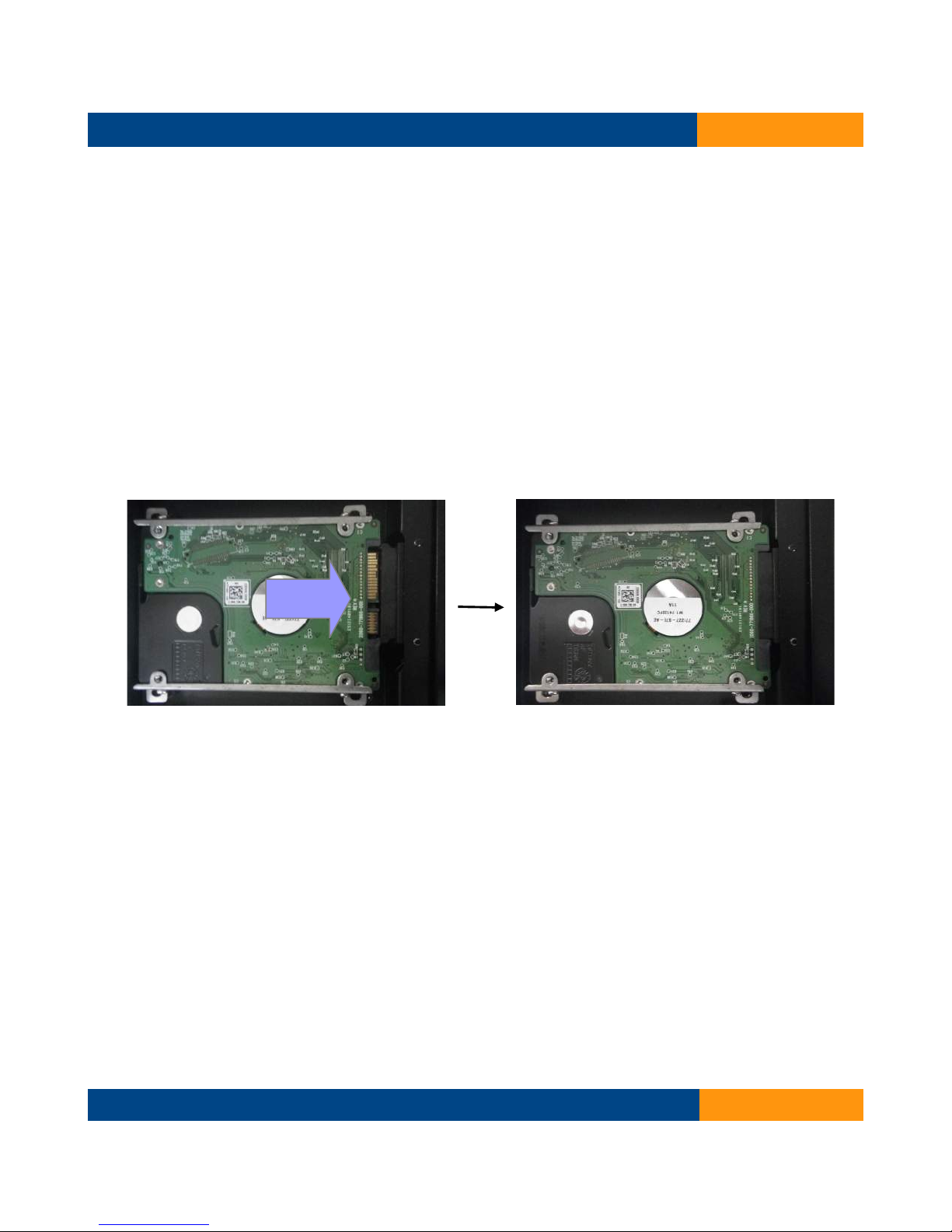

Insert the Hard Disk into the SATA port.

Step 4

Mount the Hard Disk with given screws and rings.

Step 5

put the left cover back and fix it with the screws.

TeleEye RX538 User Guide

TeleEye RX538 User Guide Page 9

2.2 Hard Disk Re oval

Step 1

Remove screws on the left cover.

Step 2

Open the left cover.

Step 3

Remove screws which mount the Hard Disk.

Step 4

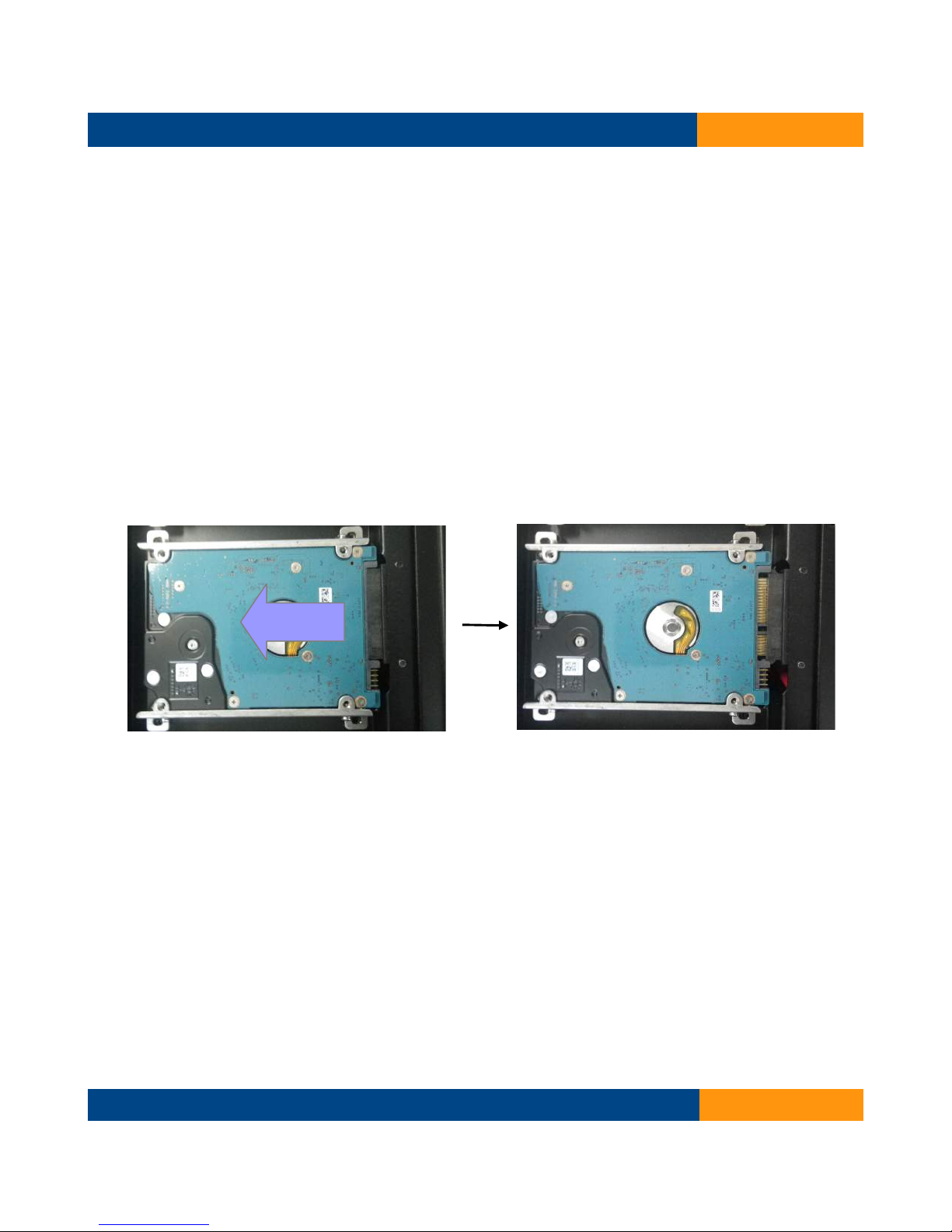

Slide the Hard disk out.

TeleEye RX538 User Guide

TeleEye RX538 User Guide Page 10

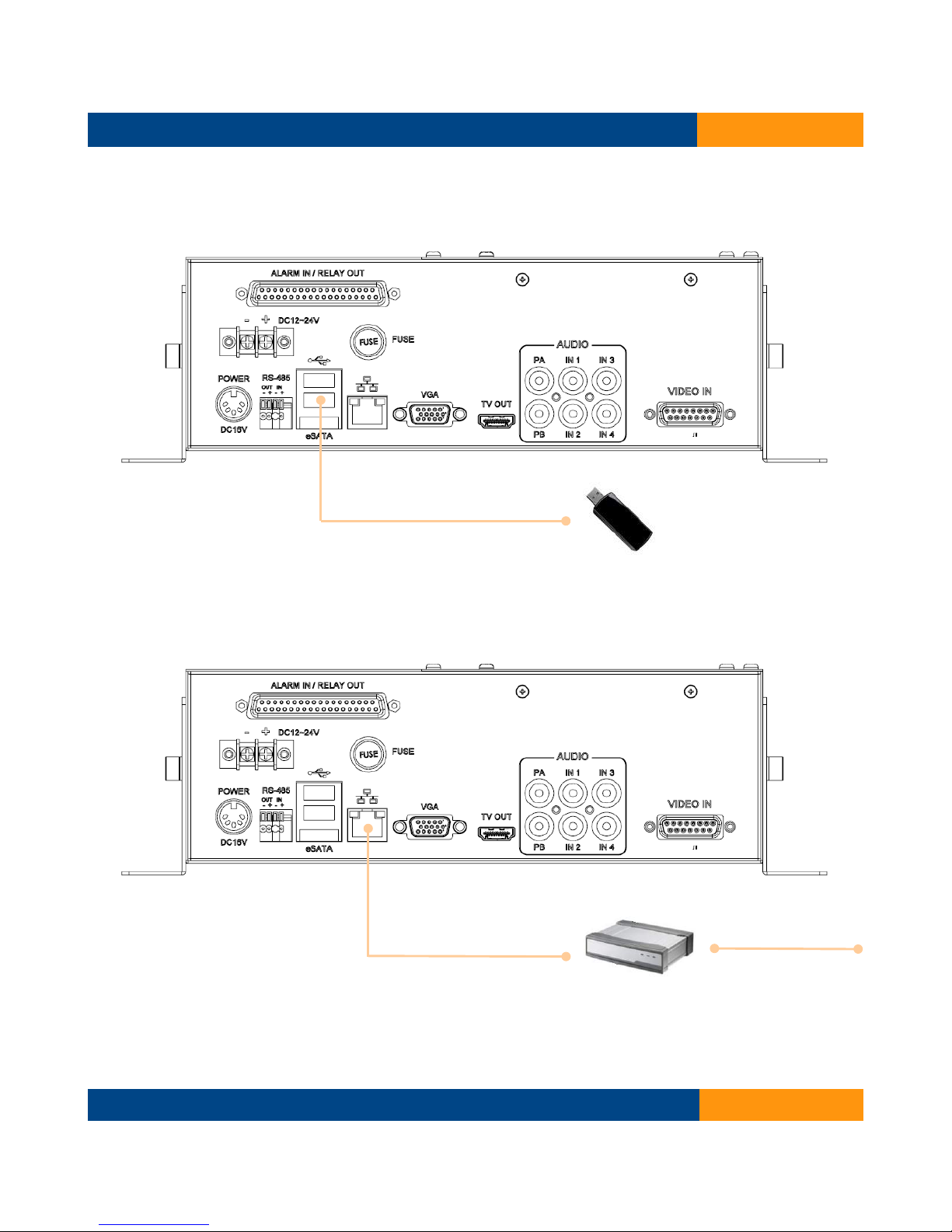

2.3 Mobile data ode installation

Connect Mobile Date Modem to the USB port.

2.4 Wireless LAN adaptor installation

Connect CAT5 Ethernet Cable to the Wireless LAN adaptor.

TeleEye RX538 User Guide

Wireless LAN adaptor

CAT5 Ether et

Cable

Mobile Data Modem
