Teledyne Lecroy PP006D User manual

Probe PP006A

The PP006A is a high impedance passive probe with a wide range of probing accessories. It

is designed to give high impedance probing capability to a circuit when attached to a LeCroy

Oscilloscope.

System BW (－3dB) : 500 MHz

System Attenuation : 10×±2%

System Input Resistance : 10 M (Ω) // 12 pF

Compensation Range : 13 pF to 23 pF

Cable Length : 1.2 meters, Connector type BNC

Max. non-destructive input voltage : 600 V (DC + Peak AC) (see derating curve)

Probe Sense : Yes

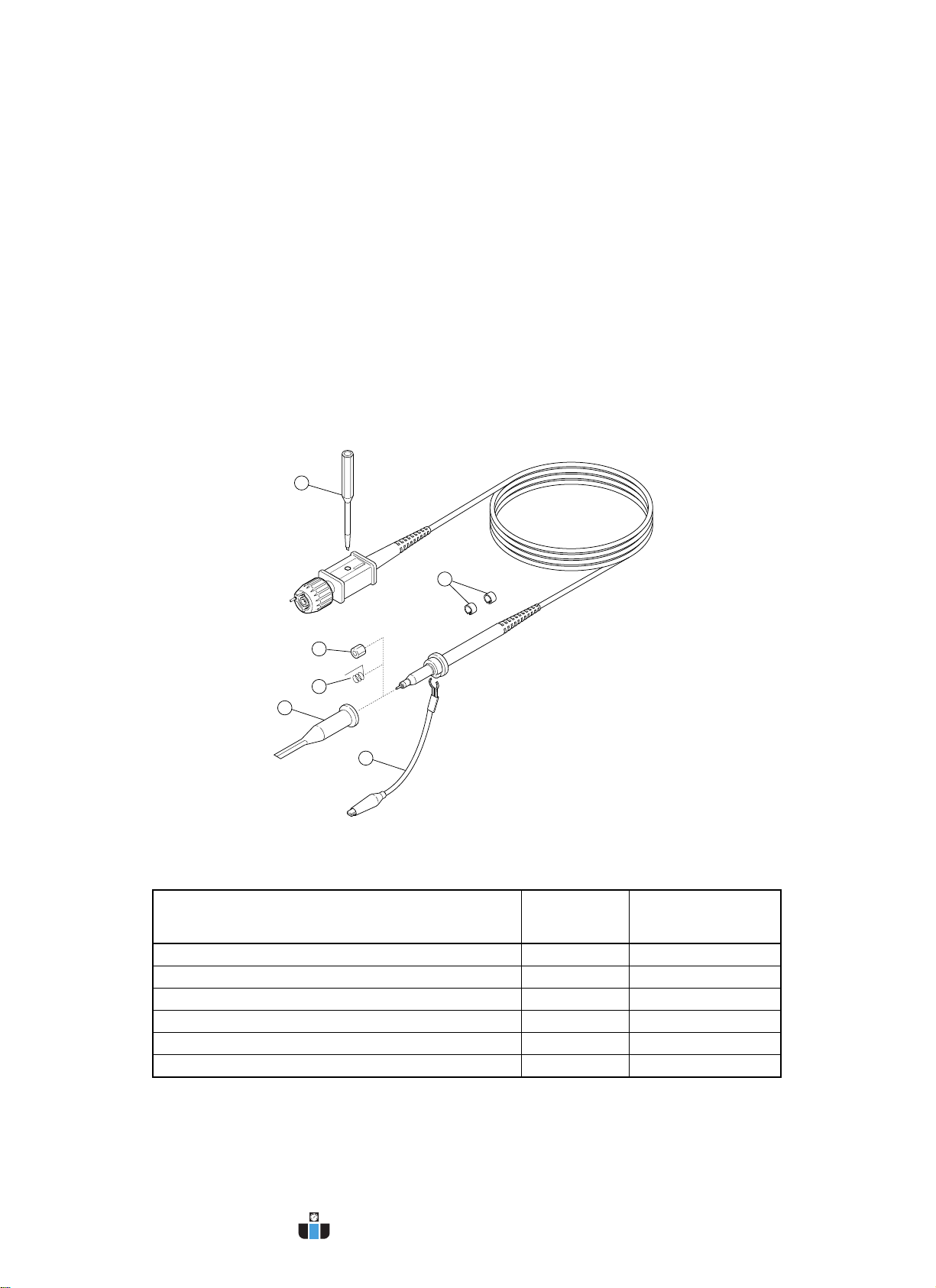

ccessories Table

Item PP006A

PK116 accessory

package

①Sprung hook 1 1

②Ground lead (11 cm) 1 1

③Ground lead on probe tip 1 1

④IC Insulating tip 1 1

⑤Color marking band (yellow, red, blue, green) 4×2 4×2

⑥Trimmer tool 1 1

www.calcert.com sales@calcert.com1.800.544.2843 0

Probe Adjustment

LF Adjustment

LF compensation is made by connecting the probe to the cal signal and adjusting the

compensation trimmer in the BNC-box at end of the probe. Connect the BNC end of the

probe to a channel of the oscilloscope. Connect the sprung hook end (1) and the ground lead

(2) to the CAL out and GND on the scope Calibrator area. The CAL signal is available in

many speeds. Select the Utilities in the scope to set the CAL to 1 kHz. Turn the scope

channel on. Press Auto Setup and adjust the time base and volts/div settings until the signal

on the screen contains two cycles (see figures below). Use the Trimmer tool (6) to adjust the

probe response to match the correct trim shown below.

[Note] Do not apply excess pressure to the screwdriver when you use it. The tip of

screwdriver are is easy to brake, because of made by plastics.

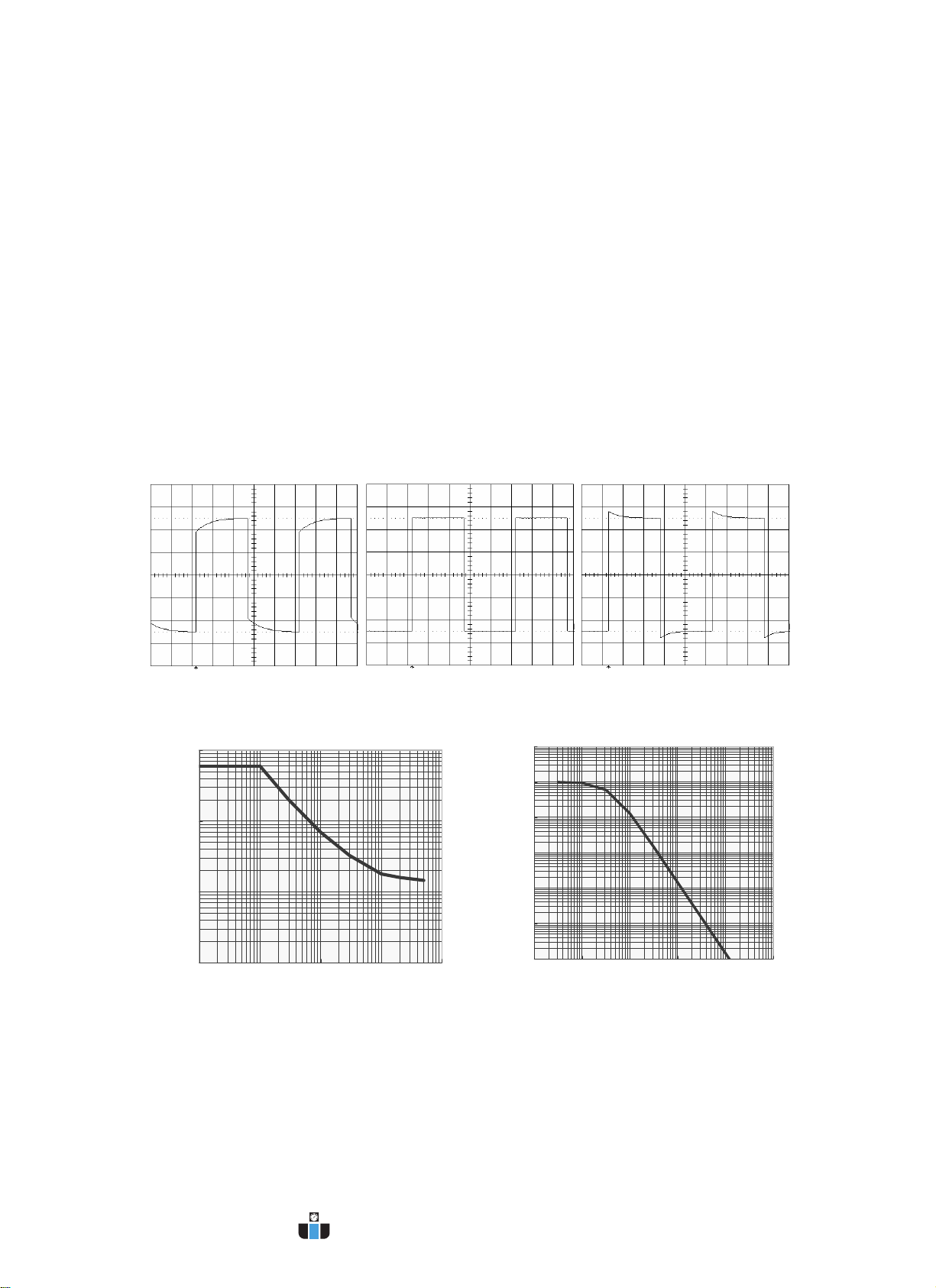

Undershoot Correct Overshoot

Typical Voltage Derating Curve Typical Input Impedance

1.0E+02

1.0E+03

1.0E+04

1.0E+05

1.0E+06

1.0E+07

1.0E+08

1.0E+00 1.0E+02 1.0E+04 1.0E+06 1.0E+08 1.0E+10

Frequency[H z]

Zin[ohms

]

100

1000

0.1 1 10 100 1000

Frequency[M H z]

Voltage[V(DC+AC peak )

]

www.calcert.com sales@calcert.com1.800.544.2843 0

Installation for Safe and Efficient Operation

Operating Environment

Before using the Probe, ensure that its operating environment will be maintained within these

parameters :

Operation : In-door Use

Temperature : 5 to 40 oC or 41 to 104 oF

Humidity : < 80 % RH (non-condensing)

The Probe has been designed to comply with EN61010-1 Installation (Overvoltage) Category

II, 600 V, Pollution Degree 2.

Safety Symbols

Wherever the following safety symbols appear on the Probe or in the instruction manual, they

alert the user to an aspect of safety.

Symbol Meaning

Refer to accompanying documents (for Safety-related

information).

Risk of electric shock.

Calls attention to a procedure, practice or condition that

could possibly cause damage to equipment.

CAUTION

Calls attention to a procedure, practice or condition that

could possibly cause bodily injury or death.

WARNING

Usage

The probe is intended to be used only with instruments which are connected to earth ground

through the input BNC connector. Connect the grounding terminal of the probe to the ground

potential of a device to be measured.

WARNING Do not disconnect the probe while it is connected to a voltage source.

Do not directly touch a measuring point. Do not use the probe in wet or

explosive atmospheres.

WARNING Probe tips are sharp, misuse can result in injury. Use with care.

The use of the probe and/or the instrument it is connected to in a

manner other than specified may impair the safety mechanisms.

CAUTION To guarantee accurate performance characteristics, mechanical shocks

should be avoided, as well as damage to the cable through excessive

bending. Do not exceed the maximum specified signal voltage levels

(See Specifications).

www.calcert.com sales@calcert.com1.800.544.2843 0

Cleaning and Maintenance

The exterior of the probe and cable should only be cleaned using a soft cloth moistened with

water or isopropyl alcohol. The use of abrasive agents, strong detergents, or other solvents

may damage the probe. Assure that the input receptacles are free of debris before inserting

connection accessories.

All repair and maintenance should be referred to qualified service personnel. Do not use the

probe if any part is damaged.

Specifications subject to change without notice.
