TeleAdapt ConferenceHub TA-6500 User manual
TA-6500 ConferenceHub™
4-Port Networking Switch
User’s Manual
FCC Warning
This device has been tested and found to
comply with limits for a Class B digital
device, pursuant to Part 2 and 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses and
radiates radio frequency energy and, if not
installed and used in accordance with the
user’s manual, may cause interference in
which case user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic
environment, this product may cause radio
interference in which case the user many
be required to take adequate measures.
Thank you for purchasing the TA-6500
ConferenceHub™ 4-Port Conference
Networking Switch by TeleAdapt.
TA-6500 ConferenceHub™
4-Port Conference Networking Switch
Introduction
The TA-6500 ConferenceHub™ 4-Port
Conference Networking Switch provides 4
10/100Mbps ports with fully retractable
LAN cables. The TA-6500 ConferenceHub™
was designed for easy installation and high
performance in a conference environment
where users need to access the network,
but don’t want the hassle of cord clutter.
The TA-6500 ConferenceHub™ can be
installed atop a conference table providing
easy and quick access, via retractable LAN
cables for multiple users.
Key Features
4 retractable 10/100Base CAT5 compliant LAN
cables with RJ45 connectors.
Auto-learning of networking MAC address-based
security configurations
Auto-detect of Full/Half-duplex
modes in all ports
Dedicated full-duplex 100Mbps
bandwidth on each port
Store & Forward switching methods
IEEE 802.3x flow control for
Full-duplex
Zero-Packet Loss Back-pressure
flow control for Half-duplex
Non-blocking & Non-head-of-line
blocking full wire speed forwarding
Status LEDs: Power, 10/100M,
Link/Activity And Full/Half-duplex
Supports Auto MDIX function on
each port
Smart plug & play installation
Package Contents
Before you start to install the TA-6500
ConferenceHub™, please verify your
package contains the following items:
One TA-6500 ConferenceHub™
One Power Adapter
One LAN Patch Cord
One User’s Manual
ConferenceHub™
ConferenceHub™
User’s Manual
Note: If any of these items is found missing
or damaged, please contact TeleAdapt for
replacement.
LED Indicators of the TA-6500
ConferenceHub™
LED
Color
Status
Description
On
Power on
Power
Yellow
Off
Power off
On
10/100Mbps port for
connection
Off
10/100Mbps port link
fail
LINK/ACT.
Yellow
Flashing
10/100Mbps for data
activating
On
Port is on the 100M
status
10/100M
Green
Off
Port is on the 10M
status
On
Full-duplex
Off
Half-duplex
FDX
Green
Flashing
Partial collision occurs
Bottom Layout
Connection to LAN
There are two RJ45 connectors on the
bottom panel. One is to connect to the
main LAN line. The other is used for daisy-
chaining or as a fifth 10/100Mbps port.

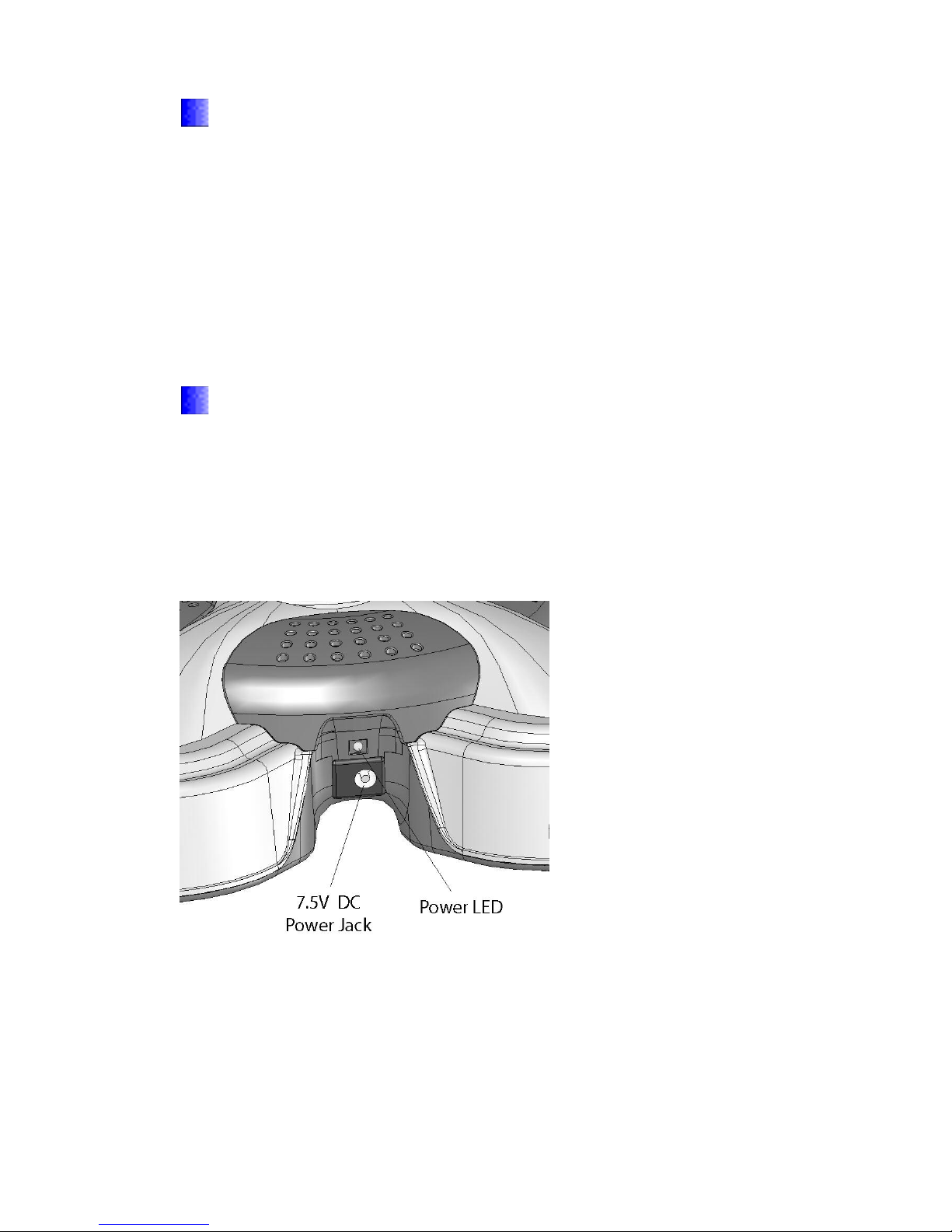

Power DC 7.5V
Connect the power supply to both the wall
and to the base of the TA-6500
ConferenceHub™ unit.

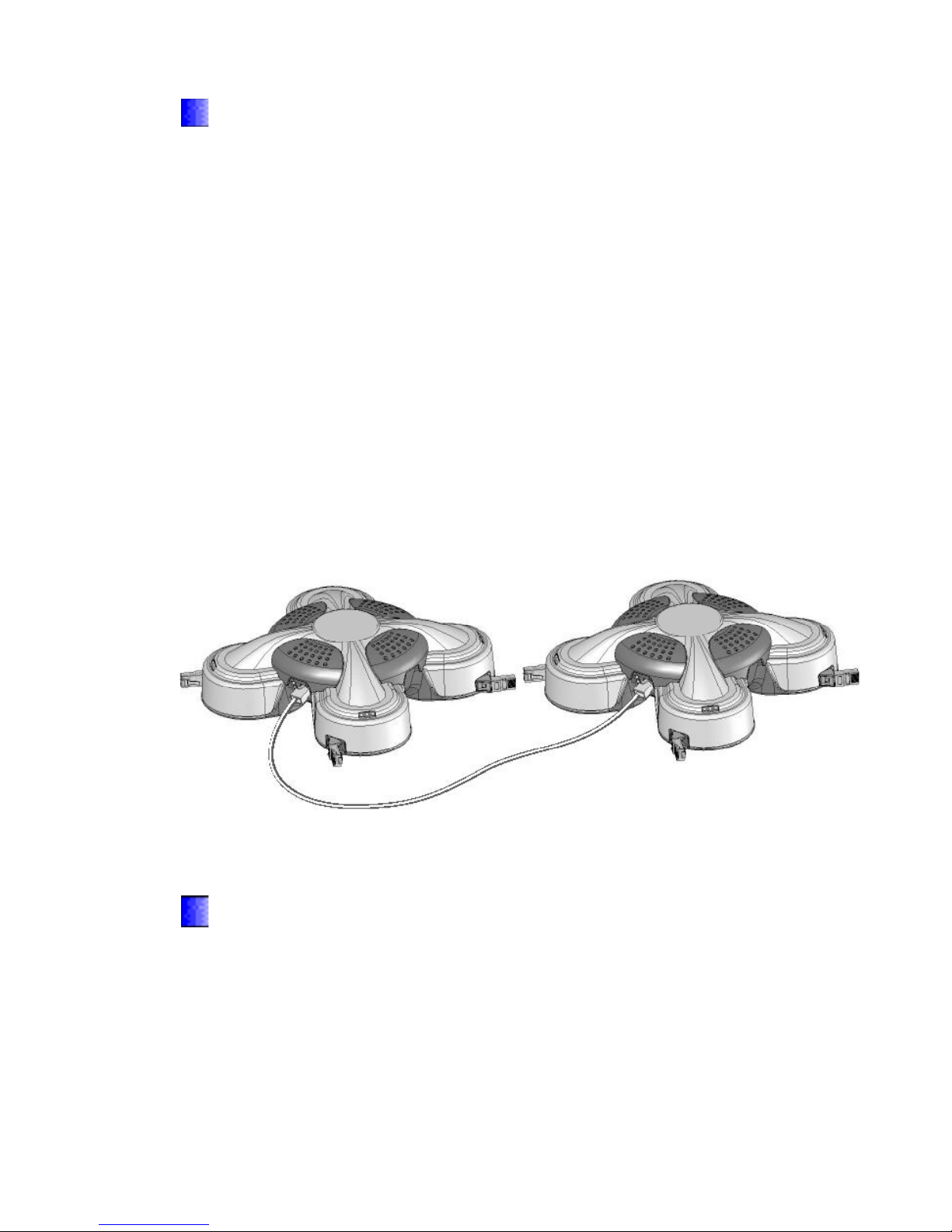

Daisy-Chaining
The second RJ45 connector on the bottom
of the TA-6500 ConferenceHub™ is designed
to permit daisy-chaining of additional TA-
6500 ConferenceHub™ units for connecting
more than 4 users simultaneously to the
local network. Using the patch cord
supplied with the second TA-6500 switch,
connect between one female RJ45 jack on
each unit.
Instructions for Installation
Upon removing TA-6500 ConferenceHub™
from the box, place the TA-6500 on a flat,
tabletop surface. Connect the power
adapter to the TA-6500 and to the power
source (frequently found on the wall).
Plug the network connection into one of
the two female RJ45 connectors on the
base of the TA-6500. When the LEDs of the
network connection and power light, you
may connect any computer to the TA-6500
by pulling the retractable cable and
connecting it to the network port on the
computer.
You may connect more than 4 users
simultaneously to the local network by
daisy-chaining multiple TA-6500 units
together.
Caution:
Don’t allow the retractable cable to whip
back into the unit’s case. Fast,
uncontrolled retraction may cause damage
to the cable’s network connector.
Technical Specifications
1. Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
2. Number Of Retractable Cables
4 x CAT5 compliant (10/100Mbps)
spooled cables at extended
length of 167 cm (5.5 feet)
3. Network Transmission Media
10Base–T CAT 3, 4, 5 UTP/STP
100Base–TX CAT 5 UTP/STP
4. Network Status Monitoring LEDs
Per port: LINK/ACT, 10/100M, FDX
System: POWER
5. Buffer Memory
768KB per device
6. MAC Address
Up to 2K per device
7. Power Adapter DC 7.5V
8. Power Consumption
4 port : 2 Watts (Max)
