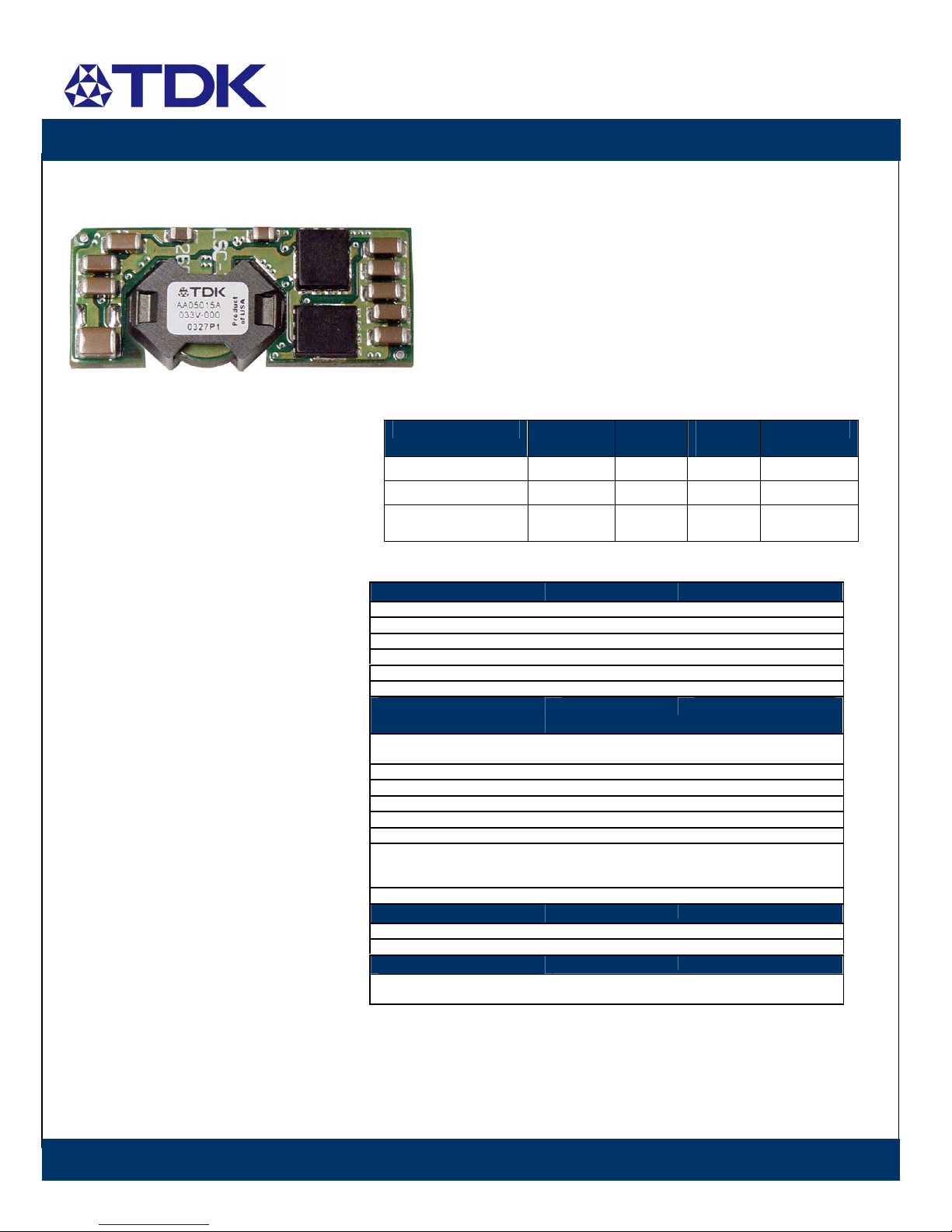

TDK Metamere iAA Series Reference guide

Revision 2

Product Brief: Metamere iAA Series – Non-isolated Surface Mount Power Module

iAAProductBrief060905.doc 6/9/2005

℡(877) 498-0099

Base Product Code Input

Voltage

Output

Voltage

Output

Current

Efficiency

iAA05015A033V 4.5-5.5 3.3V 15A 95%

iAA05015A025V 3.0-5.5 2.5V 15A 93%

iAA05015A008V 3.0-5.5 0.75V-

3.63V

15A 94%

Input Characteristics

Operating input range 3-5.5V Except 3.3V out (4.5-5.5)

Transient input voltage 6V 10mS max

Turn-on voltage 2.3V

Turn-off voltage 2.1V

Start-up time 15 mS On/Off to 90% Vout

Maximum input current 16A Input 0-5.5V, Io,max

Output

Characteristics

Output voltage tolerance

+/- 3.5% max

Over line, load, and temp

to end of life

Efficiency see product table Io,max

Line regulation 2 mV Over rated input

Load regulation 5 mV Over rated load

Output voltage adjustment 90%-110% %Vo,nom

Output ripple 40 mVp-p 20MHz bandwidth

Dynamic response

Transient voltage

Recovery time

175 mV

25 uS

Load step 25% of Io,max

slew rate =2.5A/us

Ripple frequency 300 kHz Fixed

Protection

Current limit inception 230% of Io,rated

Short circuit 33% of Io,rated Auto-recovery hiccup

Environmental

Operating temperature -40C to 125C Measurement point in full

datasheet

The Metamere Series offers a 50W power module in the

industry’s standard surface-mount footprint. The

Metamere series utilizes a low component count that

results in a low cost while still providing high performance.

The open-frame, compact design provides flexibility by

performing local voltage conversion of either a 5V or 3.3V

bus. The low weight, surface mount design is well suited

for almost any manufacturing environment.

Features

•Size - 33mm x 13.5 mm x 8.5 mm

(1.3 in. x 0.53 in. x 0.335 in.)

•Surface mountable

•Maximum weight 12g (0.42 oz)

•Up to 50W of output power in high

ambient temperature, low airflow

environments with minimal power

derating

•Positive logic on/off

•Starts with pre-biased output

•Output voltage adjustment

•Constant switching frequency

•Full, auto-recovery protection:

oInput under voltage

oShort circuit

oThermal limit

•Applying for UL 60950 (US and

Canada), VDE 0805, CB scheme

(IEC950) Safety markings

Typical Performance

Metamere iAA Series DC/DC Power Modules

3 and 5V Inputs, 15A Output

Surface Mount Power Module

Optional Features

•On/Off (negative logic)

Revision 2

Product Brief: Metamere iAA Series – Non-isolated Surface Mount Power Module

iAAProductBrief060905.doc 6/9/2005

℡(877) 498-0099

Dimensions are in mm [inches]

Ordering Information

Product

Identifier

Package

Size

Platform Input

Voltage

Output

Current/

Power

Output

Units

Main

Output

Voltage

# of

Outputs

Safety

Class

Feature Set

i A A 05 015 A 033 V - 0 00

033 – 3.3V

025 – 2.5V

018 – 1.8V

015 – 1.5V

TDK Innoveta

33mm x

13.5 mm

Metamere

SMT 3-5.5V

015 – 15

Amps

012 – 1.2V

Single 00 – Standard

PIN FUNCTION PIN FUNCTION

1 Vin 4 Trim

2 Gnd 5 Sense

3 Vout 6 On/Off

Feature Set On/Off Logic

00 Positive

01 Negative

Top view - Footprint

3320 Matrix Drive Suite 100

Richardson, Texas 75082

Phone (877) 498-0099 Toll Free

(469) 916-4747

Fax (877) 498-0143 Toll Free

(214) 239-3101

support@tdkinnoveta.com

http://www.tdkinnoveta.com/

Information furnished by TDK Innoveta is believed to be accurate and reliable. However, TDK Innoveta assumes no

responsibility for its use, nor for any infringement of patents or other rights of third parties, which may result from its use. No

license is granted by implication or otherwise under any patent or patent rights of TDK Innoveta. TDK Innoveta components

are not designed to be used in applications, such as life support systems, wherein failure or malfunction could result in injury

or death. All sales are subject to TDK Innoveta’s Terms and Conditions of Sale, which are available upon request.

Specifications are subject to change without notice.

is a trademark or registered trademark of TDK Corporation.
