TBB IdSWITCH LMP1218-PWM User manual

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

LMP1218-PWM

Master Power Unit

Version

：

A1.0

Date: Apr. 2020

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

WARNING : FIRE HAZARD

SUITABLE FOR MOUNTING ON CONCRETE OR OTHER

NON- COMBUS TABLE SURFACE ONLY

CAUTION : THE DC AND AC BREAKER MUST HAVE BEEN

TURNED OFF BEFORE SERVICING

MADE IN CHINA

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

Unless specially agreed in writing, IDM Technologie.

Ø Take no warranty as to the accuracy, sufficiency of suitability of any technical or other

information provided in this manual or other documentation.

Ø Assumes no responsibility or liability for loss or damage, whether direct, indirect,

consequential or incidental, which might arise out of the use of such information

Ø IDM Technologie offer standard warranty with its products, taking no responsibility for direct

or indirect loss due to equipment failure.

This manual describes our product features and provides procedure of installations. This manual

is for anyone intending to install our equipment.

Thanks for choosing our products and this manual were suitable for LMP1218-PWM Master Power

Unit.

This chapter contains important safety and operation instructions. Read and keep this User Guide

well for later reference.

The LMP1218-PWM Master Power Unit needs to be installed by professionals and please pay

attention to the following points prior to installation:

1> Please check the input voltage or voltage of battery is same to the nominal input voltage of this

unit.

2> Please connect positive terminal “+” of battery to “+” input of this unit.

3> Please connect negative terminal “-” of battery to “-” input of this unit.

4> Please use the shortest cable to connect and ensure the secure connection.

5> While connecting, please secure the connection and avoid short cut between positive terminal

and negative terminal of battery, which will cause damage of battery.

6> This unit will have high voltage inside. Only authorized electrician can open the case.

7> This unit WAS NOT designed to use in any life retaining equipment.

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

1. General Safety Instruction..................................................................................................................................1

1.1 Safety Instruction .........................................................................................................................................1

1.2 General Precaution.......................................................................................................................................1

1.3 Precaution regarding battery operation ........................................................................................................1

2. LMP1218-PWM INTRODUCTION..................................................................................................................2

2.1 Features........................................................................................................................................................2

2.2 LED Display................................................................................................................................................3

3. KEY FEATURES AND FUNCTIONS ..............................................................................................................4

3.1 Multiple inputs.............................................................................................................................................4

3.2 Battery Charger of Auxiliary Battery...........................................................................................................4

3.3 Power Supply Mode ....................................................................................................................................5

3.4 PWM Solar charger controller.....................................................................................................................5

3.5 Voltage Charging Relay (VCR ) ..................................................................................................................5

3.6 Battery Low Voltage Protection (BLVP) .....................................................................................................5

3.7 Manual Battery Switch ................................................................................................................................ 5

3.8 DC Distribution ...........................................................................................................................................6

4. STRUCTURE AND INSTALLATION..............................................................................................................7

4.1 LMP1218-PWM Master Power Unit...........................................................................................................7

4.2 Installation ...................................................................................................................................................9

4.3 Fuse specification ......................................................................................................................................10

5. OPERATION ...................................................................................................................................................12

5.1 Configuration on LMP1218-PWM............................................................................................................12

5.1.1 Dip switch setting...................................................................................................................................12

5.1.2 External Battery Switch(RSW) ..............................................................................................................13

5.2 Daily Maintenance.....................................................................................................................................14

6. Trouble shooting ..............................................................................................................................................15

6.1 LED display on LMP Unit.........................................................................................................................15

7. Specification.....................................................................................................................................................16

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

1. General Safety Instruction

1.1 Safety Instruction

As dangerous voltages and high temperature exist within the LMP1218-PWM Master Power Unit,

only qualified and authorized maintenance personnel are permitted to open and repair it. Please

make sure the unit is turned off before open and repair it.

This manual contains information concerning the installation and operation of LMP1218-PWM

Master Power Unit. All relevant parts of the manual should be read prior to commencing the

installation. Please follow the local stipulation meantime.

Any operation against safety requirement or against design, manufacture, safety standard, and are

out of the manufacturer warranty.

1.2 General Precaution

1.2.1 Do not expose to dust, rain, snow or liquids of any type，it is designed for indoor use. DO

NOT block off ventilation, otherwise the LMP1218-PWM Master Power Unit would be

overheating.

1.2.2 To avoid fire and electric shock，make sure all cables selected with right gauge and being

connected well. Smaller diameter and broken cable are not allowed to use.

1.2.3 Please do not put any inflammable goods near to this unit.

1.2.4 Never place this unit directly above batteries, gases from a battery will corrode and damage

LMP1218-PWM Master Power Unit.

1.2.5 Do not place battery over LMP1218-PWM Master Power Unit.

1.3 Precaution regarding battery operation

1.3.1. Use plenty of fresh water to clean in case battery acid contacts skin, clothing, or eyes and

consult with doctor as soon as possible.

1.3.2. The battery may generate flammable gas during charging. NEVER smoke or allow a spark

or flame in vicinity of a battery.

1.3.3. Do not put the metal tool on the battery, spark and short circuit might lead to explosion.

1.3.4. REMOVE all personal metal items such as rings, bracelets, necklaces, and watches while

working with batteries. Batteries can cause short-circuit current high enough to make metal melt,

and could cause severe burns.

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

2. LMP1218-PWM INTRODUCTION

2.1 Features

Ø Smart battery charger 12V18A

² Active PFC charging

² Temperature compensated Charging

² Voltage compensated Charging

Ø 16 Fused DC outputs, including water pump and lighting central control.

Ø Battery charging relay 12V 30A

Ø Battery Low Voltage Protection

Ø Built in Battery Switch to isolate the battery when in storage

Ø Support external remote battery switch

Ø Control one water pump with two tank probes

Ø Solar charger controller(PMW), 15A

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

2.2 LED Display

Ta ble 1 LED indication

NO.

LED

Color

Status

Description

CHG

Green

Battery charged

Flashing

(flash once every second)

Battery charging

OFF

Battery discharge

Dischg

Orange

Battery discharging

OFF

Battery charging

CHG/ Dischg

Green/Orange

Both ON

Power supply

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

3. KEY FEATURES AND FUNCTIONS

3.1 Multiple inputs

LMP master power unit may have multiple sources at one time. These sources include the Shore

power, Solar panel and Alternator (Motor battery). There is priority among these sources, but LMP

allows several sources to charge auxiliary battery at the same time. The priorities are listed below.

Ta ble 2 Energy sources priority

AC Mains

✓

Solar panel

✓

Alternator (Motor

battery)

✓

Dominating Source

AC mains +

Solar panel

AC mains +

Solar panel

AC mains

Alternator +

Solar panel

3.2 Battery Charger of Auxiliary Battery

The charger automatically starts when the appropriate qualified power is connected, either from

grid, generator. With multiple charging stages (soft start-bulk absorption float-recycle),

LMP1218-PWM is designed to fully charge battery quickly. To guarantee the optimal charging for

batteries of different states, the LMP1218-PWM features Microprocessor-controlled charging

algorithm. The Float and Recycle charging programs guarantees the battery being charged

properly upon being connected for a longer period.

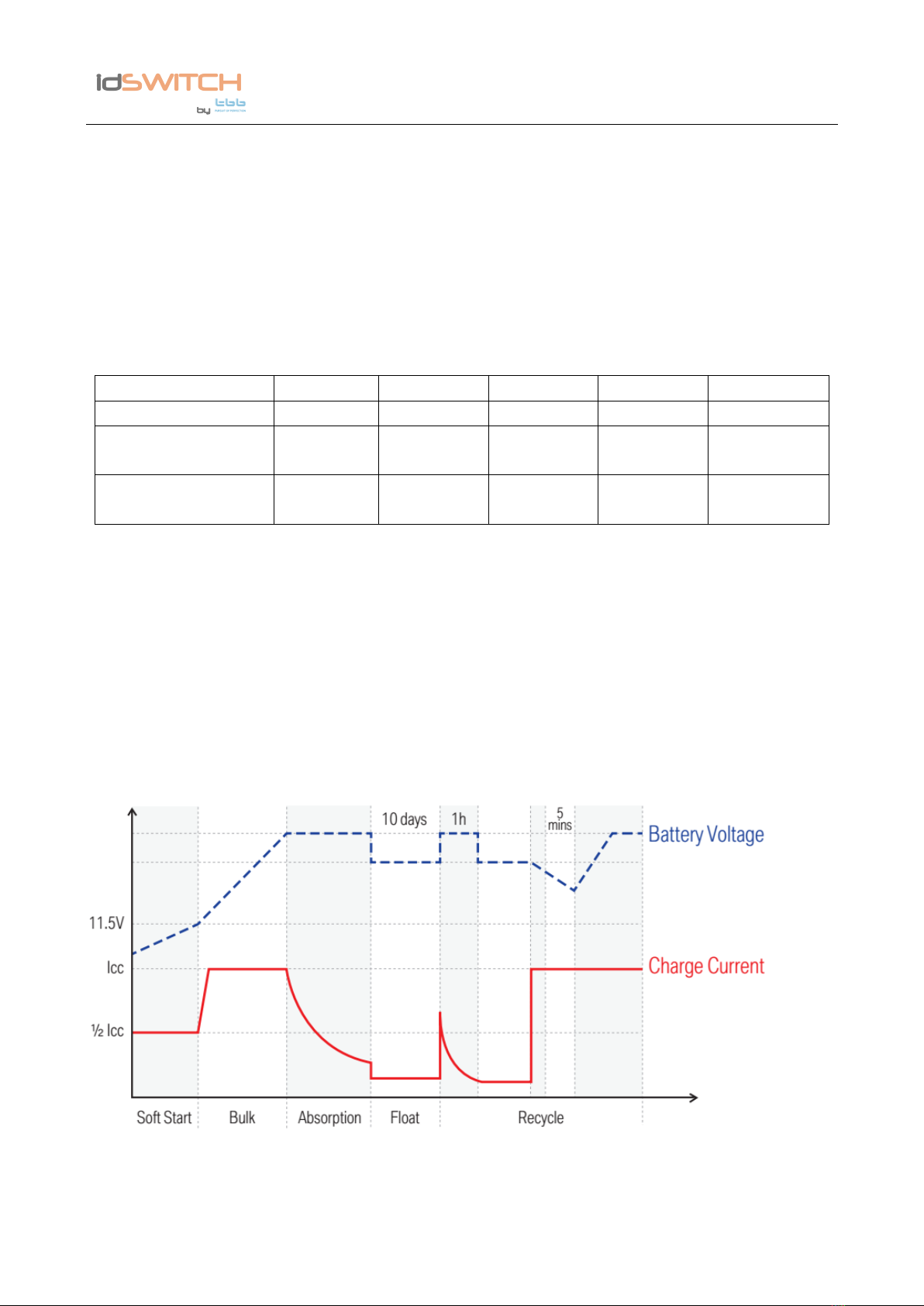

Figure 1 Charging algorithm for lead-acid battery

Lithium battery charging

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

The LMP1218-PWM can be configured to charge Lithium battery.

3.3 Power Supply Mode

If no battery is attached to LMP1218-PWM unit, it will work as a power supply automatically with

a 12.8VDC output.

3.4 PWM Solar charger controller

LMP has a built-in PWM charger for the service battery.

² Max open voltage is 25VDC

² Max supply current is 15A

3.5 Voltage Charging Relay (VCR )

LMP1218-PWM Master Power Unit has a built-in voltage charging relay (VCR), which can get

power from alternator to supply the system whilst the engine is running.

LEAD ACID BATTERY -- When the motor battery reaches 13.4VDC with threshold time delay, the

VCR will be engaged to allow power from alternator to supply the system. VCR will continue

being engaged until the motor battery’s voltage drops under 12.8VDC.

LiFePO4 LITHIUM BATTERY -- When the motor battery reaches 14.0VDC with threshold time

delay, the VCR will be engaged to allow power from alternator to supply the system. The VCR will

continue being engaged until the motor battery’s voltage drops under 13.5VDC.

The VCR will be disengaged when the auxiliary battery’s voltage reached 14.8V.

NOTE: If vehicle is fitted with a smart charging system (Variable Voltage or Temperature

Compensating), the VCR charge system may not function correctly and a DC-DC Charging

system is recommended

Please consult your local dealer or installer for further information.

3.6 Battery Low Voltage Protection (BLVP)

LMP1218-PWM master power unit has a built-in low voltage protection relay. It will disconnect

the load once the battery voltage drops below the threshold voltage. The default setting is

10.8VDC.

3.7 Manual Battery Switch

The LMP1218-PWM unit offers a convenient way to switch off the output of the auxiliary battery

LMP1218-PWM Master Power Unit User Manual

IDM Technologie

on-board. It protects the auxiliary battery from being drained by electronics on board, completely

isolating the battery.

3.8 DC Distribution

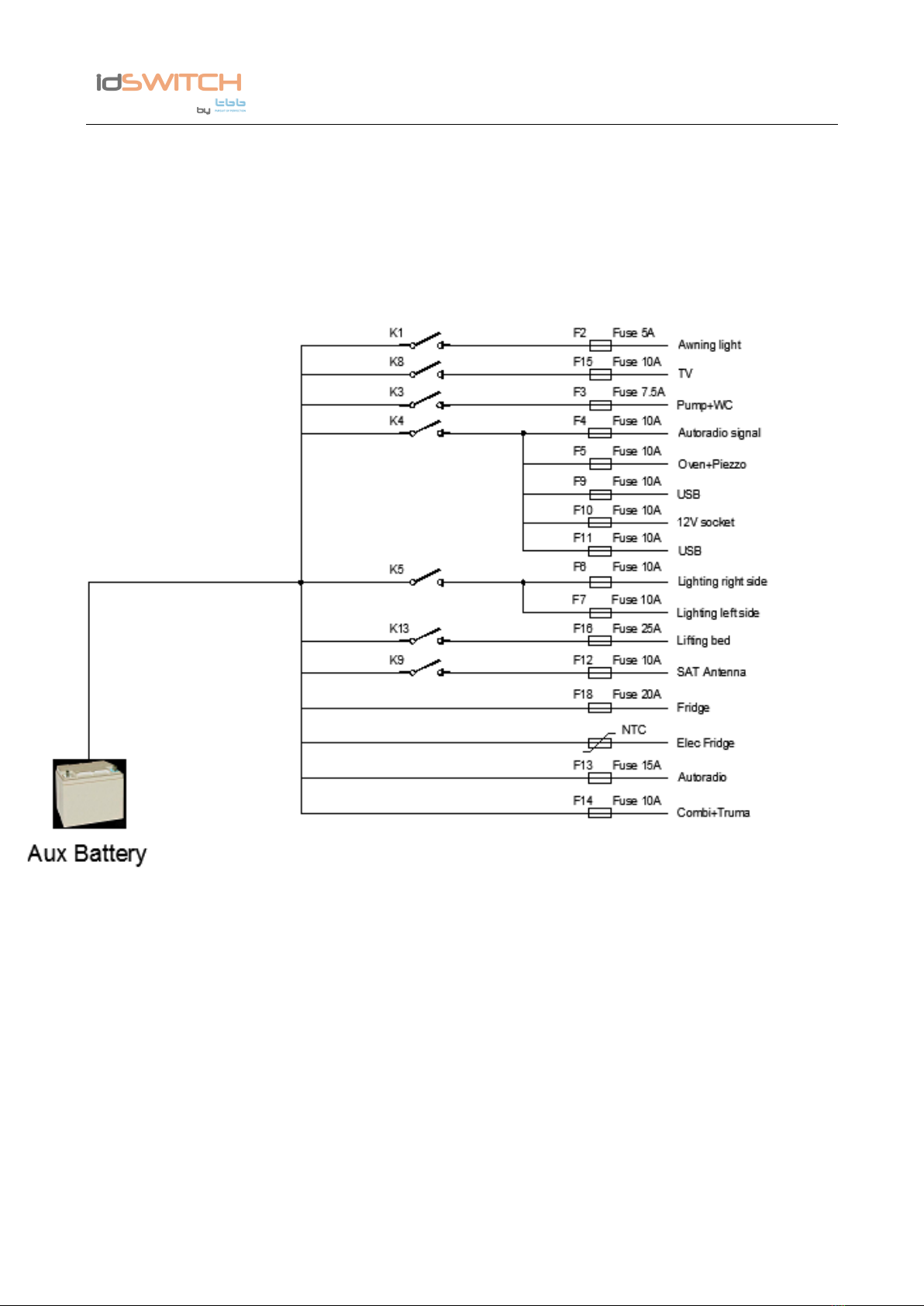

Figure 2 DC distribution schematic diagram
