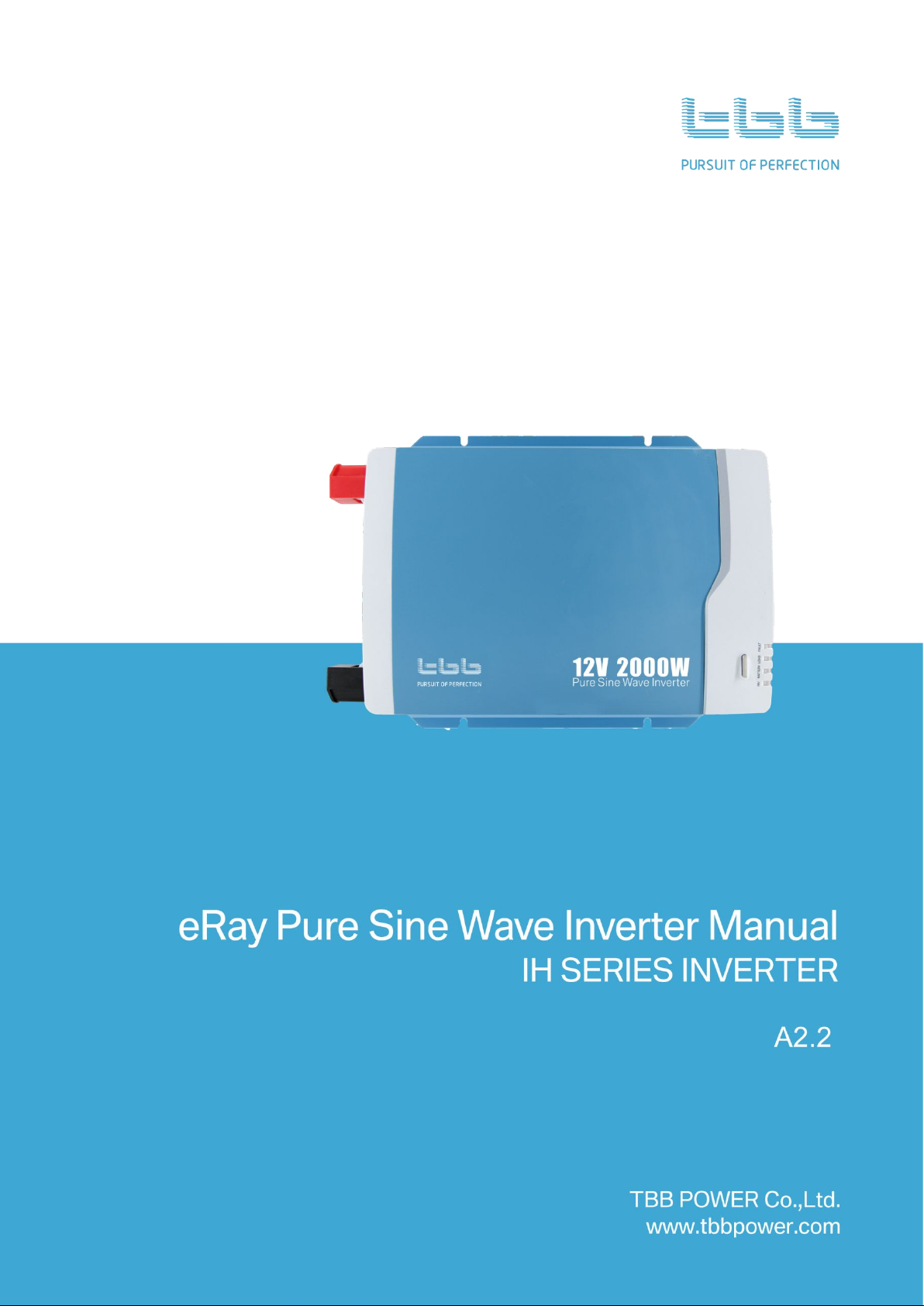

eRay Pure Sine Wave Inverter Manual
WARNING: HIGH VOLTAGE INSIDE
CAUTION: THE DC FUSE MUST HAVE BEENTURNED OFF BEFORE SERVICING
MADE IN CHINA
eRay Pure Sine Wave Inverter Manual
Disclaimer
Unless specially agreed in writing, TBB Power Co., Ltd
Take no warranty as to the accuracy, sufficiency of suitability of any technical or other information
provided in this manual or other documentation.
Assumes no responsibility or liability for loss or damage, whether direct, indirect, consequential or
incidental, which might arise out of the use of such information.
TBB offer standard warranty with its products, taking no responsibility for direct or indirect loss due
to equipment failure.
About TBB
TBB Power is a dedicated designer and manufacturer of sophisticated and environmentally rugged
power electronic equipment.
We are offering a wide range of power conversion product from battery charger, standalone inverter,
inverter charger combination and solar charge controller.
We ensure consistent product quality by subjecting every product to strictly choice of superior
quality components, rigorous testing and burn-in throughout the production process. TBB Power is
certified by TUV in accordance with ISO9001 and can be your reliable power solution provider.
About this Manual
This manual describes our product features and provides procedure of installations. This manual is
for anyone intending to install our equipment.
eRay Pure Sine Wave Inverter Manual
Contents
1. General Safety Instruction..........................................................................................................................1
1.1 Safety Instruction............................................................................................................................... 1
1.2 General Precaution........................................................................................................................... 1
1.3 Precaution regarding battery operation..........................................................................................1
2. Introduction................................................................................................................................................... 2
3. Structure........................................................................................................................................................3
3.1 Product drawing................................................................................................................................. 3
3.2 Control panel...................................................................................................................................... 5
3.3 Available sockets type.......................................................................................................................7
4. Configuration................................................................................................................................................ 8
4.1 Set the AC output voltage and frequency...................................................................................... 8
4.2 Power saving setting......................................................................................................................... 8
5. Installation...................................................................................................................................................10
5.1 Material list....................................................................................................................................... 10
5.2 Location.............................................................................................................................................10
5.3 Wiring + Fuserecommendation..................................................................................................... 10
5.4 Installation and Connection............................................................................................................11
5.4.1 Fix the equipment.................................................................................................................11
5.4.2 Connecting the cable........................................................................................................... 11
6. Operation.................................................................................................................................................... 15
6.1 Double Checking............................................................................................................................. 15
6.2 Inverter operation............................................................................................................................ 15
6.3 LED indicator status........................................................................................................................15
7.Trouble shooting......................................................................................................................................... 17
8.Specification................................................................................................................................................ 19
eRay Pure Sine Wave Inverter Manual
1
1. General Safety Instruction
1.1 Safety Instruction
As dangerous voltages and high temperature exist within the eRay inverter, only qualified and
authorized maintenance personnel are permitted to open and repair it.
This manual contains information concerning the installation and operation of the eRay inverter. All
relevant parts of the manual should be read prior to commencing the installation. Please follow the
local stipulation meantime.
Any operation against safety requirement or against design, manufacture, safety standard, and are
out of the manufacturer warranty.
1.2 General Precaution
1) Do not expose to dust, rain, snow or liquids of any type，it is designed for indoor use. DO NOT
block off ventilation, otherwise the INVERTER would be overheating.
2) To avoid fire and electric shock，make sure all cables selected with right gauge and being
connected well. Smaller diameter and broken cable are not allowed to use.
3) Please do not put any inflammable goods near to inverter.
4) Never place unit directly above batteries, gases from a battery will corrode and damage
inverter/charger.
5) Do not place battery over the inverter.
1.3 Precaution regarding battery operation
1) Use plenty of fresh water to clean in case battery acid contacts skin, clothing, or eyes and
consult with doctor as soon as possible.
2) The battery may generate flammable gas during charging. NEVER smoke or allow a spark or
flame in vicinity of a battery.
3) Do not put the metal tool on the battery, spark and short circuit might lead to explosion.
4) Remove all personal metal items such as rings, bracelets, necklaces, and watches while
working with batteries. Batteries can cause short-circuit current high enough to make metal
melt, and could cause severe burns.
eRay Pure Sine Wave Inverter Manual
2
2. Introduction
eRay inverter could supply a steady pure sine wave AC to various load on board, such as coffee
machine, microwave, hairdryer or sensitive electronics. It could bring home comfort and
convenience for your life or work on board, either motor home or utility vehicle.
Pure sine wave output
High frequency design featuring compact and light weight
200% surge capability for 1s
High efficiency up to 90%
Low static consumption power
Power save mode through dip switch
Thermal control fan
With built in USB charger, 5V/2A
Output voltage and frequency settable by dip switch
Complete protection with reverse polarity protection
DC input under/over voltage protection
Over temperature protection
Over load and short circuit protection
DC input reverse polarity protection by fuse
Optional remote control available
RS485 communication
eRay Pure Sine Wave Inverter Manual
3
3. Structure
3.1 Product drawing
Figure 3-1 1500/2000W
Figure 3-2 700/1000W
eRay Pure Sine Wave Inverter Manual
4
Figure 3-3 400W
Figure 3-4 Optional remote control RIH
eRay Pure Sine Wave Inverter Manual
5
3.2 Control panel
Rear panel
Figure 3-5 1500/2000W
Figure 3-6 700/1000W
Figure 3-7 400W
eRay Pure Sine Wave Inverter Manual
6
Front panel
Figure 3-8 1500/2000W
Figure 3-9 700/1000W
Figure 3-10 400W
