Targus Stow-N-Go Notebook Mouse User manual

USER GUIDE

Features and specifications are subject to change without notice. All

Group International, Inc. and Targus, Inc. Manufacturer / Importer: Unit

1202-07, 12/F, Tower 2, Metroplaza, No. 223 Hing Fong Road, Kwai Fong,

N.T. Hong Kong

AMW25AP / 410-1551-006A

Wireless Optical

Stow-N-GoTM

Notebook Mouse

Table of Contents

English

繁體中文

中文简体字

日本語

한국어

ภาษาไทย

Wireless Optical Stow-N-GoTM Notebook Mouse ...................2

無線Stow-N-GoTM筆記型光電滑鼠 ..........................................11

无线Stow-N-GoTM笔记本光电鼠标 ..........................................20

무선 Optical Stow-N-Go TM 노트북 광마우스 ...................29

เมาส์ออพติคัลไร้สายพร้อมคุณสมบัติ Stow-N-GoTM สำหรับโน๊ตบุ๊ค ....38

ワイヤレス・Stow-N-GoTMノートブックオプティカルマウ...................47

WIRELESS OPTICAL

STOW-N-GOTM

NOTEBOOK MOUSE

Introduction

Congratulations on your purchase of the Wireless Optical

Stow-N-GoTM Notebook Mouse. This mouse features a

tracking resolution switch for users who require more

precision or speed with various applications. The Stow-

N-Go receiver clips onto the mouse for ease of use while

traveling or on the go. This mouse also features a 4-

way scrolling tilt-wheel which allows for both vertical and

horizontal navigation.

System Requirements

• Hardware - USB port

• Windows® 2000/XP

• Windows Vista™

• Mac OS X 10.4 (or greater)

Wireless Optical Stow-N-GoTM Notebook Mouse

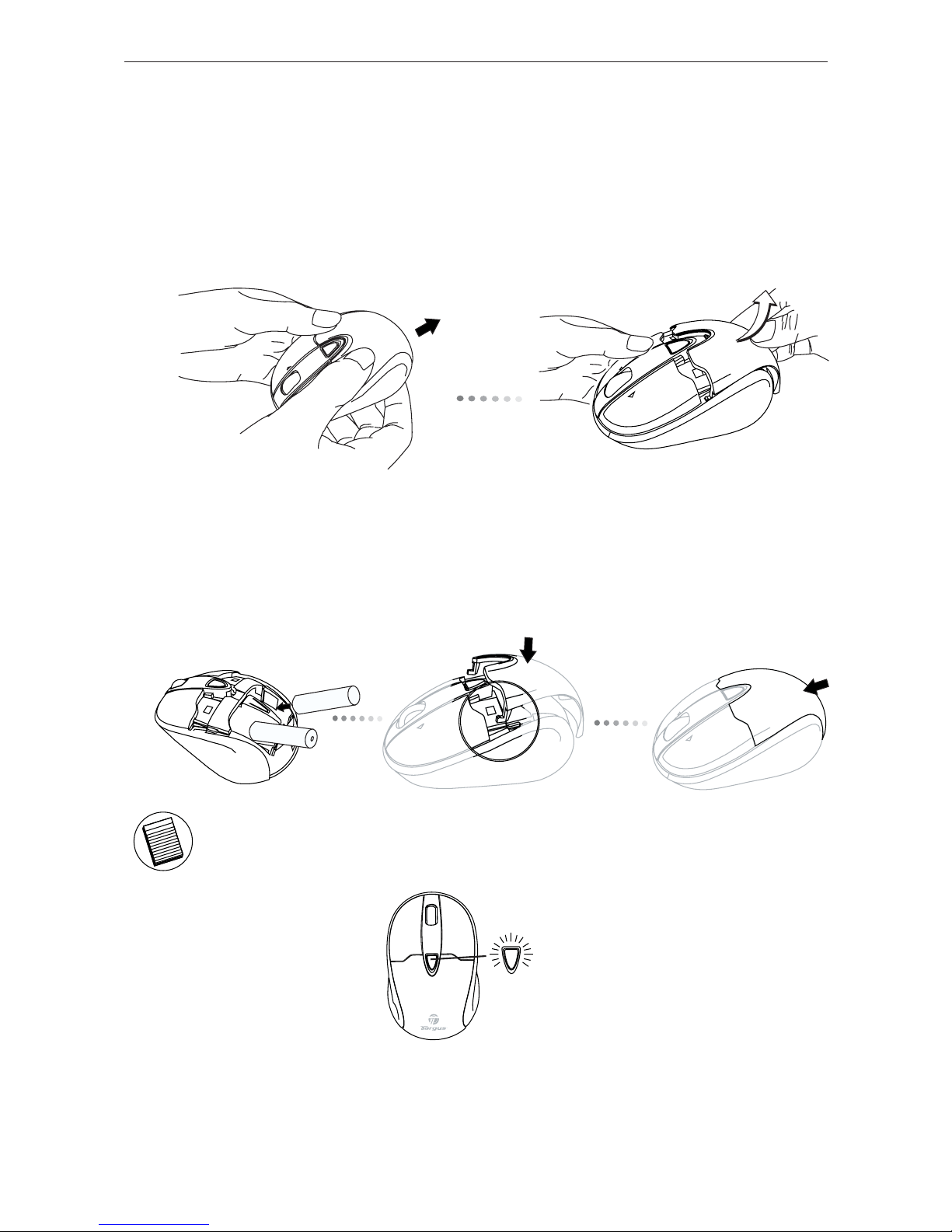

Installing the Batteries

1. Remove the battery cover from the back of the mouse by sliding

off the cover of the mouse. Hold the mouse in your hands and with

the back of the mouse away from you. Press down on the corners

of the battery cover and slide towards the back of the mouse. Lift

the cover off from the back of the mouse.

2. Insert two AA-size batteries, making sure that the positive (+)

and negative (-) ends of each battery match the polarity indicators

inside the battery compartment. To replace the battery cover,

place the cover on top of the mouse and slide forward until it clicks

into place.

NOTE: WHEN THE BATTERY IS LOW, THE LOW POWER INDICATOR LIGHT LOCATED IN

THE DPI SWITCHING BUTTON WILL FLASH RED. PLEASE REPLACE WITH TWO NEW

AA-SIZE BATTERIES.

DPI switching

button

When power is on, the mouse goes into “sleep mode” after 8

minutes of inactivity. To activate the mouse, press any mouse

key.

Wireless Optical Stow-N-GoTM Notebook Mouse

Establishing the Connection

(A) Remove the USB receiver from the bottom of the mouse.

This will activate the on/off switch.

NOTE: TO TURN THE MOUSE OFF, SIMPLY PLACE THE USB RECEIVER BACK INTO THE

STORAGE SLOT. THIS WILL MAXIMIZE BATTERY LIFE WHEN NOT IN USE.

(B) Plug the USB receiver into an available USB port on your

computer.

(A)

(B)

(C)

(D) Press the setup key on the bottom of the mouse.

(D)

This device has 256 identiﬁcation codes that allow the mouse and

its receiver to operate without interference from other radio fre-

quency devices. If you experience interference during use, repeat

steps C and D to change the connection channel.

Wireless Optical Stow-N-GoTM Notebook Mouse

Installing the tilt-wheel software driver

This mouse is equipped with a 4-way scrolling function.

To enable the tilt-wheel function, the software driver must be

installed.

NOTE: THE TILT-WHEEL FEATURE IS SUPPORTED BY THE MAC OPERATING SYSTEM.

NO DRIVER INSTALLATION IS NECESSARY. THE FOLLOWING STEPS ARE FOR WIN-

DOWS OPERATING SYSTEMS ONLY.

1. Please download the software driver (Model # AMW25) from

the ofﬁcial Targus web site: http://www.targus.com

Save the setup.exe ﬁle to your computer and double click on the

icon to launch the installation process.

2. The Installation Wizard window will prompt.

Follow the on-screen instructions to complete the installation.

NOTE: PLEASE SELECT THE “3 BUTTON MOUSE” OPTION WHEN PROMPTED TO DO

SO.

After the software driver is successfully installed, there will

be a “Tilt Mouse” icon located in the task bar.

Wireless Optical Stow-N-GoTM Notebook Mouse

Using the 4-way scrolling tilt-wheel

Pressing the scroll-wheel left or right, enables the horizontal

scrolling feature.

NOTE: DOUBLE CLICK ON THE “TILT MOUSE” ICON IN THE TASK BAR WILL LAUNCH

THE MOUSE SETTINGS SCREEN. YOU CAN EDIT THE SETTINGS AND PREFERENCES

IN THIS WINDOW.

Activating the Universal Zoom function

The Universal Zoom function

can be enabled in the Mouse

Setting screen.

In the Mouse Setting screen,

under the Button tab, scroll

down the function list and

select the Universal Zoom

function then click .

Press on the scroll wheel to

activate the zoom function.

Wireless Optical Stow-N-GoTM Notebook Mouse

Adjusting the DPI Setting

This mouse features 3 selectable resolution settings (1600 / 1200

/ 800 DPI). By pressing the resolution switch, you can instantly

adjust the tracking speed of the mouse. When the DPI is set at

1600, the indicator light will glow brightest and when it is set at

1200, the light will become dimmer. The indicator will be off when

the DPI is set at 800 DPI. The setting will be saved when the

mouse is turned off. The indicator light will shut off in 10 seconds

after selecting the desired resolution.

1600 DPI

1200 DPI

800 DPI

Windows XP:

After selecting the desired resolution, you can also ﬁne tune

the sensitivity. This can be adjusted in the “control panel” of the

Windows operating system.

Click on Start --> Setting --> Control Panel --> Mouse

In the “mouse properties” window, locate the “pointer options” tab.

Under “motion”, use the slider to change the speed of the mouse.

Click apply to conﬁrm the changes.

Windows XP

Wireless Optical Stow-N-GoTM Notebook Mouse

Mac OS:

After selecting the desired resolution, you can also ﬁne tune the

sensitivity. This can be adjusted in the “System Preference” of the

Mac operating system.

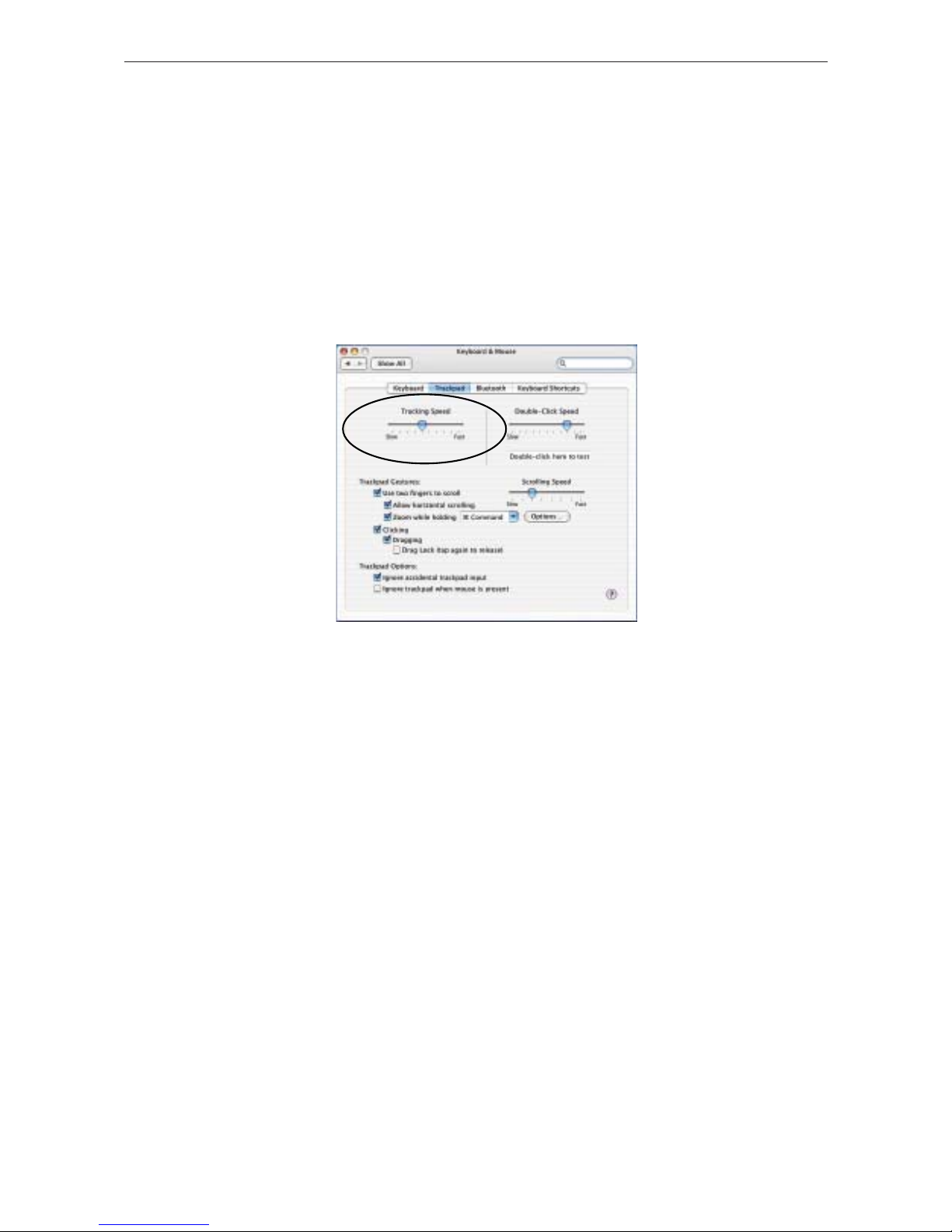

Click on the Apple logo --> System Preference --> Keyboard &

Mouse

In the “Keyboard & Mouse” window, locate the “Trackpad” tab.

Under “tracking speed”, use the slider to change the speed of the

mouse.

Mac OS

Wireless Optical Stow-N-GoTM Notebook Mouse

RF 27.045MHz

Battery Type Alkaline battery AA

Effective RF

Communication Range

1.2 meters max

RF output power 1 mW max

Power Consumption 15mA max

Transmitter

Receiver

RF 27.045MHz

Interface USB 1.1

Power USB Bus Powered 5V DC

Product Speciﬁcation

This mouse is equipped with the latest sensor technology that conserves

power and provides up to six months of battery life. Battery life is determined

using one hour of continuous use, ﬁve days per week.
