3
TARGUS ERGO D-
PRO™ DESKTOP
STAND FOR
NOTEBOOKS
Introduction
Congratulations on your purchase of the Targus Ergo D-Pro
Desktop Stand for Notebooks. The D-Pro is a unique,
ergonomically correct desktop notebook stand that allows a
notebook computer to be comfortably used as a desktop
replacement. The D-Pro provides a compartment for
storage of a Targus Mobile Docking Station or hub and
cable management for a tidy workspace.
The D-Pro incorporates a patent pending document holder.
This document holder is designed to create a functional
workspace with an optimal viewing distance between
documents, screen and keyboard.
4
Targus Ergo D-Pro™ Desktop Stand for Notebooks
Setting Up The D-Pro
1 Press buttons (A) on both sides to raise the D-Pro to
desired angle.
A
A
2 Open the document holder and flip it towards you.
5
Targus Ergo D-Pro™ Desktop Stand for Notebooks
3 Check that the D-Pro is assembled correctly and
carefully place your notebook on the stand as shown.
4 Fold the document holder up into place. Adjust the
inclination of the document holder by using the shift
buttons (B). Attach your external mouse and keyboard
and you’re ready to work efficiently and ergonomically.
6
Targus Ergo D-Pro™ Desktop Stand for Notebooks
Cable Management
Without Targus Mobile Docking
Station

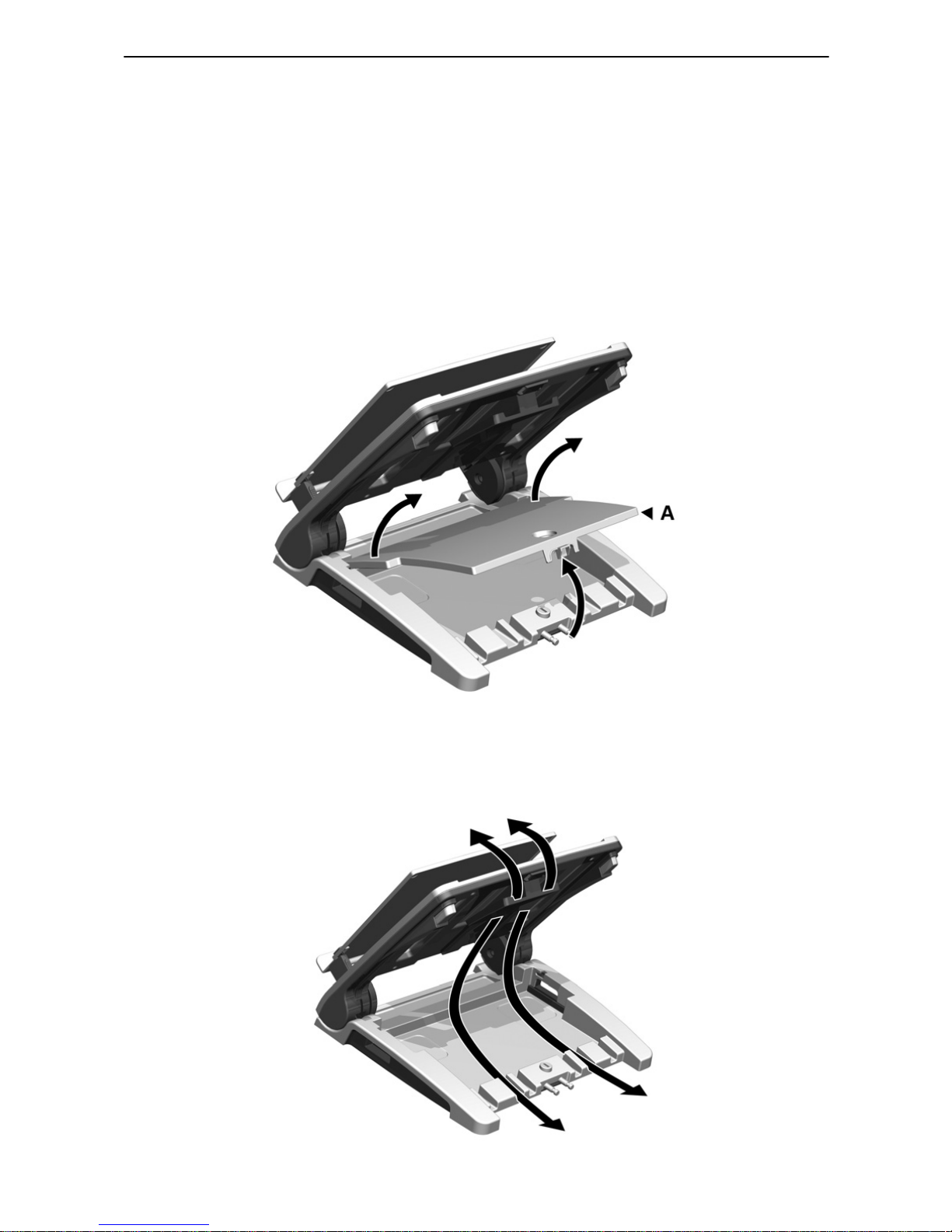

1 Remove compartment cover (A).
2 Guide cables through as indicated and reinstall
compartment cover.
7
Targus Ergo D-Pro™ Desktop Stand for Notebooks
With Targus Mobile Docking
Station

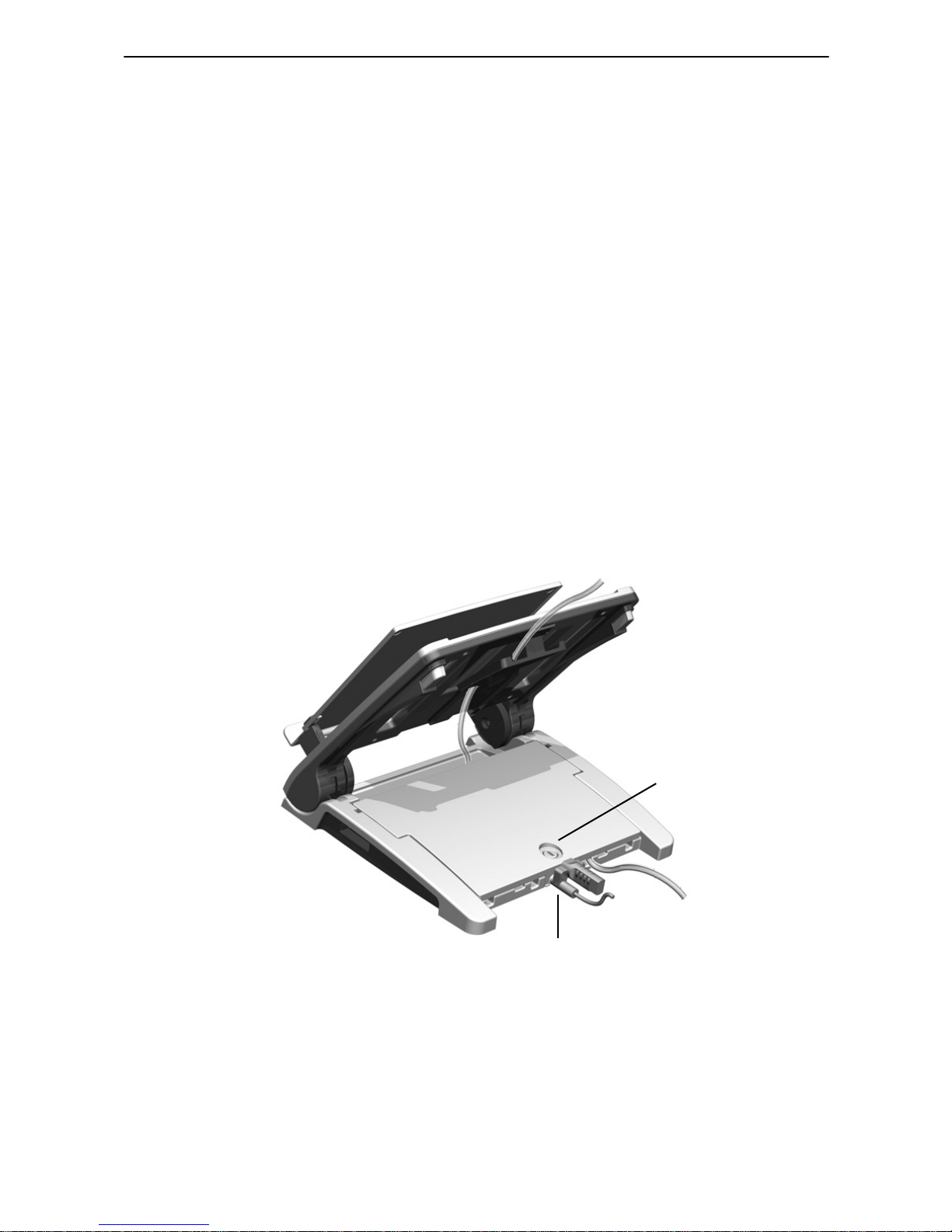

1 Remove compartment cover (A).
2 Place the Mobile Docking Station in the cavity.
3 Guide cables through (B) and connect them to the
docking station.
C
8
Targus Ergo D-Pro™ Desktop Stand for Notebooks
4 Connect your notebook and power supply at (C).
5 Replace compartment cover.
Connecting a Security Cable
The D-Pro offers two options for securing your notebook
and peripherials; a slot lock or video port lock.
Follow the usage instructions included with your security
cable.
Slot lock
Video port lock
9
Targus Ergo D-Pro™ Desktop Stand for Notebooks
Port Replicator Module
The Port Replicator Module (PRM) allows you to mount
your OEM docking station to the D-Pro.
Attention IBM & Toshiba Users
Your docking station may be positioned and attached to the
PRM with the screw rivets that are provided. Attach your
docking station to the PRM by screwing the two rivets into
the PRM plate and docking station before securing to the
D-Pro with the knobs.
Alternatively you may use the hook and loop fasteners
provided. For instructions, please go to “Outlining the
Height” on page 10.

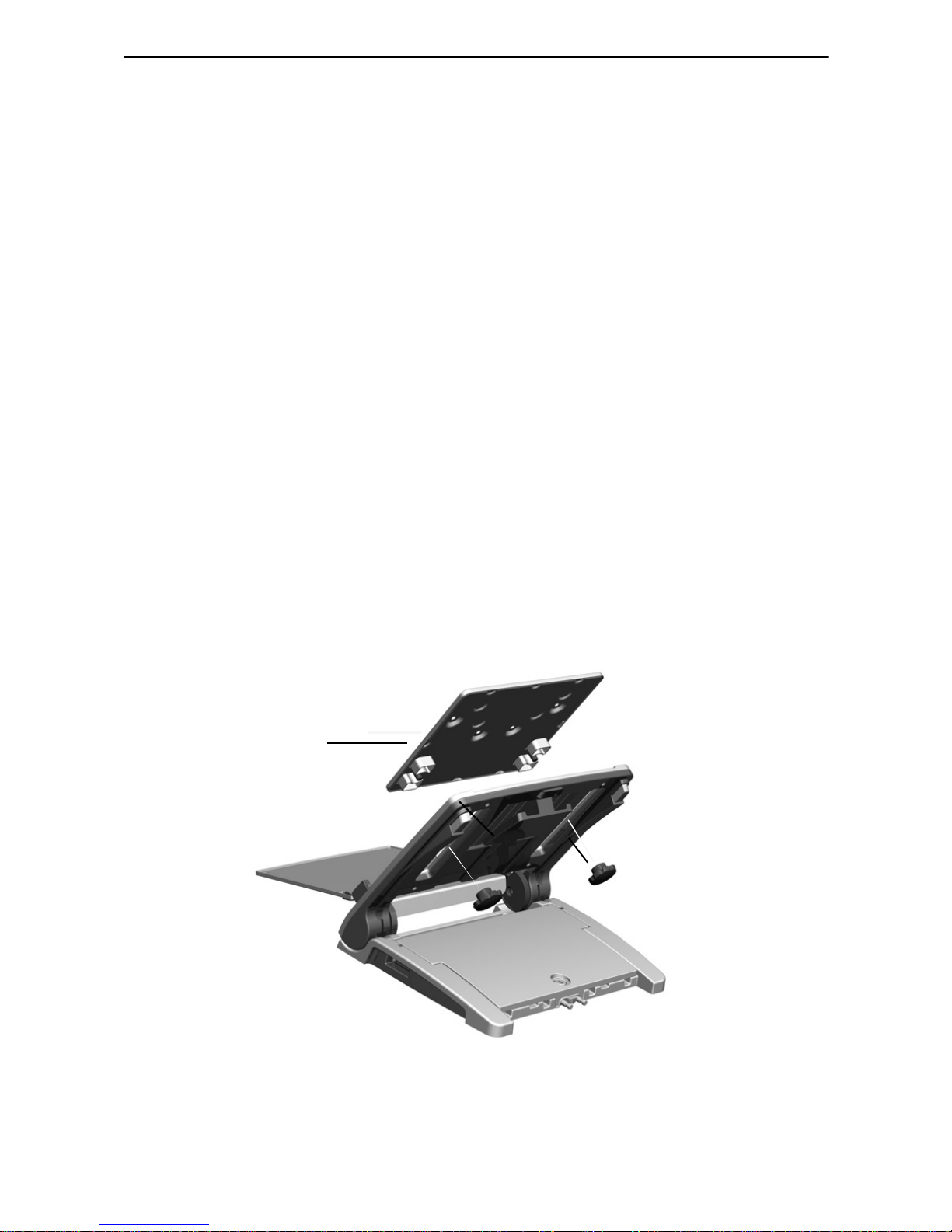

1 Place the PRM onto the D-Pro and screw the knobs
onto the plate.
Knobs
PRM
10
Targus Ergo D-Pro™ Desktop Stand for Notebooks
2 Connect your notebook first to your docking station and
place them together onto the D-Pro, making sure your
notebook is supported at (B) and centred.
B
3 Use the knobs to position the PRM after determining the
proper position to attach the docking station according
to the outlining instructions below.
Outlining the Height
Refer to the instructions for your model of docking station:
IBM Thinkpad Dock ll: Line up the holes on the back of
your docking station with the holes on the back of the
PRM at (D).
HP DC 367B port replicator: Line up the top of your port
replicator with the indication lines on the PRM at (E).
