Tao Motor TBR7 User manual
READ THIS MANUAL CAREFULLY! It contains
important safety and service information.
TBR7 Owner’s Manual
THIS IS AN UNAUTHORIZED EDIT OF THE ORIGINAL MANUAL.
IT HAS BEEN EDITED FOR SPELLING AND CLARITY AND IS IN
NO WAY ENDORSED OR ACKNOWLEDGED BY TAO MOTOR.
THE EDIT IS INTENDED TO ENHANCE THE ORIGINAL MANUAL
AND NOT REPLACE IT.
This vehicle should only be assembled and prepped by an authorized
Tao Motor Dealer or professional motorcycle mechanic. You should
never try or attempt assembly of this vehicle; it should be done by
professionals. Death or serious injury could result from failure to
follow these warnings and instructions.
Please read carefully before operating this vehicle!
Thank you for your purchasing the Tao Motor TBR7 motorcycle.
This manual covers the main data, basic structure, and main procedures of operation, adjustment,
maintenance and troubleshooting of this motorcycle. Products are always subject to further improvement,
which will cause some difference between the vehicle and this manual.
SAFETY INFORMATION ................................................................. 1-3
WARNING & SAFETY LABELS ............................................................ 4
SPECIFICATIONS ............................................................................ 5,6
DESCRIPTION ................................................................................ 7-9
INSTRUMENT CLUSTER................................................................... 10
IGNITION SWITCH .......................................................................... 11
FUEL COCK/VALVE ......................................................................... 12
STARTING ENGINE ........................................................................ 13
MAIN SWITCH ............................................................................... 14
HEADLIGHT, HORN, TURN SIGNAL SWITCH ASSEMBLY ................... 15
GEAR SHIFTER ................................................................................ 16
ENGINE OIL .................................................................................... 17
ENGINE OIL CHANGE ...................................................................... 18
SPARK PLUG .................................................................................. 19
AIR FILTER ELEMENT ...................................................................... 20
THROTTLE CABLE ........................................................................... 21
ENGINE IDLE ADJUSTMENT ............................................................. 22
CLUTCH LEVER ADJUSMENT ............................................................ 23
HYDRAULIC FRONT BRAKE .............................................................. 24
REAR BRAKE ................................................................................... 25
SIDE STAND, SPROCKET .................................................................. 26
DRIVE CHAIN .................................................................................. 27
CHAIN ADJUSMENT ........................................................................ 28
DRIVE CHAIN LUBRICATION ............................................................ 29
BATTERY ......................................................................................... 30
BATTERY CHARGING ....................................................................... 31
WASHING VEHICLE ........................................................................ 32
MAINTENANCE SCHEDULE ............................................................. 33
GENERAL MAINTENANCE AND LUBRICATION CHART ................. 34-36
PERIODIC MAINTENANCE RECORD ................................................. 37
ELECTRICAL DIAGRAM .................................................................... 38
EMISSION CONTROL SYSTEM WARRANTY.................................. 39-42
TABLE OF CONTENTS
SAFETY INFORMATION
Important Safety Information
Take responsibility for your own safety and understand the challenges you can meet while riding.
There is much that you can do to protect yourself when you ride. You'll find many helpful recommendations throughout this manual. The
following are a few that we consider most important.
Always Wear a Helmet
Helmets significantly reduce the number and severity of head injuries, so always wear an approved motorcycle helmet and make sure your
passenger does the same. We also recommend that you wear eye protection, motorcycle boots, gloves, and other protective gear.
Learning how to ride your motorcycle
Take time to become familiar with how this motorcycle works and handles. Practice in a safe area until you build your skills and get accustomed
to the motorcycle's size and weight.
Because many accidents involve inexperienced or untrained riders, we urge all riders to take a certified course approved safety learning class.
Developing off-road riding skills is a gradual step-by-step process. Start by practicing at low speeds in a safe area and slowly build your skills.
On-Road Riding
The most frequent motorcycle collision happens when a car turns left in front of a motorcycle. Another common situation is a car moving
suddenly into your lane.
Always pay attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or make an
evasive maneuver.
Make yourself more visible, wear bright reflective clothing, position yourself so other drivers can see you, signal before turning or changing
lanes, and use your horn when it will help others notice you.
Be Alert for Off-Road Hazards
The terrain can present a variety of challenges when you ride off-road. Continually "read" the terrain for unexpected turns, drop-offs, rocks,
ruts and other hazards. Always keep your speed low enough to allow time to see and react to hazards.
11
SAFETY INFORMATION
Ride Within Your Limits
Pushing limits is another major cause of motorcycle accidents. Never ride beyond your personal abilities or faster than conditions warrant.
Remember that alcohol, drugs, fatigue, and inattention can significantly reduce your ability to make good judgments and ride safely.
Don't Drink and Ride
Alcohol and riding don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with
every additional drink. So don't drink and ride, and don't let your friends drink and ride either.
Keep Your TBR7 In Safe Operating Condition
It's important to keep your motorcycle properly maintained and in safe riding condition. Having a breakdown can be difficult, especially if you
are stranded off-road far from help. To help avoid problems, inspect your motorcycle before every ride and perform all recommended
maintenance. Never exceed load limits.
Modification
Modifying your motorcycle or using non OEM parts or accessories can make your motorcycle unsafe. Before you consider making any
modifications or adding an accessory, be sure to read the following information.
Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding accessories and modifications.
Tao Motor recommends that you use only genuine OEM accessories that have been specifically designed and tested for your motorcycle.
2
• Motorcycle boots with non-slip soles to help protect your feet and ankles.
•Leather gloves to help protect your hands.
•A motorcycle riding suit or jacket for comfort as well as protection.
Bright-colored and reflective clothing can help make you more noticeable in traffic. A void loose clothes that could get caught on any part
of your motorcycle.
Rider Training
Developing your riding skills is an on-going process. Even if you have ridden other motorcycles, take time to become familiar with how this
motorcycle works and handles. Practice riding the motorcycle in a safe area to build your skills. Do not ride in traffic until you get
accustomed to the motorcycle's controls, and feel comfortable with its size and weight.
SAFETY INFORMATION
Helmets and Eye Protection
A helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your
head comfortably and securely. A bright-colored helmet and reflective strips can make you more noticeable in traffic.
An open-face helmet offers some protection, but a full-face helmet offers more. Regardless of the style, look for a DOT (Department of
Transportation) sticker in any helmet you buy (USA only). Always wear a face shield or goggles to protect your eyes and help your vision.
Warning
Not wearing a helmet increases the chance of serious injury or death in a crash.
Be sure you and your passenger always wear a helmet, eye protection, and other protective apparel when you ride.
On-Road Gear
In addition to a helmet and eye protection, we also recommend:
33

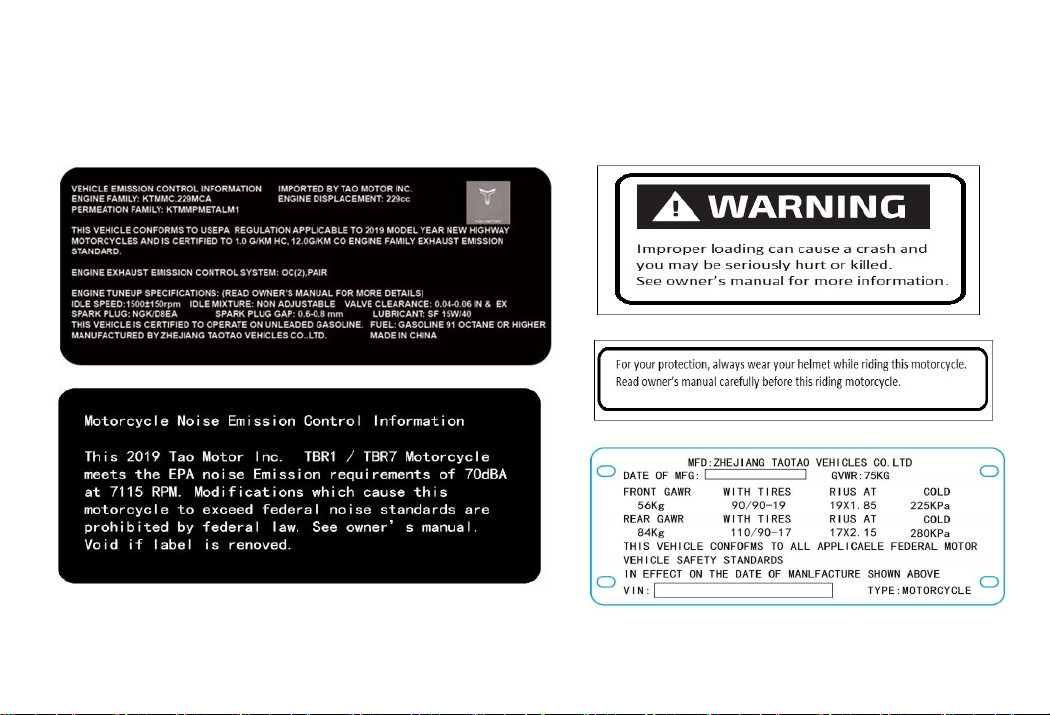

WARNING & SAFETY LABELS
Please read and understand all of the labels on your TBR7. These labels contain important information for safe and proper operation. Never
remove any labels from your motorcycle. If a label becomes difficult to read or comes off, request a new replacement label from your local Tao
Motor dealer.
44
SPECIFICATIONS
ModelTBR 7 Displacement 229cc
Overall Length
2040mm
Cylinder Bore×Stroke
67mm×65mm
Overall Width
840mm
Compression Ratio
9.1:1
Overall Height
1200mm
Power Output/Max. RPM 11kW/6500 RPM
Wheelbase
1345mm
Maximum Torque @ RPM 17.5N.m @ 5500 RPM
Dry Weight 130 kg Idle RPM 1500 RPM ±150
Max. Load
150kg(including the driver)
Front Wheel
90/90-19
Spark Plug
D8EA
Rear Wheel
110/90-17
Spark Plug Gap
0.6mm～0.8mm
Maxiumum Speed
≧90km/h
Valve Clearance Intake Valve:0.04mm～0.06mm
Braking Distance
≦7m(30km/h)
Exhaust Valve:0.04mm～0.06mm
Max. Incline
≧20°
Continued...
55
SPECIFICATIONS
Volume of Lubricating Oil
1.1L
Fuse
10A
Fuel Tank Capacity 12.5L
Battery
12V9Ah
Transmission Gear RatiosIgnition Type
C.D.I
1st gear
2.909
2nd gear
1.867
3rd gear
1.389
4th gear
1.150
5th gear
0.9545
66
