Tannoy Arena Lite User manual

Arena Lite is a special edition to the Arena family designed to

make Arena’s inspirational style and award-winning performance

more aﬀordable than ever. The same stunning looks, the same

precision build quality and the same award-winning sound, but

now oﬀered as an aﬀordable ‘Lite’ package with the wide choice

of Arena accessories available as optional extras.

Core to Arena and Arena Lite systems, the beautifully formed

satellite speakers feature Tannoy’s point source Dual Concentric™

drivers

and WideBand™ technology for the ultimate in small

speaker performance.

Reassuringly weighty, the precision-cast

alloy enclosures are ﬁnished with a soft-touch baﬄe and

high-gloss coachwork to maintain Arena’s designer chic throughout.

The Arena Lite package comes with Tannoy’s potent yet discreet

TS10 subwoofer. This compact sub features a 300 Watt ampliﬁer

and 10 inch bass driver to deliver a huge home cinema punch

and is tuned to seamlessly integrate with the satellite speakers.

With Arena Lite satellites and centre speakers available in piano

black or deep-lustre silver, owners can create wholly unique

colour ways by mixing and matching optional rubber baﬄe trims

(see accessories for colour options), wall brackets, stands and

speakers grilles. A huge variety of colour combinations are possible,

from subtle shades to dramatic contrasts, making Arena Lite the

ﬂexible and aﬀordable way to own Tannoy’s ﬂagship compact

loudspeaker system.

The Arena system combines sublime performance with

design perfect for contemporary home entertainment.”

Home Cinema Choice

the essential arena

technology inspired design

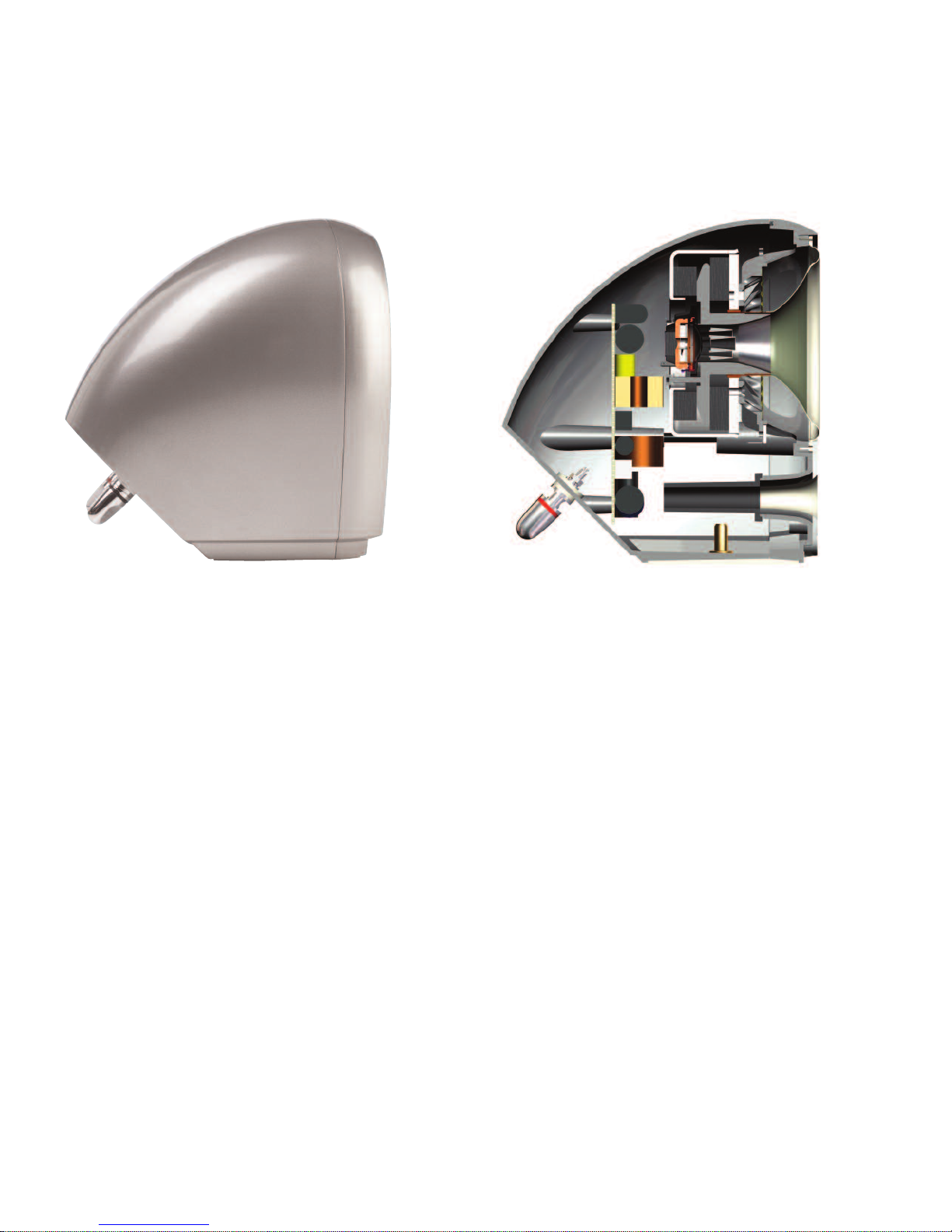

Behind the elegant and precision crafted form of the Arena

satellite speakers lies cutting edge audio technology. Tannoy’s

acclaimed Dual Concentric™ driver design is further enhanced in

the Arena with WideBand™ technology. Combining a rigid

titanium dome and neodymium magnet the WideBand™ tweeters

deliver pin-point imaging and smooth high-frequency extension

to over 50kHz.

Ideal for Dolby TrueHD and DTS HD audio formats on Blu-ray

and HD DVD discs, the extended bandwidth provides a superbly

focused soundstage and wide dynamic imaging of special eﬀects

to fully immerse you in the movie or music experience.

The Arena satellites are accurately timbre-matched allowing

action to pan seamlessly around the room, while the dedicated

centre channel speaker is enhanced with a supplementary bass

driver giving outstanding tonal depth and clarity to dialogue.

Each Arena shell is constructed from heavyweight alloy to inhibit

cabinet derived colouration and the curved shape reduces internal

standing waves to almost zero. This celebrated driver and cabinet

technology has seen the Arena system gain considerable international

acclaim, winning Best Buy awards and ﬁve-star reviews consistently

for over three years.

With just the essential ingredients, Arena Lite makes this award

winning combination more aﬀordable to own than ever.

As if to mirror the precision build and fastidious attention

to cosmetic detail, the sound is polished, articulate and

staggeringly detailed.”

Digital Home Magazine.

CCEENNTTRREE && SSAATTEELLLLIITTEESS

RReeccoommmmeennddeedd mmpplliieerr ppoowweerr

MMxx SSeennssiittiivviittyy ((22..8833VVoollttss @@ 11mm))

NNoommiinnll iimmppeeddnnccee

FFrreeqquueennccyy rreessppoonnssee ((--66ddBB))

DDrriivveerrss

Dual ConcentricTM

Supplementary bass driver (centre only)

CCrroossssoovveerr ffrreeqquueennccyy

SStteelllliittee WWeeiigghhtt

SStteelllliittee DDiimmeennssiioonnss HH xx WW xx DD

CCeennttrree WWeeiigghhtt

CCeennttrree DDiimmeennssiioonnss HH xx WW xx DD

FFiinniisshh

15 - 100 Watts

88dB

8 Ohms

80Hz - 54kHz

LF 100mm (4.00”)

mixed ﬁbre pulp cone

HF 19mm (0.75”) titanium done

with neodymium magnet system

100mm (4.00”) mixed ﬁbre pulp cone

1.75kHz (mid to high)

80Hz (to subwoofer)

2.5kg (5.5lbs)

187 x 133.5 x 175.5mm

(7.36 x 5.26 x 6.91”)

4.0kg (8.8lbs)

133 x 245 x 149mm

(5.24 x 9.65 x 5.87”)

Silver or black

SSUUBBWWOOOOFFEERR

PPoowweerr oouuttppuutt

FFrreeqquueennccyy rreessppoonnssee ((--66ddBB))

LLiimmiitt ffoorr uussbbllee oouuttppuutt

DDrriivveerr

IInnppuuttss

OOuuttppuuttss

IInnppuutt lltteerr

AAuuttoo MMuuttee

PPoowweerr rreeqquuiirreemmeennttss

AAddddiittiioonnll ffeettuurreess

WWeeiigghhtt

DDiimmeennssiioonnss HH xx WW xx DD

FFiinniisshh

300W RWS

29Hz

16Hz

250mm (10.0”)

2 x line level phono

2 x XLR balanced

(direct or 80Hz highpass)

2nd order low pass,

50Hz - 150Hz, -6dB

After approximately 12 mins in

absence of input signal

AC 120V / 60Hz

AC 230V / 50Hz

hase control

Crossover defeat switch for LFE operation

Soft limiting to avoid overload

LF extension control

9.5kg (21lbs)

323 x 286 x 286 mm

(12.72 x 11.26 x 11.26”)

Soft-touch grey

Tannoy adopts a policy of continuous improvement and product specification is subject to chan e.

Tannoy United Kin dom T: 00 44 (0) 1236 420199 E: [email protected]

Tannoy North America T: 00 1 (519) 745 1158 E: [email protected]

Tannoy Deutschland T: 00 49 (180) 1111 881 E: anfra [email protected]

Tannoy France T: 00 33 (0)1 7036 7473 E: [email protected]

the detail

the accessories

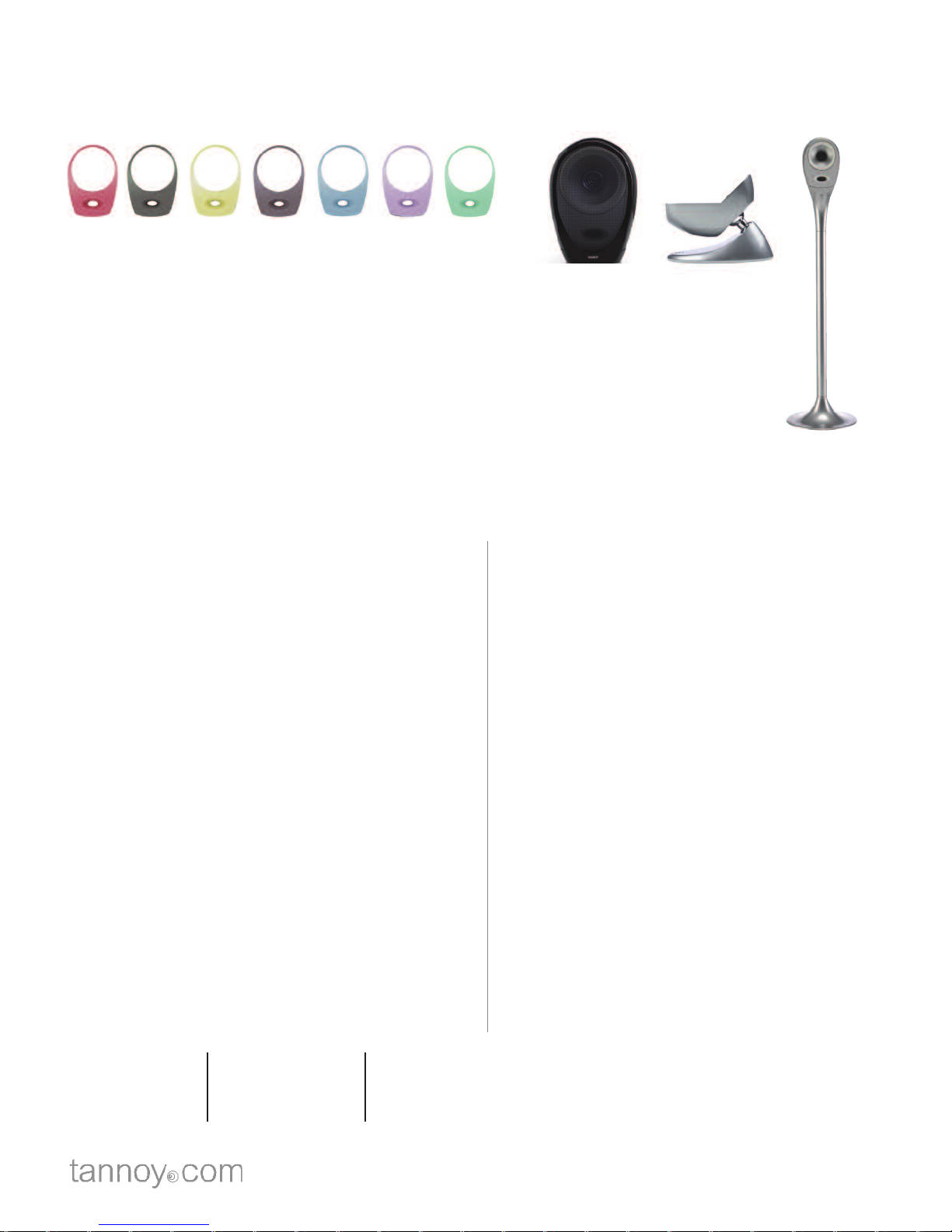

TThhee ssyysstteemm ooeerrss wwiiddee vvrriieettyy ooff cccceessssoorriieess

giving you a ﬂexible solution to complement your décor:

(a) Rubber coloured trims

(b) Grille

(d) Floor stand

Coral aciﬁc MintLilacSaﬀronBlack Bronze

(a) (b) (c) (d)

6483 1035
