T&S B-0133-B User manual

P/N:

DATE:

DRAWN:

CHECKED:

APPROVED:

098-014497-45 Rev.8

06-05-19

TED

JRM 06-28-19

JHB 07-19-19

Step 1:

Apply plumber’s putty to backside of body and insert

into mounting hole. Line up water supply lines and

couplings, attach and tighten with wrench.

Step 4:

Grab riser assembly and lower the EasyInstall® end-

fitting into faucet body. Press down until the end-

fitting “pops” in.

Step 2:

Apply plumber’s tape to top of riser threads and

attach to spring assembly. Tighten with wrench.

Step 3:

Make sure that the EasyInstall® locking washer is

seated properly inside the faucet body.

Step 5:

Lock the EasyInstall® locking nut in place and tighten

with wrench.

Limited Three Year Warranty

(Commercial Applications)

T&S warrants to the original purchaser (other than for purposes of resale) that such product is free

from defects in material and workmanship for a period of three (3) years from the date of purchase.

During this three-year warranty period, if the product is found to be defective, T&S shall, at its option,

repair and/or replace it. To obtain warranty service, products must be returned to.....

T&S Brass and Bronze Works, Inc.

Attn: Warranty Repair Department

2 Saddleback Cove

Travelers Rest, SC 29690

Shipping, freight, insurance, and other transportation charges of the product to T&S and the return

of repaired or replaced product to the purchaser are the responsibility of the purchaser. Repair and/

or replacement shall be made within a reasonable time after receipt by T&S of the returned product.

This warranty does not cover items which have received secondary ﬁnishing or have been altered

or modiﬁed after purchase, or for defects caused by physical abuse to or misuse of the product, or

shipment of the products.

Any express warranty not provided herein, and any remedy for Breach of Contract which might

arise, is hereby excluded and disclaimed. Any implied warranties of merchantability or ﬁtness for a

particular purpose are limited to three years in duration. Under no circumstance shall T&S be liable

for loss of use or any special consequential cost, expenses or damages.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or

limitation of incidental or consequential damages, so the above limitations or exclusions may not

apply to you. Speciﬁc rights under this warranty and other rights vary from state to state.

Attention California Residents:

WARNING This product can expose you to chemicals including Lead, Chromium

(hexavalent compounds) and Phthalates (DEHP) which are known to the State of California

to cause cancer and birth defects or other reproductive harm.

For more information go to

www.P65Warnings.ca.gov.

PRE-RINSE UNIT

B-0133 Series

(B-0133-B, Pre-Rinse

Unit w/ Wall Bracket)

Installation and

Maintenance

Instructions

* Parts included in B-10K parts kit

Set Screws (2)

Clamp

Screws (2)

OPTIONAL (-B Models)

Wall Bracket Installation:

1. Fasten wall flange to wall using wall mount screws

2. Place 2-piece clamp assembly around riser and tighten

clamp screws securely.

3. Tighten set screws securely.

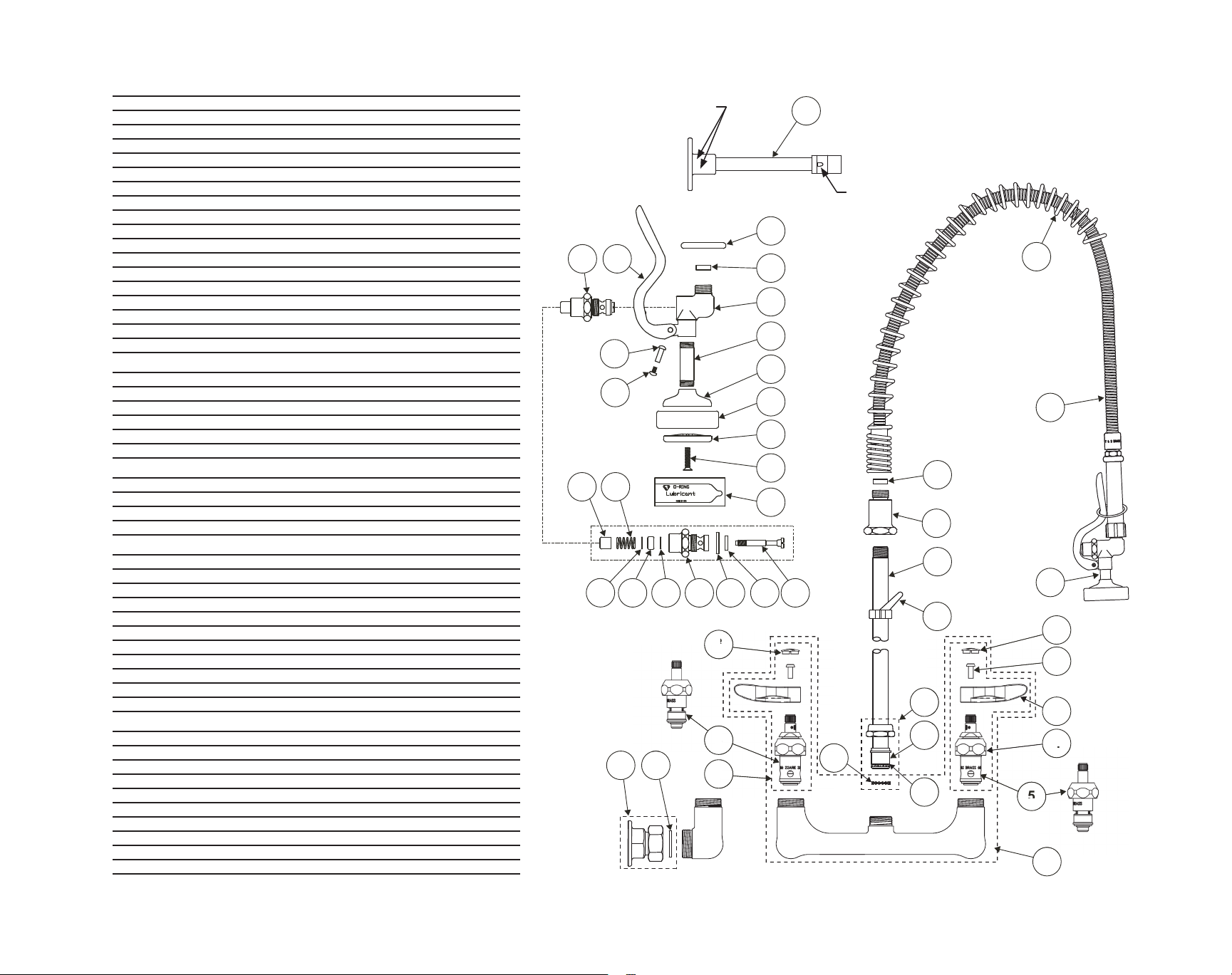

Base Faucet Assemblies

1 Faucet Body Assembly w/ Eterna Cartridges B-0230-LN

2Faucet Body Assembly w/ Cerama Cartridges B-0230-CR-LN

2 Asm, Quarter-Turn Eterna Cartridge, RTC (new style) 002712-40NS

3Asm, Quarter-Turn Cerama Cartridge, RTC (new style) 012446-25NS

3 Cartridge Only, Eterna w/ Spring Checks, RTC 012443-40NS

3Cartridge Only, Cerama w/ Check Valves, RTC 012394-25NS

4 Asm, Quarter-Turn Eterna Cartridge, LTC (new style) 002711-40NS

2Asm, Quarter-Turn Cerama Cartridge, LTC (new style) 012447-25NS

5 Cartridge Only, Eterna w/ Spring Checks, LTC 012442-40NS

5 Cartridge Only, Cerama w/ Check Valves, LTC 012395-25NS

6 Handle, Lever 001638-45NS

4Handle, Wrist Action B-WH4-NS

7 Screw, Handle 000925-45

8 Index, Button - Hot (Red) 001193-19NS

9 Index, Button - Cold (Blue) 018506-19NS

10 Asm, Coupling Flange 00AA

11 Washer, Coupling Nut 001019-45

12 Lock Washer, EasyInstall 014200-45

Riser Assembly

13 Nipple, 3/8” x 18” 000369-40

14 Swivel Assembly, EasyInstall EZ-K

15 Swivel Piece N/A

16 O-Ring, Swivel Piece 001065-45

17 Asm, Finger Hook & Screw 004R

18 Wall Bracket, 6” (add -B to model # for wall bracket) B-0109-01

Pre-Rinse Unit Assembly

19 Spring Body 000821-40

20 Spring, Overhead 000888-45

21 Asm, Flexible Stainless Steel Hoses B-0044-H

22 Asm, Spray Valve B-0107

Spray Valve Assembly

23 Washer, Hold Down Assembly 010476-45

24 Ring, Hold Down Assembly 000907-45

25 Body, Spray Valve (no handle) 000065-40

26 Handle 001120-45

27 Nut, Handle 003198-45

28 Screw, Handle 003199-45

29 Nipple 000694-40

30 Cup, Spray 000019-40

31 Ring, Sprayhead 007861-45

32 Sprayface 001121-45

33 Screw, Sprayface 000913-45

Bonnet Assembly

34 Asm, Bonnet 002856-40

35 Stem 001097-45

36 Washer, Seat 012915-45

37 Washer, Bonnet Binding 001040-45

38 Bonnet 000608-25

39 Washer, Bonnet Brass 000974-45

40 Stem, Packing 001100-45

41 Spring, Bonnet 000895-45

42 Push Button 000753-25

43 Grease Pack (o-ring lubricant) 012665-45

353637383940

34 20

10 11

4142
