Tanaka THT-210S Setup guide

IllustrIllustr

Illustraa

ated Pted P

ted Pted P

ted Parar

arar

arts Mants Man

ts Mants Man

ts Manualual

ualual

ual

Model Number:

THT-210S

21cc, 26” HEDGETRIMMER

P/N 32804

Rev 000

Date 12-03-08

Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

www.tanakapowerequipment.com [email protected]

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 1

THT-210S

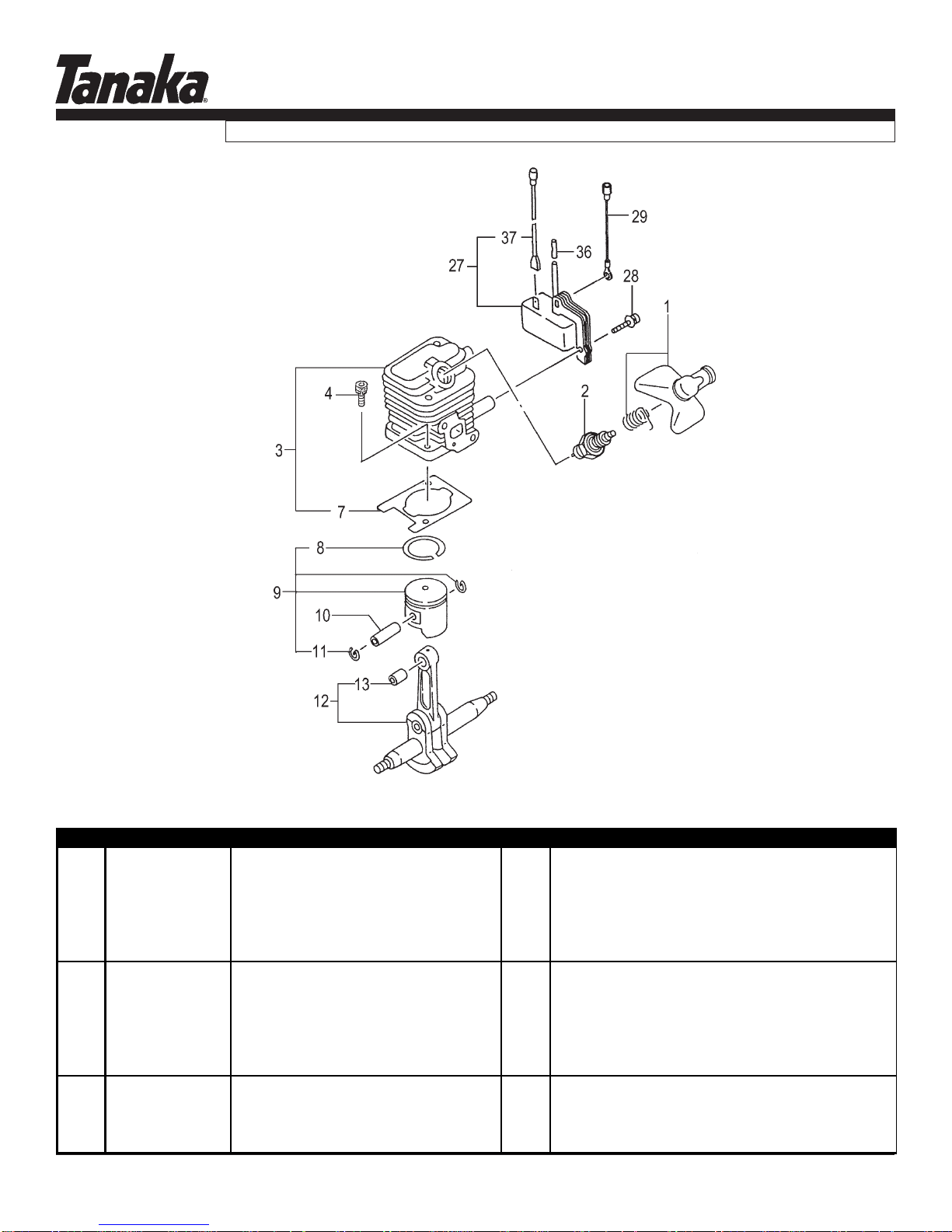

CYLINDER, PISTON, CRANKSHAFT • FIGURE 1

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-1 1570650091 CAP,SPARK PLUG ASS'Y 1

1-2 0181166021 PLUG,SPARK 1

1-3 0010650A90 CYLINDER SET 1 Includes gasket

1-4 99461050184 BOLT,HEX,5X18,S 2

1-7 0170650020 GASKET,CYLINDER 1

1-8 04100601210 RING,PISTON 1

1-9 0300650A90 PISTON SET 1 Includes rings and circlips

1-10 03706500200 PIN,PISTON 1

1-11 03901620200 CIRCLIP,PISTON PIN 2

1-12 04606500801 CRANKSHAFT 1

1-13 99962081225 BEARING,NEEDLE,F-810 1

1-27 1672153380 COIL,IGNITION 1

1-28 99464040184 BOLT,HEXT 4X18WS 2

1-29 2740700D80 CORD,130mm 1

1-36 25006500200 TUBE,INSULATOR 1

1-37 1780650080 CORD,STOP 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 2

THT-210S

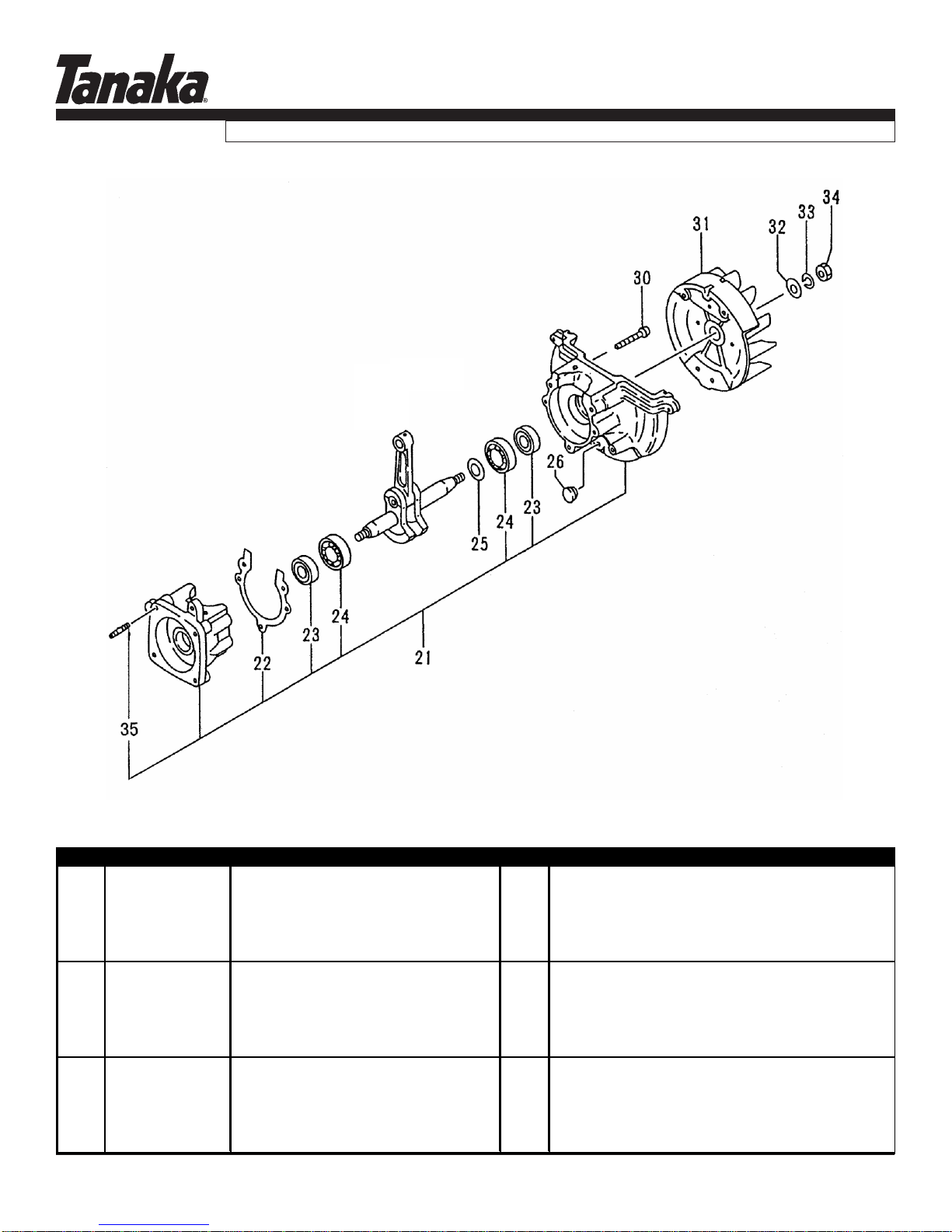

CRANKCASE & FLYWHEEL • FIGURE 2

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

2-21 0720650090 CRANKCASE ASS'Y 1 Includes bearings, seals and gasket

2-22 09006500200 GASKET,CRANKCASE 1

2-23 99966122240 SEAL,OIL,#12227 2

2-24 99961600115 BEARING,BALL,6001 C3 2

2-25 33000200210 SHIM,12.2X19X.10 V Shims are as needed

2-25 33000200220 SHIM,12.2X19X.15 V

2-25 33000200230 SHIM,12.2X19X.20 V

2-25 33000200240 SHIM,12.2X19X.30 V

2-26 59900601200 CUSHION 1

2-30 99461050304 BOLT,HEX,5X30S 3

2-31 1552152380 ROTOR,MAGNETO 1

2-32 99201080011 WASHER,8 1

2-33 99210080012 WASHER,S,8 1

2-34 99101080011 NUT,8 1

2-35 10002100200 BOLT,STUD,6X22 2

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 3

THT-210S

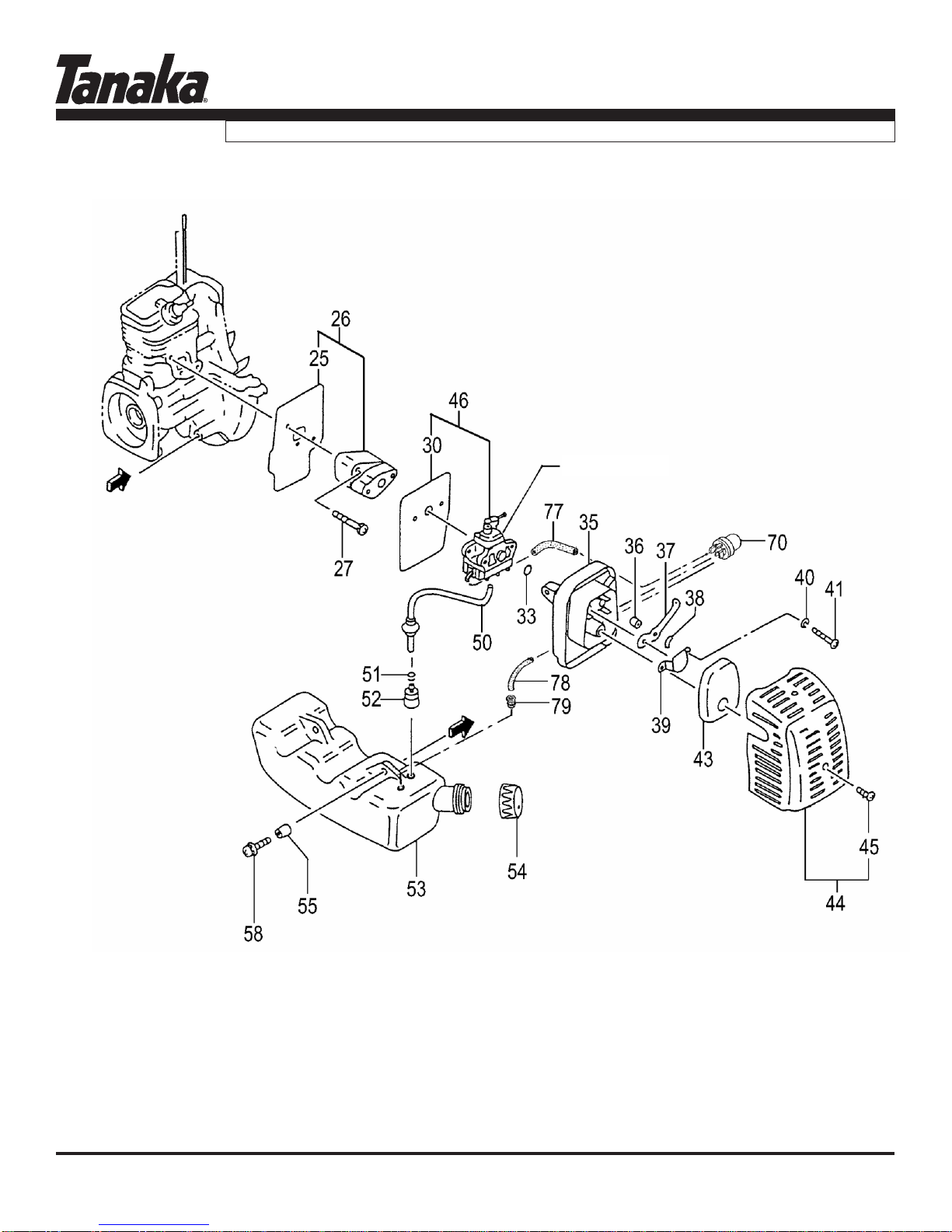

FUEL SYSTEM • FIGURE 3

See Figure 5

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 4

THT-210S

FUEL SYSTEM • FIGURE 3

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

3-25 40306500200 GASKET,INTAKE 1

3-26 4040650090 SET,CARB INSULATOR 1

3-27 99464050254 BOLT,HEX HOLE,5X25WS 2

3-30 40206500200 GASKET,CARBURETOR 1

3-33 99967015000 O-RING,P15 1

3-35 4230650081 BODY,CLEANER 1

3-36 47006500200 COLLAR 2

3-37 5280650T20 LEVER,CHOKE 1

3-38 99204080030 WASHER,8 1

3-39 47601700200 BOARD,BLOW OVER CHECK 1

3-40 99210050012 WASHER,S,5 2

3-41 99011050602 SCREW,5X60 2

3-43 4460650021 FILTER,AIR 1

3-44 4520650091 COVER,CLEANER,W/BOLT 1

3-45 3800637C200 BOLT,CLEANER COVER 1

3-46 4550651A90 CARBURETOR 1

3-50 2230650090 PIPE,FUEL,ASS'Y 1

3-51 68000731201 CLIP 6.3 1

3-52 6750404280 FILTER,FUEL 1

3-53 5910650421 TANK,FUEL 1

3-54 5950007390 CAP,TANK 1

3-55 65900801200 COLLAR 2

3-58 99463050185 BOLT,HEX 5X18PS 2

3-70 44225143800 PUMP,PRIMING ASS'Y 1

3-77 7000250408 PIPE,FUEL,2.5x4x80 1

3-78 7000250407 PIPE,FUEL,2.5x4x70 1

3-79 53432710200 GROMMET,FUEL PIPE 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 5

THT-210S

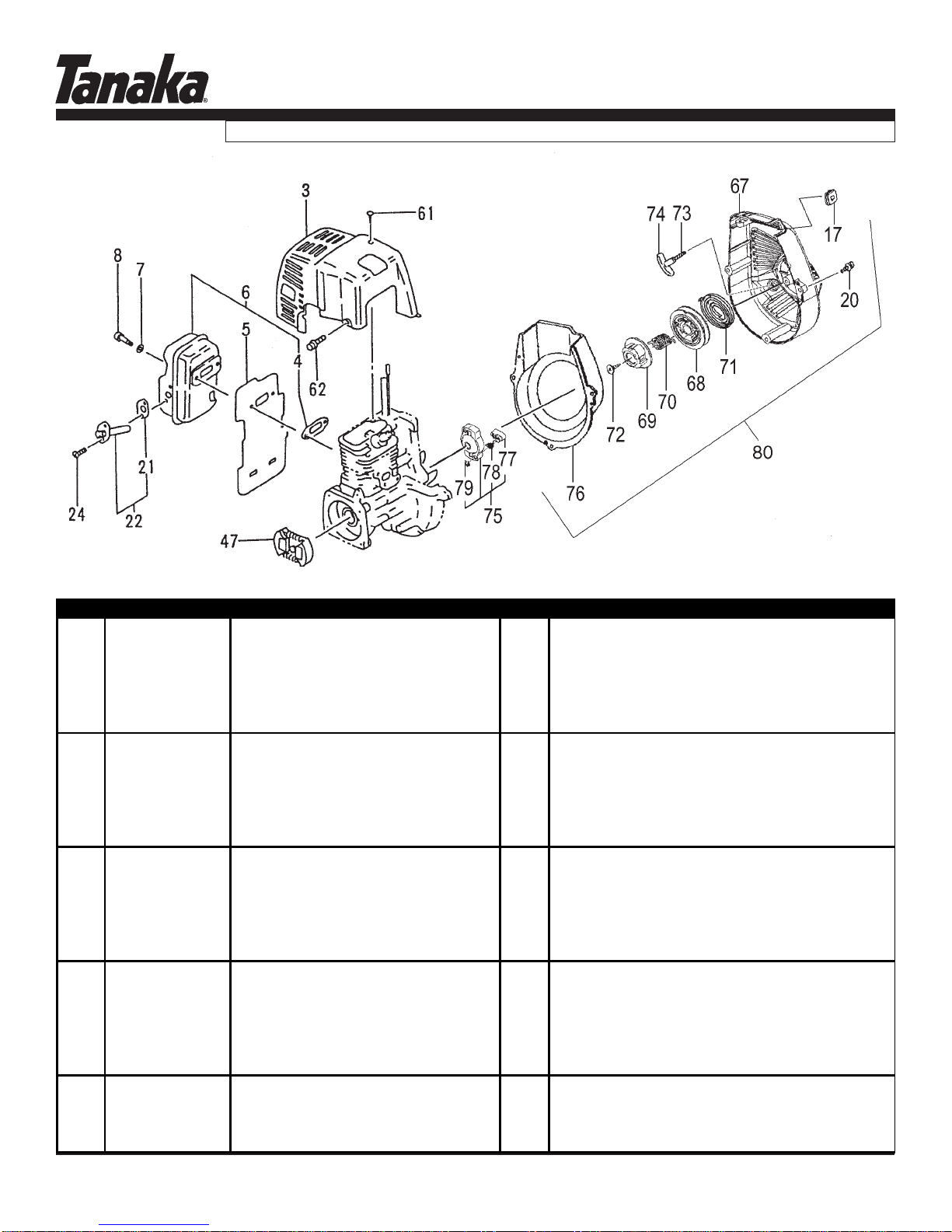

MUFFLER, STARTER, FAN CASE & ENGINE COVER • FIGURE 4

ITEM PART NUMBERDESCRIPTION QTY COMMENTS

4-3 7380650020 PROTECTOR,MUFFLER 1

4-4 73706500200 GASKET,MUFFLER 1

4-5 13306500200 SHIELD,HEAT 1

4-6 7040650091 MUFFLER SET 1

4-7 99201050011 WASHER,5 2

4-8 99051050503 BOLT,HEX,5X50 2

4-17 2030604A202 GROMMET 1

4-20 99463040184 BOLT,HEX,4x18PS 3

4-21 75106500200 GASKET,MUFFLER 1

4-22 7210650091 PIPE,TAIL SET 1

4-24 99434040081 SCREW,4X8/S 2

4-47 2770634F901 CLUTCH,ASSY 1

4-61 99072045164 SCREW,TAPPING,4.5X16 1

4-62 99425040128 BOLT,PS,4X12 2

4-67 1120651H80 CASE,FAN 1

4-68 7740651H20 PULLEY,STARTER 1

4-69 7590651H20 PLATE,CAM 1

4-70 7580651H20 SPRING 1

4-71 78006097200 SPRING,RECOIL 1

4-72 8390304520 SCREW,SET 1

4-73 7830651H20 ROPE,STARTER 1

4-74 78506410200 HANDLE,STARTER 1

4-75 7980651H90 PULLEY ASSY,STARTER 1

4-76 1320660220 DEFLECTOR 1

4-77 7880651H20 SPRING,STARTER 2

4-78 79006097200 SPRING,STARTER PAWL 2

4-79 99355050000 RING,STOP,5 2

4-80 7620651H90 STARTER ASSY 1 Does not include #20 mounting screws

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 6

THT-210S

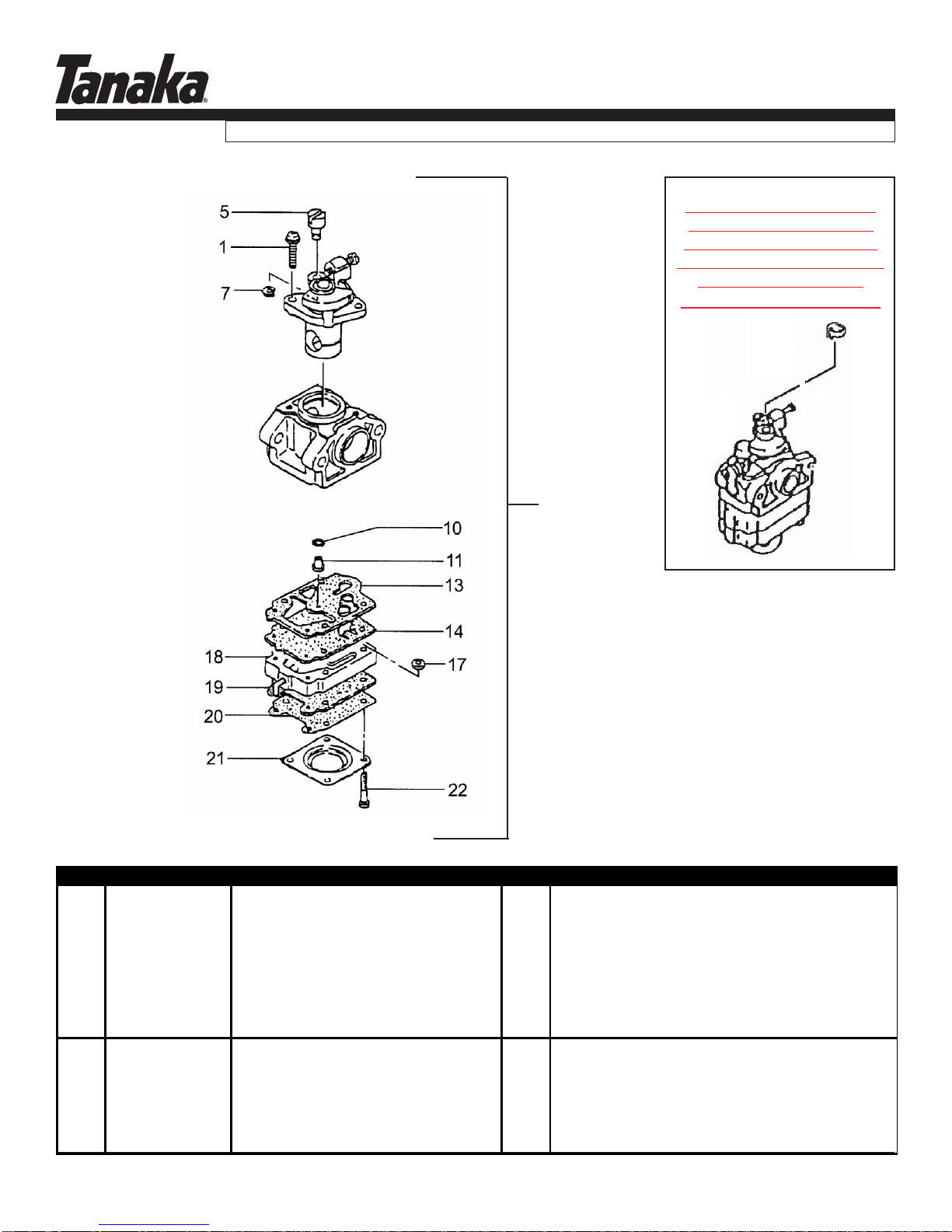

CARBURETOR • FIGURE 5

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 4550651A90 CARBURETOR ASSY 1 Includes gasket

5-1 54825140200 SCREW,THROTTLE 2

5-5 53925120200 SWIVEL 1

5-7 48925100200 RING,STOP 1

5-10 55025100200 O-RING 1

5-11 599200BW34 JET,MAIN,LONG,#34.5 1

5-13 ~ ~ ~ GASKET,PUMP 1 ~ Included in 650.25124.90 Carb Kit

5-14 ~ ~ ~ DIAPHRAGM,PUMP 1 (not available individually)

5-17 57825007200 SCREEN,INLET 1

5-18 5752514780 BODY,PUMP ASS'Y 1

5-19 ~ ~ ~ GASKET,DIAPHRAGM 1

5-20 ~ ~ ~ DIAPHRAGM,METERING 1

5-21 47625004200 COVER,DIAPHRAGM 1

5-22 54825101200 SCREW,SET 1

Asmallretainer(560-02170-

20), has been added to this

modelafterserial # A099801

to prevent the barrel end of the

throttlewirefrom coming

detachedfromthe carburetor.

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 7

THT-210S

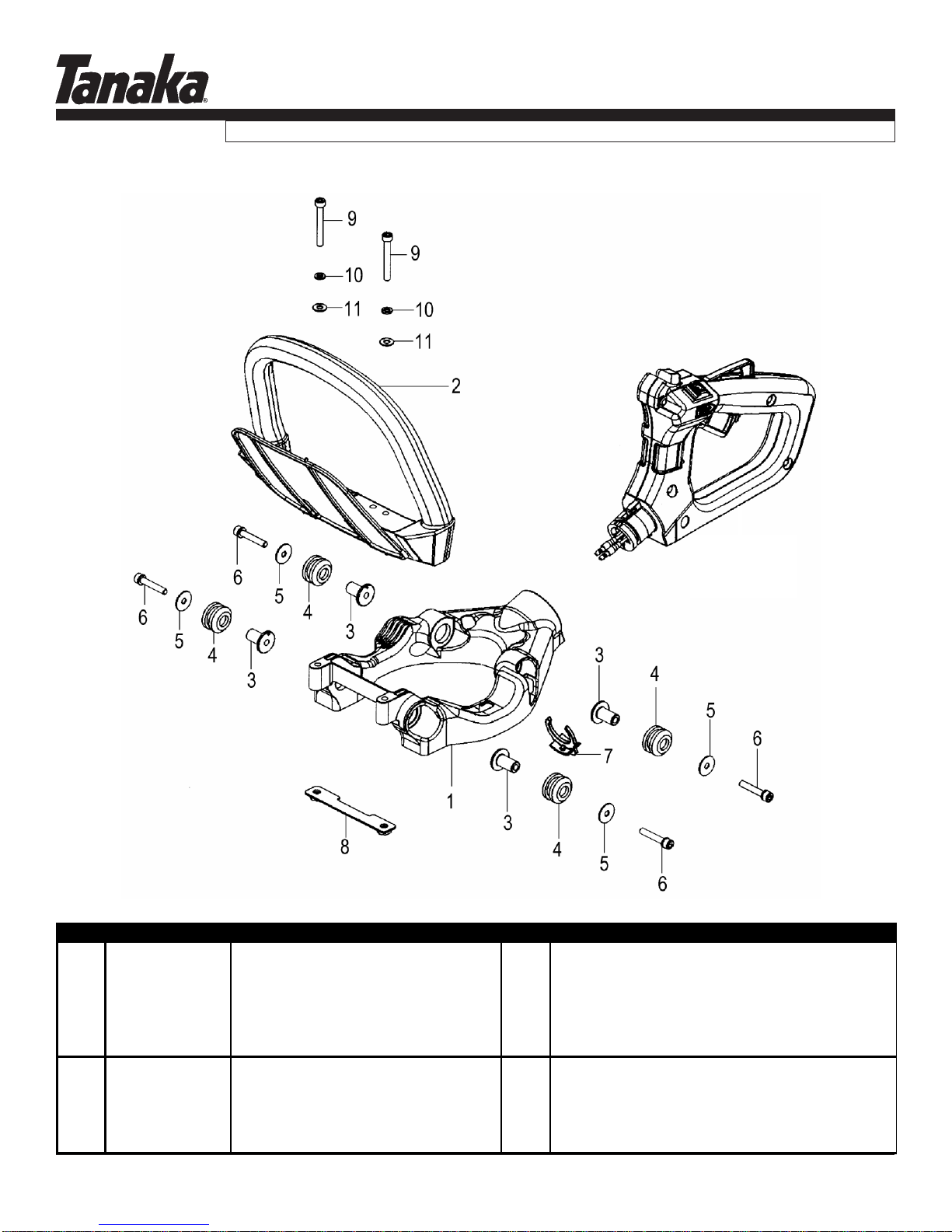

FRONT HANDLE • FIGURE 6

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

6-1 2603329020 FRAME,HANDLE 1

6-2 2103324720 HANDLE,FRONT 1

6-3 27632710201 COLLAR,DAMPER B 4

6-4 26632750200 DAMPER,B 4

6-5 36832057200 WASHER,BRAKE SHAFT 4

6-6 99461050304 BOLT,HEX,5X30S 4

6-7 5053329020 CLIP 1

6-8 0403316080 SUPPORT,HANDLE 1

6-9 99051050403 BOLT,HEX,5X40 2

6-10 99210050062 WASHER,S,5 2

6-11 99201050061 WASHER,5 2

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 8

THT-210S

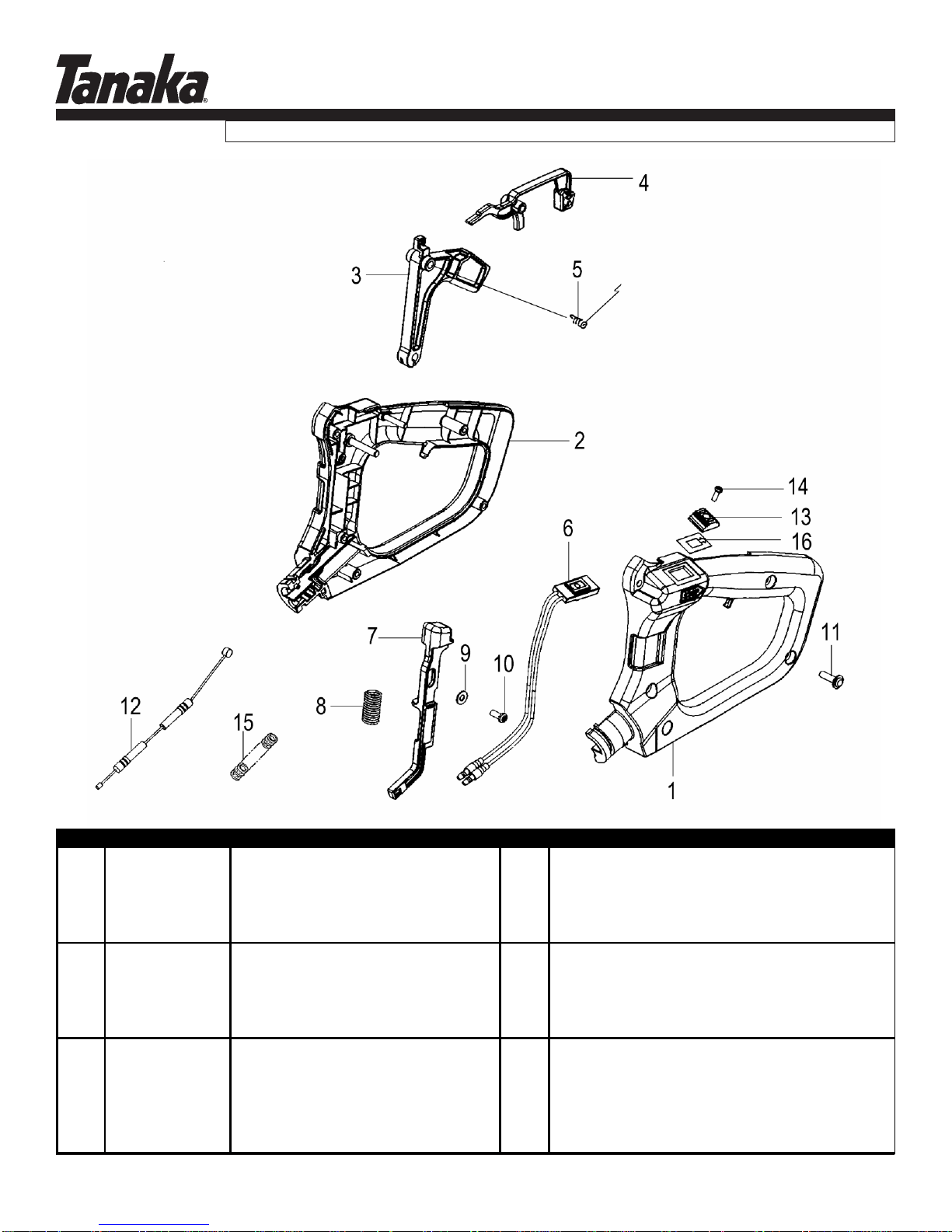

REAR HANDLE • FIGURE 7

ITEM PART NUMBE

DESCRIPTION QTY COMMENTS

7-1 0513329020 HANDLE,B 1

7-2 0503329020 HANDLE,A 1

7-3 2303329020 LEVER,THROTTLE 1

7-4 2313329020 LEVER,SAFETY 1

7-5 23233160200 SPRING,THROTTLE LEVER 1

7-6 1703329080 BUTTON,STOP 1

7-7 2333329020 LEVER,LOCK 1

7-8 2453329020 SPRING 1

7-9 99201040011 WASHER,4 1

7-10 99341040101 SCREW,TAPPING,4X10 1

7-11 99072045164 SCREW,TAPPING,4.5X16 5

7-12 8853329080 WIRE,THROTTLE 1

7-13 2581165020 BUTTON,STOP 1

7-14 99011030101 SCREW.3x10 1

7-15 1640701501 TUBE,PROTECTION 150 1

7-16 92533160200 DECAL,STOP BUTTON 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 9

THT-210S

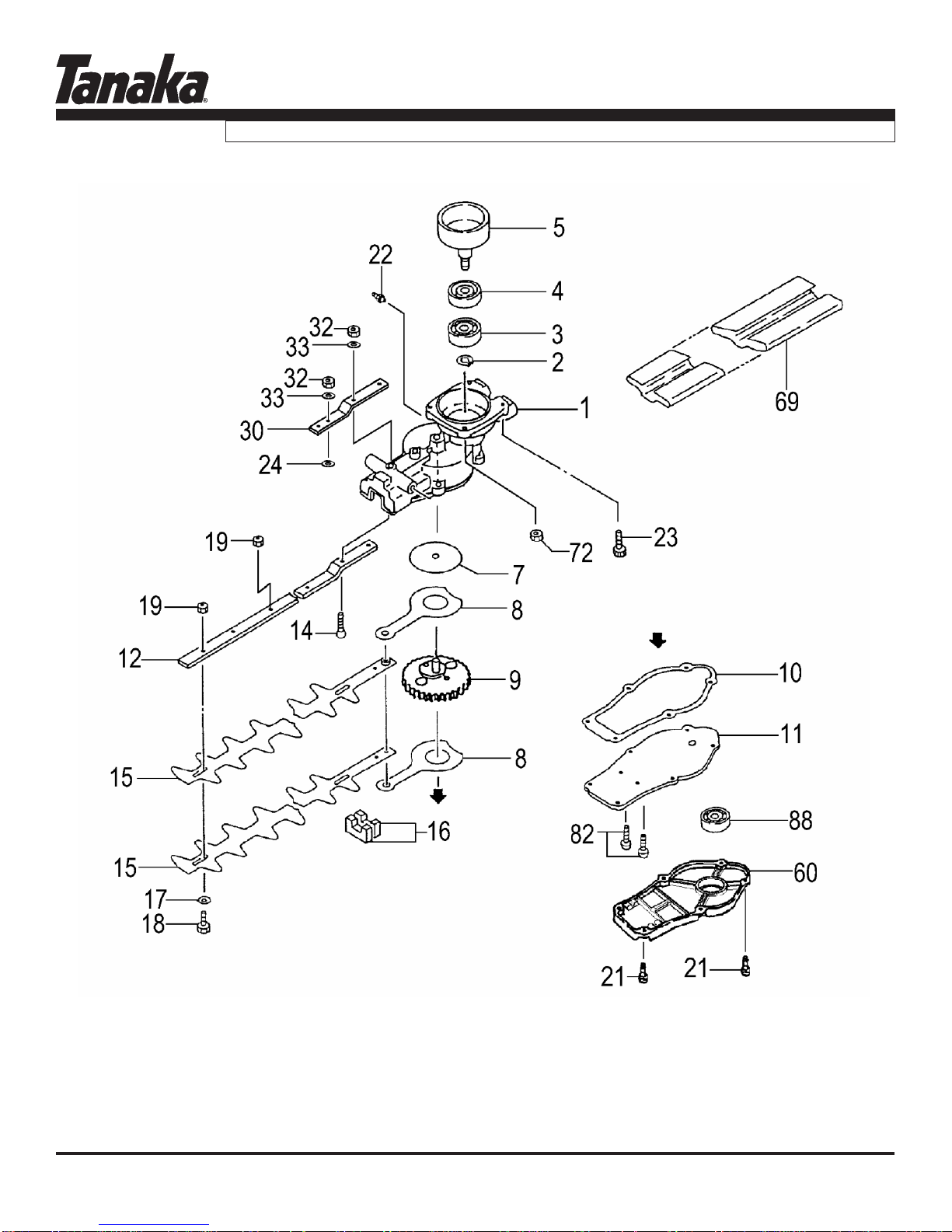

GEAR CASE & BLADES • FIGURE 8
