Taiden HCS-4310M User manual
HCS-4310M Video Switcher
1 TAINET port for TAIDEN central control system
2 RS-232C output ports to control video/data projector or plasma display. Especially,
the RS-232C ports is dynamically configured to support different control protocols
connected to RS-232C
1 RS-422 port to control cameras with RS-422 or RS-485 protocol
User-defined scene save and recall, maximum 16 scenes
Switch recollection facility
Front panel control with LED indication
Panel lock/unlock
compact structure: 2U (rack-mounted) and light weight
Video switcher
HCS-4310M
HCS-4310M is a powerful professional video matrix switchers. Besides all facilitiesof an ordinary video matrix switchers, HCS-4310M supports
more interfaces, such as RS-232C, RS-422, and RS-485 to control multiple devices. Connected to TAIDEN conference system, it can carry out
automatic video tracking; furthermore, with HCS-4310M, video matrix switch can be carried out via serial port using TAIDEN central control
system, PC, or other control equipment. On the front the built - in control panel can be used for fast manual control. HCS-4310M supports the
control protocols for multiple professional cameras of different manufacturers, including TAIDEN (HCS-3313C), SONY, PELCO, and Panasonic,
etc.
HCS-4310M has 16 BNC video inputs, supporting video signals from cameras, VCD /DVD, and other video input equipment, and 8 BNC video
outputs which can connect with various displays or projectors directly. Owing to the professional video matrix IC with output buffers, the output
signal of HCS-4310M is stable, clear, and fluent even during switching.
By virtue of using RS-422 and RS-485 protocols, the control distance of HCS -4310M has been lengthened significantly. Two programmable
serial outputs are available for synchronous control of other serial control equipment.

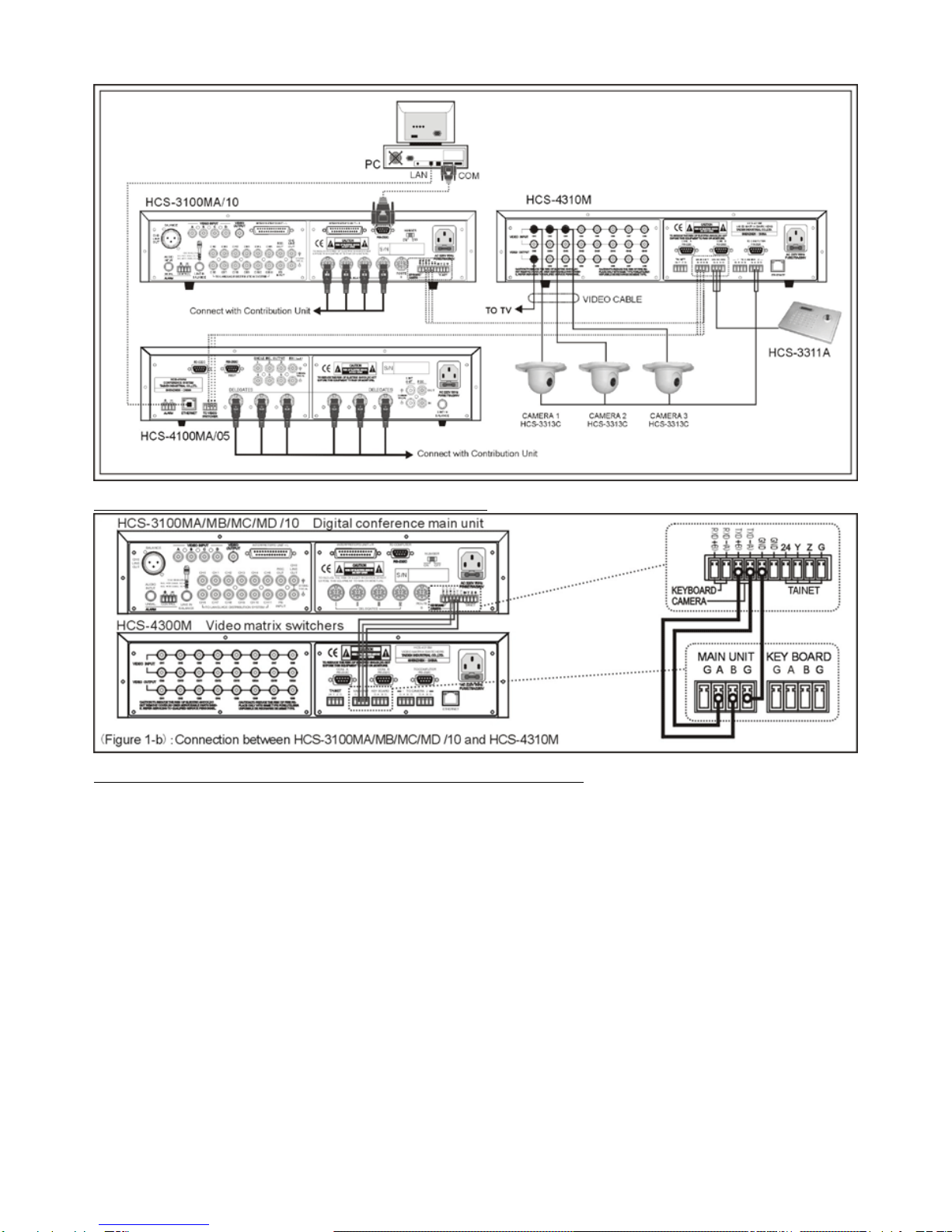

System Connection
Page 1 of 4Automatic video Tracking System
9/28/2007htt
p
://www.taiden.com/
p
roducts/4310.htm
Connection with HCS-4310M and HCS-3100 Series Main Unit
Connection between HCS-4310M and HCS-3313C or Sony EVI-D70 Camera
Page 2 of 4Automatic video Tracking System
9/28/2007htt
p
://www.taiden.com/
p
roducts/4310.htm
Connection between HCS-4310M and Panasonic WV-CS950 Camera
Page 3 of 4Automatic video Tracking System
9/28/2007htt
p
://www.taiden.com/
p
roducts/4310.htm

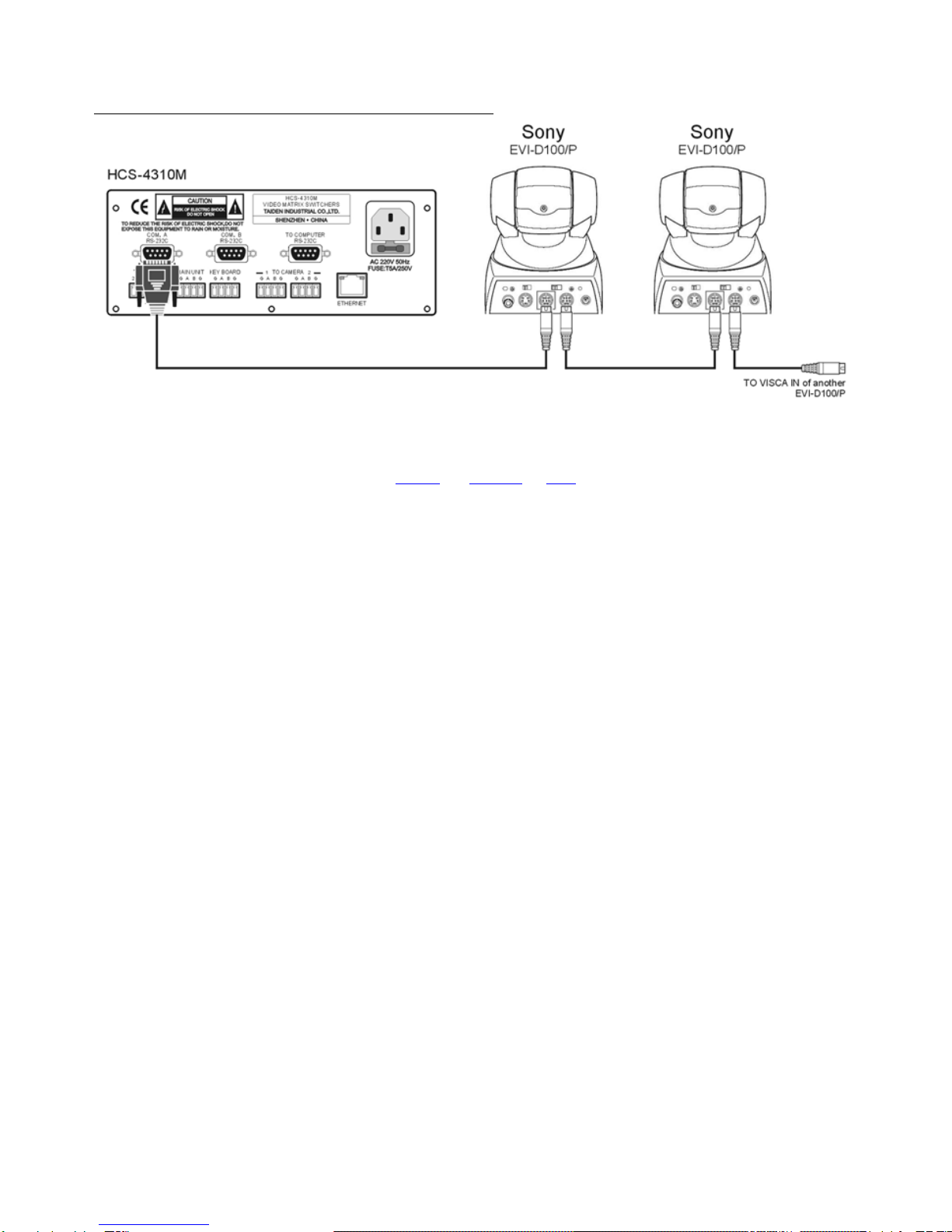

Connection between HCS-4310M and Sony EVI-D100 Camera
System Unit
[Up page] [Next page] [ Close ]
Copyright ©2000-2008 SHENZHEN TAIDEN INDUSTRIAL CO.,LTD All Rights Reserved
Page 4 of 4Automatic video Tracking System
9/28/2007htt
p
://www.taiden.com/
p
roducts/4310.htm
