System air KBR 355EC User manual

ИНСТРУКЦИЯ

Systemair KBR 355EC

Document in original language | · 004

Thermo box

KBR, KBR/F

Installation and Operating Instructions GB

| 004

E&OE

Systemair AB reserves the rights to alter their products without notice.

This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

| 004

Contents

1 General information.........................................1

1.1 Notice symbols......................................1

1.1.1 Instruction symbols.....................1

2 Important safety information .............................1

2.1 Personnel .............................................1

2.2 Personal protective equipment..................2

2.3 5 rules of electrical safety ........................2

3 Warranty.......................................................2

4 Delivery, transport, storage ...............................2

5 Description ....................................................3

5.1 Intended use ........................................3

5.2 Technical data .......................................4

5.3 KBR and KBR/F ......................................4

6 Name plate and type key ..................................5

7 Accessories....................................................6

8 Installation.....................................................6

8.1 Assembly/Disassembly impeller —

Internal rotor motor ................................7

9 Electrical connection ........................................9

9.1 Electrical connection accessories ...............9

9.2 Protecting the motor............................. 10

9.3 Variable-speed fans.............................. 10

10 Commissioning ............................................. 11

11 Operation .................................................... 11

12 Troubleshooting/maintenance/repair ................ 12

12.1 Troubleshooting................................... 12

12.2 Maintenance....................................... 13

13 Cleaning...................................................... 14

14 Deinstallation/dismantling............................... 14

15 Disposal ...................................................... 14

16 Commissioning Report.................................... 15

17 EU Declaration of conformity............................ 16

18 EU Declaration of conformity — Smoke extract

fans ...........................................................16

General information | 1

1 General information

1.1 Notice symbols

Danger

Direct hazard

Failure to comply with this warning will lead

directly to death or to serious injury.

Caution

Hazard with a low risk

Failure to comply with this warning may lead to

moderate injuries.

Warning

Potential hazard

Failure to comply with this warning may lead to

death or serious injury.

Important

Hazard with risk of damage to objects

Failure to comply with this warning will lead to

damage to objects.

Note:

Useful information and instructions

1.1.1 Instruction symbols

Instruction Instruction with xed sequence

♦Carry out this action 1. Carry out this action 3. (if applicable, further actions)

♦(if applicable, further actions) 2. Carry out this action

2 Important safety information

Planners, plant builders and operators are responsible for the proper assembly and intended use.

♦Read the operating instructions completely and carefully.

♦Keep the operating instructions and other valid documents, such as the circuit diagram or motor instructions, with

the fan. They must always be available at the place of use.

♦Observe and respect local conditions, regulations and laws.

♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.

♦Safety elements may not be dismantled, circumvented or deactivated.

♦Only use the fan in a awless condition.

♦Provide generally prescribed electrical and mechanical protective devices.

♦During installation, electrical connection, commissioning, troubleshooting, and maintenance, secure the location and

premises against unauthorised access.

♦Do not circumvent any safety components or put them out of action.

♦Before any work on the fan, test absence of voltage.

Even when the motor is stopped, dangerous voltages may be present on terminals.

♦Keep all the warning signs on the fan complete and in a legible condition.

♦The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction.

♦Do not allow children to play with the device.

2.1 Personnel

The fan may only be used by qualified, instructed and trained personnel. The persons must know the relevant safety di-

rectives in order to recognise and to avoid risks. The individual activities and qualifications can be found in Table 1 Qual-

ifications, page 2.

| 004

2|Warranty

Table 1 Qualifications

Activities Qualifications

Storage, operation, transport, cleaning, disposal Trained personnel (see following note)

Electrical connection, commissioning, electrical

disconnection Electrical expert or matching qualification

Installation, disassembly Fitter or matching qualification

Maintenance Electrical expert or matching

qualification

Fitter or matching

qualification

Repair

Electrical expert or matching

qualification

Fitter or matching

qualification

Smoke extraction fans and EX fans only by agreement with

Systemair.

Note:

The operator is responsible for ensuring that personnel are instructed and have understood the contents of

the operating instructions. If something is unclear, please contact Systemair or its representative.

2.2 Personal protective equipment

♦Wear protective equipment during all work in the vicinity of the fan.

• protective working clothes

• protective working shoes

• protective working gloves

• helmet

• goggles

• hearing protection

2.3 5 rules of electrical safety

1. Disconnect (disconnection of

the electrical system from

live components at all

terminals)

2. Prevent reactivation

3. Test absence of voltage

4. Ground and short-circuit

5. Cover or restrict adjacent live parts

3 Warranty

For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance

with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re-

port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this

document. The maintenance plan must be created by the operator, see section 12.2 Maintenance, page 13.

4 Delivery, transport, storage

Safety information

Warning: Risk from rotating fan blades

♦Prevent access by unauthorised persons by safety personnel or access protection.

Warning: Suspended loads

♦Do not walk under suspended loads.

♦Make sure that there is nobody under a suspended load.

Delivery

Each fan leaves our plant in an electrically and mechanically proper condition. We recommend transporting the fan to

the installation site in the original packaging.

Checking delivery

♦Check the packaging and the fan for transport damage. Any findings should be noted on the cargo manifest.

♦Check completeness of the delivery.

| 004

Description |3

Unpacking

When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters etc.

♦Unpack the fan carefully.

♦Check the fan for obvious transport damage.

♦Only remove the packaging shortly before assembly.

Transport

Safety information

Warning: Electrical or mechanical hazards due to fire, moisture, short circuit or malfunction.

♦Never transport the fan by the connecting wire, terminal box, impeller, protection grille, inlet cone or silencer.

♦In open transport, please make sure that no water can penetrate into the motor or other sensitive parts.

♦We recommend transporting the fan to the installation site in the original packaging.

Caution: If transported without care during loading and unloading, the fan may be damaged.

♦Load and unload the fan carefully.

♦Use hoisting equipment that is suitable for the weight to be hoisted.

♦Observe the transportation arrows on the packaging.

♦Use the fan packaging exclusively as transport protection and not as a lifting aid.

Storage

♦Store the fan in the original packaging in a dry, dust-free location protected against weather.

♦Avoid the effects of extreme heat or cold.

Hazard due to loss of function of the motor bearing

♦Avoid storing for too long (recommendation: max. 1 year).

♦Check that the motor bearing functions properly before installation.

5 Description

5.1 Intended use

All KBR- versions:

• The fan is intended for installation in ventilation systems.

• The fans are exclusively intended for extract air applications.

KBR

• The fan is suitable for extracting contaminated air

(dust, kitchen exhaust).

KBR/F

• The fan is suitable for conveying contaminated air.

• The smoke extraction units KBR/F are used in case of

fire to extract smoke gases, as well as in normal

working conditions of up to 200°C.

Incorrect use

Incorrect use refers mainly to using the fan in another way to that described. The following examples are incorrect

and hazardous:

• Conveying of explosive and combustible media

• Conveying of aggressive media

• Operation in an explosive atmosphere

• Operation without duct system

• Operation with the air connections closed

• Installation outside without weather protection

| 004

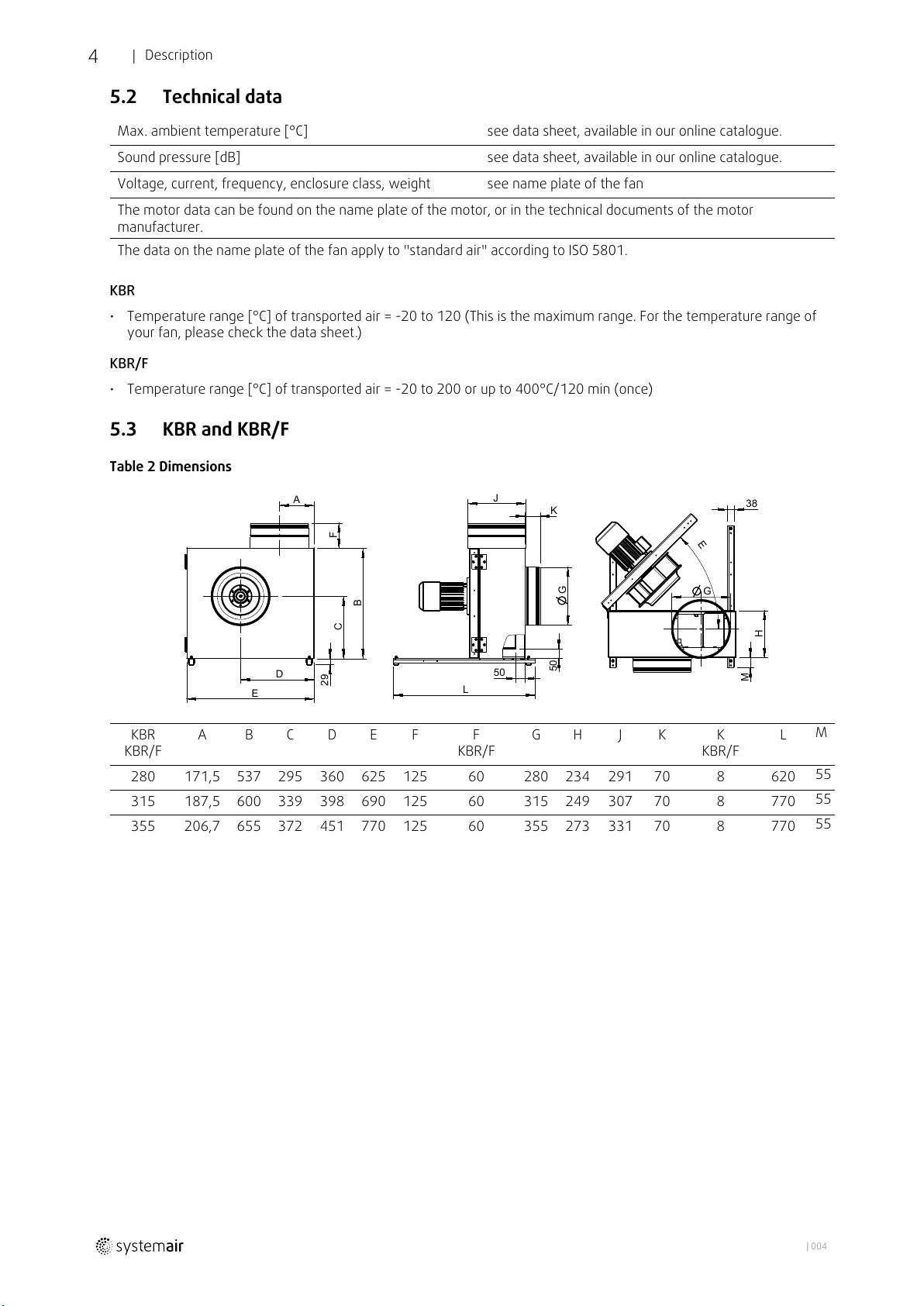

4|Description

5.2 Technical data

Max. ambient temperature [°C] see data sheet, available in our online catalogue.

Sound pressure [dB] see data sheet, available in our online catalogue.

Voltage, current, frequency, enclosure class, weight see name plate of the fan

The motor data can be found on the name plate of the motor, or in the technical documents of the motor

manufacturer.

The data on the name plate of the fan apply to "standard air" according to ISO 5801.

KBR

• Temperature range [°C] of transported air = -20 to 120 (This is the maximum range. For the temperature range of

your fan, please check the data sheet.)

KBR/F

• Temperature range [°C] of transported air = -20 to 200 or up to 400°C/120 min (once)

5.3 KBR and KBR/F

Table 2 Dimensions

KBR

KBR/F

A B C D E F F

KBR/F

G H J K K

KBR/F

280 171,5 537 295 360 625 125 60 280 234 291 70 8 620 55

315 187,5 600 339 398 690 125 60 315 249 307 70 8 770 55

355 206,7 655 372 451 770 125 60 355 273 331 70 8 770 55

| 004
