Synergy Hardware S4803 Manual

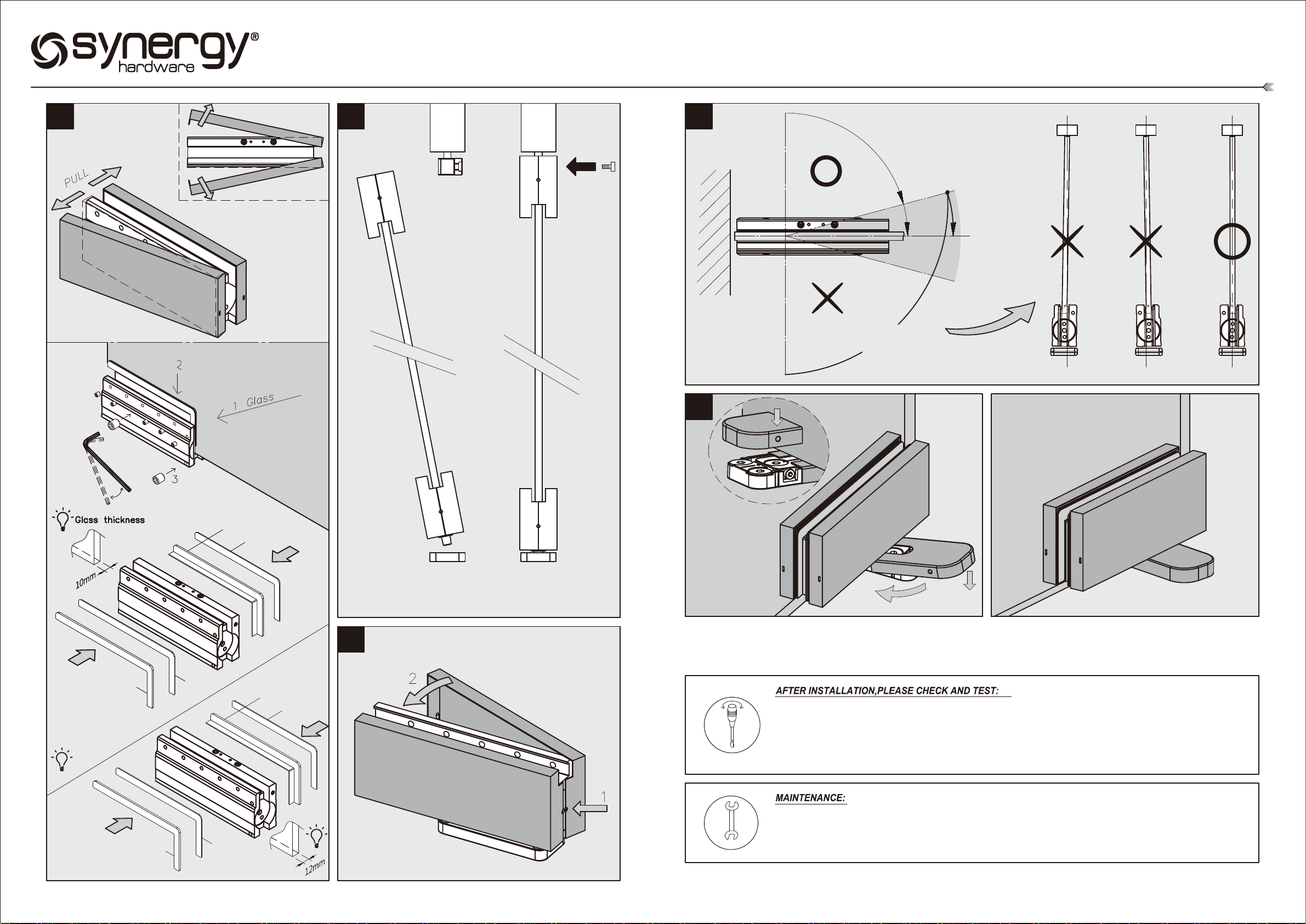

GLASS PREPARATION
R9
2
1
2
1
C
A
B
Turn the (0) Position to
A= Center Position +1mm
B= Increases gap of
the door (T) +2mm
C= Center Position +1mm
22
33
±2°
(0) Position
Additional adjustments : loosen lock screws as necessary
Mark hole's
position
Drill hole
CONTENTS
ADJUSTMENT
Adjustment of closing speed:
-Two regulating valves (Ⅰ) and (Ⅱ) .
- decrease speed.
- increase speed.
-Valve (Ⅰ) :control closing range 170°-15°
-Valve (Ⅱ) :control latching range 15°-0°
CONTENTS
Max. 0.5 turn
Use appropriate
gaskets as supplied.
10~12mm
Fixing instructions for:
S4803 Self Closing Patch Fitting Power 3
www.synergyhardware.co.uk
ISSUE 2:02/19
10802 IN-350-SY
Hold Open point
(for optional model)
Hold Open point
(for optional model)
7
Zero Position
Door must be aligned
correctly
(Ⅰ)
(Ⅰ)
(Ⅱ)
(Ⅱ)
8
2
1
5
6
44
1.0mm=White
0.5mm=Transparent
2.5mm=AL
take cover out
Step 1. Step 2. fix the screw
put cover back
Angle x 1pc
1mm White
x 2pcs
Angle x 1pc
1mm White
x 1pc
1mm White
x 2pcs
1mm White
x 1pc
2.5mm Alum
x 1pc
2.5mm Alum
x 1pc
Fixing instructions for:
S4803 Self Closing Patch Fitting Power 3
IMPORTANT INSTALLATION NOTES：
Open the door leaf to its maximum opening angle and release.
The door leaf should close fully back to 0 degree and should have sufficient power to latch the door
closed if the door come with a door lock.
.1
.faelroodehtesaeleR.etalprekirtsehtnotlobhctalehttserdnafaelroodehtnepO.2
.desolcfaelroodehthctalotrewoptneiciffusevahdluohsresolcroodehT
Check the door closer every three months to ensure all fixings are secure and adjust if necessary.
Adjust the closing and latching speed to make sure the door operates functionally and smoothly.
.1
