Symbol LS 6004 Operating instructions

LS 6004-I0A0 Special Operating Instructions

(73-33186-0A0)

Revision A: March 1999

Special Operating

Instructions

LS 6004-I0A0 Special Operating Instructions

(73-33186-0A0)

Revision A: March 1999

2

LS 6004-I0A0 differs from the standard in the

following ways:

• Nixdorf Mode A and Mode B protocol

are supported.

• Host Serial Response Timeout parame-

ter for Standard RS-232 host in not

supported.

• The Decode Beep/LED parameter is

added.

Custom Defaults

Parameter Default

Beep/LED: Option 1

UPC-E Check Digit: No

UPC-E Preamble: None

Response Timeout: 99

Hardware Handshaking: RTS/CTS Option 3

Host Type: Beetle Mode A

LS 6004-I0A0 Special Operating Instructions

(73-33186-0A0)

Revision A: March 1999

3

Decode Beep/LED Parameter

This option allows the user to select when the

decode beep and LED occur after a good de-

code for the Nixdorf host interface. All other

host interfaces operate as in Option 1.

Option 1 The decode beep and LED occur

after a good decode.

Option 2 The decode beep and LED occur

after the data is transmitted.

Option 3 (Mode B only). The decode beep

and LED occur after the data is

transmitted and the CTS line is

made active by the host.

Scan a bar code on the next page to select the

desired option.

LS 6004-I0A0 Special Operating Instructions

(73-33186-0A0)

Revision A: March 1999

4

Decode Beep/LED Parameter

Beep/LED Option 1

Beep/LED Option 2

Beep/LED Option 3

Table of contents

Other Symbol Barcode Reader manuals

Symbol

Symbol LS 4208 User manual

Symbol

Symbol DS3478 User manual

Symbol

Symbol LS1900 Series Installation and operation manual

Symbol

Symbol DS4308 Installation and operation manual

Symbol

Symbol LS1900 Series User manual

Symbol

Symbol SYMBOL LS7808 User manual

Symbol

Symbol LS 2104 Operating instructions

Symbol

Symbol LS4000P Series Installation and operation manual

Symbol

Symbol Symbol LS2208 User manual

Symbol

Symbol LS3578 Installation and operation manual

Symbol

Symbol TC70 User manual

Symbol

Symbol DS3478 User manual

Symbol

Symbol LS3578 User manual

Symbol

Symbol LS1203 User manual

Symbol

Symbol CSM 150 User manual

Symbol

Symbol LS3578 User manual

Symbol

Symbol LS6004i-I000 User manual

Symbol

Symbol P 470 RF User manual

Symbol

Symbol LS3008 User manual

Symbol

Symbol DS6707-SR20007ZZR User manual

Symbol

Symbol LS 9100 Installation and operation manual

Symbol

Symbol LS 6800 User manual

Symbol

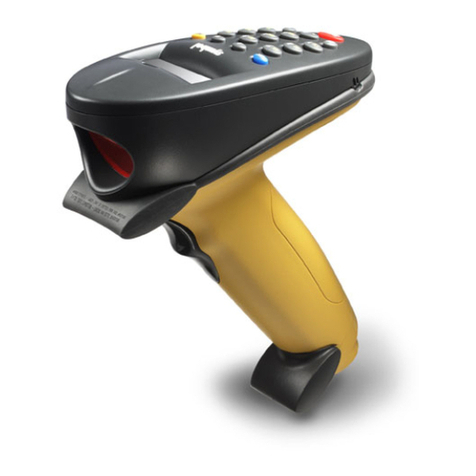

Symbol P360 User manual
