Sylvania SMPK2062 User manual

Electrical and electronic equipment ( EEE ) contains materials, parts and

substances which can be dangerous to the enviroment and harmful to human

health if waste of electrical and electronic equipment ( WEEE ) is not disposed

of correctly.

Equipments which are marked with the WEEE logo (as shown on the left ),

should not be thrown away with your household waste. Contact your Local

Authority Waste Disposal Department as they will be able to provide details

of the recycling options available in your area.

Note:

SMPK2062

Your Pocket Guide

Portable Media Player

Install Software

Get Connected

Transfer Media

Plug Your Ears & Enjoy

What’s in the box?

Portable Media Player

Digital Earphone

Battery Charger Your Pocket Guide

USB Cable

What’s in the box?

CD-ROM containing:

Media player driver for

Windows® 98/98SE

Software for converting

.act files into .wav files.

Software for formatting

internal memory.

Your Pocket Guide

C11

Portable Media Player

Install Software

Get Connected

Transfer Media

Plug Your Ears & Enjoy

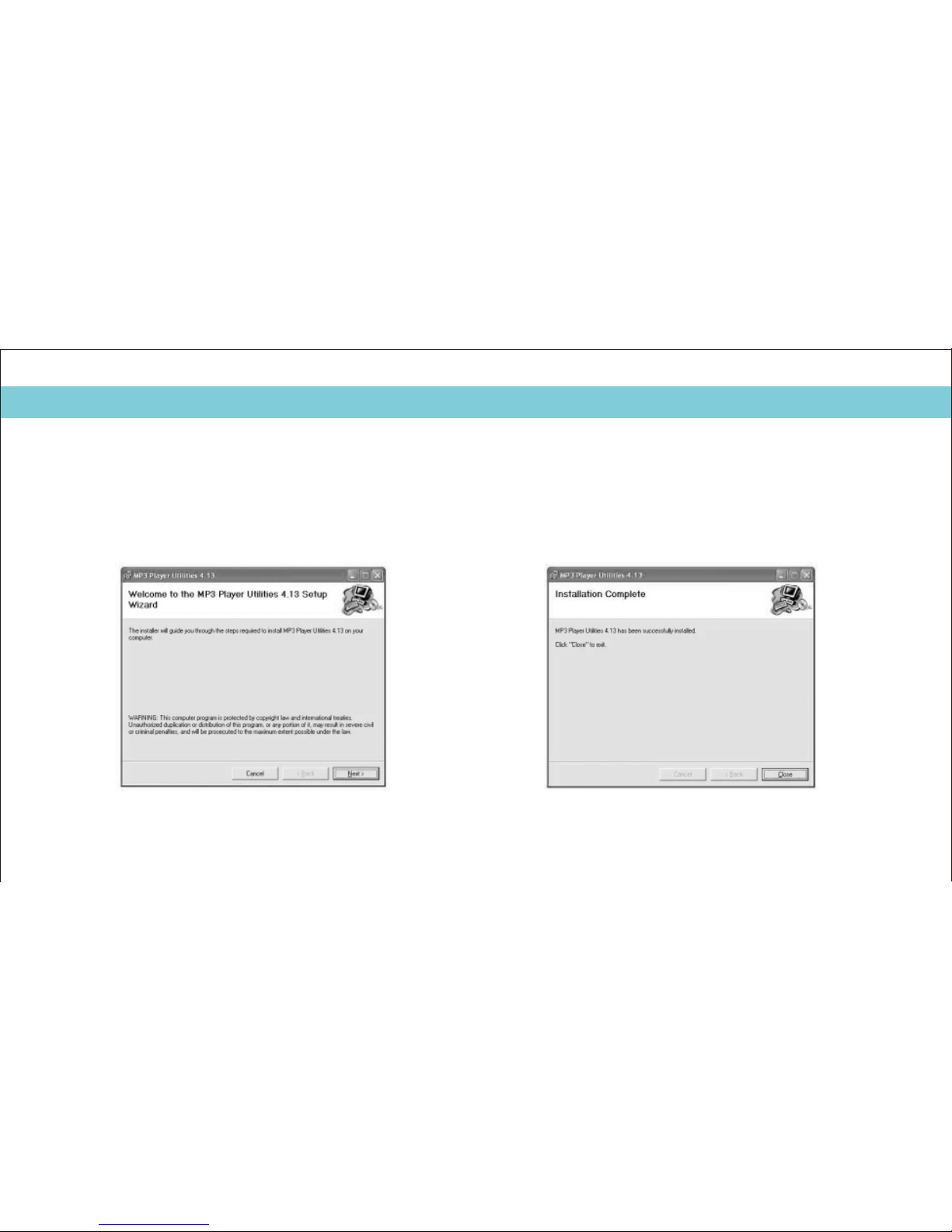

Insert the CD into the CD ROM drive of your PC.

Click to start driver installation.

Follow the on-screen-menu to complete the installation.

Setup.exe

Click once you reach the

screen.

Close Installation

Complete

For Windows® 98/98SE users, please install the driver in the CD-ROM before downloading any files to your player.

Software Utilities Installation

Software Installation

/ /

/ / /

Windows® 98 98SE ME 2000 XP Vista

Pentium Class or faster Processor

CD-ROM Drive

64MB RAM

30MB free hard disk space

USB Port

You’ll need a computer with:

System Requirement

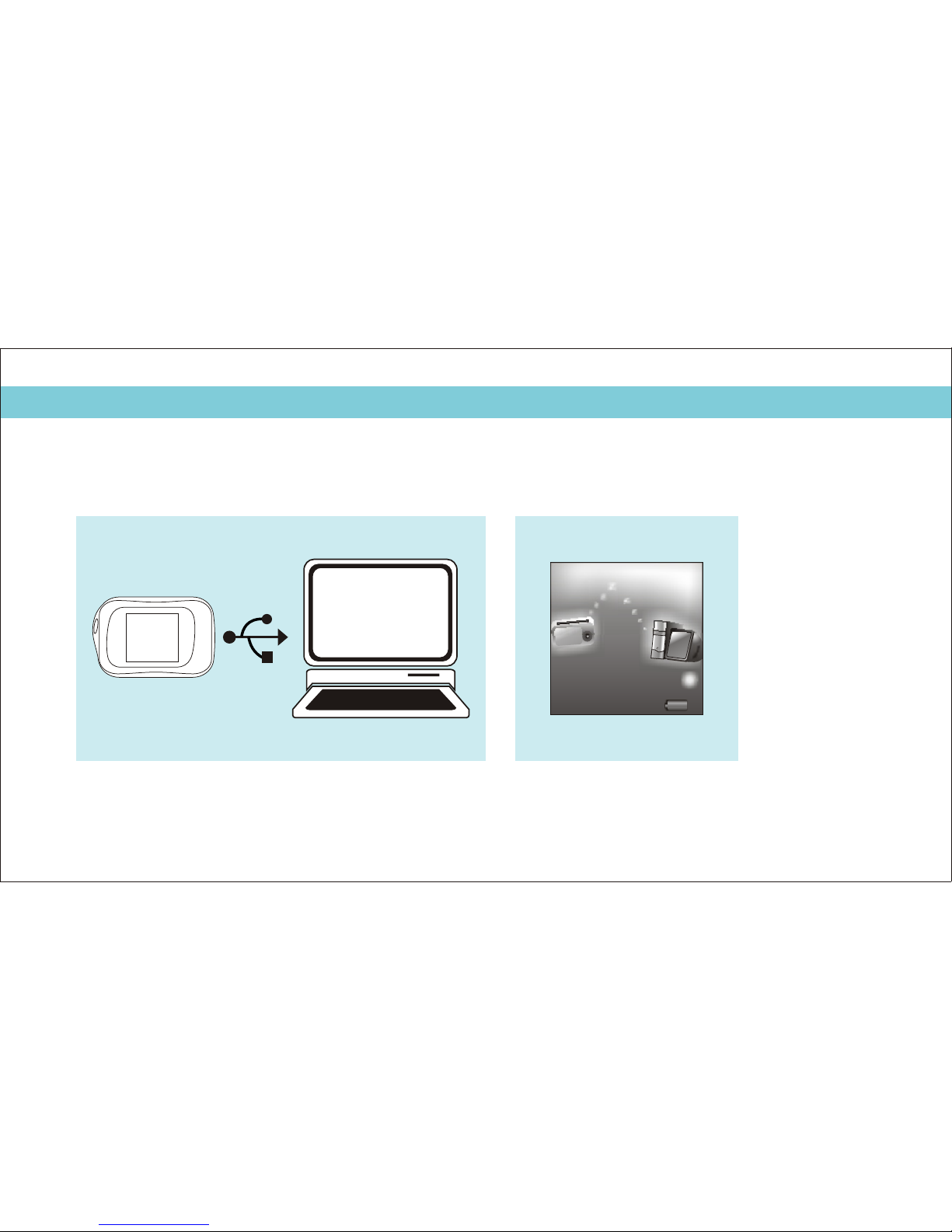

Connect & Charge

Connect

Your player will be charged while being connected to PC through the USB cable.

! You will see the charging animation in the bottom right hand corner of the display.

The player is fully charged when the charging animation stops.

Synchronize songs to the player

Step 2: Connect the player to your PC by USB cable.

A dialog box will appear, choose

and Click to proceed.

Synchronize media

files to this device using Windows Media Player

You can use Windows Media Player 10 on Windows® XP SP2

to synchronize music which are downloaded from Internet legally and validly with license to the player.

If the song is downloaded illegally without license, it cannot be synchronized.

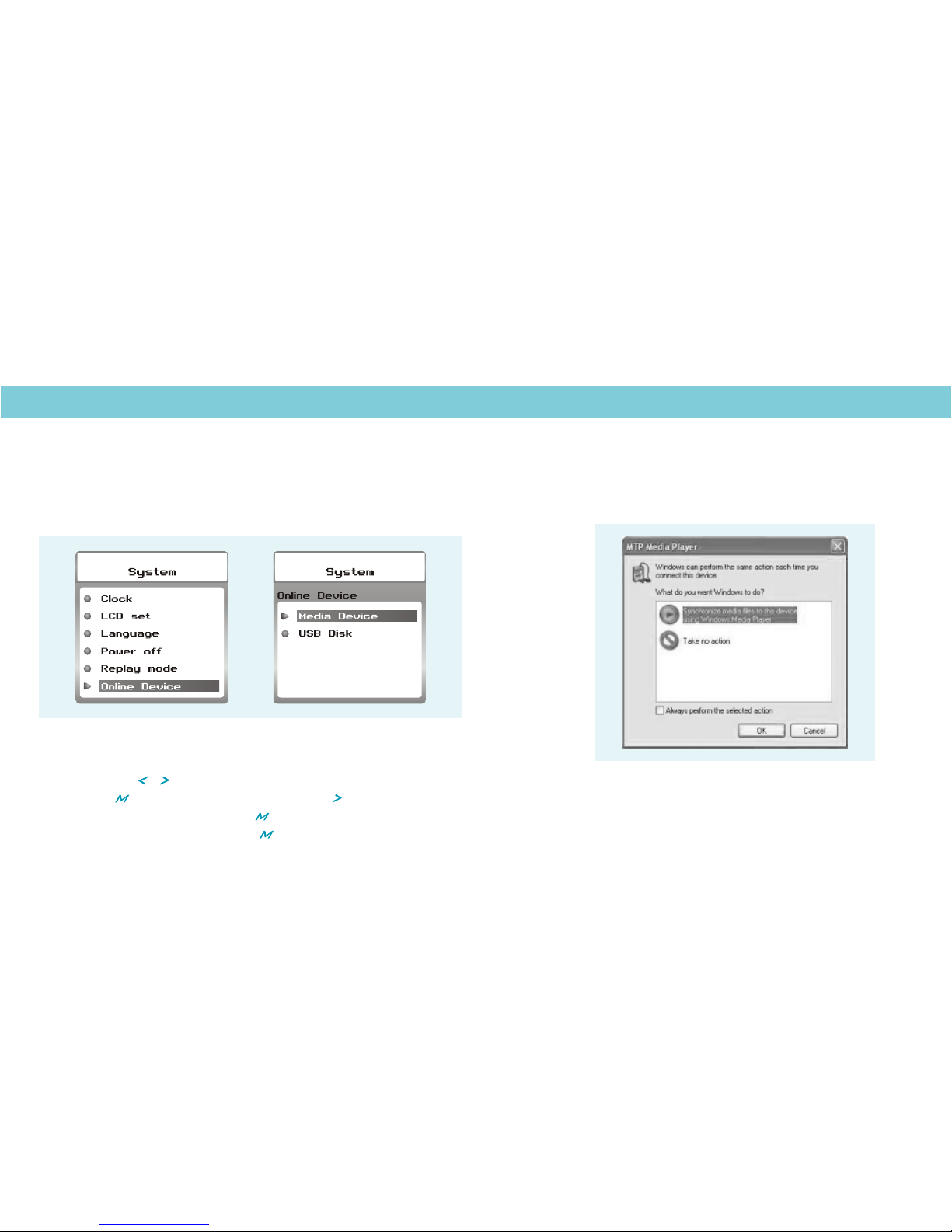

Step 1: Set the Online Device of the player as Media Device

before connecting it to your PC.

You can press / to select on the main menu,

then press to enter its sub-menu. Press to select

, and then press to enter its options list,

select , and press to confirm your setting.

Setup

Online Device

Media Device

Synchronize songs to the player

Step 3: Windows Media Player will find device automatically.

And after a while, a dialog box of will appear,

choose and click .

Device Setup

Manual Finish

Step 4: Windows Media Player will be operating.

Drag and drop your downloaded songs into its Sync List,

and press . Then the songs will be

synchronized to the player.

Start Sync

Synchronize songs to the player

Step 5: The synchronized music can be found in the player.

Click into on the desktop, and you can see

an Audio Device named as ,

click into it to view your synchronized songs.

My Computer

Actions Mtp Device 000001

Step 6: If you want to remove the MTP device,

you can press / to select on the main menu,

press to enter its sub-menu.

Press to select , press to confirm,

then you will see disappear.

Setup

Remove MTPinfo

Actions Mtp Device 000001

System

Online Mode

Memory info

Firmware version

Firmware upgrade

DRM Time

Remove MTPinfo

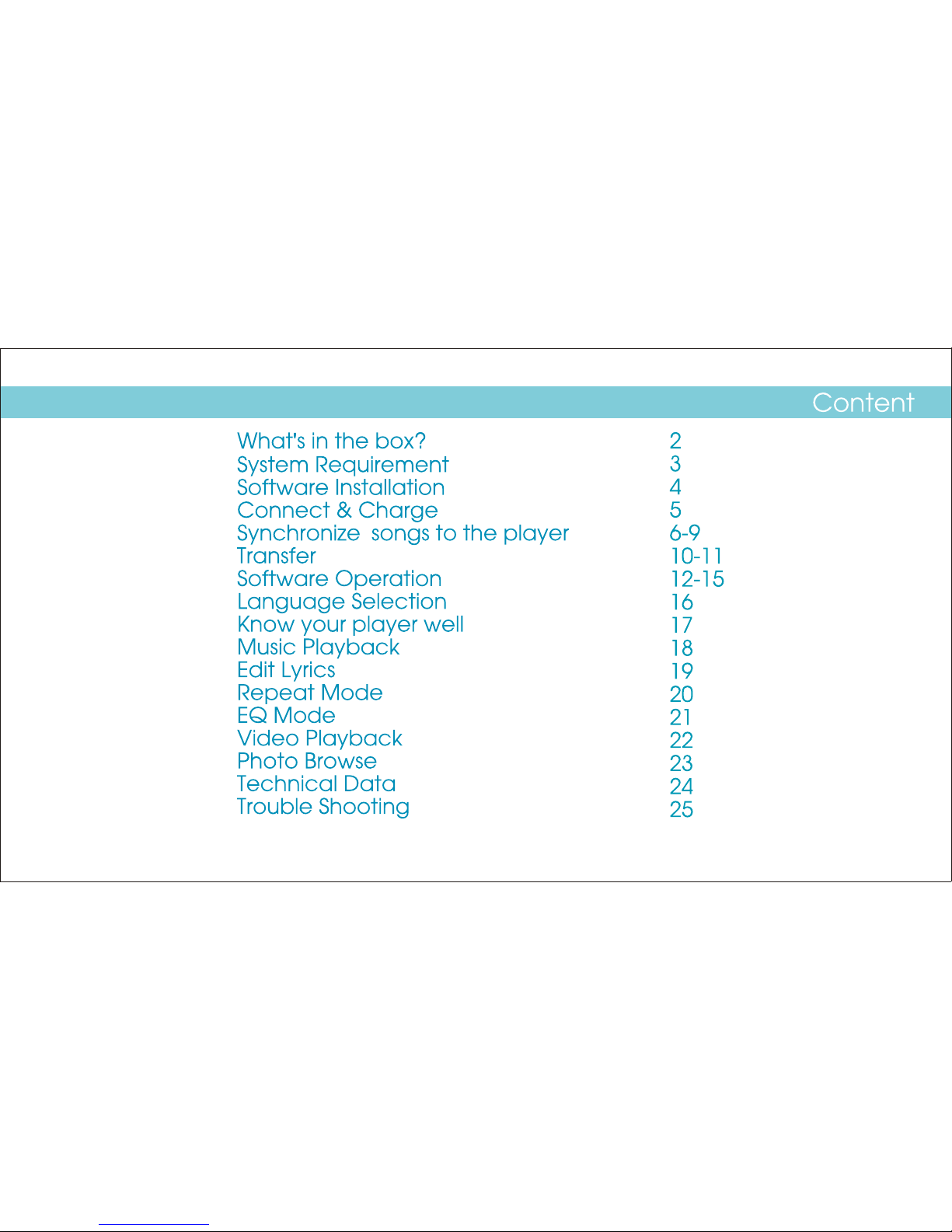

Table of contents
