INSTATRIKE

Installation Manual

Suzuki Volusia/Soulevard 800

C50

LimitedWarranty

TOW-PAC,INC. warrants to the first end user purchaser that this

product "lnstaTrike" when purchased will be free from defective

workmanship and materials, and agrees that it will, at its option,

either repairthe defect or replacethe defective Product for the period

of one year from date of original purchase.

This warranty does not apply to tires or to the appearance of any item

which has been damaged, defaced, been subjected to misuse, or

which has been altered or modified in design or construction.

Neither the sales personnel of the seller nor any other person is

authorized to make any warranties other than those described above

or to extent the duration of any warranties beyond the time period

described above on behalf of TOW-PAC, INC.

NOTICE OF LIMITED LIABILITY

Tow-Pac,Inc. warrants onlycomponents supplied by Tow-

Pac, Inc. Tow-Pac, Inc. cannot be responsible for any

components on owners motorcycle including frames,

hardware, aftermarket accessories, etc. Owner is solely

responsible for ensuring motorcycle is in sound mechanical

order. Tow-Pac, Inc cannot be responsible for any damage

due to improper installation of Tow-Paccomponents or use

of any hardware (bolts, nuts, etc) on Tow-Paccomponents

not supplied directly by Tow-Pac, Inc. Owner is solely

responsible for installation of Tow-Paccomponents.

Please refer to limitedwarranty for warranty details.

Notice

After your InstaTrikeis installed, take some time

to get used to IITrike"handling characteristics.

. On a Trike you willsteer rather than lean as you

would on a conventional two wheel motorcycle.

. Take corners very slowly untilyou get used to the

feel of cornering on a Trike.

. Remember to use your front brake in tandem with

your rear brake. This willgreatly increase your

stopping power when inTrike configuration.

. With InstaTrike installed remember the outrigger

wheels. Use caution not to run them into objects.

. Keep your feet up at all times.

Leveling stand screw jack installation

1) Thread right side screwjack into threaded leveling stand hole on

bracket B and adjust levelingjack bolt out.

2) Push motorcycle over from left side until right screwjack is

touching floor.

3) Install left side screw jack on bracket A and adjust out until

motorcycle will rest upright on both screw jacks.

4) Adjust screw jacks until motorcycle is level.

CAUTION -Use screw jacks to hold motorcycle upright and level

ONL~Do not lift motorcycle with screw jacks.

CAUTION-Usecare wheninstalling screwjacks. Be certain

that motorcycle is always in astable balancedposition.

Im~ortant Notices

. InstaTrike is designed for use on

paved surfaces only. Use of

InstaTrike on unpaved terrain may

void warranty.

. When installing trailerhitch attach

all bolts and brackets loosely. After

all bolts and brackets are in place

tighten all bolts.

. Use care when installing screw

jacks. Be certain that motorcycle is

always in astable balanced

position.

. Periodically check bolts for

tightness.

Installation Checklist

DReview entire installation manual

DInstall receiver hitch and double check all bolts

DAssemble InstaTrike hitch cart

DAttach InstaTrike to motorcycle via receiver hitch

DAttach leanstop brace bolts to receiver hitch

DAlign InstaTrike wheels

DDouble check all bolts for tightness

DTest ride InstaTrike slowly in an open area to

familiarize yourself with handling characteristics

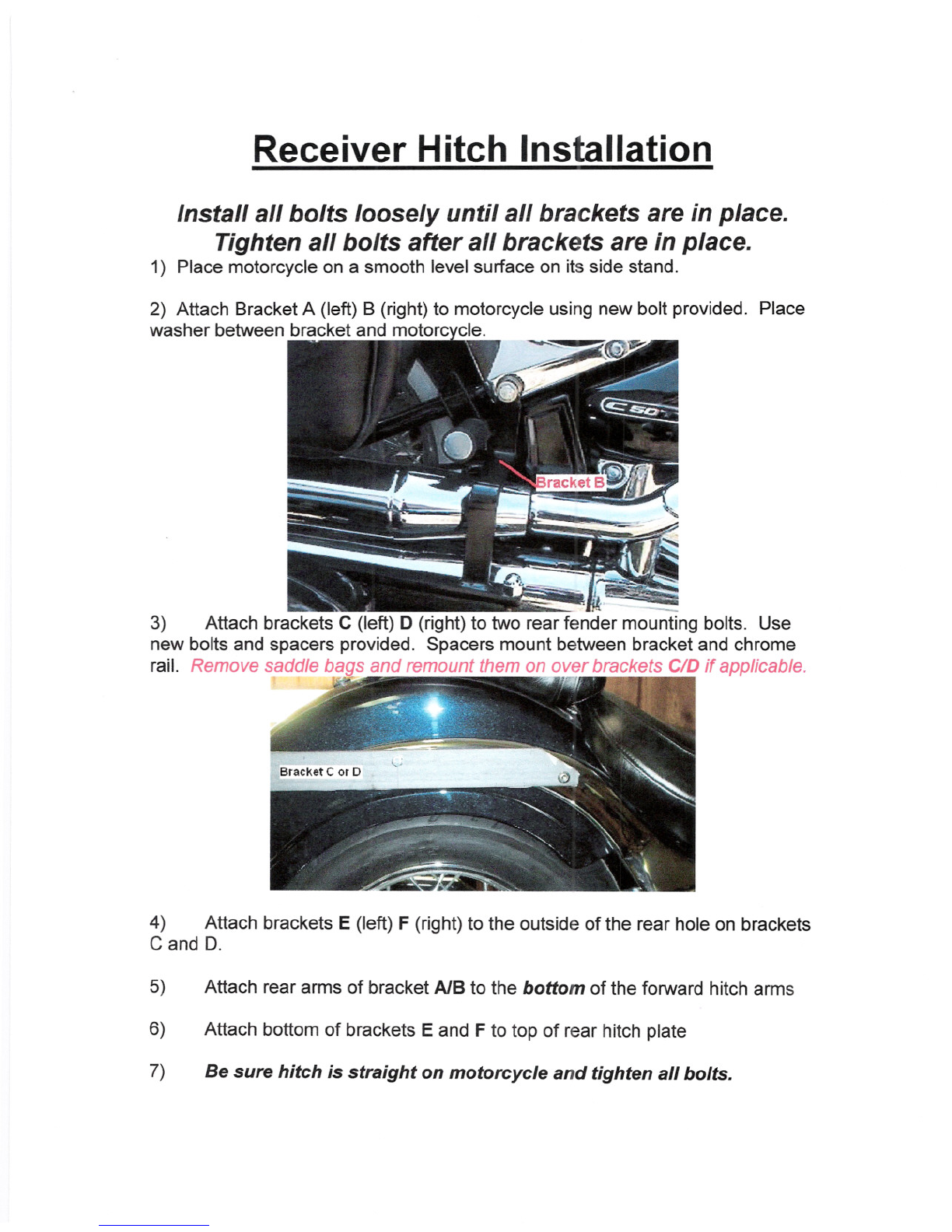

Receiver Hitch Installation

Install allbolts loosely until all brackets are in place.

Tighten all bolts after allbrackets are in place.

1) Place motorcycle on a smooth level surface on its side stand.

2) Attach Bracket A (left) B (right)to motorcycle using new bolt provided. Place

washer between bracket and motorcvcle.

3) Attach brackets C (left) D (right) to two rear fender mounting bolts. Use

new bolts and spacers provided. Spacers mount between bracket and chrome

rail. Remove saddle bags and remount them on over brackets C/Dif applicable.

.or. - -- -- ----

~.~

4) Attach brackets E (left) F (right) to the outside of the rear hole on brackets

C and D.

Attach rear arms of bracket AlB to the bottom of the forward hitch arms

Attach bottom of brackets E and F to top of rear hitch plate

7) Be sure hitch is straight on motorcycle and tighten all bolts.

INSTALLATIONOF THE TOW-PACHITCH CART.

1.Place your motorcycle on a smooth level surface and attach

levelingjack stands.

2.Assemble axles and wheels onto the tow-pac hitch cart.

3. Push the hitch mount into the receiver hitch. (this might be a

little difficult until you get use to doing it. Removing the paint

from the hitch mount and applying a little grease will help.)

4. Place the hitch pin through the receiver hitch and hitch mount

(alignmentplate). Install and tighten the tension bolt.

5. Align Insta Trike wheels. (initialinstallationonly. Checkperiodicallyand

realign if necessary)

6. Bolt leanstop braces to hitch. (Bolt inserts from the bottom) Be

certain to replace washers/spacers in the same configuration as

when you removed them.

7. Remove levelingjack stands.

8. Check all bolts for tightness.

9. You are now ready for the test ride.

A. Keep your feet up!

B. Ride slowly in fITstgear until you are comfortable with the

Tow-Pac system.

Leanstop Braces

. When installing InstaTrike, bolt leanstop brace to receiver hitch by

inserting bolt from bottom through the leanstop brace and

washers/spacers. Thread bolt into bracket on hitch and tighten.

. When removing InstaTrike reverse the above procedure.

. Adding or removingwashers/spacers between receiver hitch and

leanstop brace will allow you to level your motorcycle if necessary.

Insta Trike Frame

(cross section)

UP Receiver Hitch

(cross section)

Frame b~lt inserts

fromBOTTOM Hitch b~lt inserts

fromBOTTOM

Leanstop Brace

Leanstop brace is slotted to allow for proper alignment with bolt holes

NOTICE:

Be certain that hitch bolts are inserted from the BOTTOM

Status ITraction Adiuster

The status adjuster (right and left side) allows you to selectively adjust the

position of your InstaTrike wheels in order to customize ride, handling, level, and

traction characteristics. Your InstaTrike is shipped with the status adjuster

preset to an optimum position for your model of motorcycle however you can

make whatever adjustments necessary to customize to your personal

preference.

As a rule -

Shortening the status adjuster arm raises the InstaTrike wheels and places

more of the weight of your motorcycle on the motorcycle wheel. This increases

motorcycle traction and gives a generally softer ride.

Lengthening the status adjuster arm lowers the InstaTrike wheels and places

more of the weight of your motorcycle on the InstaTrike wheels. This gives a

firmer ride and increases handling/cornering.

To change status adjuster arm length -

1) Loosenjam nuts

2) Adjust arm length by loosening and turning flange nut C and/or hex nut D

3) After desired adjustment tighten nut C and D and jam nuts.

4) If necessary the pivot bolt and bolts A and B can be loosened for adjustment.

Be certain to retighten all bolts after adjustment.

NOTICE: Check all bolts and nuts periodically for tightness

NOTICE: Be sure motorcycle is level after adjustment.

Flange Nut C
