Supermicro BPN-SAS3-F424-A2N2A User manual
Rev. 1.0
BPN-SAS3-F424-A2N2A Backplane
USER'S GUIDE
ii
BPN-SAS3-F424-A2N2A Backplane User's Guide
Manual Revision 1.0
Release Date: October 5, 2017
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2017 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
iii
Preface
Table of Contents
Contacting Supermicro.......................................................................................iv
Returning Merchandise for Service.....................................................................v
Chapter 1 Safety Guidelines ....................................................................1-1
1-1 ESD Safety Guidelines ................................................................................... 1-1
1-2 General Safety Guidelines .............................................................................. 1-1
1-3 An Important Note to Users ............................................................................ 1-2
1-4 Introduction to the BPN-SAS3-F424-A2N2A Backplane................................. 1-2
Chapter 2 Connectors and Pin Denitions.............................................2-1
2-1 Front Connectors ............................................................................................ 2-1
2-2 FrontConnectorPinDenitions...................................................................... 2-2
2-3 FrontJumperLocationsandPinDenitions................................................... 2-3
2-4 Rear Connectors and LED Indicators............................................................. 2-5
iv
BPN-SAS3-F424-A2N2A Backplane User's Guide
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: [email protected] (General Information)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: [email protected] (General Information)
Asia-Pacic
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Tel: 886-2-8226-1900
v
Preface
Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required be-
fore any warranty service will be rendered. You can obtain service by calling your
vendor for a Returned Merchandise Authorization (RMA) number. When returning
to the manufacturer, the RMA number should be prominently displayed on the
outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and
handling charges will be applied for all orders that must be mailed when service
is complete.
For faster service, RMA authorizations may be requested online (http://www.super-
micro.com/support/rma/).
Whenever possible, repack the backplane in the original Supermicro box, using the
original packaging materials. If these are no longer available, be sure to pack the
backplane in an anti-static bag and inside the box. Make sure that there is enough
packaging material surrounding the backplane so that it does not become damaged
during shipping.
This warranty only covers normal consumer use and does not cover damages in-
curred in shipping or from failure due to the alteration, misuse, abuse or improper
maintenance of products.
Duringthewarrantyperiod,contactyourdistributorrstforanyproductproblems.
1-1
Chapter 1: Safety Guidelines
Chapter 1
Safety Guidelines
To avoid personal injury and property damage, carefully follow all the safety steps
listed below when accessing your system or handling the components.
1-1 ESD Safety Guidelines
Electrostatic Discharge (ESD) can damage electronic components. To prevent dam-
age to your system, it is important to handle it very carefully. The following measures
are generally sucient to protect your equipment from ESD.
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic
bag.
• Handle the backplane by its edges only; do not touch its components, peripheral
chips, memory modules, or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.
1-2 General Safety Guidelines
• Always disconnect power cables before installing or removing any components
from the computer, including the backplane.
• Disconnect the power cable before installing or removing any cables from the
backplane.
• Make sure that the backplane is securely and properly installed on the mother-
board to prevent damage to the system due to power shortage.
1-2
BPN-SAS3-F424-A2N2A Backplane User's Guide
1-3 An Important Note to Users
• All images and layouts shown in this user's guide are based upon the latest PCB
revision available at the time of publishing. The card you have received may or
may not look exactly the same as the graphics shown in this manual.
1-4 Introduction to the BPN-SAS3-F424-A2N2A
Backplane
The BPN-SAS3-F418-B6N4 backplane has been designed to utilize the most
up-to-date technology available, providing your system with reliable, high-quality
performance.
Always refer to the Supermicro Web site at www.supermicro.com for the latest
updates,compatibleparts,andsupportedcongurations.
2-1
Chapter 2: Connectors and Pin Denitions
Chapter 2
Connectors and Pin Denitions
2-1 Front Connectors

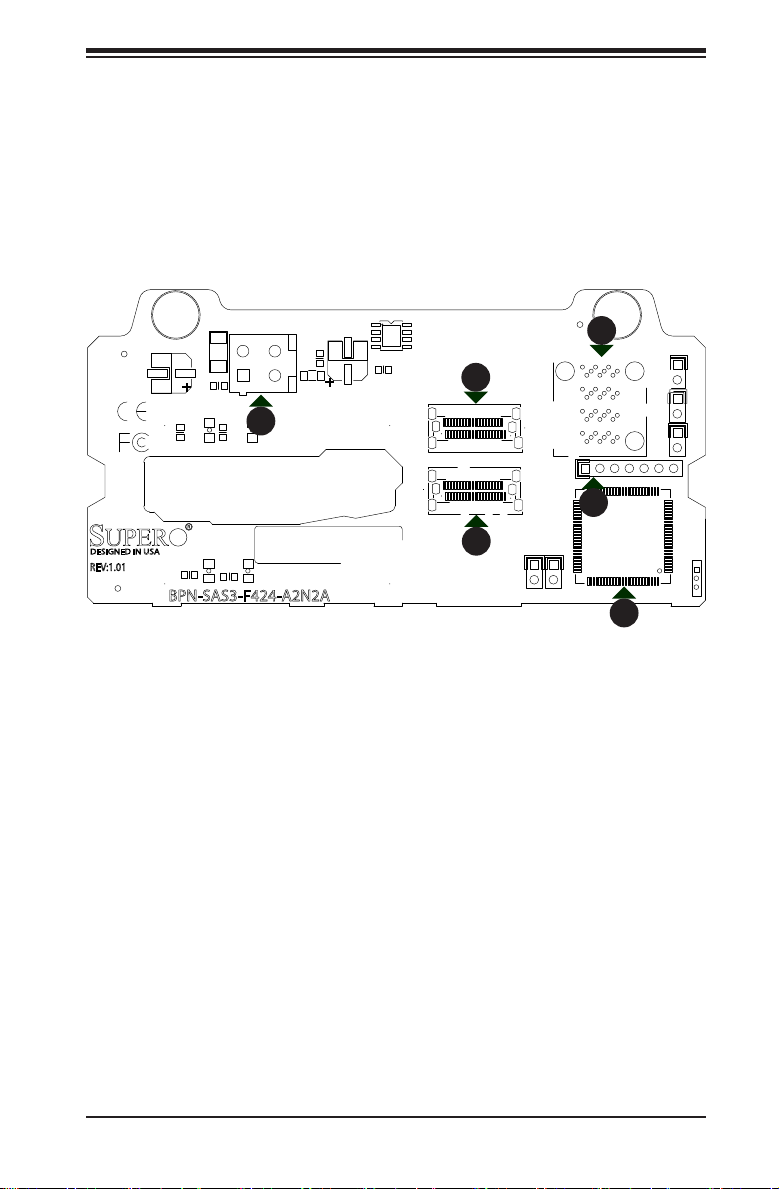

Figure 2-1. Front Connectors
4
1
3
6
5
2
1. Power Connector (4-pin) #1:
JPW1
2. SAS Mini HD Connector #0-#1:
JSM0
3. NVMe #1 Connector: CN1
4. NVMe #0 Connector: CN0
5. Chip: CPLD
6. JTAG Connector (7-pin): JP8,
CPLD Upgrade Port
2-2
BPN-SAS3-F424-A2N2A Backplane User's Guide
#1. Backplane Main Power Connector
The 4-pin connector, designated JPW1,
provides power to the backplane. See the
tableontherightforpindenitions.
2-2 Front Connector Pin Denitions
#3. - 4. NVMe Connectors
The NVMe ports are used to connect
the NVMe drive cables. OCuLink cables
should be used to connect these ports to
the corresponding ports on motherboard
X11DPFR-SN. The motherboard should
have its ports JNVME1 and JNVME2 con-
nected to the backplane's ports CN0 and
CN1, respectively.
#2. SAS Mini HD Connector
The SAS port is used to connect the SAS3
drive cables. The port is designated JSM0
for drives at SAS #0-#1 (see section 2-4
for SAS drive locations). The port is also
compatible with SATA drives. However,
mixing SAS3 and SATA drives in the same
enclosure is not recommended.
#5. CPLD Chip
The CPLD is an enclosure management
chip that supports the SGPIO and LED
management.
Backplane
Main Power
4-Pin Connector
Pin#Denition
1 and 2 Ground
3 +5V
4 +12V
#6. CPLD Upgrade Port
The JTAG connector, designated JP8, is
used only by the manufacturer to upgrade
CPLD.
2-3
Chapter 2: Connectors and Pin Denitions
2-3 Front Jumper Locations and Pin Denitions
J7

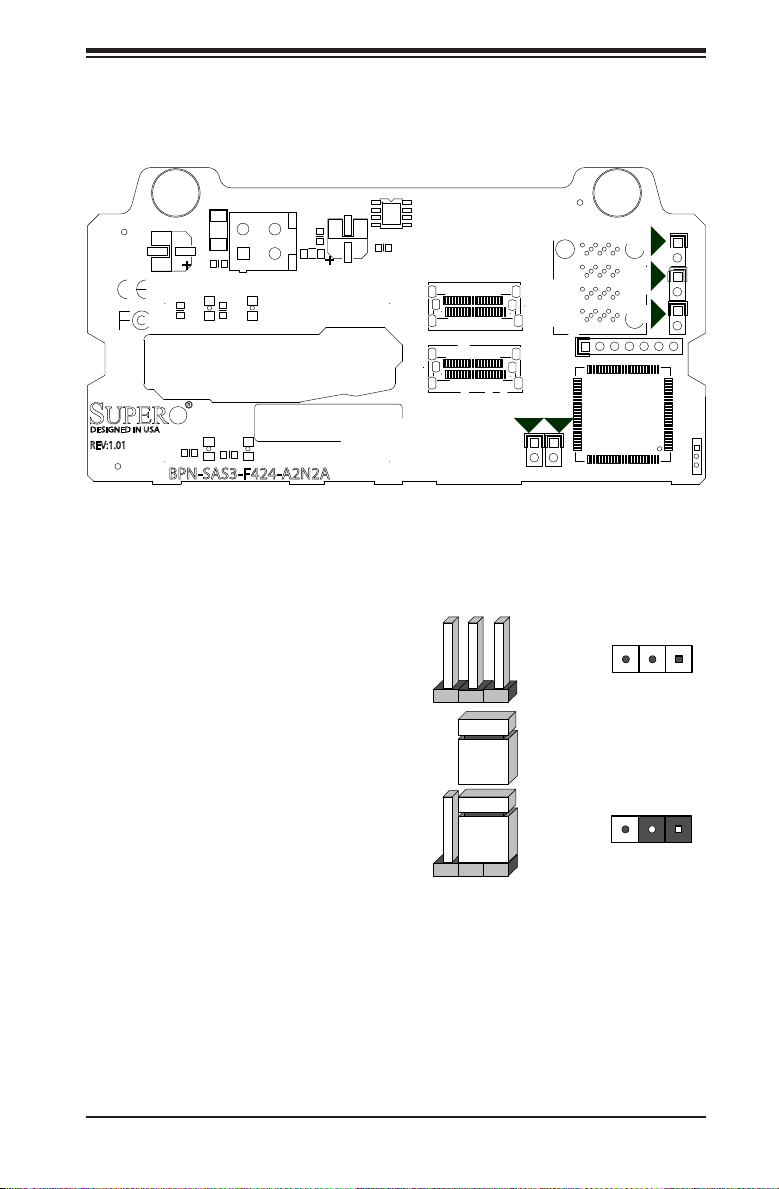

Figure 2-2. Front Jumpers
Explanation of Jumpers
To modify the operation of the backplane,
jumpers can be used to choose between
optional settings. Jumpers create shorts
between two pins to change the function
of the connector. Pin 1 is identied with
a square solder pad on the printed circuit
board.
Note: On two pin jumpers, "Closed" means
the jumper is on and "Open" means the
jumperisothepins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
J6
J3
J5J4
