SuperMax SMW 3200 GR User manual

MODEL: SMW 3200 GR

Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and

retain this information for future reference.

SERIAL NO.



1. Do not attempt to operate this oven with the door open since open door operation

can result in harmful exposure to microwave energy. It is important not to defeat or

tamper with the safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven

door close properly and that there is no damage to the

a. Door (bent),

b. Hinges and latches (broken or loosened),

c. Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except properly qualified

service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY ------------------------------------------------------------------------------------------- 1

IMPORTANT SAFETY INSTRUCTIONS -------------------------------------------------------- 2

SPECIFICATIONS* ------------------------------------------------------------------------------ 3

BEFORE YOU CALL FOR SERVICE ----------------------------------------------------------- 3

INSTALLATION------------------------------------------------------------------------------------ 3

GROUNDING INSTRUCTIONS ---------------------------------------------------------------- 4

RADIO INTERFERENCE------------------------------------------------------------------------- 4

MICROWAVE COOKING PRINCIPLES ------------------------------------------------------ 4

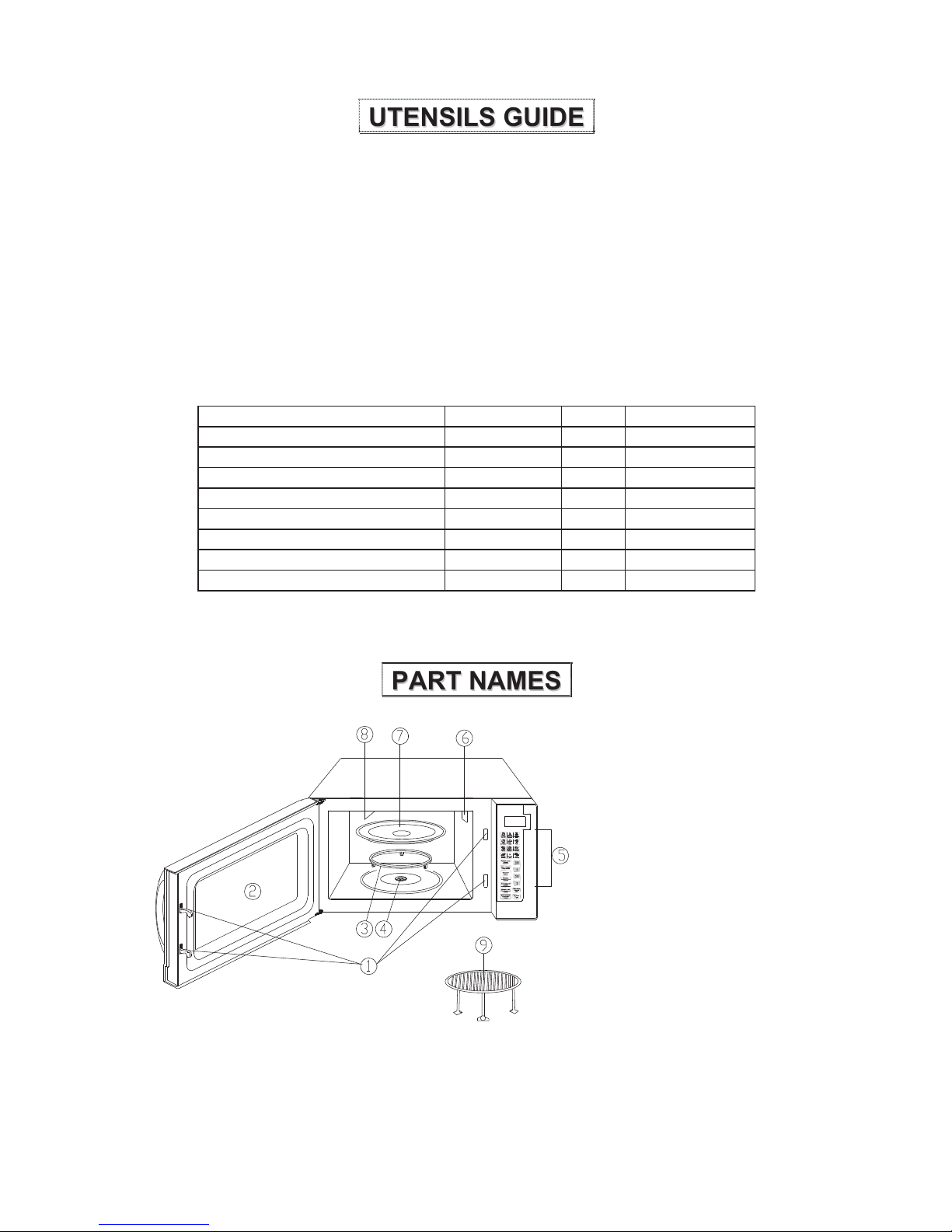

UTENSILS GUIDE--------------------------------------------------------------------------------- 5

PART NAMES------------------------------------------------------------------------------------- 5

CONTROL PANEL ------------------------------------------------------------------------------- 6

HOW TO SET THE OVEN CONTROLS ------------------------------------------------------- 7

Setting the clock --------------------------------------------------------------------------------------- 7

Microwave cooking ------------------------------------------------------------------------------------ 7

Grill cooking --------------------------------------------------------------------------------------------- 7

Combination cooking --------------------------------------------------------------------------------- 7

Auto Cook ----------------------------------------------------------------------------------------------- 8

Defrost by weight -------------------------------------------------------------------------------------- 8

Jet Defrost ----------------------------------------------------------------------------------------------- 8

Multi-stage Cooking ----------------------------------------------------------------------------------- 9

Delay start ----------------------------------------------------------------------------------------------- 9

Quick start ----------------------------------------------------------------------------------------------- 9

Child Lock ----------------------------------------------------------------------------------------------- 9

CLEANING AND CARE------------------------------------------------------------------------10

When using electrical appliance basic safety

precautions should be followed, including the

following:

WARNING: To reduce the risk of burns,

electric shock, fire, injury to persons or

exposure to excessive microwave energy:

1. Read all instructions before using the

appliance.

2. Use this appliance only for its intended

use as described in this manual. Do not

use corrosive chemicals or vapors in this

appliance. This type of oven is specifically

designed to heat, cook or dry food. It is not

designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a

damaged cord or plug, if it is not working

properly or if it has been damaged or

dropped. If the supply cord is damaged, it

must be replaced by the manufacturer or

its service agent or a similarly qualified

person in order to avoid a hazard.

5. Warning: When the appliance is operated

in the combination mode, children should

only use the oven under adult supervision

due to the temperatures generated.

6. WARNING: Only allow children to use the

oven without supervision when adequate

instructions have been given so that the

child is able to use the oven in a safe way

and understands the hazards of improper

use.

7. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper

container, keep an eye on the oven due to

the possibility of ignition.

b. Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

c. If smoke is observed, switch off or

unplug the appliance and keep the door

closed in order to stifle any flames.

d. Do not use the cavity for storage

purposes. Do not leave paper products,

cooking utensils or food in the cavity when

not in use.

8. WARNING: Liquid or other food must not

be heated in sealed containers since they

are liable to explode.

9. Microwave heating of beverage can result

in delayed eruptive boiling, therefore care

has to be taken when handling the

container.

10. Do not fry food in the oven. Hot oil can

damage oven parts and utensils and even

result in skin burns.

11. Eggs in their shell and whole hard-boiled

eggs should not be heated in microwave

ovens since they may explode even after

microwave heating has ended.

12. Pierce foods with heavy skins such as

potatoes, whole squashes, apples and

chestnuts before cooking.

13. The contents of feeding bottles and baby

jars should be stirred or shaken and the

temperature should be checked before

serving in order to avoid burns.

14. Cooking utensils may become hot

because of heat transferred from the

heated food. Potholders may be needed to

handle the utensil.

15. Utensils should be checked to ensure that

they are suitable for use in microwave

oven.

16. WARNING: It is hazardous for anyone

other than a trained person to carry out

any service or repair operation which

involves the removal of any cover which

gives protection against exposure to

microwave energy.

17. This product is a Group 2 Class B ISM

equipment. The definition of Group 2

which contains all ISM (Industrial,

Scientific and Medical) equipment in which

radio-frequency energy is intentionally

generated and/or used in the form of

electromagnetic radiation for the treatment

of material, and spark erosion equipment.

For Class B equipment is equipment

suitable for use in domestic

establishments and in establishments

directly connected to a low voltage power

supply network which supplies buildings

used for domestic purpose.

18. This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or



instruction concerning use of the appliance

by a person responsible for their safety.

19. Children should be supervised to ensure

that they do not play with the appliance.

Power Consumption 230V~50Hz, 1400W(Microwave)

1100W(Grill)

Rated Microwave Power Output 900W

Operation Frequency 2450MHz

Outside Dimensions 300mm(H)×539mm(W)×446mm(D)

Oven Cavity Dimensions 240mm(H)×354mm(W)×358mm(D)

Oven Capacity 30Litres

Cooking Uniformity Turntable System

Net Weight Approx.16.4kg

If the oven fails to operate:

1. Check to ensure that the oven is plugged

in securely. If it is not, remove the plug

from the outlet, wait 10 seconds, and plug

it in again securely.

2. Check for a blown circuit fuse or a tripped

main circuit breaker. If these seem to be

operating properly, test the outlet with

another appliance.

3. Check to ensure that the control panel is

programmed correctly and the timer is set.

4. Check to ensure that the door is securely

closed engaging the door safety lock

system. Otherwise, the microwave energy

will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE

SITUATION, THEN CONTACT A QUALIFIED

TECHNICIAN. DO NOT TRY TO ADJUST

OR REPAIR THE OVEN YOURSELF.

1. Make sure that all the packing materials

are removed from the inside of the door.

2. WARNING: Check the oven for any

damage, such as misaligned or bent door,

damaged door seals and sealing surface,

broken or loose door hinges and latches

and dents inside the cavity or on the door.

If there is any damage, do not operate the

oven and contact qualified service

personnel.

3. This microwave oven must be placed on a

flat, stable surface to hold its weight and

the heaviest food likely to be cooked in the

oven.

4. Do not place the oven where heat,

moisture, or high humidity are generated,

or near combustible materials.

5. For correct operation, the oven must have

sufficient airflow. Allow 20cm of space

above the oven, 10cm at back and 5cm at

both sides. Do not cover or block any

openings on the appliance. Do not remove

feet.

6. Do not operate the oven without glass tray,

roller support, and shaft in their proper

positions.

7. Make sure that the power supply cord is

undamaged and does not run under the

oven or over any hot or sharp surface.

8. The socket must be readily accessible so

that it can be easily unplugged in an

emergency.

9. Do not use the oven outdoors.



This appliance must be grounded. This oven

is equipped with a cord having a grounding

wire with a grounding plug. It must be plugged

into a wall receptacle that is properly installed

and grounded. In the event of an electrical

short circuit, grounding reduces risk of electric

shock by providing an escape wire for the

electric current. It is recommended that a

separate circuit serving only the oven be

provided. Using a high voltage is dangerous

and may result in a fire or other accident

causing oven damage.

WARNING Improper use of the grounding

plug can result in a risk of electric shock.

Note

1. If you have any questions about the

grounding or electrical instructions, consult

a qualified electrician or service person.

2. Neither the manufacturer nor the dealer

can accept any liability for damage to the

oven or personal injury resulting from

failure to observe the electrical connection

procedures.

The wires in this cable main are colored in

accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Operation of the microwave oven can cause

interference to your radio, TV, or similar

equipment.

When there is interference, it may be

reduced or eliminated by taking the following

measures:

1. Clean door and sealing surface of the

oven.

2. Reorient the receiving antenna of radio or

television.

3. Relocate the microwave oven with respect

to the receiver.

4. Move the microwave oven away from the

receiver.

5. Plug the microwave oven into a different

outlet so that microwave oven and receiver

are on different branch circuits.

1. Arrange food carefully. Place thickest areas

towards outside of dish.

2. Watch cooking time. Cook for the shortest

amount of time indicated and add more as

needed. Food severely overcooked can

smoke or ignite.

3. Cover foods while cooking. Covers prevent

spattering and help foods to cook evenly.

4. Turn foods over once during microwaving

to speed cooking of such foods as chicken

and hamburgers. Large items like roasts

must be turned over at least once.

5. Rearrange foods such as meatballs

halfway through cooking both from top to

bottom and from the center of the dish to

the outside.



1. The ideal material for a microwave utensil

is transparent to microwave, it allows

energy to pass through the container and

heat the food.

2. Microwave cannot penetrate metal, so

metal utensils or dishes with metallic trim

should not be used.

3. Do not use recycled paper products when

microwave cooking, as they may contain

small metal fragments which may cause

sparks and/or fires.

4. Round /oval dishes rather than

square/oblong ones are recommend, as

food in corners tends to overcook.

5. Narrow strips of aluminum foil may be

used to prevent overcooking of exposed

areas. But be careful don’t use too much

and keep a distance of 1 inch (2.54cm)

between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE MICROWAVE GRILL COMBINATION

Heat–Resistant Glass Yes Yes Yes

Non Heat–Resistant Glass No No No

Heat–Resistant Ceramics Yes Yes Yes

Microwave–Safe Plastic Dish Yes No No

Kitchen Paper Yes No No

Metal Tray No Yes No

Metal Rack No Yes No

Aluminum Foil & Foil Containers No Yes No

1. Door Safety Lock System

2. Oven Window

3. Roller Ring

4. Shaft

5. Control Panel

6. Wave Guide

7. Glass tray

8. Grill Heater

9. Metal Rack



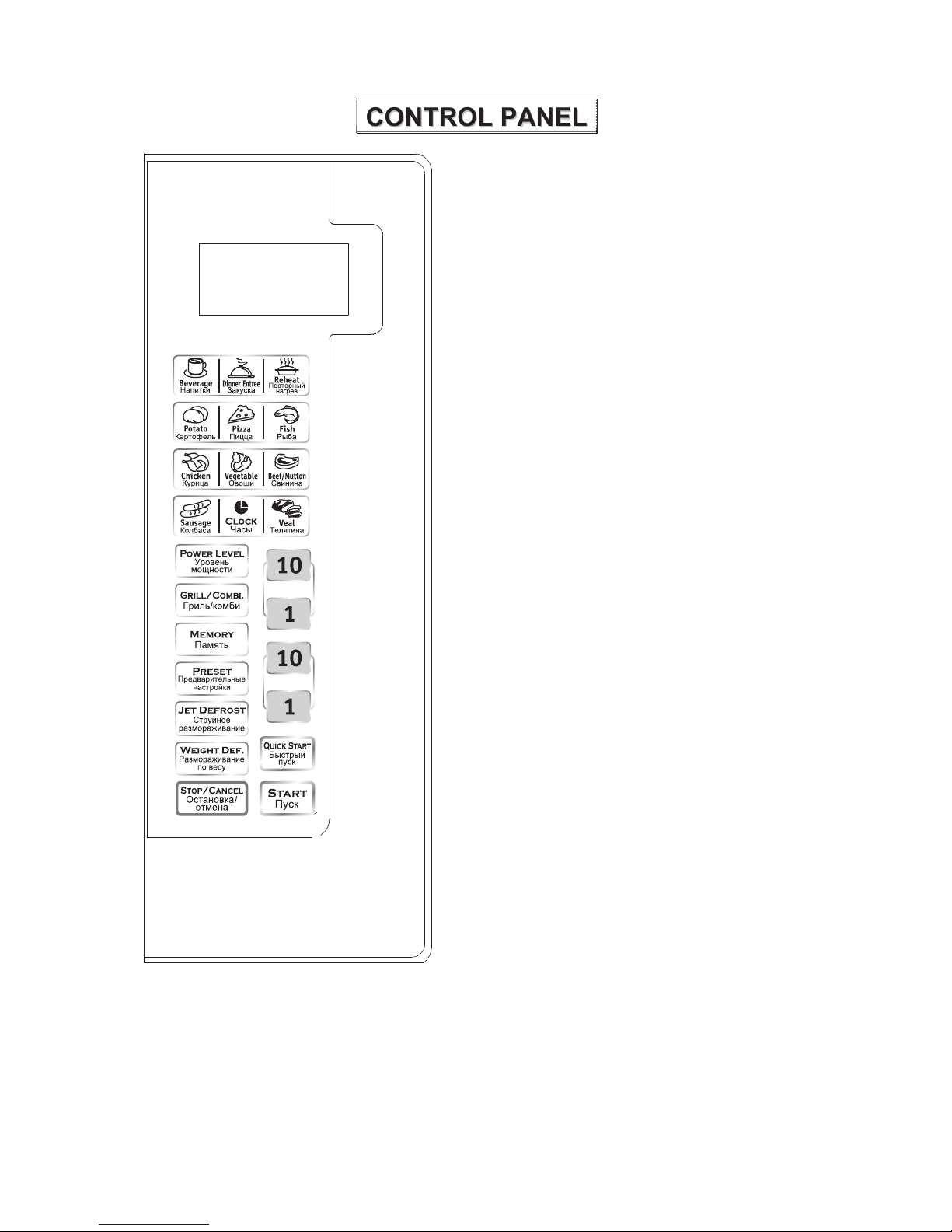

QMENU ACTION SCREEN

Cooking time, power, action indicators, and clock time

are displayed.

QQUICK COOK BUTTONS

Instant settings to cook popular foods.

QCLOCK

Touch to set the digital clock.

QPOWER LEVEL

Touch once or repeatedly to set microwave cooking

power.

QNUMBER PADS

10 Min. 1000g=10gh100 1 Min. 100g=1gh100

10Sec. 10g 1Sec. 1g

Touch to set clock, cooking time or enter food weight.

QGRILL/COMBI.

Press up to three times to choose a cooking mode.

QMEMORY

Used for setting a multistage cooking program.

QPRESET

Delay start control allows you to put food into the oven

and program it to start cooking at a later time.

QJET DEFROST

Quick defrost function that alternates defrost and stand

times to quickly and effectively defrost foods.

QWEIGHT DEFROST

Programmed defrosting based on the weight of the

foods to be defrosted.

QQUICK START

Touch to start the oven quickly at full microwave

power.

QSTOP/CANCEL

Touch to clear entry before setting a cooking program

Touch once to temporarily stop cooking or twice to

cancel cooking.

QSTART

Touch to start cooking.

Touch and hold to set child lock.





Each time a button is touched, a beep will

sound to acknowledge the touch.

SETTING THE CLOCK

To enter the digital clock time, touch the

CLOCK button once (or twice to set the clock

time in 24 hours cycle by some models) and

then press the number pads to set the time of

day.

For example: to set the time of 6: 35.

1. Touch CLOCK button, the screen shows

12 H.

2. Touch 1-MIN. button until the screen

shows 6:00

3. Touch 10-SEC button 3 times and then

touch 1-SEC button 5 times.

4. Touch CLOCK button again to confirm.

NOTE: You can check the clock time when

cooking is in progress by touching the CLOCK

button.

MICROWAVE COOKING

To cook with microwave, time and power level

should be set. The longest cooking time to be

set by touching the number pads is 99 min. 99

sec.

Suppose you want to cook for 5 minutes at

60% of microwave power.

1. Touch POWER LEVEL button to set 60%.

2. Touch 1-MIN. button to set cooking time.

3. Touch START button.

Note: during cooking, press POWER LEVEL to

show the cooking power level for 3 sec.

----------POWER LEVEL BUTTON----------

By pressing the power button a number of

times, you are selecting one of the following

microwave power levels:

Press Power Level Description

Once 100% of total High

Twice 80% M. High

Thrice 60% Medium

4 times 40% M. Low

5 times 20% Low

6 times 0% zero

GRILL COOKING

Grill cooking is particularly useful for thin slices

of meat, steaks, chops, kebabs, sausages of

piece of chicken. It is also suitable for hot

sandwiches and au gratin dishes.

Suppose you want to broil for 12 minutes.

1. Touch GRILL/COMBI. button once.

2. Touch 10-MIN. and 1-MIN.to set cooking

time.

3. Touch START button.

COMBINATION COOKING

Combination 1:

35% time for microwave cooking, 65% for grill

cooking. Recommended for fish, potatoes or au

gratin.

Combination 2:

55% time for microwave cooking, 45% for grill

cooking. Use for puddings omelets, baked

potatoes and poultry.

Suppose you want to set the oven to

COMBINATION cooking for 25 minutes.

1. Touch GRILL/COMBI. button twice or 3

times.

2. Touch 10-MIN. and 1-MIN. button to set

cooking time.

3. Touch START button.

AUTO COOK

For food or the following cooking mode, it is not necessary to program the duration and the cooking

power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this

food. In order to do this, press the individual icon pad of the food you are going to cook, the first of a

number of preset weight parameters will appear, choose the one that’s equivalent to the weight of food

you have placed into the oven. The oven begins cooking once the START button is engaged.

For example, to cook 400g of fish.

1. Press FISH button a number of times to select food weight.

2. Press START button.

Auto Cook Menu

Food Press to indicate weight of food

Beverage (250ml per cup)

Dinner entree (300~400g/amount)

Reheat (g)

Potato (g)

Pizza (g)

Fish (g)

Chicken (g)

Vegetable (g)

Beef/Mutton (g)

Sausage (g)

Weight parameters are used to determine the

time needed to do the job.

As you press the icon pads once or

repeatedly, a number of preset weight (for

beverage and dinner entree, number of

servings) parameters display, when it comes

up of the right figure which matches the weight

of the food you have placed into the oven,

push START button.

Please note:

For some food, at the middle of cooking time, you may need to open the door to check its doneness

and turn food over to obtain uniform cooking; but be careful to handle with care of very hot food in the

oven. To resume cooking, just close the door, the oven will cook for the remaining time.

DEFROST BY WEIGHT

The oven allows the defrosting of meat,

poultry, and seafood. The time and the

defrosting power are adjusted automatically

once the weight of food is programmed.

The maximum allowable weight for each

category is shown below.

FOOD

Popular Microwave Oven manuals by other brands

Daewoo

Daewoo KOG-574R0S Service manual

LG MH7040SS instruction manual

Sharp

Sharp R-895(AL)M Service manual

Dometic

Dometic DOTRM13W installation instructions

Sanyo

Sanyo EM-X680 instruction manual

Sharp

Sharp R-393M quick start guide

KitchenAid

KitchenAid KMCX4510 Use and care

Smeg

Smeg S45MCX1 Instructions for use

Russell Hobbs

Russell Hobbs RHM2044 user guide

Sunbeam

Sunbeam SMW759 owner's manual

Gallet

Gallet FMOE230S instruction manual

Bosch

Bosch CEG732X.1B User manual and installation instructions

Dometic

Dometic Roadmate 230 operating manual

Samsung

Samsung SJ0396W Owner's instructions

Sanyo

Sanyo EM-P494WS Supplement of service manual

Sharp

Sharp R-240 Operation manual

Electrolux

Electrolux EMS2840 user manual

Daewoo

Daewoo KOC-984T2S13 Service manual
