Super angel Juice Extractor User manual
Invented by Angel with 30 years of
experiences, SHGTM Technology to crush the
bers into ne particles for extracting the
nutrients hiding deep inside of ber cells.
Only way to get more juice from food is the
“Pressing”. Super Angel equipped MESTM
with LSCSTM technology, uses variant type
of pressing at multiple stage.

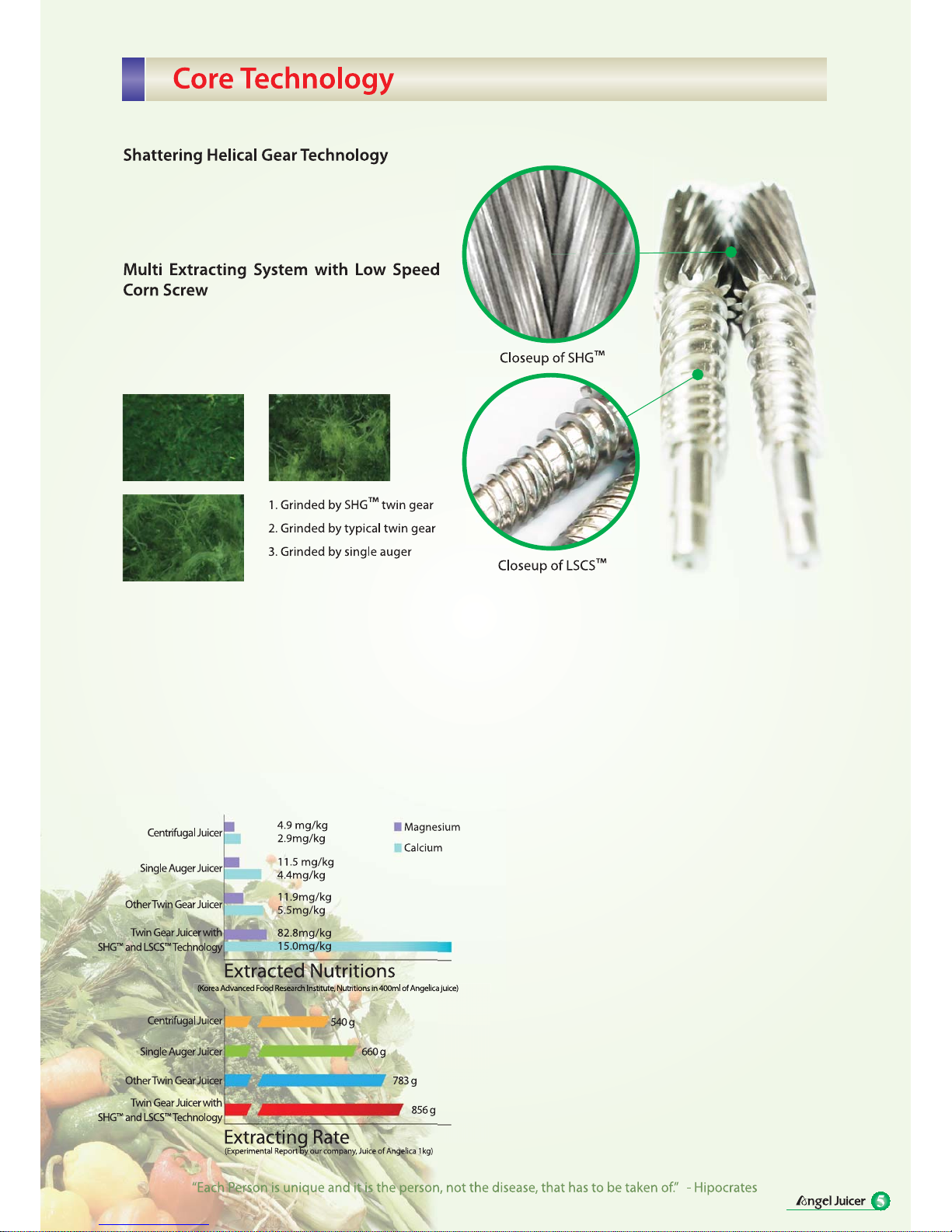

Fibers ground by SHGTM Technology
After grinding, you can easily check how the bers are nely ground. Simply put some pulps into the
cup of water and see the bers in the water.
As you see on above pictures,
(Photo # 1) SHGTM Technology of Super Angel Twin Gears can grind the bers evenly and break the ber
cells of produce, resulting the ne particles, extracting the nutrients hiding deep inside of ber cells.
(Photo # 2) Other brand twin gears are not capable to crush, break the ber cells of produces. No
nutrients extracted from the deep inside of ber cells.
(Photo # 3) Single auger juicer doesn't even grind the bers evenly. No nutrients extracted from the
deep inside of ber cells.
This test report was prepared by KAFRI(Korea
Advanced Food Research Institute) with a data of
nutrients extracted by each dierent type of
juicers. See the analysis report shown on the left
chart, the twin gears by Super Angel's SHGTM &
LSCSTM Technology can extract 82.8 mg/kg of
calcium and 15.0 mg/kg of magnesium from
Angelica(herb). From the same amount of
angelica, other twin gears extract only 11.9 mg/kg
of calcium and 5.5 mg/kg of magnesium. You can
simply compare on it, almost 3 to 7 times more
nourishing, nutritious juice and furthermore, about
20 to 30 percent more juice you can enjoy with the
Super Angel Juice Extractor. There is no alternative
to the Super Angel Juicer and you will denitely
count on it.
Comparison with other juice extractors
Ecient juice extraction: Stage one applies concentrated pressure to the fruits or vegetables.
Stage two and three grings and continuously processes the fruits or vegetables, producing very
dry pulp and more juice.
3-stage screen lters and maximizes juice production, yield resulting in two to three times the
amount of juice extracted compared to other juicers.
In addition to making juice, the Angel Juicer supports Soybean Juicing and the making Tofu,
Nut Butters and Frozen Fruit Sorbet
Six safety devices include: Automatic Heat Sensor, Dual Switch System, Internal Gear Protection,
Reinforcement of Switch Panel, Double Protection Sensor between the motor and the screen
housing, Electromagnetic Wave Protection.
Blockages from overload and jamming can easily be cleared with the reverse action switch.
Specially designed the motor cooling system helps prevent the motor from overheating and
helps keep the juicer as quiet as possible.
Juice Collector
The Super Angel is not a commercial juicer, strictly for house hold use. When using for
commercial purpose, the warranty is not provided and the warranty is automatically null and
void.
Note. 1. Please remember that the motor does not run when the extracting (screen)
housing is not assembled. In order to run the motor with the gear set, you
should assemble the screen housing and lock the clamps.
2. Please do not let the twin gears idle for extended periods of time without food
in the feeding chute. Rotating gears without food may cause irregular operation.
1. Connect the power cord into the power cord connector of motor base unit.
Plug the power cord into the electrical
wall outlet.
Place the Juice Collector under the
juice guide. Please be sure that the
round edge(mouth) of glass cup
should be placed between the juice
guide(slide panel) and the pulp drop
guide panel(vertical shape).
