EM4820 CAFE CREMA Issue: A Page 1 of 16

SERVICE MANUAL

EM4820

CAFE CREMA

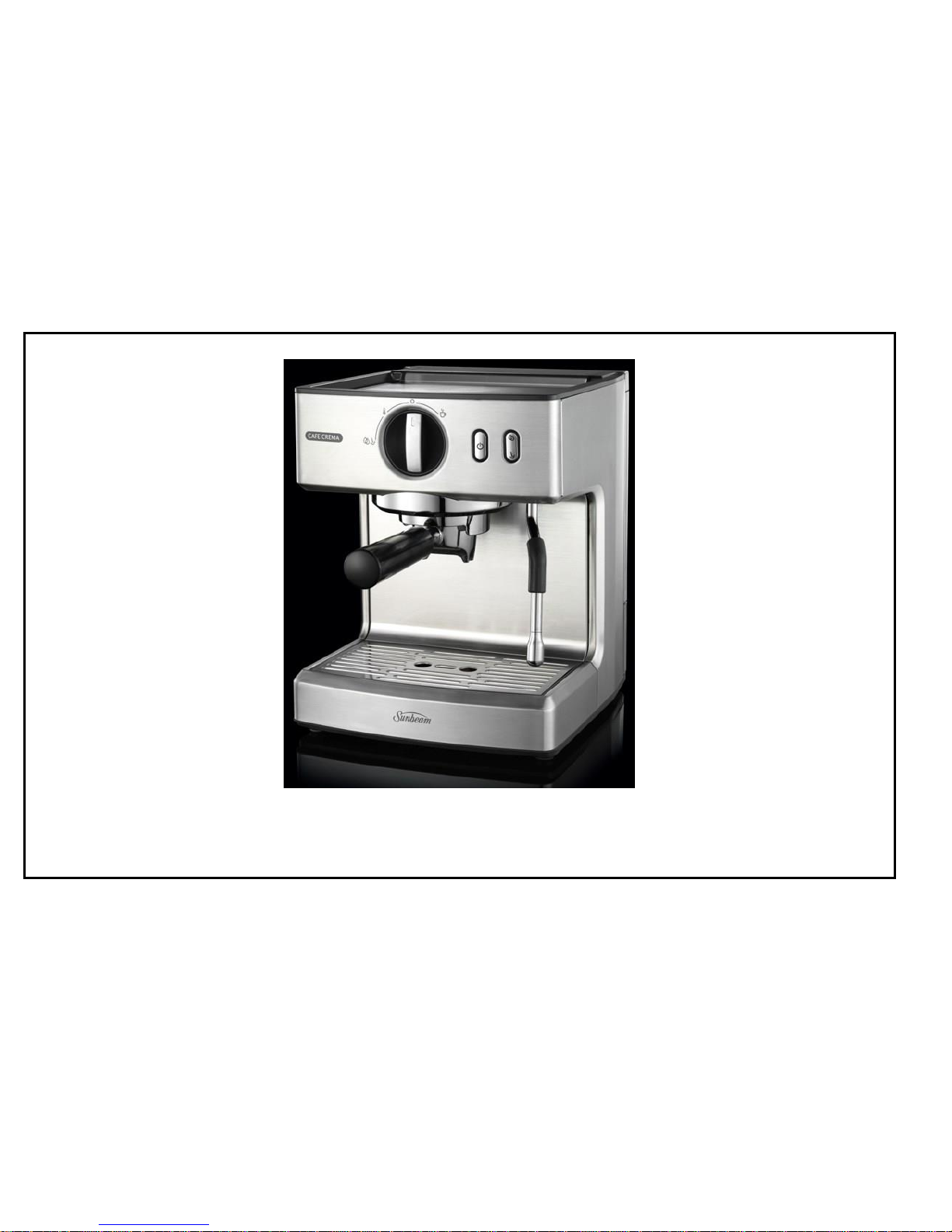

EM4820 CAFE CREMA Issue: A Page 2 of 16

ISSUE: A

DATE: 10 March 2011

EM4820 CAFE CREMA Issue: A Page 3 of 16

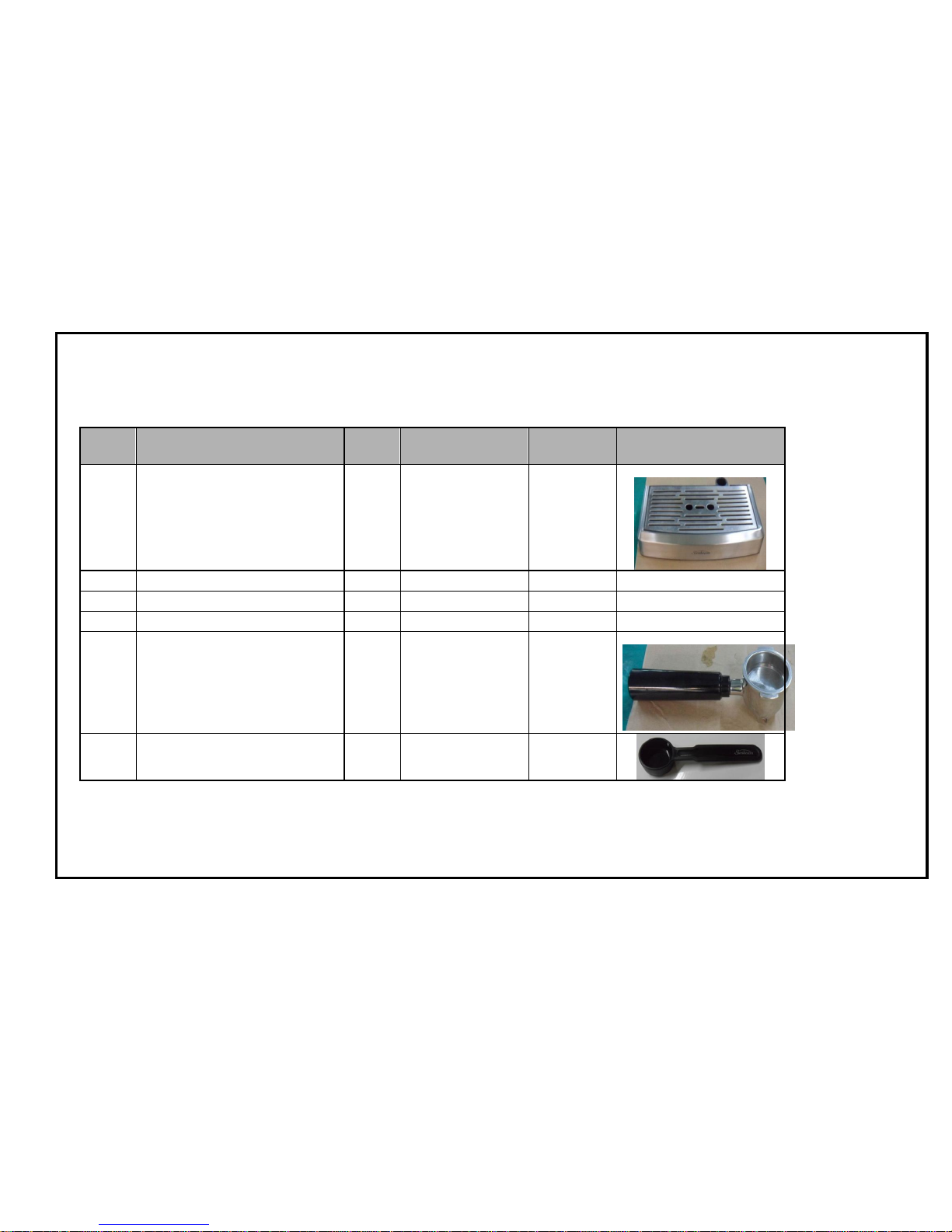

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

DRIP TRAY ASSEMBLY(comprising of)

Drip Tray Cover

Float Indicator

Drip Tray Baffle

Drip Tray Wrap

Drip Tray

C1837AS-06A

C1837AS-21A

C1837AS-20A

C1837AS-07A

C1837AS-22A

EM482010

POD Filter

381h5-12-n

Single Filter

381H2-12-A-2

Double Filter

38143-12-2

FILTER-HANDLE ASSEMBLY(comprising

of)

Filter Spring

Handle Insert

Handle Head

Screw

Handle

381hh-14-2-n

C1837AS-27A

C1837AS-42A

33000-16-3*8-1C-N

C1837AS-26A

EM482011

Tamp & Spoon

141h7-14-6-N

EM482012

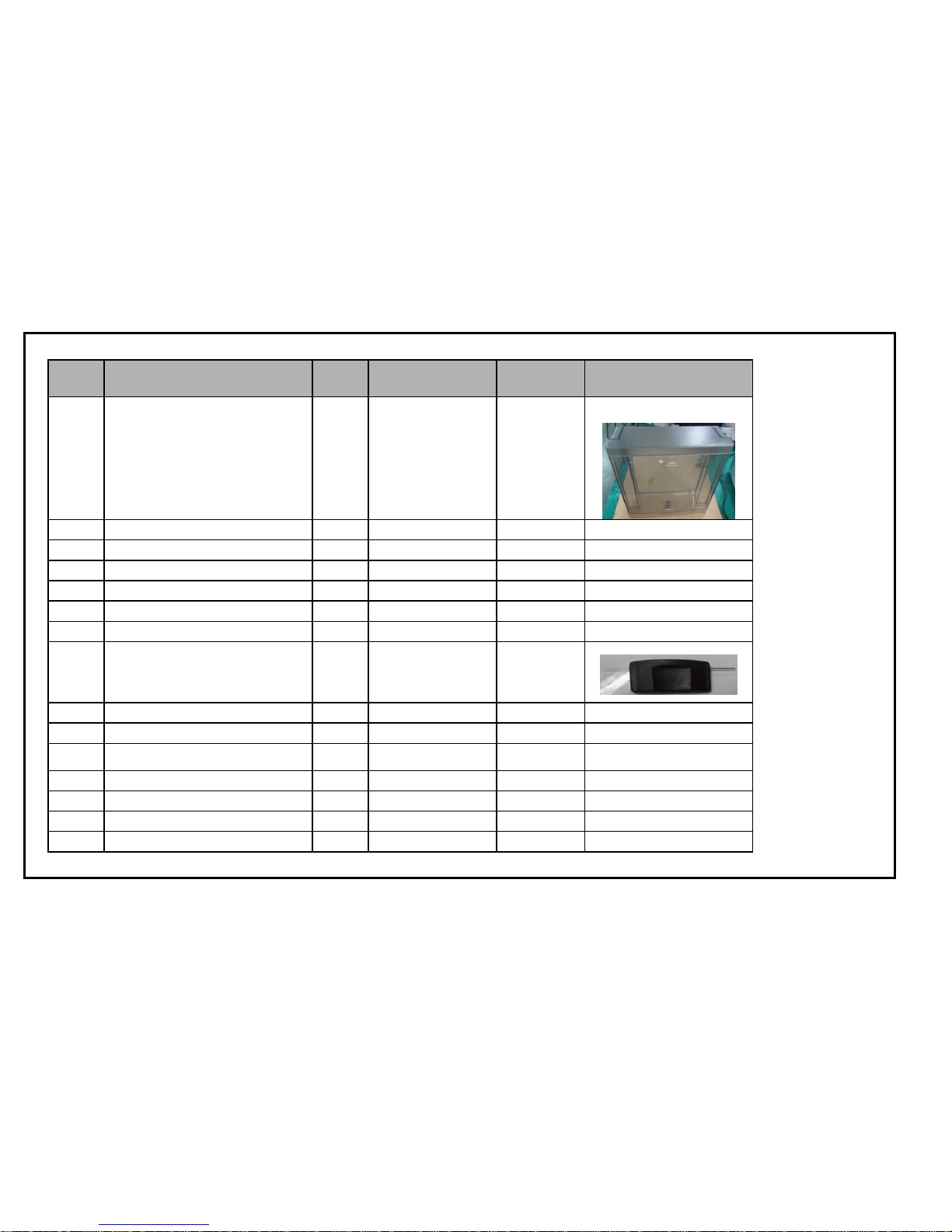

EM4820 CAFE CREMA Issue: A Page 4 of 16

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

WATER TANK ASSEMBLY(comprising of)

Water Tank Lid

Water Tank

Screw

Stopper O-Ring

Stopper Spring

Stopper

C1837AS-17A

C1837AS-16A

33000-64-3*8-4-N

C1837AS-58A

38143-01-h-n

C1837AS-39A

EM482013

Rear Cover

C1837AS-18A

Screw

33000-44-3*8-N

Base Cover

C1837AS-37A

Left Panel

C1837AS-01A

Screw

33000-64-3*6-4-N

Right Panel

C1837AS-02A

CLEANING PIN (comprising of)

Cleaning Tool

Steam Pin

151 Pin

C1837AS-66A

381pl-30-n

381hh-13-n

EM482014

Screw

33000-55-3*12-N

Wire Clip

12112-06-2

Power Cord

40000-110BPG-

ASFOF

End Wire terminal

36000-14-CE21

Power lid

C1837AS-24A

Screw

33000-44-3*10-1-N

Silicone Tube

51000-03-n

EM4820 CAFE CREMA Issue: A Page 5 of 16

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

Silicone Tube

51000-03-5-9

Silicone Tube

51000-03-5-9

Cable Tie

19107-18-H-N

Top Cover

C1837AS-09A

Spring Washer

35000-04-1C-N

Screw

33000-44-3*10-N

Button Front Casing

C1837AS-33A

Thermoblock

C1837AS-15A

Power Button

C1837AS-35A

Steam/Hot Water Button

C1837AS-34A

Button Rear Casing

C1837AS-32A

Screw

33000-44-3*6-N

Control Panel

C1837AS-03A

Screw

33000-44-4*6-N

Dial Surround

C1837AS-30A

Dial Blade

C1837AS-61A

Dial Insert

C1837AS-28A

General Terminals

36000-04-CON

Silicone Cap

51303-05-N

Heating Element

271HI-01-D-N

Water Tube

C1837AS-59A

Thermostat

20000-01-120S-2

thermostat

20000-01-175S-2

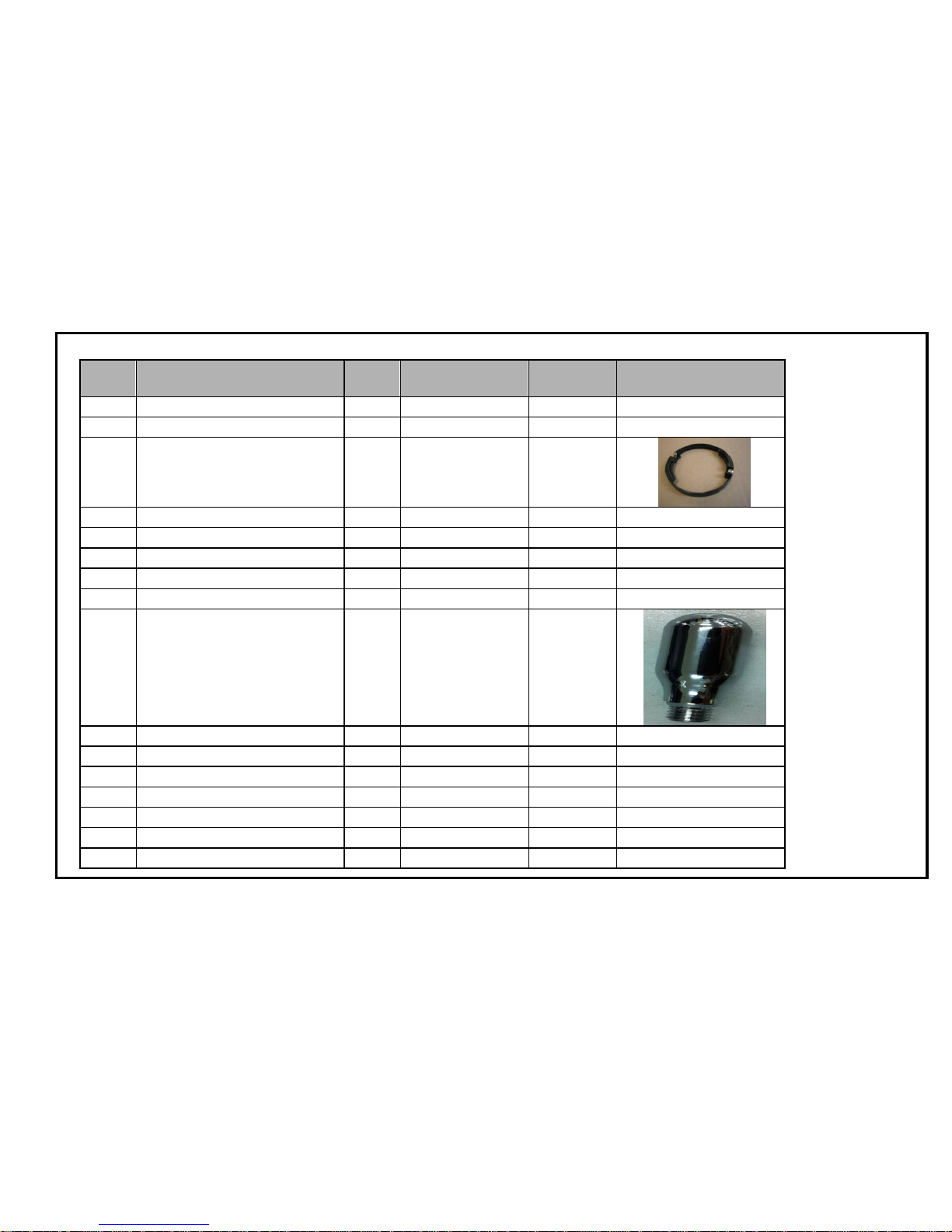

EM4820 CAFE CREMA Issue: A Page 6 of 16

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

730 Wire Clip

38326-05-M1-N

Screw

33000-44-4*10-N

Screw

33000-44-3.5*18-N

Embedded Connector

C1837AS-67A

Rear Valve Housing

C1837AS-65A

Directional Valve Silicone

C1837AS-50A

Ceramic Plate A

C1837AS-48A

Ceramic Plate B

C1837AS-49A

Switch Seat

C1837AS-64A

Micro Switch

24000-

SC799V1661AN

Front Valve Housing

C1837AS-63A

Directional Shaft

C1837AS-62A

Spring

38HC-08-2-N

Touch Cap

151K6-01-B-N

Shower Head

C1837AS-11A

Silicone Seal

C1837AS-55A

EM482015

Shower

C1837AS-57A

Screw

33000-139-4*12-N

Buffer Tank Cover

12143-15-2

Buffer Tank

12143-14-2

Button Rear Casing

111H2-08N-2-E

EM4820 CAFE CREMA Issue: A Page 7 of 16

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

PCB Plate

251HI-02A-SAA-N

Holder

C1837AS-04A

83 +48

Collar Plus Surround Ring with screws

C1837AS-25A

EM482017

Collar Plus Surround

C1837AS-10A

Washer

35000-0308-4090C-n

Screw

33000-16-4*22-N

Interior Cover B

C1837AS-05A

Connecting Tube

151HH-12-GR

Steamer

C1837AS-43A

EM482016

Steamer Spacer

C1837AS-40A

Steamer Support

C1837AS-08A

Screw

33000-44-3*15-N

Interior Cover A

C1837AS-19A

Base

C1837AS-23A

Base Plate

C1837AS-14A

Screw

33000-68-4*12-N

EM4820 CAFE CREMA Issue: A Page 8 of 16

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

Welding Nut

34000-0540-9850ACN

Drain Connector

C1837AS-41A

Rubber Feet

511H2-04-n

100

Washer

35000-0308-30A1C

101

Water Valve Seal

C1837AS-56A

102

Water Valve

C1837AS-38A

103

Pump Connector

C1837AS-53A

104

O-Ring

511h2-03d-b-n

105

Holder

31143-03-N

106

Rivet

32209-09-2-N

107

Shockproof Plate B

52P01-01-2B-N

108

Pump

28000-11-

EP5FMTUV5

109

Temperature Switch Holder

38143-18-N

110

Temperature Switch

E802-068012A

111

Shockproof Plate B

52P01-01-2B-2-H-N

112

Grounding Label

62000-09-6-n

113

Milk Jug

381H2-5023-I-H

114

Power Cord Elbow

523Q1-02-B-N

115

Steamer Handle

C1837AS-52A

116

Embeded Connector

C1837AS-54A

117

Screw

33000-14-3*8-N

118

Screw

33000-55-3*10-N

119

Screw

33000-44-4*16-N

EM4820 CAFE CREMA Issue: A Page 9 of 16

Item

Description

No. of

Parts

Supplier’s Code

Sunbeam

Part No.

120

Plumbing Ass 2#

A1837AS-02A

121

Screw

33000-64-3*12-N

122

Screw

33000-44-3*12-N

123

Button PCB Ass

251H2-01A-SAA-N

124

Mylar Sheet

C1837-70A
