SULZER Pump Solutions Ireland Ltd.
Wexford, Ireland
XJ 900 HD
Sn 00008000
Pn 90 kW
3 ~ 50Hz
U 400V
n 2970 rpm
Weight 1100 kg
Hmax 200m
75m
25/2018
I 155A
Amb.max 40
C
Class F IP68
SO 0002001
Cos
ϕ
0.88
IEC60034-30 IE3

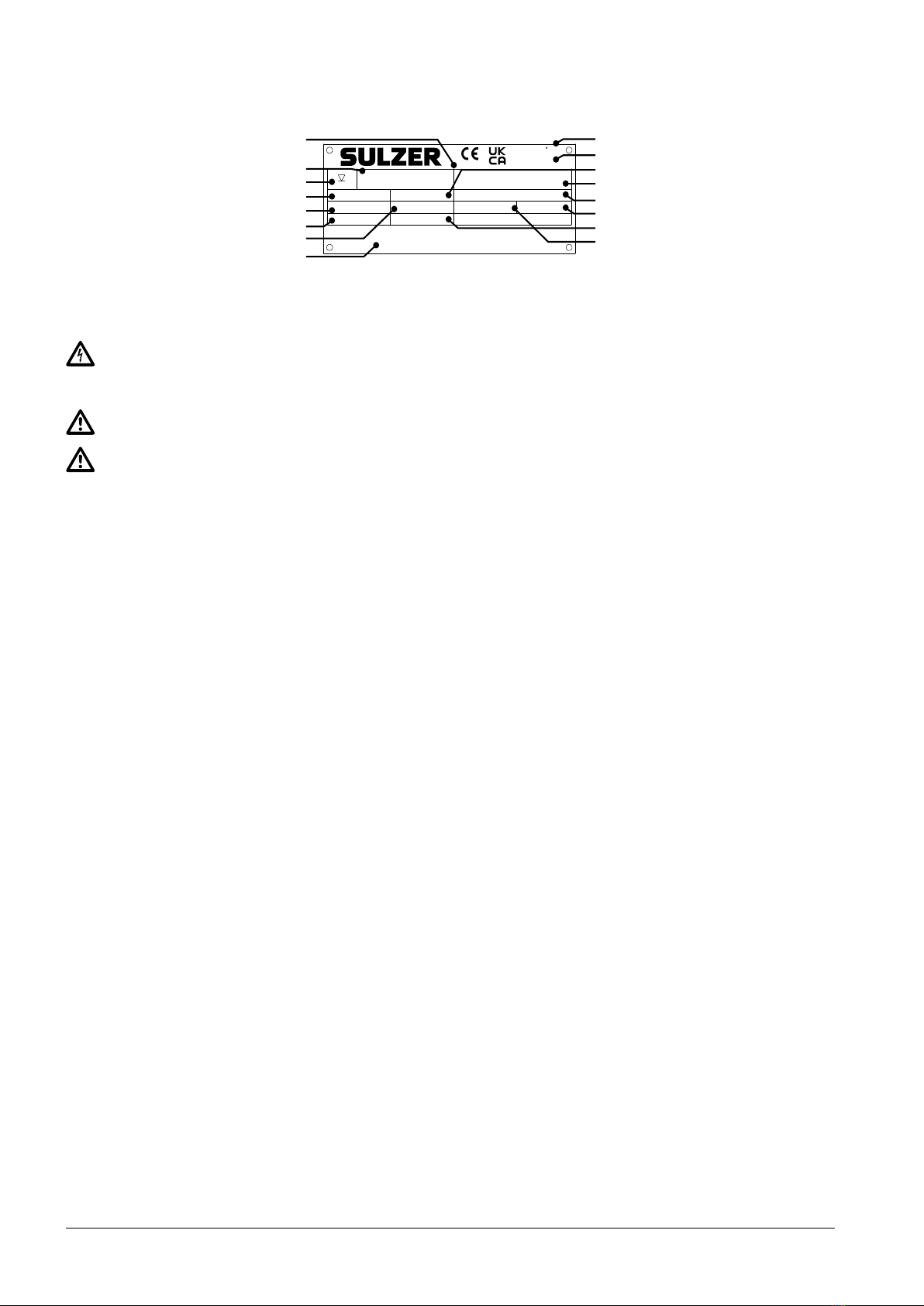

Example of rating plate
Year of manufacture
Type designation
Immersion depth
Rated power
Voltage
Rated current
Cos ȹ
Manufacturer, address
Ambient temperature
Degree of protection
Frequency
Serial number
Eciency class
Delivery head
Speed of rotation
Weight (without cable)
Applications
These starting and operating instructions are applicable to the electric submersible pump specified on the cover. The pumps are intended
for pumping water that may contain abrasive particles. Pumps can be used partly or fully submersed.
DANGER! The pump must not be used in explosive or flammable environments or for pumping flammable liquids.
The pumps conform to the EU machine directive. See rating plate. The manufacturer guarantees that a new pump will not emit airborne
noise in excess of 70 dB(A) during normal operation, when either fully or partially submerged.
CAUTION! The pump must not be run if it has been partially dismantled.
CAUTION! Earth leakage detector (RCD Residual-current device) is recommended to be used when a person can
come in contact with either the pump or the pumped media.
Special regulations apply for permanent installation of pumps in swimming pools.
Product description
Limitations: Immersion depth: up to 80 m / 260 ft. Liquid temperature: up to 40 °C / 104 °F.
Motor: 3-phase AC squirrel-cage induction motor for 50 Hz or 60 Hz.
Motor protection: For motor protection, the thermal limiters in the motor shall be fitted to an external motor protection. Temperature
limiter (bimetallic) in winding = 140 °C / 284 °F (PT 100 can be delivered on special customer order).
Monitoring: For monitoring, motors are equipped with DI-electrodes monitoring ingress of moisture in oil chamber, motor housing and
connection chamber. PT100s can be fitted to bearings to add an extra level of protection to the motor.
Electric cable: H07RN8-F, NSSHOEU, SOOW or equivalent cable. If the cable is longer than 50 m, the voltage drop must be taken into
account. Note that the pumps can be supplied with different cables and for different connection methods.
Lifting and transport
ATTENTION! Observe the total weight of the Sulzer units and their attached components
(see nameplate for weight of base unit).
The duplicate nameplate provided must always be located and visible close to where the unit is installed (e.g. at the terminal boxes /
control panel where the cables are connected).
NOTE! Lifting equipment must be used if the total unit weight and attached accessories exceeds local manual
lifting safety regulations.
The total weight of the unit and accessories must be observed when specifying the safe working load of any lifting equipment! The
lifting equipment, e.g. crane and chains, must have adequate lifting capacity. The hoist must be adequately dimensioned for the total
weight of the Sulzer units (including lifting chains or steel ropes, and all accessories which may be attached). The end user assumes
sole responsibility that lifting equipment is certied, in good condition, and inspected regularly by a competent person at intervals in
accordance with local regulations. Worn or damaged lifting equipment must not be used and must be properly disposed of. Lifting
equipment must also comply with the local safety rules and regulations.
NOTE! The guidelines for the safe use of chains, ropes and shackles supplied by Sulzer are outlined in the Lifting Equipment
manual provided with the items and must be fully adhered to.
The manufacturer reserves the right to change the design and specifications.
