Sukkah Depot CLASSIC User manual

1.855.SUKK AH-1

1-855-785-5241

SUKKAHDEPOT.COM

PARTS LIST

12’X20’

• RODS

4 X CORNER VERTICAL RODS

2 X TRIPLE CONNECTING RODS

2 X CONNECTING RODS

12 X 6’ HORIZONTAL RODS

11 X 10’ FOLDING RODS

1 X 12’ FOLDING RODS

The rods are packed in 3 boxes

• FABRIC

• 16 BAMBOO HOLDERS

• RUBBER MALLET (optional)

EZ LOCK SUKKAH INSTRUCTIONS

CLASSIC / ROYAL / PREMIUM

7’ TALL 7. 5 ’ TA L L 8’ TALL

STEP 1: ASSEMBLY OF THE SUKKAH FRAME

GENERAL INSTRUCTIONS

In this instruction booklet we recommend a method for constructing the Sukkah that we think is

the easiest, fastest and most convenient. However, you can use any other method that achieves the

desired result.

When planning the placement of the Sukkah, please take into consideration that it is recommended

to place the door on the right side of the long wall.

To avoid any damage to the metal frames, we recommend using a rubber mallet to connect the rods.

HORIZONTAL ROD

Mehadrin strip not included

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD

HORIZONTAL ROD

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD

Every vertical rod is is divided into two unequal parts, long and short. Make sure when

assembling the sukkah that the shorter part of the vertical rod the is at the bottom.

1. Connect the connecting rods

between two shorter horizontal

rods lying on the ground.

2. Connect the Triple connecting

rods between two longer

horizontal rods lying on the

ground.

Connect the triple connecting rods

between two shorter horizontal rods

lying on the ground. (see diagram).

Attach the upper horizontal rods,

plus the upper middle horizontal

rod.

Congratulations!

You have ﬁnished constructing the frame of the Sukkah. For instructions

on attaching the fabric and laying the Schach please see back page.

Connect the middle horizontal rods on

three sides. Do not attach a horizontal

rod in the middle of the longer wall

where the door will be located.

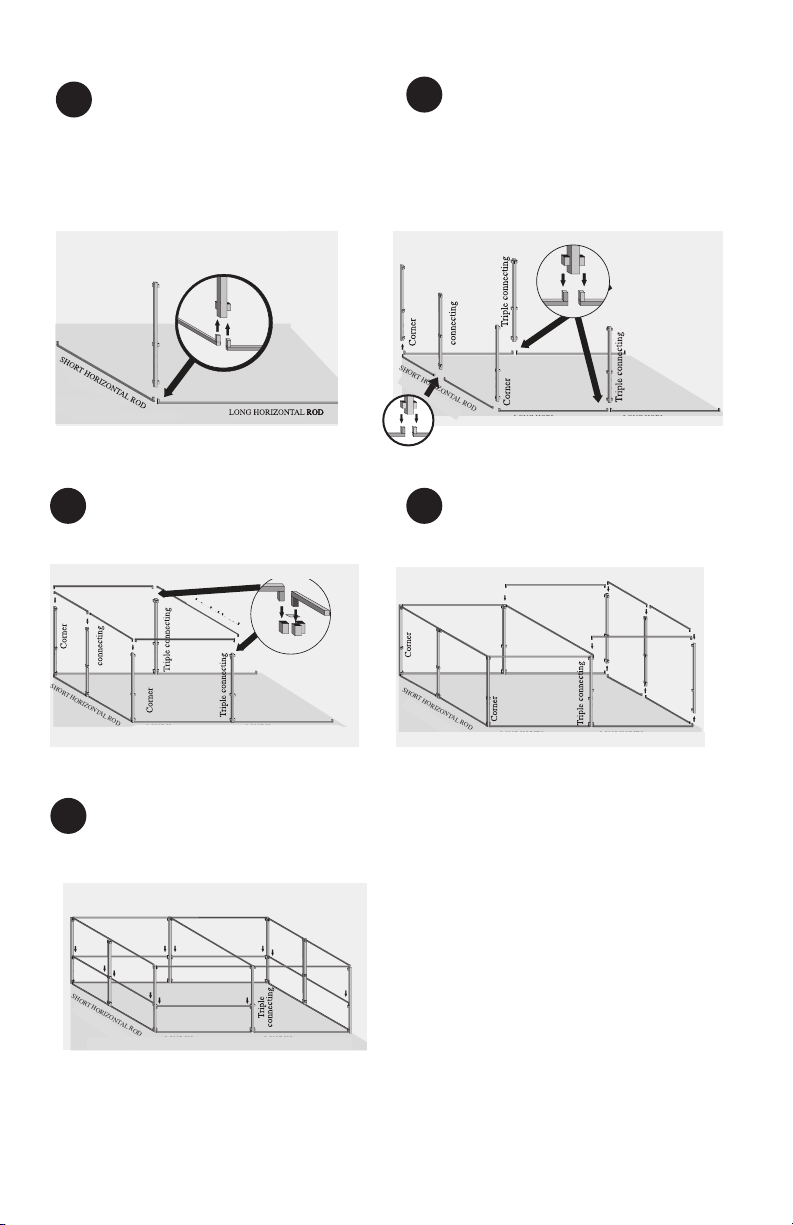

1. Start assembly at any corner.

2. Place the horizontal rods on the

ground in the right place with the

pin facing upwards (see diagram).

3. Connect the corner rod to the

horizontal rod on the ground.

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD

10’ folding

6’ rod

10’ folding long horizontal rod 10’ folding long horizontal rod

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD LONG HORIZONTAL ROD

10’ folding long horizontal rod 10’ folding long horizontal rod

Recommended

place for door

12’ folding rod

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD LONG HORIZONTAL ROD

Recommended

place for door

12’ folding rod

10’ folding long horizontal rod 10’ folding long horizontal rod

6’ rod

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD LONG HORIZONTAL ROD

Recommended

place for door

10’ folding long horizontal rod 10’ folding long horizontal rod

6’ rod

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD LONG HORIZONTAL ROD

6’ rod

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD LONG HORIZONTAL ROD

STEP 3. LAYING THE SCHACH

STEP 2. ATTACHING THE FABRIC

OVERLAP

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD

OVERLAP

Congratulations! You have completed assembly of

the Sukkah. We wish you a Chag Sukkot Sameach!

OVERLAP

SHORT HORIZONTAL ROD

LONG HORIZONTAL ROD

OVERLAP

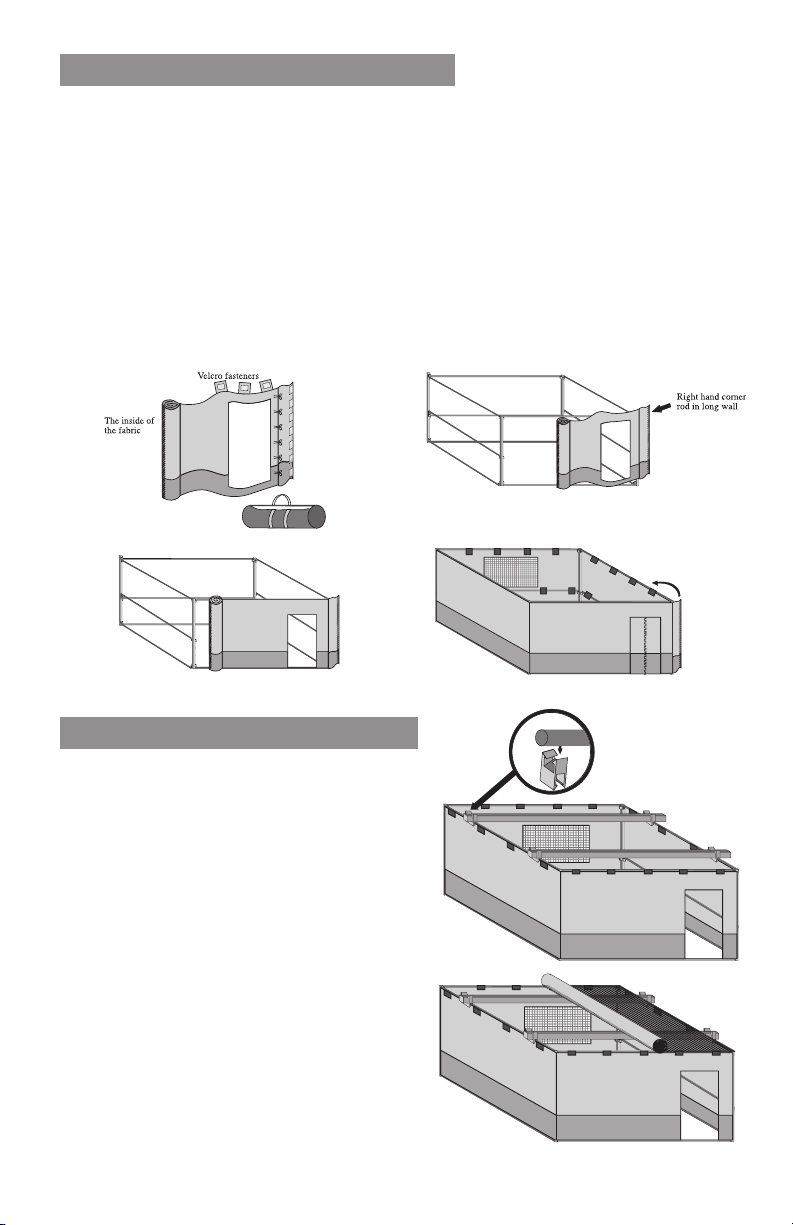

1. Unpack the fabric. For your convenience we recommend spreading it on a clean surface.

2. Find the door and position it as shown in diagram 1. Spread around the Sukkah. Please ensure that the

bright part is on top and the dark part is on the bottom.

3. Use the strings to attach the beginning (the door) of the fabric to the right corner of the long wall.

(Diagram 2)

4. Start wrapping the frame with the fabric (Diagram 3).

To attach the fabric use the upper Velcro fasteners ﬁrst.

5. Finish wrapping the fabric around the Sukkah. Fasten the over lap (Diagram 4).

6. Fasten the lower Velcro fasteners, including those at the bottom of the door.

7. Fasten the middle Velcro fasteners.

1. Please make sure to ﬁnish

constructing the Sukkah before

laying the Schach. (Obligatory

according to Halacha)

2. Lay the bamboo sticks to support

the Schach.

In order to stabilize the bamboo

sticks use the bamboo holders.

(Diagram 5)

3. Spread the Schach by unrolling it

on the bamboo sticks. (Diagram 6)

Sukkah Depot is not responsible to supply

bamboo sticks to support the schach if

not ordered.

Diagram 5

Diagram 1

Diagram 2

Diagram 3 Diagram 4

Diagram 6
